C3E-12.000-10-2030-X-R|12MHz|10pF|AKER无源晶振

频率：12MHZ

尺寸：3.2mm×2.5mm

C3E-12.000-10-2030-X-R|12MHz|10pF|AKER无源晶振,台湾晶振,AKER晶振,C3E无源晶振,石英晶体谐振器,C3E-12.000-10-2030-X-R晶振,3225mm晶振,SMD晶体,四脚贴片晶振,频率12MHz,负载10pF,工作温度-40~85°C,频率稳定性30ppm,紧凑薄晶振,高可靠性晶振,无铅环保晶振,智能手机晶振,个人电脑外围设备晶振,无线路由器晶振,调制解调器晶振.

咨询热线：0755-27872782

TH-1 890

C3E-12.000-10-2030-X-R|12MHz|10pF|AKER无源晶振,台湾晶振,AKER晶振,C3E无源晶振,石英晶体谐振器,C3E-12.000-10-2030-X-R晶振,3225mm晶振,SMD晶体,四脚贴片晶振,频率12MHz,负载10pF,工作温度-40~85°C,频率稳定性30ppm,紧凑薄晶振,高可靠性晶振,无铅环保晶振,智能手机晶振,个人电脑外围设备晶振,无线路由器晶振,调制解调器晶振.

C3E-12.000-10-2030-X-R|12MHz|10pF|AKER无源晶振特点：

-微处理器晶体单元

-低姿态

-3.2×2.5mm表面安装- 4 Pad

-产品通用规格

TH-2 890

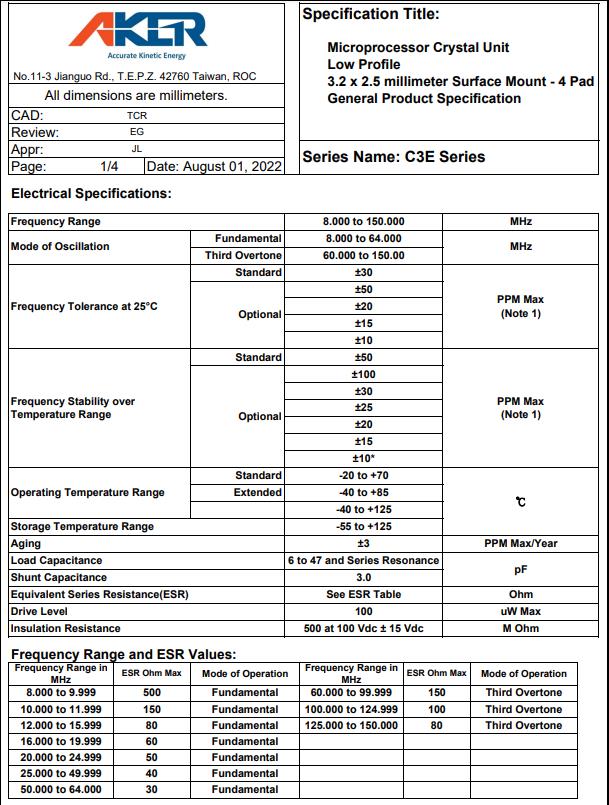

C3E-12.000-10-2030-X-R|12MHz|10pF|AKER无源晶振规格表

Frequency Range		12	MHz
Mode of Oscillation	Fundamental	8.000 to 64.000	MHz
	Third Overtone	60.000 to 150.000	MHz
Frequency Tolerance at 25°C	Standard	±30	PPM Max (Note 1)
	Optional	±50
		±20
		±15
		±10
Frequency Stability over Temperature Range	Standard	±50	PPM Max (Note 1)
	Optional	±100
		±30
		±25
		±20
		±15
Operating Temperature Range	Standard	-20 to +70	°C
	Extended	-40 to +85

		-40 to +125
Storage Temperature Range		-55 to +125
Aging		±3	PPM Max/Year
Load Capacitance		10	pF
Shunt Capacitance		3.0
Equivalent Series Resistance(ESR)		80	Ohm
Drive Level		100	uW Max
Insulation Resistance		500 at 100 Vdc± 15Vdc	M Ohm

TH-3 890

C3E-12.000-10-2030-X-R|12MHz|10pF|AKER无源晶振尺寸图
