C7S-40.000-16-3050-X-R|40MHz|16pF|AKER进口晶振

频率：40MHZ

尺寸：7.0mm×5.0mm

C7S-40.000-16-3050-X-R|40MHz|16pF|AKER进口晶振,AKER进口晶振,台湾晶振,C7S石英晶振,C7S-40.000-16-3050-X-R晶振,7050mm晶振,无源晶振,四脚贴片晶振,SMD晶振,频率40MHz,负载16pF,工作温度-40~85°C,频率稳定性50ppm,耐高温晶振,高精度晶振,高品质晶振,个人电脑外围设备晶振,无线局域网晶振,微处理器时钟晶振,GPS导航设备晶振.

咨询热线：0755-27872782

TH-1 890

C7S-40.000-16-3050-X-R|40MHz|16pF|AKER进口晶振,AKER进口晶振,台湾晶振,C7S石英晶振,C7S-40.000-16-3050-X-R晶振,7050mm晶振,无源晶振,四脚贴片晶振,SMD晶振,频率40MHz,负载16pF,工作温度-40~85°C,频率稳定性50ppm,耐高温晶振,高精度晶振,高品质晶振,个人电脑外围设备晶振,无线局域网晶振,微处理器时钟晶振,GPS导航设备晶振.

C7S-40.000-16-3050-X-R|40MHz|16pF|AKER进口晶振特点：

-微处理器晶体单元

-低姿态

-7.0×5.0mm表面安装- 4 Pad

-产品通用规格

TH-2 890

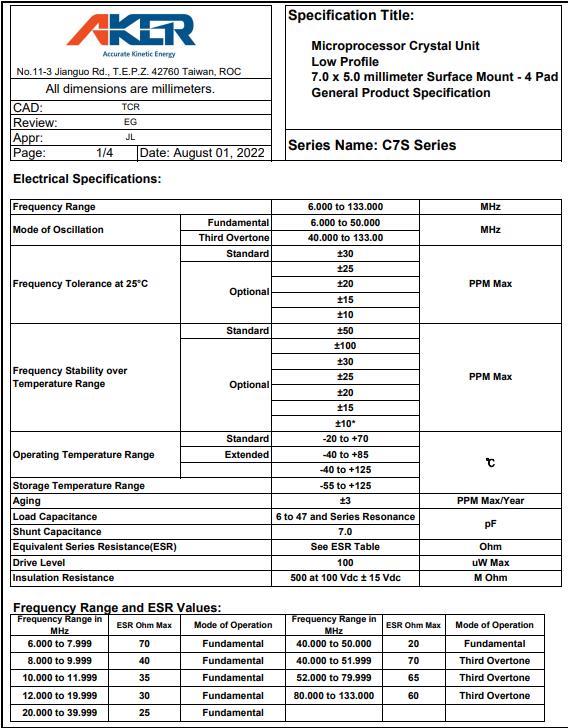

C7S-40.000-16-3050-X-R|40MHz|16pF|AKER进口晶振规格表

Frequency Range		40	MHz
Mode of Oscillation	Fundamental	6.000 to 50.000	MHz
	Third Overtone	40.000 to 133.000	MHz
Frequency Tolerance at 25°C	Standard	±30	PPM Max (Note 1)
	Optional	±50
		±20
		±15
		±10
Frequency Stability over Temperature Range	Standard	±50	PPM Max (Note 1)
	Optional	±100
		±30
		±25
		±20
		±15
		±10
Operating Temperature Range	Standard	-20 to +70	°C
	Extended	-40 to +85

		-40 to +125
Storage Temperature Range		-55 to +125
Aging		±3	PPM Max/Year
Load Capacitance		16	pF
Shunt Capacitance		7
Equivalent Series Resistance(ESR)		20	Ohm
Drive Level		100	uW Max
Insulation Resistance		500 at 100 Vdc± 15Vdc	M Ohm

C7S-40.000-16-3050-X-R|40MHz|16pF|AKER进口晶振尺寸图
