S733025T-26.000-X-LE1.0-R|26MHz|3.3V|AKER安基晶振

频率：26MHZ

尺寸：7.0×5.0×1.4mm

S733025T-26.000-X-LE1.0-R|26MHz|3.3V|AKER安基晶振,台湾进口晶振,AKER安基晶振,S7 Low EMI有源晶振,S733025T-26.000-X-LE1.0-R晶振,SMD晶体,7050mm晶振,石英晶体振荡器,四脚贴片晶振,频率26MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,无铅环保晶振,低老化晶振,高稳定性晶振,家用电视机顶盒晶振,户外电子产品晶振,数字式摄像机存储晶振,固态硬盘晶振.

咨询热线：0755-27872782

TH-1 890

S733025T-26.000-X-LE1.0-R|26MHz|3.3V|AKER安基晶振,台湾进口晶振,AKER安基晶振,S7 Low EMI有源晶振,S733025T-26.000-X-LE1.0-R晶振,SMD晶体,7050mm晶振,石英晶体振荡器,四脚贴片晶振,频率26MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,无铅环保晶振,低老化晶振,高稳定性晶振,家用电视机顶盒晶振,户外电子产品晶振,数字式摄像机存储晶振,固态硬盘晶振.

S733025T-26.000-X-LE1.0-R|26MHz|3.3V|AKER安基晶振特点：

-时钟振荡器

-扩频-低电磁干扰

-5.0×7.0mm表面安装

-产品通用规格

TH-2 890

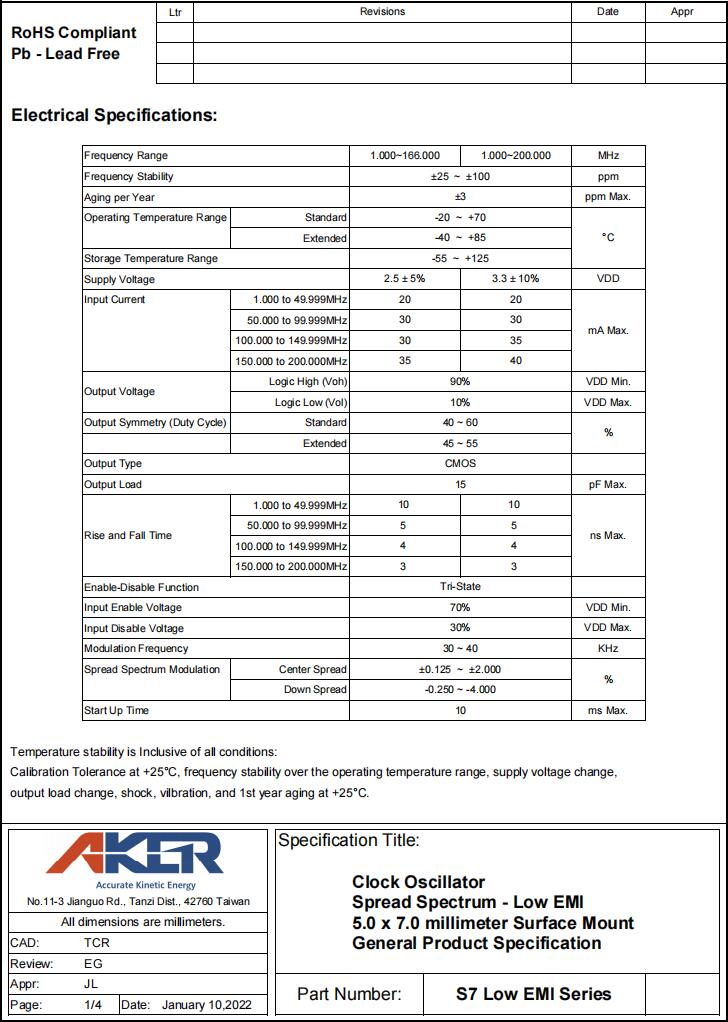

S733025T-26.000-X-LE1.0-R|26MHz|3.3V|AKER安基晶振规格表

Frequency Range		26		MHz
Frequency Stability		±25		ppm
Aging per Year		±3		ppm Max
Operating Temperature Range	Standard	-20~+70		*C
	Extended	-40~+85
Storage Temperature Range		-55~+125
Supply Voltage		2.5±5%	3.3±10%	VDD
Input Current	1.000 to 49.999MHz	20	20	mA Max.
	50.000 to 99.999MHz	30	30
	100.000 to 149.999MHz	30	35
	150.000 to 200.000MHz	35	40
Output Voltage	Logic High （Voh)	90%		VDD Min.
	Logic Low (Vol）	10%		VDD Max.
Output Symmetry (Duty Cycle)	Standard	40 ~ 60		%
	Extended	45 ~ 55
Output Type		CMOS
Output Load		15		pF Max.
Rise and Fall Time	1.000 to 49.999MHz	10	10	ns Max.
	50.000 to 99.999MHz	5	5
	100.000 to 149.999MHz	4	4
	150.000 to 200.000MHz	3	3
Enable-Disable Function		Tri-State
Input Enable Voltage		70%		VDD Min.
Input Disable Voltage		30%		VDD Max.
Modulation Frequency		30 ~ 40		KHz
Spread Spectrum Modulation	Center Spread	±0.125 ~ ±2.000		%
	Down Spread	0.250 ~ -4.000
Start Up Time		10		ms Max.

S733025T-26.000-X-LE1.0-R|26MHz|3.3V|AKER安基晶振尺寸图
