5G通讯设备专用晶振SG5032VAN编码X1G004261002100
日本爱普生晶振LVDS晶振也就是我们所说的EPSON差分晶振,具有多种输出功能,能够轻易识别网络信号以及精确的处理双极信号.差分贴片晶体振荡器使用于产品中能够很容易地识别小信号,能够从容精确地处理'双极'信号,对外部电磁干扰(EMI)是高度免疫的.

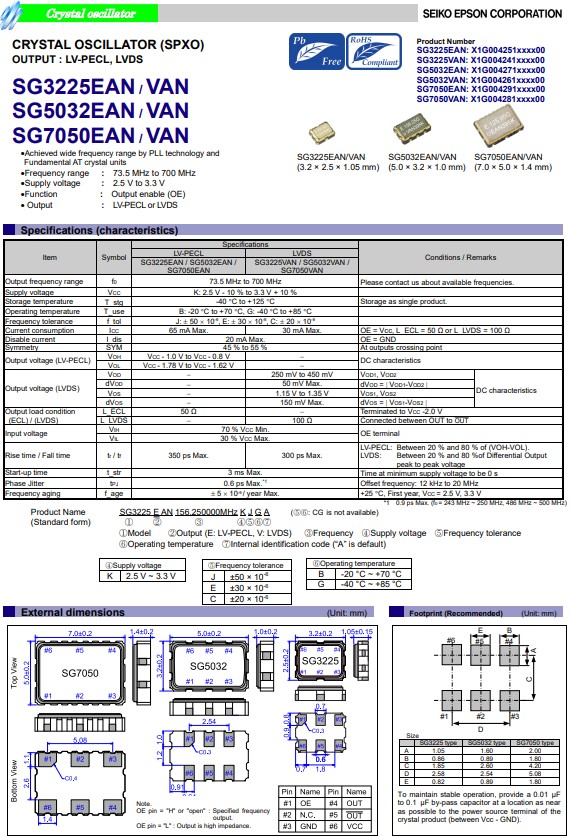

爱普生晶振SG5032VAN,是一款LVDS差分晶振,小体积晶振尺寸5.0x3.2mm 六脚贴片晶振,有源晶振,电源电压2.5V至3.3V,频率范围73.5MHz至700MHz,任意一频点具有低电源电压,满足产品低消耗电流的特点,该产品具有超小型,轻薄型,低电源电压,低抖动,低功耗,低损耗,低耗能,低电平等特点,被广泛应用于5G通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、SATA,SAS,光纤通信,10G以太网及各种频率控制设备上。
5G通讯设备专用晶振SG5032VAN编码X1G004261002100
产品编码 | 型号 | 频率 | 贴片晶振 | 输出波 | 电源电压 | 工作温度 |
X1G004261000100 | SG5032VAN | 100.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261000200 | SG5032VAN | 125.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261000500 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261000600 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261001100 | SG5032VAN | 148.500000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261001300 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261001400 | SG5032VAN | 155.520000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002000 | SG5032VAN | 125.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002100 | SG5032VAN | 125.006250MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002300 | SG5032VAN | 100.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002400 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002500 | SG5032VAN | 400.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002900 | SG5032VAN | 148.500000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261003100 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261003300 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261003400 | SG5032VAN | 312.500000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261004300 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261006200 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261006700 | SG5032VAN | 148.500000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261006900 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261007100 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261010200 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261010700 | SG5032VAN | 153.600000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261011400 | SG5032VAN | 78.125000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261011900 | SG5032VAN | 120.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261012100 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261012500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261012600 | SG5032VAN | 133.333300MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261012800 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261012900 | SG5032VAN | 135.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261013100 | SG5032VAN | 322.265625MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261013300 | SG5032VAN | 230.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261013500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261013600 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261013800 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261014100 | SG5032VAN | 161.132812MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261014300 | SG5032VAN | 625.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
差分晶体振荡器(DXO)是目前行业中公认高技术,高要求的一款晶体振荡器,是指输出差分信号使用2种相位彼此完全相反的信号,从而消除了共模噪声,并产生一个更高性能的系统。差分晶振一般为六脚贴片,输出类型分为好几种,LVDS,LV-PECL,具有低电平,低抖动,低功耗等特性。
