EUROQUARTZ超低电流CXOU3ST-32.768K-50/M微型振荡器

Statek CXOU振荡器提供托盘包装或12毫米载带178或330毫米卷轴（EIA481）。

Euroquartz是一家总部位于英国的独立制造商，为全球电子制造业提供石英晶体、有源晶振，晶体振荡器、滤波器和频率相关产品。该公司已通过AS9100认证，为包括主要原始设备制造商在内的广泛客户设计和制造全面的频率控制元件，涵盖广泛的应用领域，包括军事和航空航天、通信、通用电子、计算、控制系统和石化等。

CXOU振荡器产品特征：
超低电流消耗
氦气不可渗透的陶瓷包装和盖子
非磁性的，2012晶振
典型启动时间为200毫秒
可选输出使能/禁用三态
提供全面的军事测试
典型应用：
●医用植入式起搏器
●医用植入式除颤器
●医用植入式神经设备
●其他植入式和外部医疗设备
●军队
●产业的

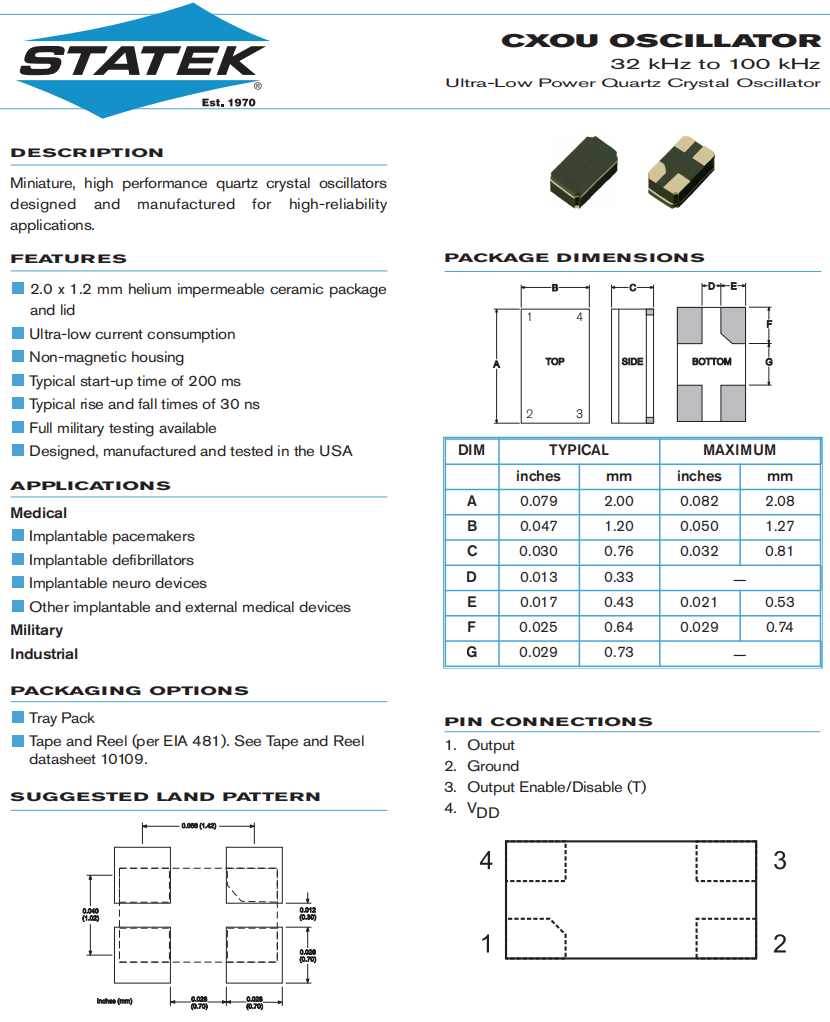

EUROQUARTZ超低电流CXOU3ST-32.768K-50/M微型振荡器
ULTRA-LOW CURRENT MINIATURE OSCILLATORS

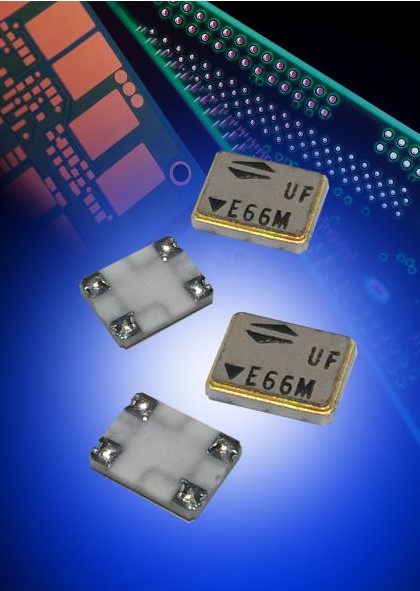

Frequency control specialist, Euroquartz has launched a new range of miniature crystal oscillators from Statek Inc. offering ultra-low current and developed for high reliability applications. Hermetically sealed in a highly reliable ceramic housing, the new CXOU oscillator is available in frequencies from 32.768 to 100,000kHz.

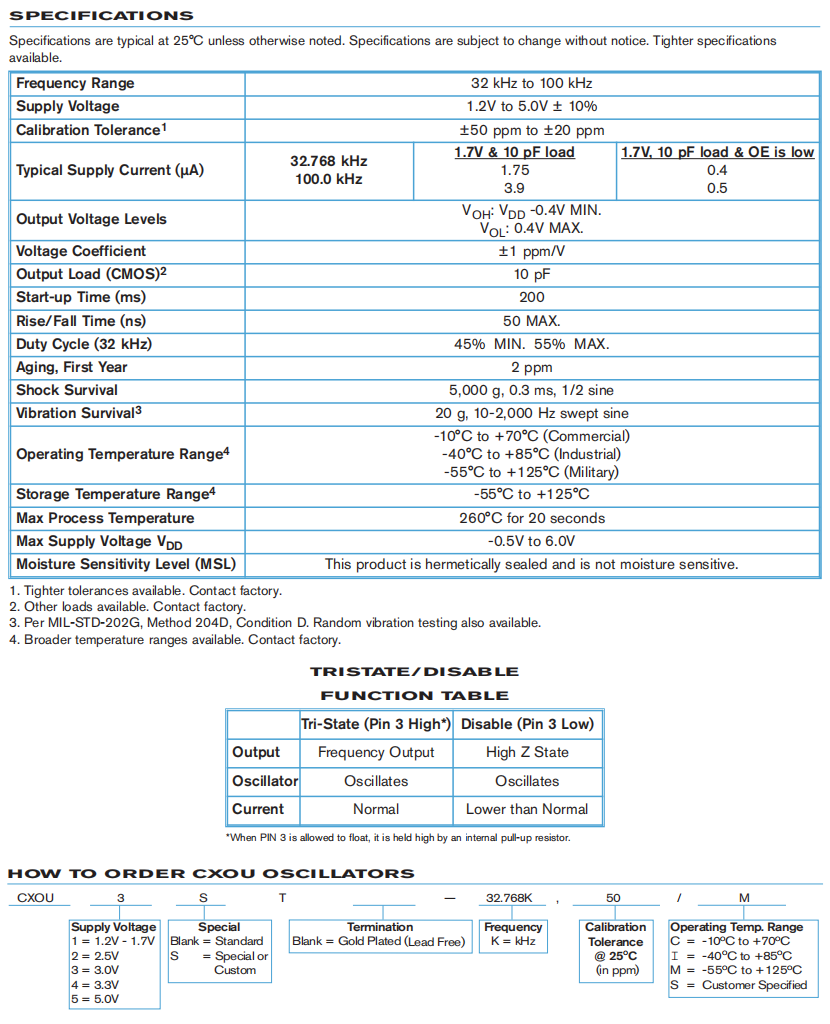

The CXOU offers ultra-low current consumption from 1.75 to 3.9µA depending on frequency output with start-up voltages from 0.9 to 5.0V. Standard calibration tolerances are ±20, ±50 and ±100ppm with tighter bands available to special order if required. Typical start-up time is 200ms with rise/fall times of 30ns while ageing is ±2ppm for first year. Standard CMOS output load is 10pF with other loads available to special order. The new crystal oscillators are also capable of withstanding peak shock up to 5,000g (0.3ms ½ sine).
Housed in a non-magnetic, helium-impermeable ceramic package and lid measuring just 1.2 x 2.0 x 0.76mm, the CXOU range of oscillators is ideal for use in many medical implantable applications including pacemakers, defibrillators and neuro devices as well as external medical products. With full military testing per MIL-PRF-55310 available to order, the oscillators are also suitable for many defence and aerospace applications.
Additional features and specifications include tristate enable/disable options and operating temperature ranges for commercial (0 to 70°C), industrial (-40 to +85°C) and military (-55 to +125°C) applications. Process temperature rating is 260°C for 2 minutes maximum.
Statek CXOU oscillators are available in tray packs or 12mm carrier tape 178 or 330mm reels (EIA481).
Euroquartz is an independent UK-based manufacturer and supplier of quartz crystals, oscillators, filters and frequency-related products to the electronics manufacturing industry worldwide. The company is AS9100 registered and designs and manufactures a comprehensive range of frequency control components for a wide range of customers including major OEMs covering a broad spectrum of applications including military and aerospace, communications, general electronics, computing, control systems and petrochemical among many others.
