SG2520VHN差分晶振X1G005941000115是小型光通信模块的理想选择

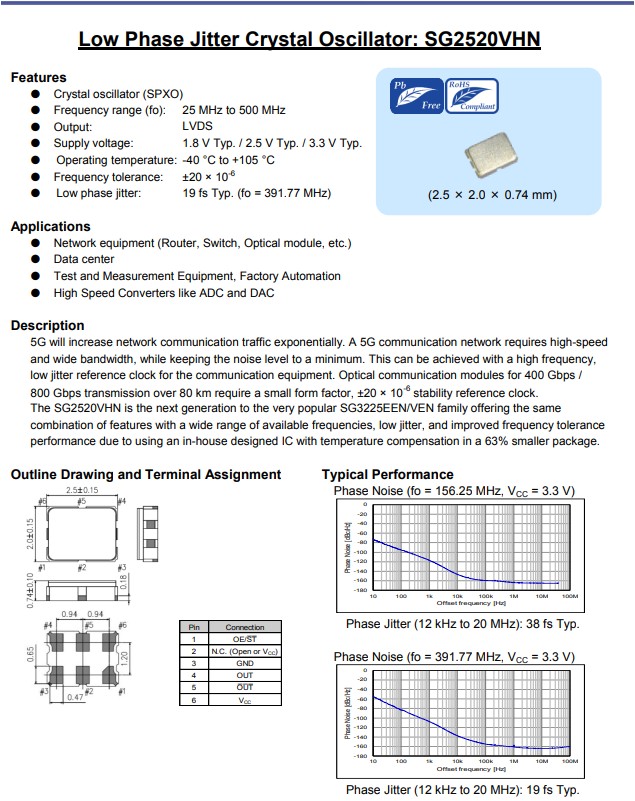

爱普生晶振SG2520VHN是一款LVDS输出差分晶振,工作温度范围-40℃至+105℃,具有广泛的可用频率,低功耗,低抖动,低相位噪声和频率容差性能,因为它采用了内部设计的温度补偿IC,小体积尺寸2.5x2.0mm六脚贴片晶振,电源电压1.8V至3.3V,频率范围:25MHz至500MHz,任意一频点具有低电源电压,满足产品低消耗电流特点。是小型光通信模块的理想选择。应用于网络设备(路由器,交换机,光模块) ,数据中心,测试和测量设备,工厂自动化,ADC和DAC等高速转换器等。
SG2520VHN差分晶振X1G005941000115是小型光通信模块的理想选择
产品编码 | 型号 | 频率 | 尺寸 | 输出波 | 电源电压 | 工作温度 |
X1G005941000115 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005941000215 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005941000315 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 105°C |
X1G005941000415 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 85°C |
X1G005941000515 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005941000615 | SG2520VHN | 155.520000MHz | 2.50x2.00x0.84mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005941000715 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 85°C |
X1G005941000815 | SG2520VHN | 174.703000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005941000915 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
X1G005941001015 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005941001115 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 85°C |
产品编码 | 型号 | 频率 | 石英晶振 | 输出波 | 电源电压 | 工作温度 |
X1G005901000200 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 85°C |
X1G005901000300 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005901000400 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005901000600 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005901000700 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 105°C |
X1G005901000800 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
产品编码 | 型号 | 频率 | 尺寸 | 输出波 | 电源电压 | 工作温度 |
X1G005881000100 | SG2520EGN | 156.250000MHz | 2.50x2.00x0.84mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
X1G005881000200 | SG2520EGN | 156.250000MHz | 2.50x2.00x0.84mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
X1G005881000300 | SG2520EGN | 156.250000MHz | 2.50x2.00x0.84mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
X1G005881000500 | SG2520EGN | 156.250000MHz | 2.50x2.00x0.84mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
SG2520VHN差分晶振X1G005941000115是小型光通信模块的理想选择
爱普生晶振SG2520EGN,SG2520VGN,SG2520VHN,非常适用于网络设备(路由器,交换机,光模块等)资料中心工厂自动化设备,测量仪器,高速DA/AD转换器,此外还具有基本模式:晶体单元振动的固有频率,2.抖动:时钟周期的波动会导致诸如显示的图像波动和数据传输中的误码之类的事情,3.差分晶振输出:一种输出极性相反的频率信号的方法,差分输出可实现高频传输,并具有很强的抗噪声能力,4.高频基本(HFF)晶体单元:一种可以在高频基本频率下振荡而不会损害晶体芯片强度的晶体单元,因为使用光刻工艺可形成仅晶体的振动区域的反向台面结构芯片被减薄到几微米的厚度,HFF晶体单元可以抑制附近的谐波分量,因此有助于高速,大容量电信的稳定性。
