温补晶振X1G006001004314为5G室外基站控制器专用晶振
爱普生推出温补晶振型号TG-5510CA，是一种高稳定性的TCXO晶振，具有耐高温，温度可达105℃高温，支持CMOS或限幅正弦输出，频率范围提供10MHz至54MHz，而且都是高稳定性温补晶振，小体积尺寸7.0x5.0mm，10脚贴片晶振，有源晶振，5G基站和边缘计算的额定温度为+105℃，需要室外安装，小型化和无风扇运行，与其他温补晶振相比，它提供了多种改进，例如低温斜率和相位噪声，符合GR-1244-COREStratum3和G8262ECC-1和ECC-2。TG-5510CA贴片晶振通常都是应用到工业，汽车，通信和网络等大型高端设备身上的，为5G基站用晶振而开发。可以广泛应用到5G基站，微波，网络同步，BTS等方面。
温补晶振X1G006001004314为5G室外基站控制器专用晶振
| 产品编码 |
  型号
|
  频率
|
  尺寸
|
  输出波
|
  电源
|
  精度
|
  工作温度
|
| X1G006001004114 | TG-5510CA | 10.000000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +105 °C |
| X1G006001004214 | TG-5510CA | 19.200000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +105 °C |
| X1G006001004314 | TG-5510CA | 20.000000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +105 °C |
| X1G006001004414 | TG-5510CA | 24.576000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +105 °C |
| X1G006001004514 | TG-5510CA | 25.000000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +105 °C |
| X1G006001004614 | TG-5510CA | 38.880000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +105 °C |
| X1G006001004714 | TG-5510CA | 40.000000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +105 °C |
| X1G006001004814 | TG-5510CA | 50.000000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +105 °C |
| X1G006001007614 | TG-5510CA | 30.720000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001007714 | TG-5510CA | 24.576000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001007814 | TG-5510CA | 49.152000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001007914 | TG-5510CA | 24.000000MHz | 7.00x5.00x1.50mm | TCXO晶振 | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |

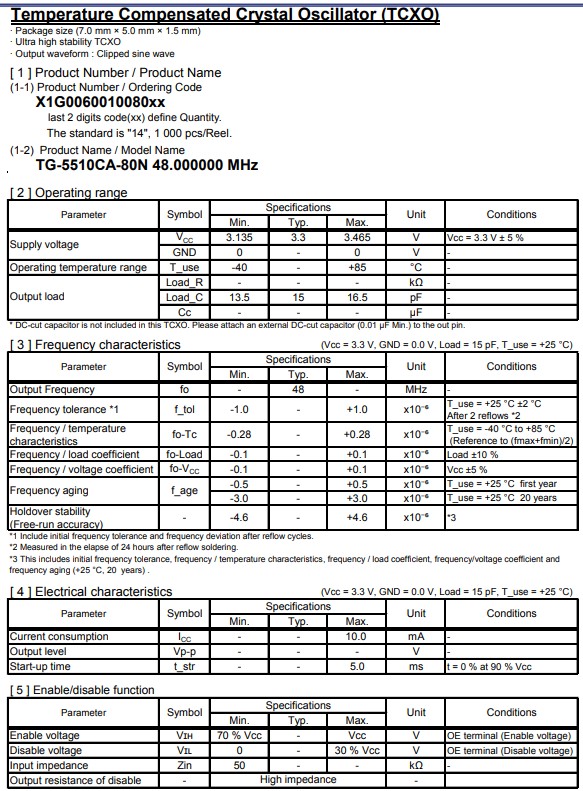

| X1G006001008014 | TG-5510CA | 48.000000MHz | 7.00x5.00x1.50mm | Clipped sine wave | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |
| X1G006001008114 | TG-5510CA | 19.200000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001008214 | TG-5510CA | 38.400000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001008314 | TG-5510CA | 27.000000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to +85 °C |
| X1G006001009014 | TG-5510CA | 25.000000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001009114 | TG-5510CA | 19.440000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001009214 | TG-5510CA | 25.600000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001009314 | TG-5510CA | 40.000000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001009414 | TG-5510CA | 12.800000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001009514 | TG-5510CA | 20.000000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001009614 | TG-5510CA | 38.880000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001009714 | TG-5510CA | 50.000000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
| X1G006001009814 | TG-5510CA | 10.000000MHz | 7.00x5.00x1.50mm | CMOS | 3.135 to 3.465 V | +/-1.0 ppm | -40 to ++85 °C |
温补晶振X1G006001004314为5G室外基站控制器专用晶振
特征：
频率范围：10MHz至54MHz
电源电压：典型值3.3V。
工作温度：-40℃至+85℃
频率/温度特性：±0.28x10-6。温度过高
频率斜率：±0.2x10-6/℃最大。温度过高
频率老化：±3.0x10-6。/ 20年(meets Stratum3)
封装：7.0x5.0x1.5毫米(10引脚)
片内滤波电容可降低相位噪声晶振
TG-5510CA是一种高稳定性的TCXO，提供CMOS或限幅正弦输出
温补晶振即温度补偿晶体振荡器（TCXO），本身具有温度补偿作用，是通过附加的温度补偿电路使由周围温度变化产生的振荡频率变化量削减的一种石英晶体振荡器，高低温度稳定性:频率精度0.5PPM~2.0PPM,常用频率:26M,33.6M,38.4M,40M.因产品性能稳定,精度高等优势,被广泛应用到一些比较高端的数码通讯产品领域,GPS全球定位系统,智能手机,WiMAX和无线通信等产品,符合RoHS/无铅.
