KX2513G0032.768000具有适用于各种应用的卓越性能,32.768KHz振荡器
由于许多低功耗和便携式应用程序大部分时间都处于待机模式,因此这些系统必须最大限度地降低待机功耗。我们基于32.768k晶振的定时源允许这些系统快速转换到待机模式(<10ms),以最大限度地延长电池寿命,而不会牺牲维持准确时钟和日历所需的稳定性(±20ppm)
KX2513G0032.768000具有适用于各种应用的卓越性能,32.768KHz振荡器
Manufacturer Part Number原厂代码
Manufacturer品牌
Series型号
Frequency 频率
Frequency Stability频率稳定度
Operating Temperature 工作温度
KD3270037
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270037
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270037
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KX2513G0032.768000
Diodes Crystal
SaRonix-eCera™ KX
32.768kHz
±25ppm
0°C ~ 70°C
KX3211A0032.768000
Diodes Crystal
SaRonix-eCera™ KX
32.768kHz
±20ppm
-20°C ~ 70°C
KX3211A0032.768000
Diodes Crystal
SaRonix-eCera™ KX
32.768kHz
±20ppm
-20°C ~ 70°C
KX3211A0032.768000
Diodes Crystal
SaRonix-eCera™ KX
32.768kHz
±20ppm
-20°C ~ 70°C
KX3211D0032.768000
Diodes Crystal
SaRonix-eCera™ KX
32.768kHz
±25ppm
-40°C ~ 85°C
KX2013B0032.768000
Diodes Crystal
SaRonix-eCera™ KX
32.768k
±25ppm
-20°C ~ 70°C
KX2013D0032.768000
Diodes Crystal
SaRonix-eCera™ KX
32.768kHz
±25ppm
-40°C ~ 85°C
KX2511A0032.768000
Diodes Crystal
SaRonix-eCera™ KX
32.768kHz
±20ppm
-20°C ~ 70°C
KX2513D0032.768000
Diodes Crystal
SaRonix-eCera™ KX
32.768kHz
±25ppm
-40°C ~ 85°C
KJ3270008
Diodes Crystal
SaRonix-eCera™ KJ
32.768kHz
±25ppm
-40°C ~ 85°C
KJ3270008
Diodes Crystal
SaRonix-eCera™ KJ
32.768kHz
±25ppm
-40°C ~ 85°C
KJ3270008
Diodes Crystal
SaRonix-eCera™ KJ
32.768kHz
±25ppm
-40°C ~ 85°C
KK3270046
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-40°C ~ 85°C
KK3270046
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-40°C ~ 85°C
KK3270046
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270031
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270031
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270031
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KK3270045
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±50ppm
-40°C ~ 85°C
KK3270045
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±50ppm
-40°C ~ 85°C
KK3270045
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±50ppm
-40°C ~ 85°C
KK3270049
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±50ppm
-40°C ~ 85°C
KK3270049
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±50ppm
-40°C ~ 85°C
KK3270049
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±50ppm
-40°C ~ 85°C

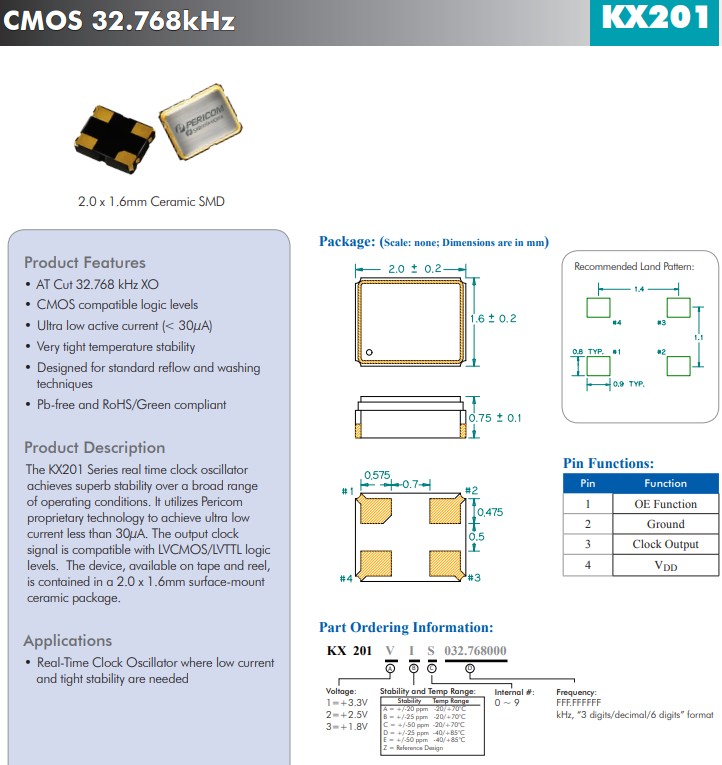

亚陶晶振KX201系列实时时钟振荡器,在广泛的工作条件下实现了卓越的稳定性,电源电压:1.8V/2.5V/3.3V, 频率32.768kHz振荡器 CMOS晶体振荡器,它利用Pericom专有技术实现低于30μA的超低电流。输出时钟信号与LVCMOS/LVTTL逻辑电平兼容。该器件采用卷带包装,超小型尺寸采用2.0x1.6mm表面贴装陶瓷封装。
KX2513G0032.768000具有适用于各种应用的卓越性能,32.768KHz振荡器
KK3270052
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270052
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270052
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270051
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-40°C ~ 85°C
KK3270051
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-40°C ~ 85°C
KK3270051
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-40°C ~ 85°C
KX2132709Z
Diodes Crystal
SaRonix-eCera™ KX
32.768kHz
±25ppm
-20°C ~ 70°C
KX2132709Z
Diodes Crystal
SaRonix-eCera™ KX
32.768kHz
±25ppm
-20°C ~ 70°C
KX2132709Z
Diodes Crystal
SaRonix-eCera™ KX
32.768kHz
±25ppm
-20°C ~ 70°C
KJ3270004Z
亚陶晶振
SaRonix-eCera™ KJ
32.768kHz
±50ppm
-20°C ~ 70°C
KJ3270004Z
Diodes Crystal
SaRonix-eCera™ KJ
32.768kHz
±50ppm
-20°C ~ 70°C
KJ3270004Z
Diodes Crystal
SaRonix-eCera™ KJ
32.768kHz
±50ppm
-20°C ~ 70°C
KD3270040
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270040
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270040
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270046Z
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270046Z
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270046Z
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KK3270050
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270050
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270050
Diodes Crystal
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KM3270004
Diodes Crystal
SaRonix-eCera™ KM
32.768kHz
±25ppm
-40°C ~ 85°C
KJ3270001
Diodes Crystal
SaRonix-eCera™ KJ
32.768kHz
±25ppm
-40°C ~ 85°C
KJ3270001
Diodes Crystal
SaRonix-eCera™ KJ
32.768kHz
±25ppm
-40°C ~ 85°C
KJ3270001
Diodes Crystal
SaRonix-eCera™ KJ
32.768kHz
±25ppm
-40°C ~ 85°C
KN3270028
Diodes Crystal
SaRonix-eCera™ KN
32.768kHz
±50ppm
-20°C ~ 70°C
KD3270032
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±50ppm
-20°C ~ 70°C
KN3270031
Diodes Crystal
SaRonix-eCera™ KN
32.768kHz
±50ppm
-20°C ~ 70°C
KD3270042
Diodes Crystal
SaRonix-eCera™ KD
32.768kHz
±50ppm
-20°C ~ 70°C
KX2513G0032.768000具有适用于各种应用的卓越性能,32.768KHz振荡器
特征:
小体积晶振2.0x1.6mm四脚贴片晶振
AT Cut 32.768kHz XO
CMOS兼容逻辑电平
超低有功电流(< 30μA)
非常严格的温度稳定性
专为标准回流和清洗技术而设计
无铅且符合 RoHS/Green 标准
应用:需要低电流和高度稳定性的实时时钟振荡器
