LV-PECL输出差分晶振X1G005131100900专用于物联网设备
在这个智能化的社会系统里,晶振为数字电路系统提供基本的时钟信号,称之为数字电路的心脏。物联网在智能家居、智慧城市、可穿戴设备等领域正带来数以十亿计的新设备,晶振是数字终端必不可少的基础器件之一,是物联网应用的上游行业。

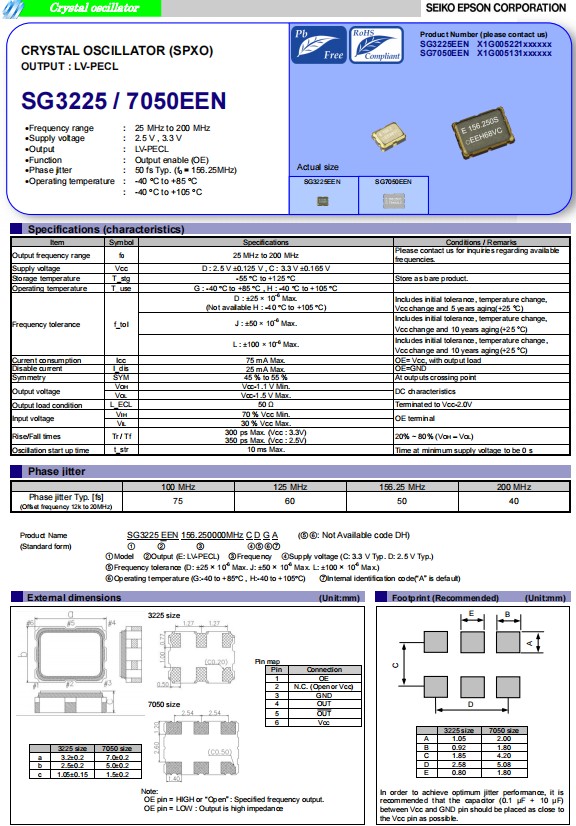

爱普生晶振SG7050EEN,小体积晶振尺寸7.0x5.0mm六脚贴片晶振,有源晶振,支持LV-PECL输出差分晶振,频率范围25MHz至200MHz,电源电压2.5V,3.3V,小体积轻薄型,具有极低的相位抖动和功耗,以实现出色的相位噪声。被广泛用于5G通信设备,物联网,智能家居,手机,GPS定位,汽车导航,安防设备,可穿戴设备等。
LV-PECL输出差分晶振X1G005131100900专用于物联网设备
产品编码 | 型号 | 频率 | 贴片晶振 | 输出波 | 电源电压 | 工作温度 |
X1G005131000100 | SG7050EEN | 100.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131000200 | SG7050EEN | 125.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131000500 | SG7050EEN | 156.250000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131000600 | SG7050EEN | 156.253906MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131001000 | SG7050EEN | 50.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131001200 | SG7050EEN | 50.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131001400 | SG7050EEN | 156.253906MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131001700 | SG7050EEN | 156.250000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131001800 | SG7050EEN | 156.250000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 105 °C |
X1G005131001900 | SG7050EEN | 156.253906MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 105 °C |
X1G005131002000 | SG7050EEN | 122.880000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131002100 | SG7050EEN | 125.000000MHz | 7.00x5.00x1.70mm | LV-PECL晶振 | 3.135 to 3.465 V | -40 to 105 °C |
X1G005131002200 | SG7050EEN | 125.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131002500 | SG7050EEN | 200.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131003000 | SG7050EEN | 25.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131003200 | SG7050EEN | 95.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 105 °C |
X1G005131003300 | SG7050EEN | 200.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131003400 | SG7050EEN | 155.520000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131003600 | SG7050EEN | 100.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131003700 | SG7050EEN | 150.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131003800 | SG7050EEN | 25.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005131100500 | SG7050EEN | 156.250000MHz | 7.00x5.00x1.70mm | LV-PECL | 2.375 to 2.625 V | -40 to 85 °C |
X1G005131100700 | SG7050EEN | 50.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 2.375 to 2.625 V | -40 to 85 °C |
X1G005131100900 | SG7050EEN | 100.000000MHz | 7.00x5.00x1.70mm | LV-PECL | 2.375 to 2.625 V | -40 to 85 °C |
X1G005551000100 | SG7050EEN | 212.500000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
X1G005551000200 | SG7050EEN | 312.500000MHz | 7.00x5.00x1.70mm | LV-PECL | 3.135 to 3.465 V | -40 to 85 °C |
特征:
晶体振荡器(SPXO)
频率范围(fo): 25MHz至200MHz
输出:LV-PECL
电源电压:典型值为2.5V/3.3V(典型值)。
工作温度:-40摄氏度至+105摄氏度
低相位抖动:典型值为50 fs。(fo = 156.25MHz)
应用程序:
网络设备(路由器、交换机、光模块等。)
数据中心
测试和测量设备、工厂自动化
ADC和DAC等高速转换器
这些设备的运转都离不开晶振,手机、手表、健康监测器、健身手表、PPS计时器、RTC的参考时钟等设备均需要SG7050EEN系列有源晶振提供高精度、高频率稳定性、可靠性的时钟信号,为人们了解人体生理数据提供了精确的技术支持。体积小,可以让智能移动设备更小型化、轻量化,使用更加便捷。
