汽车专用晶体振荡器X1G005341004500适用于ADAS高级驾驶辅助系统
针对各种车载电子设备对石英晶振在高温、抗振动等方面的更高要求,爱普生可以提供全面的符合AEC-Q200/100技术标准的汽车用车规晶振。

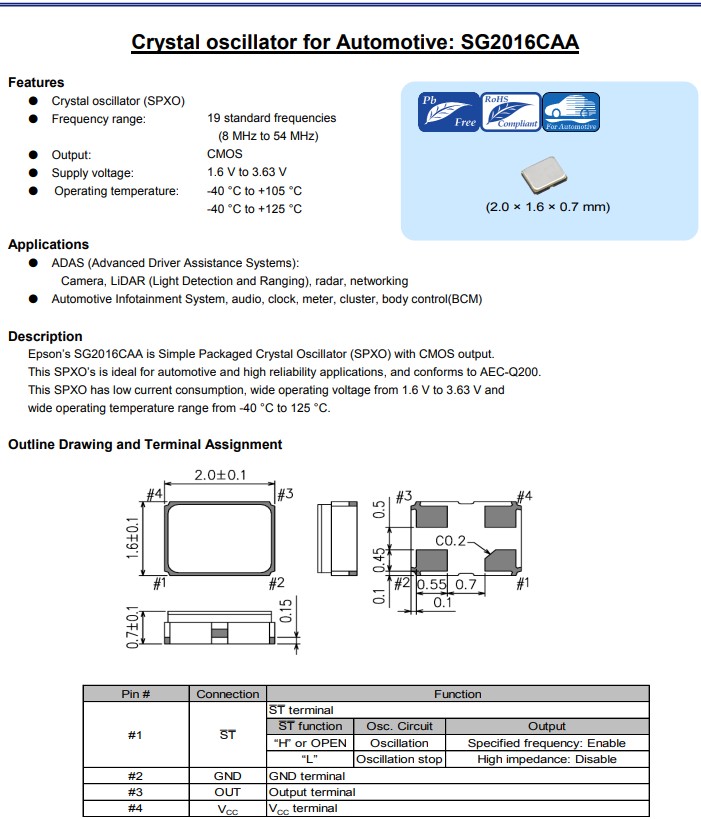

爱普生晶振推出汽车专用晶体振荡器SG2016CAA,支持CMOS输出,小体积尺寸2.0x1.6mm有源晶振,四脚贴片晶振,电源电压1.6V至3.63V,频率范围8MHz至54MHz,工作温度范围可达到-40℃至125℃,具有超小型,轻薄型,耐高温,耐热、耐振、耐冲击等优良的耐环境特性,满足无铅焊接的高温回流温度曲线要求,符合AEC-Q200标准。SG2016CAA有源晶振特别适用于汽车电子,ADAS(高级驾驶辅助系统): 摄像头,激光雷达(光探测和测距)、雷达,网络,汽车信息娱乐系统,音频,时钟,仪表,组合仪表,车身控制(BCM)等。
汽车专用晶体振荡器X1G005341004500适用于ADAS高级驾驶辅助系统
爱普生晶振 | 型号 | 频率 | 尺寸 | 输出波 | 电源电压 | 工作温度 |
X1G005341000200 | SG2016CAA | 27.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341000400 | SG2016CAA | 40.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341000900 | SG2016CAA | 25.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341001100 | SG2016CAA | 24.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341001300 | SG2016CAA | 27.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341001500 | SG2016CAA | 48.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341001700 | SG2016CAA | 12.288000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341001900 | SG2016CAA | 48.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341002400 | SG2016CAA | 20.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341002700 | SG2016CAA | 24.576000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341002900 | SG2016CAA | 24.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341003400 | SG2016CAA | 50.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341003500 | SG2016CAA | 25.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341003700 | SG2016CAA | 54.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341003800 | SG2016CAA | 54.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341004100 | SG2016CAA | 8.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341004400 | SG2016CAA | 12.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341004500 | SG2016CAA | 24.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341004600 | SG2016CAA | 33.333300MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341005000 | SG2016CAA | 50.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341005100 | SG2016CAA | 14.745600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341005300 | SG2016CAA | 33.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341005400 | SG2016CAA | 16.666600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341005600 | SG2016CAA | 8.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341005700 | SG2016CAA | 10.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341005800 | SG2016CAA | 12.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341005900 | SG2016CAA | 16.666600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341006000 | SG2016CAA | 22.579200MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341006100 | SG2016CAA | 11.289600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341006200 | SG2016CAA | 20.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
汽车专用晶体振荡器X1G005341004500适用于ADAS高级驾驶辅助系统
汽车电子最重要的作用是提高汽车的安全性,舒适性,经济性和娱乐性。用传感器,微处理器MPU,执行器,数十甚至上百个电子元器件及其零部件组成的电控系统。车载晶振,在汽车方面使用到了大大小小的各种石英晶振,各种类型以及封装尺寸,无一不在给各项汽车产品带去性能。我们首先知道的是在使用到汽车上面的贴片晶振都是需要具备高性能,耐高温等各项要求,才能保证能正常发挥性能。
