小体积2520mm晶振X1G005171002300用于汽车的CMOS输出可编程晶体振荡器
日本进口爱普生晶振SG-8101CGA,是用于汽车的CMOS输出可编程晶振。虽然这一系列提供了同样容易编程的频率和其他参数,与AEC-Q100符合汽车应用的125℃上限。小体积晶振尺寸2.5x2.0mm小封装有助于电子制造商节省电路板空间,频率范围0.67MHz至170MHz,电源电压1.62V至3.63V,四脚贴片石英晶振,具有超小型,轻薄型,低电源电压,低抖动,低功耗等特点,应用于汽车电子,5G通讯、工业控制、车载、消费电子、光电技术及各种变频调速设备等通讯设备。
小体积2520mm晶振X1G005171002300用于汽车的CMOS输出可编程晶体振荡器
贴片晶振 | 频率 | 型号 | 尺寸(长宽高) | 输出波 | 电源电压 | 工作温度 |
X1G005171001100 | 27.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171001500 | 125.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171001600 | 125.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171001800 | 62.500000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171002300 | 125.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005171002400 | 79.200000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171002500 | 109.800000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171003600 | 36.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171003700 | 20.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171003800 | 33.330000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171003900 | 24.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171004100 | 16.666600 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171004200 | 25.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171004300 | 60.925000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171004400 | 33.330000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171004500 | 33.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171004600 | 125.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171004700 | 40.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171004800 | 100.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171004900 | 125.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171005000 | 148.500000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171005100 | 25.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171005200 | 148.500000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171005300 | 72.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171005400 | 24.576000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171005500 | 127.280000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171005600 | 138.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171005700 | 110.680000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171005800 | 25.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171005900 | 24.576000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171006000 | 74.250000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171006100 | 48.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171006200 | 17.800000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171006300 | 22.300000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171006400 | 16.640000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171006500 | 14.745600 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005171006600 | 27.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 125 °C |
X1G005171006700 | 54.000000 MHz | SG-8101CGA | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |

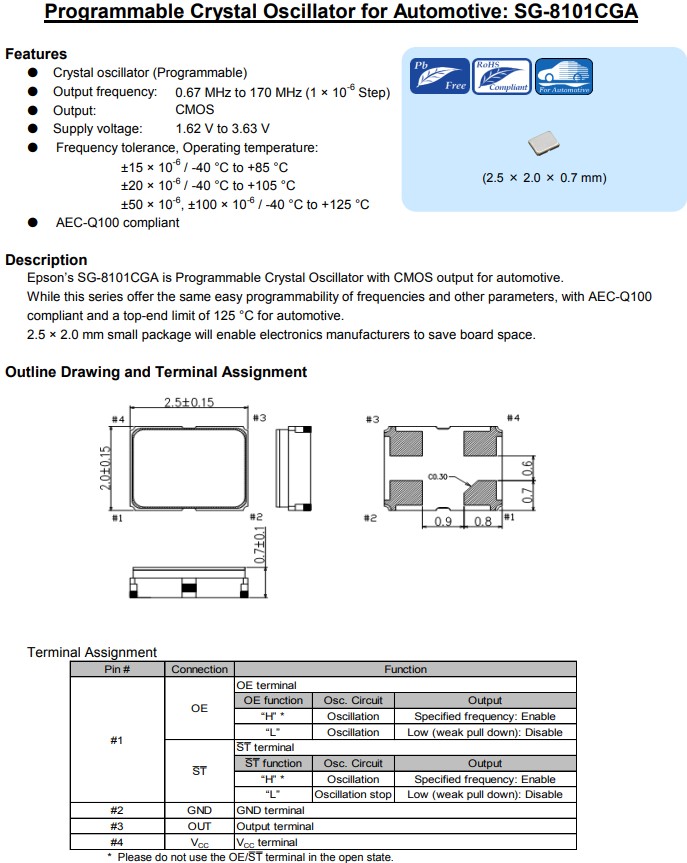

特征:
晶体振荡器(可编程)
输出频率:0.67MHz至170MHz (1x10-6步进)
输出:CMOS
电源电压:1.62V至3.63V
频率容差、工作温度:15x10-6/-40℃至+85℃,20x10-6/-40℃至+105℃,50x10-6,100x10-6/-40℃至+125℃
符合AEC-Q100标准
可编程晶振实为有源晶振,石英可编程(Q MEMS)具有高稳定、高精度等优越性能的石英材料[QUARTZ]和[MEMS]组合而成的造词,以石英为原料进行精微加工(光刻)并可以提供的小型化、高性能的晶体元器件被称为[Q MEMS]
