SMD3225贴片晶体谐振器Q22FA2380008900特别适用于小型便捷式移动通讯
石英晶体谐振器，简称石英晶体或晶振，是利用石英晶体（又称水晶）的压电效应，用来产生高精度振荡频率的一种电子元件，属于被动元件。该元件主要由石英晶片、基座、外壳、银胶、银等成分组成。

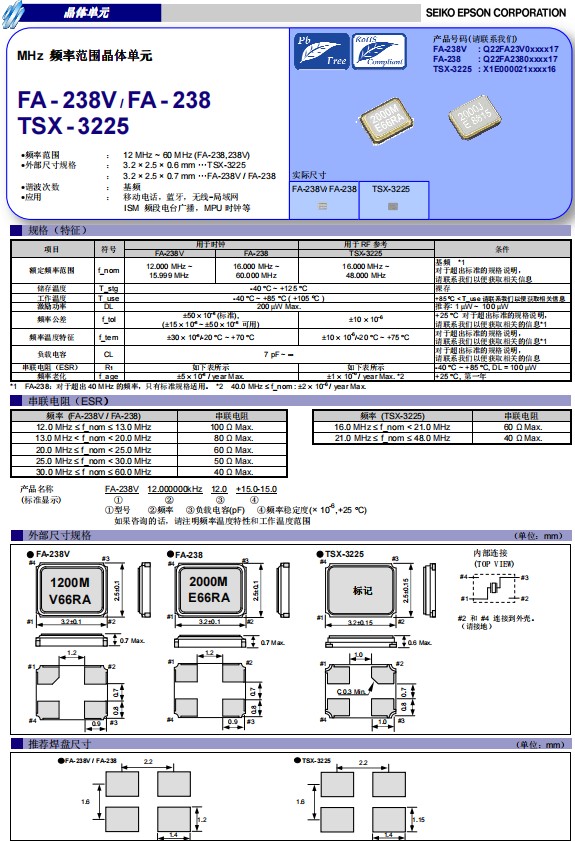

爱普生晶振FA-238是一款小体积尺寸3.2x2.5mm无源晶振，石英晶体谐振器，四脚贴片晶振，频率范围16MHz至60MHz，工作温度范围-40℃至+85℃（+105℃），具有超小型，轻薄型，耐热及耐环境特点，SMD3225贴片晶体谐振器Q22FA2380008900特别适用于小型便捷式移动通讯，可穿戴设备，智能手机，平板电脑，便捷式电子仪器，汽车电子，智能家居等。
| 爱普生晶振 |
  尺寸
|
  型号
|
  频率
|
  负载电容
|
  精度
|
      频率公差
|
   工作温度
|
| Q22FA2380000100 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380000200 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380001100 | 3.2x2.5x0.7mm | FA-238 | 16.934400MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380001300 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380002200 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380002800 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380003500 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380004100 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380004400 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380004700 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380004800 | 3.2x2.5x0.7mm | FA-238 | 49.152000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380006300 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380006500 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380007500 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380007600 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380007800 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380007900 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380008500 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380008800 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA2380008900 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380009100 | 3.2x2.5x0.7mm | FA-238 | 18.432000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380187900 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 18pF | +/-20ppm | +/-30ppm | -40to+85°C |
| Q22FA2380188100 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 18pF | +/-50ppm | +/-50ppm | 0to+85°C |
| Q22FA2380188300 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 10pF | +/-50ppm | +/-50ppm | -40to+105°C |
| Q22FA2380188400 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 18pF | +/-20ppm | +/-30ppm | -40to+85°C |
| Q22FA2380188500 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 12pF | +/-20ppm | +/-20ppm | -30to+80°C |
| Q22FA2380188600 | 3.2x2.5x0.7mm | FA-238 | 40.000000MHz | 7pF | +/-15ppm | +/-30ppm | -20to+70°C |
| Q22FA2380188700 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 8pF | +/-15ppm | +/-30ppm | -40to+85°C |
| Q22FA2380188800 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 8pF | +/-30ppm | +/-30ppm | -40to+105°C |
| Q22FA2380189200 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 12pF | +/-20ppm | +/-30ppm | -40to+85°C |
| Q22FA2380189600 | 3.2x2.5x0.7mm | FA-238 | 26.000000MHz | 12pF | +/-15ppm | +/-30ppm | -40to+105°C |
| Q22FA2380189800 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 7pF | +/-15ppm | +/-30ppm | -20to+70°C |
| Q22FA2380190000 | 3.2x2.5x0.7mm | FA-238 | 26.000000MHz | 10pF | +/-15ppm | +/-30ppm | -40to+85°C |
| Q22FA2380190100 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 12pF | +/-20ppm | +/-30ppm | -40to+85°C |
| Q22FA2380190200 | 3.2x2.5x0.7mm | FA-238 | 26.000000MHz | 10pF | +/-15ppm | +/-30ppm | -20to+70°C |
| Q22FA2380190300 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 10pF | +/-15ppm | +/-30ppm | -20to+70°C |
| Q22FA2380190500 | 3.2x2.5x0.7mm | FA-238 | 16.384000MHz | 8pF | +/-15ppm | +/-15ppm | -20to+70°C |
| Q22FA2380190800 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 15pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380191100 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 16pF | +/-50ppm | +/-20ppm | -20to+70°C |
| Q22FA2380191300 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 7pF | +/-15ppm | +/-30ppm | -20to+70°C |
| Q22FA2380191400 | 3.2x2.5x0.7mm | FA-238 | 28.636360MHz | 20pF | +/-20ppm | +/-30ppm | -40to+85°C |
| Q22FA2380191700 | 3.2x2.5x0.7mm | FA-238 | 30.212412MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA2380191900 | 3.2x2.5x0.7mm | FA-238 | 26.000000MHz | 10pF | +/-15ppm | +/-30ppm | -40to+105°C |
| Q22FA2380192000 | 3.2x2.5x0.7mm | FA-238 | 19.200000MHz | 12pF | +/-30ppm | +/-30ppm | -40to+105°C |
| Q22FA2380192100 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 10pF | +/-30ppm | +/-30ppm | -40to+105°C |
| Q22FA2380192300 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 18pF | +/-50ppm | +/-30ppm | -40to+85°C |
SMD3225贴片晶体谐振器Q22FA2380008900特别适用于小型便捷式移动通讯
石英晶体谐振器是一种生活中随处可见的电子器件，诞生于20世纪20年代初，因具有较高的品质因数及良好的频率稳定性，被广泛应用于航天、通信、军事等工业领域。顾名思义，制造石英晶体谐振器的原材料就是石英，一种非常重要的压电材料。其主要特征是其原子或分子有规律排列，反映在宏观上是外形的对称性，在电场的作用下，晶体内部产生应力而形变，从而产生机械振动，获得特定的频率。
