TXC晶振9HT11-32.768KDZF-T超小型32.768kHz晶振深受市场的喜爱
在世界各地数不胜数的频率元件制造商中,行业竞争力在不断的扩大.加入该行业的人也在逐渐的增长当中.而成立至今已有30多年经验的TXC晶振集团,并没有因为同行的增长而出现销售量下滑等问题的出现.反倒业绩成不断上涨的趋势.在行业中具备有一定的地位,也是国内多家知名企业指定供应商.因生产的石英晶振,SMD晶振,石英晶体振荡器等元件具备优良的可靠性,出口于世界各地,并获得的进出口绩优厂商前500名证书.由此可见TXC晶振品牌的产品深受市场的喜爱.
TXC晶振9HT11-32.768KDZF-T超小型32.768kHz晶振深受市场的喜爱
| Manufacturer Part Number原厂编码 | Manufacturer厂家 | Series型号 | Type 系列 | Frequency | Operating Temperature 工作温度 |
| 9HT7-32.768KDZF-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KDZF-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KDZF-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KDZF-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KDZF-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KDZF-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KDZC-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KDZC-T | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C | |
| 9HT11-32.768KDZC-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KEZC-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KEZC-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KEZC-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KBZF-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KBZF-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KBZF-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KAZY-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KAZY-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KAZY-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KBZY-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KBZY-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KBZY-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KBZF-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KBZF-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KBZF-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
TXC晶振公司是一家领先的专业频率控制产品制造商致力于研究,设计,制造和销售。其生产的SMD kHz晶体，9HT11系列，编码9HT11-32.768KDZF-T，频率32.768k晶振，小体积晶振尺寸2.0x1.2x0.6mm陶瓷表面贴装封装，两脚贴片无源晶振，石英晶体谐振器，具有超小型，轻薄型，耐热性，耐环境特点，符合RoHS标准/无铅，应用于智能手机，笔记本电脑，钟表电子，汽车电子，医疗设备和数码相机等
TXC晶振9HT11-32.768KDZF-T超小型32.768kHz晶振深受市场的喜爱
9HT11-32.768KBZC-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KBZC-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KBZC-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KBZB-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KBZB-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KBZB-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KAZB-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KAZB-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KAZB-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KAZC-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KAZC-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KAZC-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KAZY-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KAZY-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KAZY-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KDZB-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KDZB-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KDZB-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KDZY-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KDZY-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT11-32.768KDZY-T
TXC Crystal
9HT11
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT7-32.768KBZY-T
TXC Crystal
9HT7
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
TXC晶振9HT11-32.768KDZF-T超小型32.768kHz晶振深受市场的喜爱

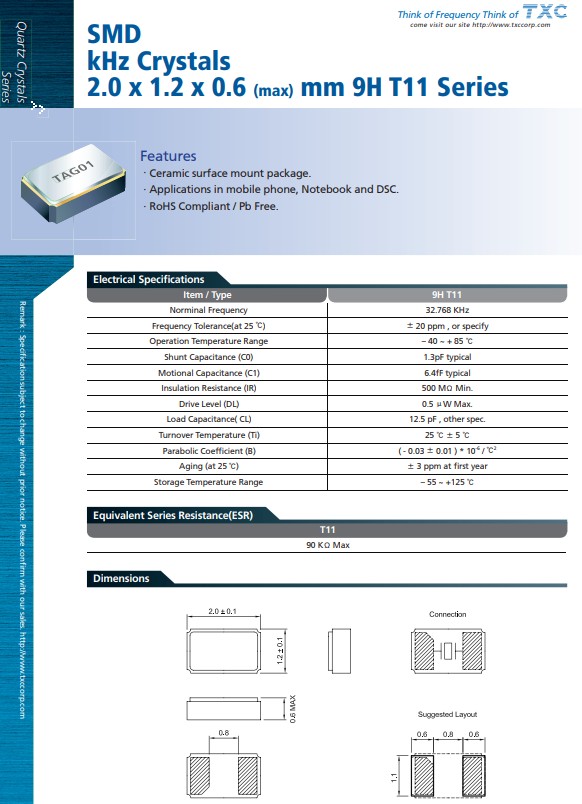

参数：
正常频率：32.768k晶体
频率公差(25 ℃时)：20ppm，或指定
工作温度范围：–40～+85℃
并联电容(C0)：典型值1.3pF
运动电容(C1)：典型值6.4fF
绝缘电阻(IR)：最小500mω。
驱动电平(DL)：最大0.5μW。
负载电容：12.5pF，其他规格。
翻转温度(Ti)：25℃±5℃
抛物线系数(B)：(-0.03±0.01) 10-6/℃
老化(25 ℃时)：第一年为3 ppm
储存温度范围：–55~+125℃
| 9HT7-32.768KBZY-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KBZY-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KDZY-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KDZY-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KDZY-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KAZF-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KAZF-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KAZF-T | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768k晶体 | -40°C ~ 85°C |
| 9H03200413 | TXC Crystal | 9HT7 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KAZF-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KEZF-T | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9H03200012 | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9H03270022 | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9H03270030 | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9H03200010 | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9H03270033 | TXC Crystal | 9HT11 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
晶振是电子产品中必不可少的元器件,看似虽小作用却至关重要.我们不可忽视的一种频率元器件.TXC晶振是晶振行业中的知名品牌.自1983年成立以来主要石英晶振的研发、生产为主要业务.是台湾众多品牌中最突出的一家.TXC科技是我国在晶体行业的佼佼者.TXC晶振9HT11-32.768KDZF-T超小型32.768kHz晶振深受市场的喜爱
