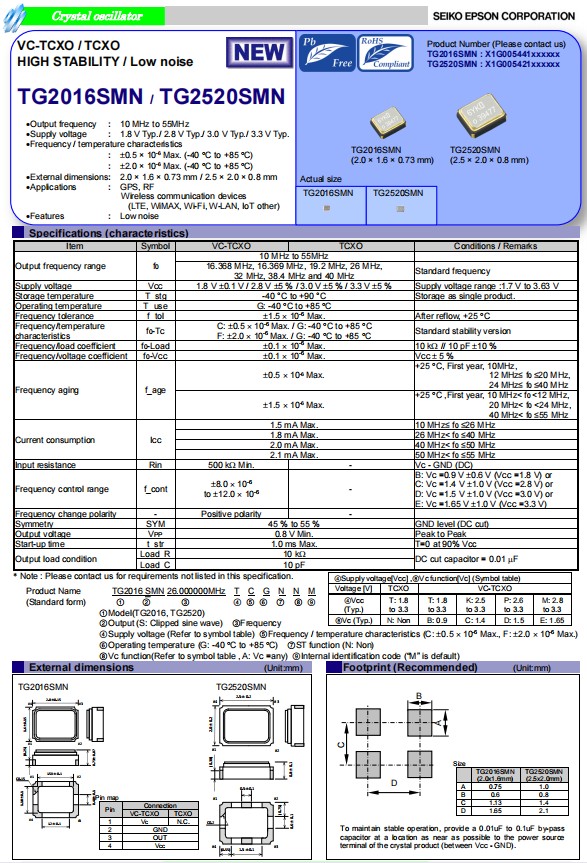

无人机专用晶振TG2016SMN编码X1G005441020200
日本进口爱普生晶振型号TG2016SMN,是一款高精度温补晶振(TCXO),产品编码X1G005441020200,高精度四脚贴片晶振,标称频率16.369000MHz,电源电压1.8V,小体积晶振尺寸2.0x1.6mm有源晶振,输出正弦波。作为一款高稳定工业级温补晶振,在-40℃至+85℃范围内温漂≤0.5ppm,包含公差和电压变化,温度变化等,总误差1.5ppm。TG2016SMN贴片晶振具有超小型,轻薄型,低电源电压,低抖动,低功耗,低损耗,低耗能,低相位噪声,低电平等特点,被广泛用于移动通讯,无人机,GPS,蓝牙,汽车电子,医疗设备,安防设备等。
无人机专用晶振TG2016SMN编码X1G005441020200
爱普生晶振 | 型号 | 频率 | 尺寸 | 输出波 | 电源电压 | 精度 |
X1G005441001200 | TG2016SMN | 40.000000MHz | 2.00x1.60x0.61mm | Clippedsinewave | 2.800 to 3.630V | +/-1.5ppm |
X1G005441003100 | TG2016SMN | 19.200000MHz | 2.00x1.60x0.61mm | Clippedsinewave | 2.660 to 2.940V | +/-1.5ppm |
X1G005441003300 | TG2016SMN | 39.000000MHz | 2.00x1.60x0.61mm | Clippedsinewave | 3.135 to 3.465V | +/-1.5ppm |
X1G005441004700 | TG2016SMN | 19.200000MHz | 2.00x1.60x0.61mm | Clippedsinewave | 3.135 to 3.465V | +/-1.5ppm |
X1G005441006500 | TG2016SMN | 38.400000MHz | 2.00x1.60x0.61mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441020100 | TG2016SMN | 16.368000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441020200 | TG2016SMN | 16.369000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441020300 | TG2016SMN | 19.200000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441020400 | TG2016SMN | 26.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441020500 | TG2016SMN | 32.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441020600 | TG2016SMN | 38.400000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441020700 | TG2016SMN | 40.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441020800 | TG2016SMN | 16.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441021100 | TG2016SMN | 20.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441021200 | TG2016SMN | 24.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441021300 | TG2016SMN | 25.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441021400 | TG2016SMN | 27.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441021500 | TG2016SMN | 30.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441021600 | TG2016SMN | 48.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441022000 | TG2016SMN | 52.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441022100 | TG2016SMN | 27.600000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm |
X1G005441030100 | TG2016SMN | 16.368000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441030200 | TG2016SMN | 16.369000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441030300 | TG2016SMN | 19.200000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441030400 | TG2016SMN | 26.000000MHz | 2.00x1.60x0.73mm | 温补晶振 | 2.660 to 3.465V | +/-1.5ppm |
X1G005441030500 | TG2016SMN | 32.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441030600 | TG2016SMN | 38.400000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441030700 | TG2016SMN | 40.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441030800 | TG2016SMN | 16.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441031100 | TG2016SMN | 20.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441031200 | TG2016SMN | 24.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441031300 | TG2016SMN | 25.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441031400 | TG2016SMN | 27.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441031500 | TG2016SMN | 30.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441031600 | TG2016SMN | 48.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441032000 | TG2016SMN | 52.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
X1G005441032100 | TG2016SMN | 27.600000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm |
[温度补偿功能],TCXO内部集成了一个固定频率的AT型水晶振动子,因为水晶的材料特性,振动子具有确定的温度-频率特性,同时也因为这个特性,使晶振在受温度影响时,频率会随温度的变化而变化。温度补偿晶振是一种可以提供全温度范围内高精度频率输出的有源振荡器,多用于对频率精度要求高的场景,如智能手机、GPS、无线通讯模块、微机站(FemtoCell)等。
