X1E000251001600超小型晶体谐振器适用于各种小巧的便携式消费电子数码产品

返回列表 来源:泰河盛 查看手机网址
扫一扫!X1E000251001600超小型晶体谐振器适用于各种小巧的便携式消费电子数码产品扫一扫!
浏览:- 发布日期:2022-08-23 10:38:30【
随着高科技产品的随身携带且使用方便让电路板中的各路元器件都使出浑身解数,力求越来越小的同时还要越来越精密,因此小型化的贴片尺寸成了很多厂家的需要考虑条件。超小型,轻薄型,质地轻的表面贴片音叉型晶体谐振器,1612mm晶振产品体积小,特别适用于各种小巧的便携式消费电子数码产品,在移动通信领域得到了广泛的应用,晶振产品本身可发挥优良的电气特性,满足无铅焊接的高温回流温度曲线要求.

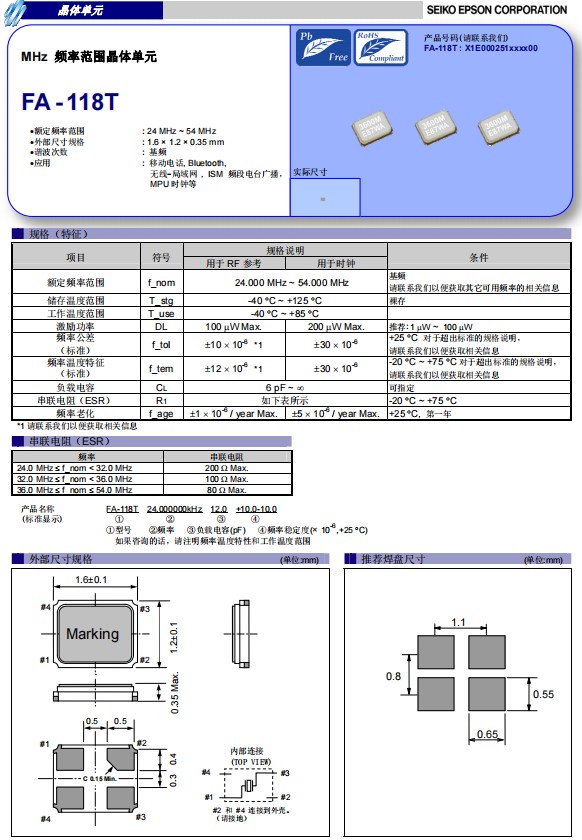

爱普生晶振推出的这款FA-118T,超小型尺寸1.6x1.2x0.35mm四脚贴片石英晶振,石英晶体谐振器,无源晶振,是当今很受欢迎的小尺寸晶振,随着民用市场中可无线通信产品的发展和迅速普及,搭载近距离无线通信Bluetooth功能的产品逐渐增加,1612mm无源晶振也呈现出越来越多的需求

X1E000251001600超小型晶体谐振器适用于各种小巧的便携式消费电子数码产品

Product Number

EPSON CRYSTAL

Model Frequency CL Value Freq.tol. @+25°C Freq.tol./Temp.range Temperature range
X1E000251000900 1.6 x 1.2 x 0.35mm FA-118T 27.120000 MHz 10 pF +/-30 ppm +/-50 ppm -20 to +75 °C
X1E000251001100 1.6 x 1.2 x 0.35mm FA-118T 26.000000 MHz 8 pF +/-10 ppm +/-10 ppm -20 to +75 °C
X1E000251001400 1.6 x 1.2 x 0.35mm FA-118T 26.000000 MHz 9 pF +/-10 ppm +/-12 ppm -20 to +75 °C
X1E000251001600 1.6 x 1.2 x 0.35mm FA-118T 37.400000 MHz 16 pF +/-10 ppm +/-10 ppm -20 to +85 °C
X1E000251003100 1.6 x 1.2 x 0.35mm FA-118T 37.400000 MHz 16 pF +/-7 ppm +/-10 ppm -30 to +85 °C
X1E000251003200 1.6 x 1.2 x 0.35mm FA-118T 40.000000 MHz 10 pF +/-10 ppm +/-10 ppm -20 to +75 °C
X1E000251003300 1.6 x 1.2 x 0.35mm FA-118T 25.000000 MHz 10 pF +/-30 ppm +/-30 ppm -20 to +75 °C
X1E000251003400 1.6 x 1.2 x 0.35mm FA-118T 25.000000 MHz 9 pF +/-30 ppm +/-30 ppm -20 to +75 °C
X1E000251003500 1.6 x 1.2 x 0.35mm FA-118T 30.000000 MHz 8 pF +/-20 ppm +/-20 ppm -20 to +75 °C
X1E000251004600 1.6 x 1.2 x 0.35mm FA-118T 24.000000 MHz 12 pF +/-10 ppm +/-10 ppm -20 to +75 °C
X1E000251005000 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 9 pF +/-10 ppm +/-12 ppm -20 to +75 °C
X1E000251005600 1.6 x 1.2 x 0.35mm FA-118T 52.000000 MHz 9 pF +/-15 ppm +/-12 ppm -20 to +75 °C
X1E000251005700 1.6 x 1.2 x 0.35mm FA-118T 25.000000 MHz 7 pF +/-30 ppm +/-30 ppm -20 to +75 °C
X1E000251005900 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 8 pF +/-10 ppm +/-10 ppm -20 to +75 °C
X1E000251006000 1.6 x 1.2 x 0.35mm FA-118T 48.000000 MHz 10 pF +/-30 ppm +/-30 ppm -20 to +75 °C
X1E000251006400 1.6 x 1.2 x 0.35mm FA-118T 26.000000 MHz 12 pF +/-10 ppm +/-12 ppm -20 to +75 °C
X1E000251006500 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 10 pF +/-10 ppm +/-12 ppm -20 to +75 °C
X1E000251006800 1.6 x 1.2 x 0.35mm FA-118T 24.000000 MHz 8 pF +/-30 ppm +/-30 ppm -20 to +75 °C
X1E000251006900 1.6 x 1.2 x 0.35mm FA-118T 24.000000 MHz 10 pF +/-30 ppm +/-30 ppm -20 to +75 °C
X1E000251007100 1.6 x 1.2 x 0.35mm FA-118T 40.000000 MHz 12 pF +/-8 ppm +/-10 ppm -30 to +85 °C
X1E000251007500 1.6 x 1.2 x 0.35mm FA-118T 26.000000 MHz 8 pF +/-10 ppm +/-10 ppm -30 to +85 °C
X1E000251007700 1.6 x 1.2 x 0.35mm FA-118T 25.000000 MHz 9 pF +/-10 ppm +/-10 ppm -20 to +75 °C
X1E000251007800 1.6 x 1.2 x 0.35mm FA-118T 40.000000 MHz 7 pF +/-10 ppm +/-10 ppm -20 to +75 °C
X1E000251007900 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 9 pF +/-10 ppm +/-10 ppm -20 to +75 °C
X1E000251008000 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 6 pF +/-10 ppm +/-12 ppm -20 to +75 °C
X1E000251008600 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 8 pF +/-20 ppm +/-20 ppm -20 to +75 °C
X1E000251009900 1.6 x 1.2 x 0.35mm FA-118T 48.000000 MHz 6 pF +/-30 ppm +/-30 ppm -20 to +75 °C
X1E000251010200 1.6 x 1.2 x 0.35mm FA-118T 50.000000 MHz 8 pF +/-30 ppm +/-30 ppm -40 to +85 °C
X1E000251010400 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 10 pF +/-20 ppm +/-30 ppm -40 to +85 °C
X1E000251011100 1.6 x 1.2 x 0.35mm FA-118T 25.000000 MHz 10 pF +/-50 ppm +/-30 ppm -20 to +75 °C
X1E000251011300 1.6 x 1.2 x 0.35mm FA-118T 25.000000 MHz 8 pF +/-10 ppm +/-15 ppm -30 to +85 °C
X1E000251012100 1.6 x 1.2 x 0.35mm FA-118T 24.000000 MHz 8 pF +/-10 ppm +/-10 ppm -20 to +85 °C
X1E000251012600 1.6 x 1.2 x 0.35mm FA-118T 24.000000 MHz 7 pF +/-30 ppm +/-30 ppm -20 to +75 °C
X1E000251013400 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 8 pF +/-10 ppm +/-12 ppm -20 to +85 °C
X1E000251013800 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 6 pF +/-10 ppm +/-15 ppm -20 to +70 °C
X1E000251014100 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 8 pF +/-20 ppm +/-20 ppm -40 to +85 °C
X1E000251014400 1.6 x 1.2 x 0.35mm FA-118T 24.000000 MHz 20 pF +/-30 ppm +/-30 ppm -20 to +75 °C
X1E000251015000 1.6 x 1.2 x 0.35mm FA-118T 38.400000 MHz 20 pF +/-10 ppm +/-10 ppm -20 to +75 °C
X1E000251015200 1.6 x 1.2 x 0.35mm FA-118T 48.000000 MHz 8 pF +/-10 ppm +/-20 ppm -40 to +85 °C
X1E000251015300 1.6 x 1.2 x 0.35mm FA-118T 24.000000 MHz 8 pF +/-10 ppm +/-20 ppm -40 to +85 °C
X1E000251015500 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 9 pF +/-30 ppm +/-30 ppm -20 to +75 °C
X1E000251015800 1.6 x 1.2 x 0.35mm FA-118T 50.000000 MHz 12 pF +/-10 ppm +/-15 ppm -40 to +85 °C
X1E000251016100 1.6 x 1.2 x 0.35mm FA-118T 37.400000 MHz 8 pF +/-10 ppm +/-10 ppm -30 to +85 °C
X1E000251016600 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 10 pF +/-10 ppm +/-10 ppm -30 to +85 °C
X1E000251019000 1.6 x 1.2 x 0.35mm FA-118T 40.000000 MHz 12 pF +/-10 ppm +/-10 ppm -30 to +85 °C
X1E000251019700 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 6 pF +/-10 ppm +/-10 ppm -20 to +75 °C
X1E000251020100 1.6 x 1.2 x 0.35mm FA-118T 38.400000 MHz 8 pF +/-10 ppm +/-10 ppm -20 to +85 °C
X1E000251021200 1.6 x 1.2 x 0.35mm FA-118T 40.000000 MHz 6 pF +/-10 ppm +/-20 ppm -40 to +85 °C
X1E000251021500 1.6 x 1.2 x 0.35mm FA-118T 32.000000 MHz 6 pF +/-20 ppm +/-20 ppm -40 to +85 °C
X1E000251021900 1.6 x 1.2 x 0.35mm FA-118T 40.000000 MHz 10 pF +/-10 ppm +/-20 ppm -40 to +85 °C

3


X1E000251001600超小型晶体谐振器适用于各种小巧的便携式消费电子数码产品

FA-118T石英晶振非常适合于具有高频率性能和设计空间的设备。它在移动电话、蓝牙、无线局域网、ISM频段无线广播等小型无线通信领域,工业自动化设备,电动汽车动力系统装备,及逆变电源,轨道交通中有着广泛的应用,这款1612无源晶振可以实现高精度的射频参考和时钟系统
