亚陶晶振KX201系列在广泛的工作条件下实现了卓越的稳定性,KX201VIS032.768000时钟振荡器
我们的32.768kHz振荡器(XO)具有适用于各种应用的卓越性能。我们的产品包括世界上最小的32.768kHz晶体振荡器(XO)，尺寸仅为2.0x1.6mm（KM 系列）。KM系列旨在应对小型化的挑战，同时保持时序信号的卓越精度。我们还提供KX系列晶体振荡器，它们是业界功耗最低（小于10µA）和最严格稳定性 (+/-20ppm) 的32kHz XO。
由于许多低功耗和便携式应用程序大部分时间都处于待机模式，因此这些系统必须最大限度地降低待机功耗。我们基于32.768kHz的定时源允许这些系统快速转换到待机模式（<10ms），以最大限度地延长电池寿命，而不会牺牲维持准确时钟和日历所需的稳定性（±20ppm）
亚陶晶振KX201系列在广泛的工作条件下实现了卓越的稳定性,KX201VIS032.768000时钟振荡器
亚陶晶振KX201系列实时时钟振荡器在广泛的工作条件下实现了卓越的稳定性。它利用Pericom专有技术实现低于30μA的超低电流。输出时钟信号与LVCMOS/LVTTL逻辑电平兼容。该器件采用卷带包装，采用2.0x1.6mm表面贴装陶瓷封装。
FNETHE025
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
25MHz
±25ppm
FNETHE025
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
25MHz
±25ppm
FNETHE025
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
25MHz
±25ppm
FNSURV027
百利通晶振
SaRonix-eCera™ ASSP XO™
27MHz
±30ppm
FNSURV027
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
27MHz
±30ppm
FNSURV027
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
27MHz
±30ppm
FNGEPO002
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
2.048MHz
±50ppm
FNGEPO002
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
2.048MHz
±50ppm
FNGEPO002
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
2.048MHz
±50ppm
FKSSD1025
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
25MHz
±25ppm
FKSSD1025
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
25MHz
±25ppm
FKSSD1025
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
25MHz
±25ppm
UJWIFI026
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
26MHz
±20ppm
UJWIFI026
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
26MHz
±20ppm
UJWIFI026
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
26MHz
±20ppm
FNEPON125
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
125MHz
±50ppm
FNEPON125
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
125MHz
±50ppm
FNEPON125
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
125MHz
±50ppm
FK1330001Z
Diodes Incorporated
SaRonix-eCera™ FK
13.3333MHz
±25ppm
FK1330001Z
Diodes Incorporated
SaRonix-eCera™ FK
13.3333MHz
±25ppm
FK1330001Z
Diodes Incorporated
SaRonix-eCera™ FK
13.3333MHz
±25ppm
FJ2400011
Diodes Incorporated
SaRonix-eCera™ FJ
24MHz
±50ppm
FJ2400011
Diodes Incorporated
SaRonix-eCera™ FJ
24MHz
±50ppm
FJ2400011
Diodes Incorporated
SaRonix-eCera™ FJ
24MHz
±50ppm
FJ2400002
Diodes Incorporated
SaRonix-eCera™ FJ
24MHz
±50ppm
FJ2400002
Diodes Incorporated
SaRonix-eCera™ FJ
24MHz
±50ppm
FJ2400002
Diodes Incorporated
SaRonix-eCera™ FJ
24MHz
±50ppm
FN2500149
Diodes Incorporated
SaRonix-eCera™ FN
25MHz
±50ppm
FN2500149
Diodes Incorporated
SaRonix-eCera™ FN
25MHz
±50ppm

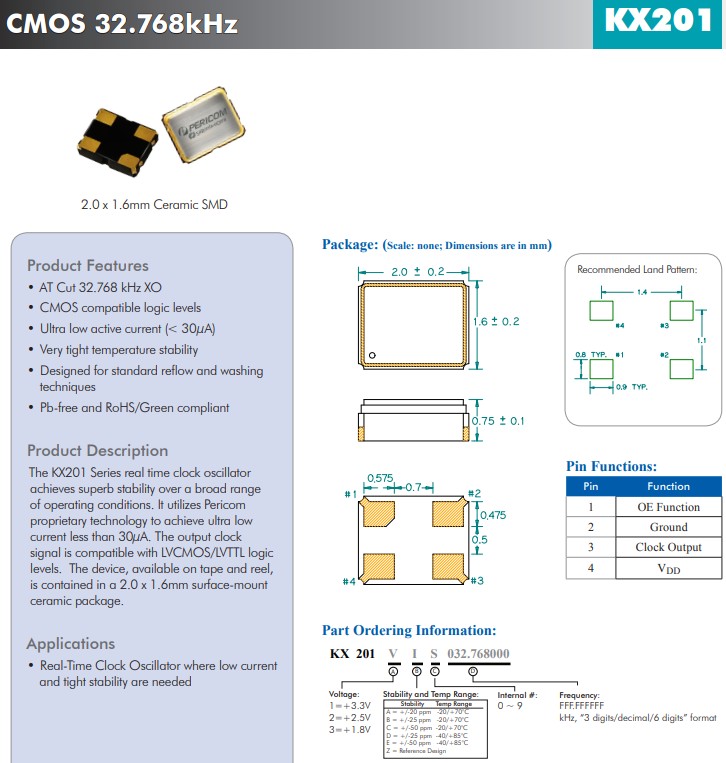

特征：
AT Cut 32.768kHz XO
CMOS兼容逻辑电平
超低有功电流（< 30μA）
非常严格的温度稳定性
专为标准回流和清洗技术而设计
无铅且符合 RoHS/Green 标准
应用：需要低电流和高度稳定性的实时时钟振荡器
亚陶晶振KX201系列在广泛的工作条件下实现了卓越的稳定性,KX201VIS032.768000时钟振荡器
| FN2500149 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm |
| SXGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm |
| SXGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm |
| SXGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm |
| HX2513F0026.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 26MHz | ±50ppm |
| HX2513F0026.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 26MHz | ±50ppm |
| HX2513F0026.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 26MHz | ±50ppm |
| HX3125006Q | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±30ppm |
| HX3125006Q | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±30ppm |
| HX3125006Q | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±30ppm |
| NX3211C0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| NX3211C0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| NX3211C0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| FJ1600002 | Diodes Incorporated | SaRonix-eCera™ FJ | 16MHz | ±50ppm |
| FJ1600002 | Diodes Incorporated | SaRonix-eCera™ FJ | 16MHz | ±50ppm |
| FJ1600002 | Diodes Incorporated | SaRonix-eCera™ FJ | 16MHz | ±50ppm |
| JX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ JX | 70.656MHz | ±25ppm |
| JX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ JX | 70.656MHz | ±25ppm |
| JX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ JX | 70.656MHz | ±25ppm |
| UJ2600007Z | Diodes Incorporated | SaRonix-eCera™ UJ | 26MHz | ±20ppm |
| UJ2600007Z | Diodes Incorporated | SaRonix-eCera™ UJ | 26MHz | ±20ppm |
| UJ2600007Z | Diodes Incorporated | SaRonix-eCera™ UJ | 26MHz | ±20ppm |
| FJ1120001Z | Diodes Incorporated | SaRonix-eCera™ FJ | 11.2896MHz | ±25ppm |
| FJ1120001Z | Diodes Incorporated | SaRonix-eCera™ FJ | 11.2896MHz | ±25ppm |
| FJ1120001Z | Diodes Incorporated | SaRonix-eCera™ FJ | 11.2896MHz | ±25ppm |
| FDC500026 | Diodes Incorporated | SaRonix-eCera™ FD | 125MHz | ±50ppm |
| FDC500026 | Diodes Incorporated | SaRonix-eCera™ FD | 125MHz | ±50ppm |
| FDC500026 | Diodes Incorporated | SaRonix-eCera™ FD | 125MHz | ±50ppm |
| HX7011C0025.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±25ppm |
| HX7011C0025.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±25ppm |
| HX7011C0025.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±25ppm |
| NX5011B0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm |
| NX5011B0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm |
| NX5011B0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm |
| FNA000088Z | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±50ppm |
| FNA000088Z | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±50ppm |
| FNA000088Z | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±50ppm |
| FNA000065 | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±25ppm |
| FNA000065 | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±25ppm |
| FNA000065 | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±25ppm |
| NX71C50003 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm |
| NX71C50003 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm |
| NX71C50003 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm |
| FNC500131 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm |
| FNC500131 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm |
| FNC500131 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm |
| NX71C50001 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±20ppm |
| NX71C50001 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±20ppm |
| NX71C50001 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±20ppm |
| FM3900001Z | Diodes Incorporated | SaRonix-eCera™ FM | 39.0625MHz | ±50ppm |
| FM3900001Z | Diodes Incorporated | SaRonix-eCera™ FM | 39.0625MHz | ±50ppm |
| FM3900001Z | Diodes Incorporated | SaRonix-eCera™ FM | 39.0625MHz | ±50ppm |
| FKA000018Z | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm |
| FKA000018Z | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm |
| FKA000018Z | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm |
| HX3124501Q | Diodes Incorporated | SaRonix-eCera™ HX | 24.545452MHz | ±25ppm |
| HX3124501Q | Diodes Incorporated | SaRonix-eCera™ HX | 24.545452MHz | ±25ppm |
| HX3124501Q | Diodes Incorporated | SaRonix-eCera™ HX | 24.545452MHz | ±25ppm |
| HX31330001 | Diodes Incorporated | SaRonix-eCera™ HX | 33MHz | ±50ppm |
| HX31330001 | Diodes Incorporated | SaRonix-eCera™ HX | 33MHz | ±50ppm |
亚陶晶振KX201系列在广泛的工作条件下实现了卓越的稳定性,KX201VIS032.768000时钟振荡器

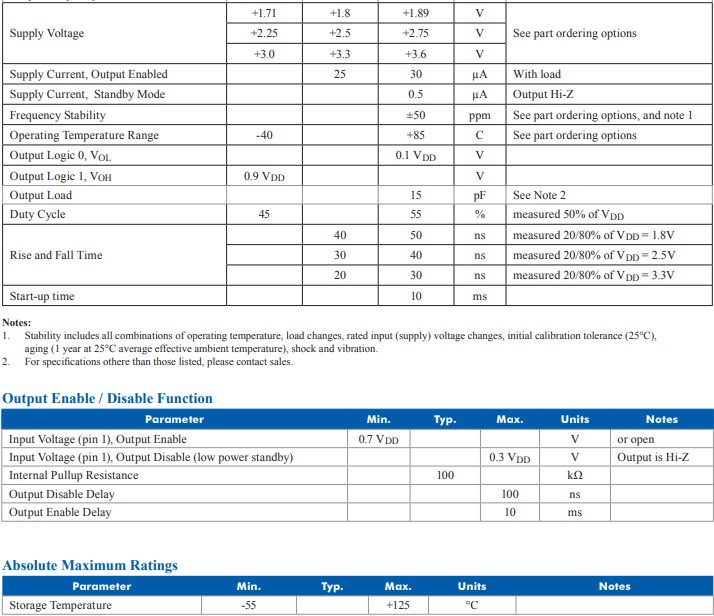

产品参数：
输出逻辑 CMOS
电源电压 (V) 1.8,2.5,3.3
包装尺寸（毫米） 2.0x1.6x0.75mm有源晶振
包装类型 陶瓷缝
稳定性 (PPM) 20到50
产品系列 KX201
频率范围 (MHz) 32.768KHZ
抖动均方根 (ps) <1 PS
垫 4
家庭 千赫XO
| HX31330001 | Diodes Incorporated | SaRonix-eCera™ HX | 33MHz | ±50ppm |
| HX3212F0040.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 40MHz | ±50ppm |
| HX3212F0040.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 40MHz | ±50ppm |
| HX3212F0040.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 40MHz | ±50ppm |
| SX10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| SX10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| SX10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| HX3127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| HX3127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| HX3127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
亚陶晶振KX201系列在广泛的工作条件下实现了卓越的稳定性,KX201VIS032.768000时钟振荡器
| KX201 | 1.82.53.3 | 2.0 x 1.6 x 0.75 | 陶瓷缝 | 20~50 | KX201 | 32.768KHZ | <1 | 4 | 1.8V/2.5V/3.3V, 2.0x1.6mm, 32.768kHz CMOS 晶体振荡器 | |
|---|---|---|---|---|---|---|---|---|---|---|
| KX251 | 1.82.53.3 | 2.5 x 2.0 x 0.9 | 陶瓷缝 | 20~50 | KX251 | 32.768KHZ | <1 | 4 | 1.8V/2.5V/3.3V, 2.5x2.0mm, 32.768kHz CMOS 晶体振荡器 | |
| KX31Q | 3.32.51.8 | 3.2 x 2.5 | 陶瓷缝 | 20~50 | KXQ | 32.768KHZ | <1 | 4 | 1.8/2.5/3.3V、3.2x2.5mm、超低电流、32.768KHz、汽车级CMOS晶体振荡器 | |
| KX321 | 1.82.53.3 | 3.2 x 2.5 x 1.0 | 陶瓷缝 | 20~50 | KX321 | 32.768KHZ | <1 | 4 | 1.8V/2.5V/3.3V, 3.2x2.5mm, 32.768kHz CMOS 晶体振荡器 | |
| KX501 | 1.82.53.3 | 5.0 x 3.2 x 1.2 | 陶瓷缝 | 20~50 | KX501 | 32.768KHZ | <1 | 4 | 1.8V/2.5V/3.3V, 5.0x3.2mm, 32.768kHz CMOS 晶体振荡器 |
