C3290-32.768M,Crystek低相位噪声晶振,7050mm,以太网应用晶振
频率：32.768MHz
尺寸：7.0x5.0x1.8mm
C3290-32.768M,Crystek低相位噪声晶振,7050mm,以太网应用晶振，美国进口晶振，Crystek晶振，瑞斯克晶振，型号：C32xx系列晶振，编码：C3290-32.768M，频率：32.768MHz，频率稳定性：±100ppm，工作温度范围：0℃至+70℃，工作电压为：5.0V，小体积晶振尺寸：7.0x5.0x1.8mm，四脚贴片晶振，石英晶体振荡器，时钟振荡器，HCMOS输出晶振。具有超小型，轻薄型，高性能，高品质等特点。应用范围：数字视频，SONET/SDH/DWDM，存储区域网络，宽带接入晶振，以太网、千兆以太网等应用。
石英晶振型号C32xx系列是一个1.544MHz到100.000MHz的HCMOS时钟振荡器，工作电压5.0V。该振荡器利用基本或高Q第三泛音晶体设计，提供非常低的抖动和相位噪声。输出信号中没有子谐波。
C3290-32.768M,Crystek低相位噪声晶振,7050mm,以太网应用晶振,规格表
Frequency Range:
32.768 MHz
Frequency Stability Options:
±20*, ±25, ±50, ±100 (ppm)
Temperature Range: (standard)
0°C to +70°C
(Option “M”)
-20°C to +70°C
(Option “E”*)
-40°C to +85°C
Storage Temperature:
-45°C to 90°C
Input Voltage:
5.0V ±0.5V
Input Current:
60mA Max
Standby Current:
10uA Max
Output:
HCMOS
Symmetry:
(Standard “2”)
40/60% Max @ 50% Vdd
(Option “9”)
45/55% Max @ 50% Vdd
Rise/Fall Time:
6ns Max @ 20% to 80% Vdd
Logic:
"0" = 10% Vdd Max
"1" = 90% Vdd Min
Disable Time:
200ns Max
Start-up Time:
10ms Max
Load:
30pF Max
Jitter RMS: 12kHz~20MHz
0.5ps Typical, 1ps Max
Sub-harmonics:
None
Aging:
<3ppm 1st year, <1ppm every year thereafter

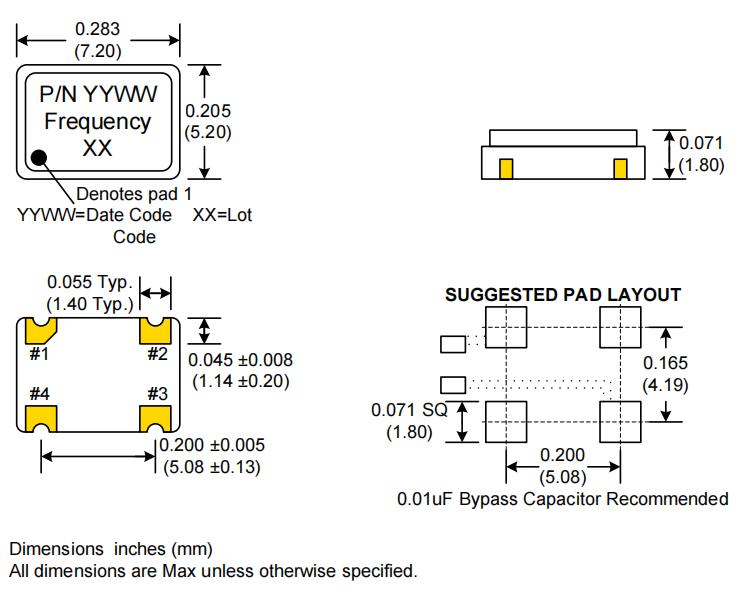

C3290-32.768M,Crystek低相位噪声晶振,7050mm,以太网应用晶振,尺寸图
| 有源晶振 | 品牌 | 型号 | 类型 | 频率 |
| C3290-1.544 | Crystek晶振 | C3290 | XO (Standard) | 1.544MHz |
| C3290-1.843200 | Crystek晶振 | C3290 | XO (Standard) | 1.8432MHz |
| C3290-10.000 | Crystek晶振 | C3290 | XO (Standard) | 10MHz |
| C3290-12.000 | Crystek晶振 | C3290 | XO (Standard) | 12MHz |
| C3290-12.288 | Crystek晶振 | C3290 | XO (Standard) | 12.288MHz |
| C3290-12.352 | Crystek晶振 | C3290 | XO (Standard) | 12.352MHz |
| C3290-14.318180 | Crystek晶振 | C3290 | XO (Standard) | 14.31818MHz |
| C3290-15.360 | Crystek晶振 | C3290 | XO (Standard) | 15.36MHz |
| C3290-16.000 | Crystek晶振 | C3290 | XO (Standard) | 16MHz |
| C3290-16.384 | Crystek晶振 | C3290 | XO (Standard) | 16.384MHz |
| C3290-18.432 | Crystek晶振 | C3290 | XO (Standard) | 18.432MHz |
| C3290-19.440 | Crystek晶振 | C3290 | XO (Standard) | 19.44MHz |
| C3290-2.048 | Crystek晶振 | C3290 | XO (Standard) | 2.048MHz |
| C3290-20.000 | Crystek晶振 | C3290 | XO (Standard) | 20MHz |
| C3290-20.480 | Crystek晶振 | C3290 | XO (Standard) | 20.48MHz |
| C3290-24.000 | Crystek晶振 | C3290 | XO (Standard) | 24MHz |
| C3290-24.704 | Crystek晶振 | C3290 | XO (Standard) | 24.704MHz |
| C3290-25.000 | Crystek晶振 | C3290 | XO (Standard) | 25MHz |
| C3290-3.686400 | Crystek晶振 | C3290 | XO (Standard) | 3.6864MHz |
| C3290-30.000 | Crystek晶振 | C3290 | XO (Standard) | 30MHz |
| C3290-32.000 | Crystek晶振 | C3290 | XO (Standard) | 32MHz |
| C3290-32.768 | Crystek晶振 | C3290 | XO (Standard) | 32.768MHz |
| C3290-33.000 | Crystek晶振 | C3290 | XO (Standard) | 33MHz |
| C3290-33.333 | Crystek晶振 | C3290 | XO (Standard) | 33.333MHz |
| C3290-35.000 | Crystek晶振 | C3290 | XO (Standard) | 35MHz |
| C3290-4.000 | Crystek晶振 | C3290 | XO (Standard) | 4MHz |
| C3290-40.000 | Crystek晶振 | C3290 | XO (Standard) | 40MHz |
| C3290-44.736 | Crystek晶振 | C3290 | XO (Standard) | 44.736MHz |
| C3290-45.000 | Crystek晶振 | C3290 | XO (Standard) | 45MHz |
| C3290-49.152 | Crystek晶振 | C3290 | XO (Standard) | 49.152MHz |
| C3290-50.000 | Crystek晶振 | C3290 | XO (Standard) | 50MHz |
| C3290-51.840 | Crystek晶振 | C3290 | XO (Standard) | 51.84MHz |
| C3290-6.176 | Crystek晶振 | C3290 | XO (Standard) | 6.176MHz |
| C3290-7.372800 | Crystek晶振 | C3290 | XO (Standard) | 7.3728MHz |
| C3290-8.000 | Crystek晶振 | C3290 | XO (Standard) | 8MHz |
| C3290-60.000 | Crystek晶振 | C3290 | XO (Standard) | 60MHz |
| C3290-64.000 | Crystek晶振 | C3290 | XO (Standard) | 64MHz |
| C3290-66.666600 | Crystek晶振 | C3290 | XO (Standard) | 66.6666MHz |
| C3290-75.000 | Crystek晶振 | C3290 | XO (Standard) | 75MHz |
| C3290-80.000 | Crystek晶振 | C3290 | XO (Standard) | 80MHz |
| CE3290-1.544 | Crystek晶振 | C3290 | XO (Standard) | 1.544MHz |
| CE3290-1.843200 | Crystek晶振 | C3290 | XO (Standard) | 1.8432MHz |
| CE3290-10.000 | Crystek晶振 | C3290 | XO (Standard) | 10MHz |
| CE3290-12.000 | Crystek晶振 | C3290 | XO (Standard) | 12MHz |
| CE3290-12.288 | Crystek晶振 | C3290 | XO (Standard) | 12.288MHz |
| CE3290-12.352 | Crystek晶振 | C3290 | XO (Standard) | 12.352MHz |
| CE3290-14.318180 | Crystek晶振 | C3290 | XO (Standard) | 14.31818MHz |
| CE3290-15.360 | Crystek晶振 | C3290 | XO (Standard) | 15.36MHz |
| CE3290-16.000 | Crystek晶振 | C3290 | XO (Standard) | 16MHz |
| CE3290-16.384 | Crystek晶振 | C3290 | XO (Standard) | 16.384MHz |
| CE3290-18.432 | Crystek晶振 | C3290 | XO (Standard) | 18.432MHz |
| CE3290-19.440 | Crystek晶振 | C3290 | XO (Standard) | 19.44MHz |
| CE3290-2.048 | Crystek晶振 | C3290 | XO (Standard) | 2.048MHz |
| CE3290-20.000 | Crystek晶振 | C3290 | XO (Standard) | 20MHz |
| CE3290-20.480 | Crystek晶振 | C3290 | XO (Standard) | 20.48MHz |
| CE3290-24.000 | Crystek晶振 | C3290 | XO (Standard) | 24MHz |
| CE3290-24.704 | Crystek晶振 | C3290 | XO (Standard) | 24.704MHz |
| CE3290-25.000 | Crystek晶振 | C3290 | XO (Standard) | 25MHz |
| CE3290-3.686400 | Crystek晶振 | C3290 | XO (Standard) | 3.6864MHz |
| CE3290-30.000 | Crystek晶振 | C3290 | XO (Standard) | 30MHz |
| CE3290-32.000 | Crystek晶振 | C3290 | XO (Standard) | 32MHz |
| CE3290-32.768 | Crystek晶振 | C3290 | XO (Standard) | 32.768MHz |
| CE3290-33.000 | Crystek晶振 | C3290 | XO (Standard) | 33MHz |
| CE3290-33.333 | Crystek晶振 | C3290 | XO (Standard) | 33.333MHz |
| CE3290-35.000 | Crystek晶振 | C3290 | XO (Standard) | 35MHz |
| CE3290-4.000 | Crystek晶振 | C3290 | XO (Standard) | 4MHz |
| CE3290-40.000 | Crystek晶振 | C3290 | XO (Standard) | 40MHz |
| CE3290-6.176 | Crystek晶振 | C3290 | XO (Standard) | 6.176MHz |
| CE3290-7.372800 | Crystek晶振 | C3290 | XO (Standard) | 7.3728MHz |
| CE3290-8.000 | Crystek晶振 | C3290 | XO (Standard) | 8MHz |
| CE3290-44.736 | Crystek晶振 | C3290 | XO (Standard) | 44.736MHz |
| CE3290-45.000 | Crystek晶振 | C3290 | XO (Standard) | 45MHz |
| CE3290-49.152 | Crystek晶振 | C3290 | XO (Standard) | 49.152MHz |
| CE3290-50.000 | Crystek晶振 | C3290 | XO (Standard) | 50MHz |
| CE3290-51.840 | Crystek晶振 | C3290 | XO (Standard) | 51.84MHz |
| CE3290-60.000 | Crystek晶振 | C3290 | XO (Standard) | 60MHz |
| CE3290-64.000 | Crystek晶振 | C3290 | XO (Standard) | 64MHz |
| CE3290-66.666600 | Crystek晶振 | C3290 | XO (Standard) | 66.6666MHz |
| CE3290-75.000 | Crystek晶振 | C3290 | XO (Standard) | 75MHz |
| CE3290-80.000 | Crystek晶振 | C3290 | XO (Standard) | 80MHz |
| C3290-100.000 | Crystek晶振 | C3290 | XO (Standard) | 100MHz |
| C3290-106.2500 | Crystek晶振 | C3290 | XO (Standard) | 106.25MHz |
| CE3290-100.000 | Crystek晶振 | C3290 | XO (Standard) | 100MHz |
| CE3290-106.2500 | Crystek晶振 | C3290 | XO (Standard) | 106.25MHz |
