英国IQD晶振|87SMX|LFXTAL023899Bulk|SMD晶体

频率：3.6864MHz

尺寸：13.1 × 5.0 × 5.5 mm

英国IQD晶振|87SMX|LFXTAL023899Bulk|SMD晶体,英国IQD晶振,87SMX进口晶振,无源晶振,LFXTAL023899Bulk晶振,石英晶体谐振器,13.1×5.0× 5.5mm晶振,SMD晶体,四脚贴片晶振,频率3.6864MHz,负载16pF,频率容差50ppm,工作温度-20~70°C,低老化晶振,高稳定性晶振,高品质晶振,家用电视机顶盒晶振,音频系统晶振,网络服务器晶振,调制解调器晶振.

咨询热线：0755-27872782

TH-1 890

英国IQD晶振|87SMX|LFXTAL023899Bulk|SMD晶体,英国IQD晶振,87SMX进口晶振,无源晶振,LFXTAL023899Bulk晶振,石英晶体谐振器,13.1×5.0× 5.5mm晶振,SMD晶体,四脚贴片晶振,频率3.6864MHz,负载16pF,频率容差50ppm,工作温度-20~70°C,低老化晶振,高稳定性晶振,高品质晶振,家用电视机顶盒晶振,音频系统晶振,网络服务器晶振,调制解调器晶振.

TH-2 890

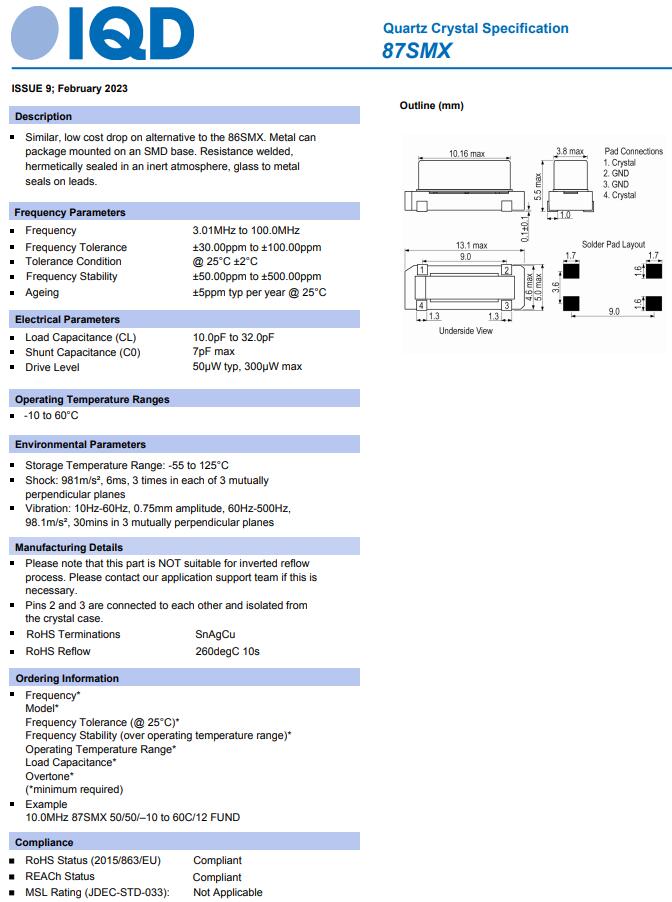

英国IQD晶振|87SMX|LFXTAL023899Bulk|SMD晶体规格表

参数	数值
频率	3.6864 MHz
频率容差@ 25°C ± 3°C	±50 ppm
频率稳定性	±100 ppm
工作温度	-20~70°C
储存温度	-55~125°C
负载	16 pF
并联电容	7pF typ
驱动电平	50µW max.
老化@ 25°C ± 3°C	±5.0ppm per year max

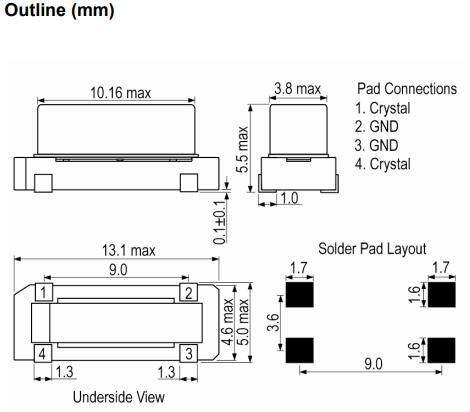

英国IQD晶振|87SMX|LFXTAL023899Bulk|SMD晶体尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL065272RL3K	CFPX-180	32.768MHz	±50ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL088666RL3K	CFPX-180	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL059672Cutt	CFPX-180	36.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL075445RL3K	CFPX-180	38.4MHz	±10ppm	±10ppm	-20°C to 75°C	8.50pF
LFXTAL076107RL3K	CFPX-180	38.4MHz	±30ppm	±50ppm	-40°C to 85°C	15.00pF
LFXTAL082763RL3K	CFPX-180	38.4MHz	±30ppm	±30ppm	-20°C to 70°C	9.00pF
LFXTAL083279Cutt	CFPX-180	38.4MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL035270Bulk	CFPX-180	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL035270Cutt	CFPX-180	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL059648Cutt	CFPX-180	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059648Reel	CFPX-180	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059648RL3K	CFPX-180	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL076900Cutt	CFPX-180	40.0MHz	±10ppm	±10ppm	-20°C to 75°C	9.00pF
LFXTAL082077RL3K	CFPX-180	40.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL054093Cutt	CFPX-180	41.0MHz	±50ppm	±50ppm	-10°C to 60°C	10.50pF
LFXTAL069379Cutt	CFPX-180	44.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL009549Bulk	CFPX-180	48.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL053866Cutt	CFPX-180	48.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL053866RL3K	CFPX-180	48.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055570Cutt	CFPX-180	48.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL062288RL3K	CFPX-180	48.0MHz	±30ppm	±30ppm	-10°C to 60°C	18.00pF
LFXTAL071958Cutt	CFPX-180	48.0MHz	±30ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL079244Cutt	CFPX-180	48.0MHz	±15ppm	±25ppm	-40°C to 85°C	8.00pF
LFXTAL080495RL3K	CFPX-180	48.0MHz	±50ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL080873RL3K	CFPX-180	48.0MHz	±30ppm	±50ppm	-20°C to 70°C	10.00pF
LFXTAL082068RL3K	CFPX-180	48.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL083249Cutt	CFPX-180	48.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL084993RL3K	CFPX-180	48.0MHz	±20ppm	±20ppm	-20°C to 70°C	18.00pF
LFXTAL090184RL3K	CFPX-180	48.0MHz	±10ppm	±20ppm	-20°C to 70°C	20.00pF
LFXTAL060843Cutt	CFPX-180	50.0MHz	±25ppm	±25ppm	-20°C to 70°C	10.00pF
LFXTAL060843Reel	CFPX-180	50.0MHz	±25ppm	±25ppm	-20°C to 70°C	10.00pF
LFXTAL060843RL3K	CFPX-180	50.0MHz	±25ppm	±25ppm	-20°C to 70°C	10.00pF
LFXTAL069349Cutt	CFPX-180	50.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL072787Cutt	CFPX-180	50.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072787RL3K	CFPX-180	50.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL082006Cutt	CFPX-180	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL082006RL3K	CFPX-180	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL082078Cutt	CFPX-180	50.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082078Reel	CFPX-180	50.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082078RL3K	CFPX-180	50.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082568RL3K	CFPX-180	50.0MHz	±10ppm	±15ppm	-40°C to 85°C	12.00pF
LFXTAL082637RL3K	CFPX-180	50.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL083481RL3K	CFPX-180	50.0MHz	±20ppm	±20ppm	-40°C to 85°C	16.00pF
LFXTAL062546Cutt	CFPX-180	54.0MHz	±15ppm	±20ppm	-20°C to 70°C	19.00pF
LFXTAL062546RL3K	CFPX-180	54.0MHz	±15ppm	±20ppm	-20°C to 70°C	19.00pF
LFXTAL083943Cutt	CFPX-180	200.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL053050Cutt	CFPX-104	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL054323Bulk	CFPX-104	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL054323Cutt	CFPX-104	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL054323Reel	CFPX-104	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055663Bulk	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055663Cutt	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055663Reel	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055901Cutt	CFPX-104	8.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL055901Reel	CFPX-104	8.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL057013Bulk	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059158Bulk	CFPX-104	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL059158Cutt	CFPX-104	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL061627Cutt	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL063177Cutt	CFPX-104	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL063189Bulk	CFPX-104	8.0MHz	±10ppm	±20ppm	-40°C to 85°C	15.00pF
LFXTAL065886Cutt	CFPX-104	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL066685Bulk	CFPX-104	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069277Bulk	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL070720Cutt	CFPX-104	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL070722Bulk	CFPX-104	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	30.00pF
LFXTAL078127Cutt	CFPX-104	8.0MHz	±20ppm	±20ppm	-20°C to 70°C	12.00pF
LFXTAL078323Cutt	CFPX-104	8.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL081233Bulk	CFPX-104	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL061486Bulk	CFPX-104	8.192MHz	±30ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL061486Cutt	CFPX-104	8.192MHz	±30ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL061486Reel	CFPX-104	8.192MHz	±30ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL075997Reel	CFPX-104	9.9MHz	±40ppm	±60ppm	-40°C to 125°C	12.00pF
LFXTAL056583Reel	CFPX-104	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL072402Cutt	CFPX-104	10.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072402Reel	CFPX-104	10.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL058513Bulk	CFPX-104	11.0592MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL060205Bulk	CFPX-104	11.0592MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL032878Bulk	CFPX-104	12.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL032878Cutt	CFPX-104	12.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL032878Reel	CFPX-104	12.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL035484Reel	CFPX-104	12.0MHz	±20ppm	±30ppm	-10°C to 60°C	20.00pF
LFXTAL036401Bulk	CFPX-104	12.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL036401Reel	CFPX-104	12.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL036584Bulk	CFPX-104	12.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL050518Cutt	CFPX-104	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL051048Bulk	CFPX-104	12.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL055999Reel	CFPX-104	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL057514Bulk	CFPX-104	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL057514Cutt	CFPX-104	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL058139Bulk	CFPX-104	12.0MHz	±30ppm	±50ppm	-40°C to 85°C	15.00pF
LFXTAL058743Bulk	CFPX-104	12.0MHz	±10ppm	±10ppm	-20°C to 70°C	18.00pF
LFXTAL059522Bulk	CFPX-104	12.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059522Reel	CFPX-104	12.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL061632Bulk	CFPX-104	12.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL061632Cutt	CFPX-104	12.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL062512Bulk	CFPX-104	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL062512Cutt	CFPX-104	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL063061Bulk	CFPX-104	12.0MHz	±10ppm	±20ppm	-40°C to 85°C	16.00pF
LFXTAL063500Bulk	CFPX-104	12.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078871Cutt	CFPX-104	12.0MHz	±30ppm	±30ppm	-20°C to 70°C	20.00pF
LFXTAL080790Cutt	CFPX-104	12.0MHz	±10ppm	±10ppm	-20°C to 70°C	18.00pF
LFXTAL059523Bulk	CFPX-104	12.288MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059523Reel	CFPX-104	12.288MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL056556Cutt	CFPX-104	12.5MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL056556Reel	CFPX-104	12.5MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL059477Reel	CFPX-104	12.8MHz	±10ppm	±20ppm	-40°C to 85°C	15.00pF
LFXTAL053614Reel	CFPX-104	13.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL066473Bulk	CFPX-104	13.0MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL080835Bulk	CFPX-104	13.56MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL033643Bulk	CFPX-104	14.31818MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033643Reel	CFPX-104	14.31818MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL059526Bulk	CFPX-104	14.31818MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059526Reel	CFPX-104	14.31818MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL033328Bulk	CFPX-104	14.7456MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033328Cutt	CFPX-104	14.7456MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033328Reel	CFPX-104	14.7456MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL072403Bulk	CFPX-104	14.7456MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072403Reel	CFPX-104	14.7456MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083467Cutt	CFPX-104	14.7456MHz	±20ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL083467Reel	CFPX-104	14.7456MHz	±20ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL030819Bulk	CFPX-104	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL030819Reel	CFPX-104	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL035082Cutt	CFPX-104	16.0MHz	±50ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL050910Bulk	CFPX-104	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL050910Cutt	CFPX-104	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL057849Bulk	CFPX-104	16.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059527Bulk	CFPX-104	16.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL061636Bulk	CFPX-104	16.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL059528Bulk	CFPX-104	16.384MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059528Reel	CFPX-104	16.384MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059529Bulk	CFPX-104	18.432MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059529Reel	CFPX-104	18.432MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL033265Bulk	CFPX-104	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033265Cutt	CFPX-104	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033265Reel	CFPX-104	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL056808Bulk	CFPX-104	20.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL056808Reel	CFPX-104	20.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL060218Bulk	CFPX-104	20.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL061045Bulk	CFPX-104	20.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL061639Cutt	CFPX-104	20.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL065376Cutt	CFPX-104	22.5792MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL032817Bulk	CFPX-104	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL032817Cutt	CFPX-104	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL032817Reel	CFPX-104	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL051735Bulk	CFPX-104	24.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL053798Reel	CFPX-104	24.0MHz	±10ppm	±25ppm	-40°C to 85°C	18.00pF
LFXTAL058856Bulk	CFPX-104	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL059530Bulk	CFPX-104	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059530Reel	CFPX-104	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059693Reel	CFPX-104	24.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL061087Bulk	CFPX-104	24.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL063939Bulk	CFPX-104	24.0MHz	±30ppm	±30ppm	-20°C to 70°C	8.00pF
LFXTAL071469Bulk	CFPX-104	24.0MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL071469Reel	CFPX-104	24.0MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL033644Bulk	CFPX-104	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033644Reel	CFPX-104	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL059531Bulk	CFPX-104	24.576MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059531Reel	CFPX-104	24.576MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL033075Bulk	CFPX-104	25.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033075Cutt	CFPX-104	25.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033075Reel	CFPX-104	25.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL051737Bulk	CFPX-104	25.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL055172Bulk	CFPX-104	25.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL057895Bulk	CFPX-104	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	15.00pF
LFXTAL058401Bulk	CFPX-104	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL059532Bulk	CFPX-104	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059532Reel	CFPX-104	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL061642Cutt	CFPX-104	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL083060Cutt	CFPX-104	25.0MHz	±50ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL035240Reel	CFPX-104	26.0MHz	±10ppm	±10ppm	-10°C to 60°C	16.00pF
LFXTAL064726Bulk	CFPX-104	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072404Bulk	CFPX-104	26.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072404Reel	CFPX-104	26.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL052412Cutt	CFPX-104	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL059697Bulk	CFPX-104	27.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL063478Bulk	CFPX-104	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL055896Bulk	CFPX-104	28.6363MHz	±20ppm	±20ppm	-20°C to 70°C	18.00pF
LFXTAL059487Bulk	CFPX-104	28.63636MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL030820Bulk	CFPX-104	30.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL030820Reel	CFPX-104	30.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL063464Cutt	CFPX-104	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL065460Reel	CFPX-104	30.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL054902Bulk	CFPX-104	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL059535Bulk	CFPX-104	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059535Reel	CFPX-104	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL033645Bulk	CFPX-104	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033645Reel	CFPX-104	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL059537Bulk	CFPX-104	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059537Reel	CFPX-104	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059539Bulk	CFPX-104	48.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059539Reel	CFPX-104	48.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL063491Cutt	CFPX-104	48.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL023899Bulk	87SMX	3.6864MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023899Cutt	87SMX	3.6864MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023899Reel	87SMX	3.6864MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL052142Bulk	87SMX	3.6864MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL052142Reel	87SMX	3.6864MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL056684Bulk	87SMX	3.6864MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL056684Reel	87SMX	3.6864MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL073137Reel	87SMX	3.6864MHz	±50ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL073293Cutt	87SMX	3.6864MHz	±100ppm	±150ppm	-40°C to 90°C	16.00pF
LFXTAL022544Reel	87SMX	4.0MHz	±50ppm	±100ppm	-40°C to 90°C	30.00pF
LFXTAL029774Bulk	87SMX	4.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL029774Cutt	87SMX	4.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL029774Reel	87SMX	4.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL057771Cutt	87SMX	4.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL057801Reel	87SMX	4.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL058357Bulk	87SMX	4.0MHz	±15ppm	±100ppm	-55°C to 105°C	30.00pF
LFXTAL058357Cutt	87SMX	4.0MHz	±15ppm	±100ppm	-55°C to 105°C	30.00pF
LFXTAL058357Reel	87SMX	4.0MHz	±15ppm	±100ppm	-55°C to 105°C	30.00pF
LFXTAL073195Reel	87SMX	4.0MHz	±50ppm	±50ppm	-40°C to 85°C	15.00pF
LFXTAL073201Cutt	87SMX	4.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL073239Bulk	87SMX	4.0MHz	±30ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL073239Reel	87SMX	4.0MHz	±30ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL073445Reel	87SMX	4.0MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL076128Reel	87SMX	4.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL077252Cutt	87SMX	4.0MHz	±50ppm	±50ppm	-20°C to 70°C	30.00pF
LFXTAL083532Cutt	87SMX	4.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL083532Reel	87SMX	4.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL083563Reel	87SMX	4.0MHz	±30ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL073237Cutt	87SMX	4.096MHz	±100ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL023399Bulk	87SMX	4.9152MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023399Cutt	87SMX	4.9152MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023399Reel	87SMX	4.9152MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL073191Cutt	87SMX	4.9152MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL032749Reel	87SMX	6.0MHz	±20ppm	±30ppm	-40°C to 85°C	30.00pF
LFXTAL037119Bulk	87SMX	6.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL037119Reel	87SMX	6.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL083533Reel	87SMX	6.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL083535Cutt	87SMX	6.144MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083535Reel	87SMX	6.144MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023628Bulk	87SMX	7.3728MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023628Reel	87SMX	7.3728MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL065699Cutt	87SMX	7.902708MHz	±100ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL065699Reel	87SMX	7.902708MHz	±100ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL023401Bulk	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023401Cutt	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023401Reel	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL056525Bulk	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL059455Cutt	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL059455Reel	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL076060Reel	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL083499Reel	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083528Cutt	87SMX	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083528Reel	87SMX	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL033471Reel	87SMX	8.192MHz	±30ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033867Bulk	87SMX	9.8304MHz	±30ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL083498Reel	87SMX	9.8304MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083529Cutt	87SMX	9.8304MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083529Reel	87SMX	9.8304MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023561Cutt	87SMX	10.0MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023561Reel	87SMX	10.0MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL073675Reel	87SMX	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL083536Cutt	87SMX	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023372Cutt	87SMX	11.0592MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023372Reel	87SMX	11.0592MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023524Reel	87SMX	11.0592MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL076416Reel	87SMX	11.0592MHz	±50ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL083537Cutt	87SMX	11.0592MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083537Reel	87SMX	11.0592MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL050029Reel	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	20.00pF
LFXTAL056949Bulk	87SMX	12.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL056949Cutt	87SMX	12.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL056949Reel	87SMX	12.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL072590Cutt	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL072591Reel	87SMX	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL075188Bulk	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL075188Reel	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL077403Cutt	87SMX	12.0MHz	±10ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL083497Reel	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083530Reel	87SMX	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL060787Cutt	87SMX	14.7456MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL060787Reel	87SMX	14.7456MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023688Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL032756Reel	87SMX	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033689Reel	87SMX	16.0MHz	±30ppm	±50ppm	-20°C to 70°C	SR
LFXTAL050025Reel	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL052725Bulk	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL052725Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL052725Reel	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL058519Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	20.00pF
LFXTAL058519Reel	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	20.00pF
LFXTAL067749Bulk	87SMX	16.0MHz	±30ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL073118Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL073118Reel	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL083496Reel	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083531Cutt	87SMX	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083531Reel	87SMX	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023496Bulk	87SMX	18.432MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023496Cutt	87SMX	18.432MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023496Reel	87SMX	18.432MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL083539Cutt	87SMX	19.6608MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055924Bulk	87SMX	20.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL055924Cutt	87SMX	20.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL055924Reel	87SMX	20.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL083625Cutt	87SMX	20.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083625Reel	87SMX	20.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072723Cutt	87SMX	22.1184MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL083534Cutt	87SMX	22.1184MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083534Reel	87SMX	22.1184MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL058564Reel	87SMX	24.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL065724Cutt	87SMX	25.0MHz	±50ppm	±100ppm	-10°C to 60°C	16.00pF

联系方式/CONTACT US

泰河电话服务热线：0755-27872782 13824306246

泰河传真贸易通：泰河科技

泰河客服在线客服：794113422　　泰河微信号：taiheth794113422　　公众号：taihekj

泰河邮箱泰河邮箱：taiheth@163.com

泰河地址泰河地址：广东深圳市宝安区40区33号工业城6楼

泰河地址泰河官网：http://www.smdcrystal.com/

英国IQD晶振 87SMX LFXTAL023899Bulk SMD晶体

跟此产品相关的产品 / Related Products

: 501BAA16M0000BAG,Si501,16MHz,5032mm,Silicon多功能打印机晶振; 501BAA16M0000BAG,Si501,16MHz,5032mm,Silicon多功能打印机晶振，美国进口晶振，Silicon晶振，型号：Si501系列晶振，编码为：501BAA16M0000BAG，频率：16.000MHz，电压：3.3V，频率稳定性：±50ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：5.0x3.2mm封装，四脚贴片晶振，有源晶振，SMD晶振，5032晶振，石英晶振，石英晶体振荡器。具有超小型，轻薄型，高性能，耐热及耐环境等特点。应用程序：通用处理器晶振，工业控制器晶振，嵌入式控制器，流量控制，办公室设备晶振，显示和控制面板，多功能打印机等应用。

: WC146SMF-32.768KHZ-T,Mmdcomp时钟晶振,7015mm谐振器; WC146SMF-32.768KHZ-T,Mmdcomp时钟晶振,7015mm谐振器，美国Mmdcomp晶振，麦迪康品牌晶振，型号：WC146SM系列，编码为：WC146SMF-32.768KHZ-T贴片晶振，频率为：32.768KHz，负载：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x1.5x1.4mm陶瓷SMD封装，四脚贴片晶振，石英晶振，无源晶振，陶瓷晶振，7015晶振，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，耐热及耐环境特点。应用于：通讯设备晶振，时钟晶振，数字电子晶振，电脑主板晶振，计算机等应用。

: D32G-026.0M-T,3225mm,ConnorWinfield温补晶体振荡器; D32G-026.0M-T,3225mm,ConnorWinfield温补晶体振荡器，美国进口晶振，ConnorWinfield晶振，康纳温菲尔德晶振，型号：D32G系列，晶振编码为：D32G-026.0M-T石英晶振，电压：3.3V，频率为：26.000MHz，工作温度范围：-30℃至+85℃，小体积晶振尺寸：3.2x2.5mm表面安装，四脚贴片晶振，有源晶振，温补晶体振荡器，3225晶振，SMD晶振，TCXO温补晶振。具有超小型，轻薄型，低抖动，低电压，低相位噪声，低损耗，低耗能等特点。设计用于在一个非常小的封装中需要紧密频率稳定性的应用。符合RoHS的表面安装包是设计为高密度安装，是最佳的大规模生产。应用于：通讯设备晶振，导航仪晶振，无线网络晶振，物联网晶振，汽车电子晶振，安防设备等。
