IQD晶振|CFPX-104|LFXTAL061486Reel|5032石英晶振

频率:8.192MHz

尺寸:5.0× 3.2× 1.0 mm

IQD晶振|CFPX-104|LFXTAL061486Reel|5032石英晶振,欧美进口晶振,IQD晶振,CFPX-104石英晶振,无源晶振,LFXTAL061486Reel晶振,晶体谐振器,贴片晶振,5032mm晶振,四脚封装晶振,频率8.192MHz,负载10pF,频率容差30ppm,工作温度-40~85°C,耐高温晶振,耐老化晶振,高可靠晶振,无线局域网晶振,便携式电子设备晶振,数字设备晶振,微处理器晶振.

咨询热线:0755-27872782

TH-1 890

Ja-1IQD晶振|CFPX-104|LFXTAL061486Reel|5032石英晶振,欧美进口晶振,IQD晶振,CFPX-104石英晶振,无源晶振,LFXTAL061486Reel晶振,晶体谐振器,贴片晶振,5032mm晶振,四脚封装晶振,频率8.192MHz,负载10pF,频率容差30ppm,工作温度-40~85°C,耐高温晶振,耐老化晶振,高可靠晶振,无线局域网晶振,便携式电子设备晶振,数字设备晶振,微处理器晶振.

IQD晶振|CFPX-104|LFXTAL061486Reel|5032石英晶振特点:

-标准的5x3.2mm贴片晶体与四个衬垫

-陶瓷包装有接缝密封的金属盖,密封

-请参阅我们的IQXC-49以获得双pad替代方案

TH-2 890

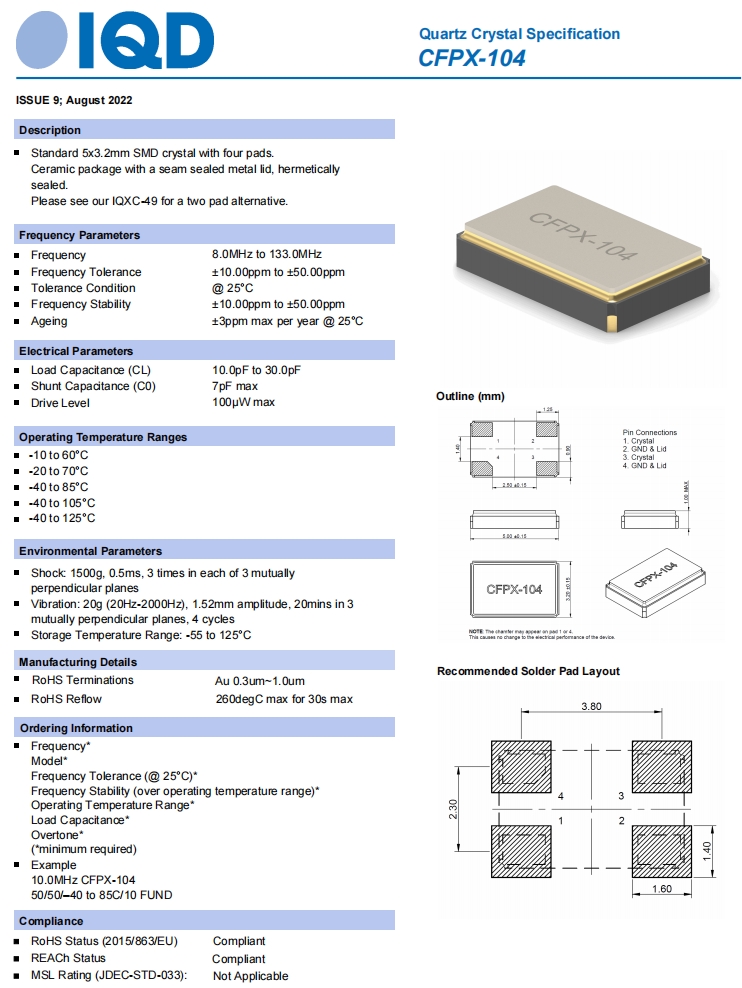

TH--TC2IQD晶振|CFPX-104|LFXTAL061486Reel|5032石英晶振规格表

参数 数值
频率 8.192 MHz
频率容差@ 25°C ± 3°C ±30 ppm
频率稳定性 ±50 ppm
工作温度 -40~85°C
储存温度 -55~125°C
负载 10 pF
并联电容 7pF typ
驱动电平 100µW max.
老化@ 25°C ± 3°C
±3.0ppm  per year max
TH-3 890

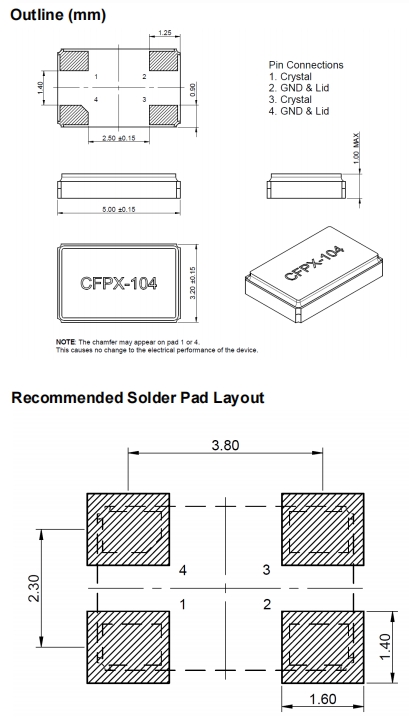

TH--WHP1IQD晶振|CFPX-104|LFXTAL061486Reel|5032石英晶振尺寸图

cfpx-104-1

CFPX-104

编码 型号 频率 频率容差 频率稳定性 工作温度 负载
LFXTAL065272RL3K  CFPX-180 32.768MHz ±50ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL088666RL3K  CFPX-180 32.768MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL059672Cutt  CFPX-180 36.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL075445RL3K  CFPX-180 38.4MHz ±10ppm ±10ppm -20°C to 75°C 8.50pF
LFXTAL076107RL3K  CFPX-180 38.4MHz ±30ppm ±50ppm -40°C to 85°C 15.00pF
LFXTAL082763RL3K  CFPX-180 38.4MHz ±30ppm ±30ppm -20°C to 70°C 9.00pF
LFXTAL083279Cutt  CFPX-180 38.4MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL035270Bulk  CFPX-180 40.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL035270Cutt  CFPX-180 40.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL059648Cutt  CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059648Reel  CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059648RL3K  CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL076900Cutt  CFPX-180 40.0MHz ±10ppm ±10ppm -20°C to 75°C 9.00pF
LFXTAL082077RL3K  CFPX-180 40.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL054093Cutt  CFPX-180 41.0MHz ±50ppm ±50ppm -10°C to 60°C 10.50pF
LFXTAL069379Cutt  CFPX-180 44.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL009549Bulk  CFPX-180 48.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL053866Cutt  CFPX-180 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL053866RL3K  CFPX-180 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055570Cutt  CFPX-180 48.0MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL062288RL3K  CFPX-180 48.0MHz ±30ppm ±30ppm -10°C to 60°C 18.00pF
LFXTAL071958Cutt  CFPX-180 48.0MHz ±30ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL079244Cutt  CFPX-180 48.0MHz ±15ppm ±25ppm -40°C to 85°C 8.00pF
LFXTAL080495RL3K  CFPX-180 48.0MHz ±50ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL080873RL3K  CFPX-180 48.0MHz ±30ppm ±50ppm -20°C to 70°C 10.00pF
LFXTAL082068RL3K  CFPX-180 48.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL083249Cutt  CFPX-180 48.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL084993RL3K  CFPX-180 48.0MHz ±20ppm ±20ppm -20°C to 70°C 18.00pF
LFXTAL090184RL3K  CFPX-180 48.0MHz ±10ppm ±20ppm -20°C to 70°C 20.00pF
LFXTAL060843Cutt  CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL060843Reel  CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL060843RL3K  CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL069349Cutt  CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL072787Cutt  CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072787RL3K  CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL082006Cutt  CFPX-180 50.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL082006RL3K  CFPX-180 50.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL082078Cutt  CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082078Reel  CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082078RL3K  CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082568RL3K  CFPX-180 50.0MHz ±10ppm ±15ppm -40°C to 85°C 12.00pF
LFXTAL082637RL3K  CFPX-180 50.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL083481RL3K  CFPX-180 50.0MHz ±20ppm ±20ppm -40°C to 85°C 16.00pF
LFXTAL062546Cutt  CFPX-180 54.0MHz ±15ppm ±20ppm -20°C to 70°C 19.00pF
LFXTAL062546RL3K  CFPX-180 54.0MHz ±15ppm ±20ppm -20°C to 70°C 19.00pF
LFXTAL083943Cutt  CFPX-180 200.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL053050Cutt  CFPX-104 8.0MHz ±30ppm ±30ppm -20°C to 70°C 12.00pF
LFXTAL054323Bulk  CFPX-104 8.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL054323Cutt  CFPX-104 8.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL054323Reel  CFPX-104 8.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055663Bulk  CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055663Cutt  CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055663Reel  CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055901Cutt  CFPX-104 8.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL055901Reel  CFPX-104 8.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL057013Bulk  CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL059158Bulk  CFPX-104 8.0MHz ±30ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL059158Cutt  CFPX-104 8.0MHz ±30ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL061627Cutt  CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL063177Cutt  CFPX-104 8.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL063189Bulk  CFPX-104 8.0MHz ±10ppm ±20ppm -40°C to 85°C 15.00pF
LFXTAL065886Cutt  CFPX-104 8.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL066685Bulk  CFPX-104 8.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069277Bulk  CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL070720Cutt  CFPX-104 8.0MHz ±20ppm ±20ppm -40°C to 85°C 20.00pF
LFXTAL070722Bulk  CFPX-104 8.0MHz ±20ppm ±20ppm -40°C to 85°C 30.00pF
LFXTAL078127Cutt  CFPX-104 8.0MHz ±20ppm ±20ppm -20°C to 70°C 12.00pF
LFXTAL078323Cutt  CFPX-104 8.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL081233Bulk  CFPX-104 8.0MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL061486Bulk  CFPX-104 8.192MHz ±30ppm ±50ppm -40°C to 85°C 10.00pF
LFXTAL061486Cutt  CFPX-104 8.192MHz ±30ppm ±50ppm -40°C to 85°C 10.00pF
LFXTAL061486Reel  CFPX-104 8.192MHz ±30ppm ±50ppm -40°C to 85°C 10.00pF
LFXTAL075997Reel  CFPX-104 9.9MHz ±40ppm ±60ppm -40°C to 125°C 12.00pF
LFXTAL056583Reel  CFPX-104 10.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL072402Cutt  CFPX-104 10.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072402Reel  CFPX-104 10.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL058513Bulk  CFPX-104 11.0592MHz ±30ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL060205Bulk  CFPX-104 11.0592MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL032878Bulk  CFPX-104 12.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL032878Cutt  CFPX-104 12.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL032878Reel  CFPX-104 12.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL035484Reel CFPX-104 12.0MHz ±20ppm ±30ppm -10°C to 60°C 20.00pF
LFXTAL036401Bulk  CFPX-104 12.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL036401Reel  CFPX-104 12.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL036584Bulk  CFPX-104 12.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL050518Cutt  CFPX-104 12.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL051048Bulk  CFPX-104 12.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL055999Reel  CFPX-104 12.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL057514Bulk  CFPX-104 12.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL057514Cutt  CFPX-104 12.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL058139Bulk  CFPX-104 12.0MHz ±30ppm ±50ppm -40°C to 85°C 15.00pF
LFXTAL058743Bulk  CFPX-104 12.0MHz ±10ppm ±10ppm -20°C to 70°C 18.00pF
LFXTAL059522Bulk  CFPX-104 12.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059522Reel  CFPX-104 12.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL061632Bulk  CFPX-104 12.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL061632Cutt  CFPX-104 12.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL062512Bulk  CFPX-104 12.0MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL062512Cutt  CFPX-104 12.0MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL063061Bulk  CFPX-104 12.0MHz ±10ppm ±20ppm -40°C to 85°C 16.00pF
LFXTAL063500Bulk  CFPX-104 12.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL078871Cutt  CFPX-104 12.0MHz ±30ppm ±30ppm -20°C to 70°C 20.00pF
LFXTAL080790Cutt  CFPX-104 12.0MHz ±10ppm ±10ppm -20°C to 70°C 18.00pF
LFXTAL059523Bulk  CFPX-104 12.288MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059523Reel  CFPX-104 12.288MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL056556Cutt  CFPX-104 12.5MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL056556Reel  CFPX-104 12.5MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL059477Reel  CFPX-104 12.8MHz ±10ppm ±20ppm -40°C to 85°C 15.00pF
LFXTAL053614Reel  CFPX-104 13.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL066473Bulk  CFPX-104 13.0MHz ±30ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL080835Bulk  CFPX-104 13.56MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL033643Bulk  CFPX-104 14.31818MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033643Reel  CFPX-104 14.31818MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL059526Bulk  CFPX-104 14.31818MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059526Reel  CFPX-104 14.31818MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL033328Bulk  CFPX-104 14.7456MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033328Cutt  CFPX-104 14.7456MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033328Reel  CFPX-104 14.7456MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL072403Bulk  CFPX-104 14.7456MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072403Reel  CFPX-104 14.7456MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083467Cutt  CFPX-104 14.7456MHz ±20ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL083467Reel  CFPX-104 14.7456MHz ±20ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL030819Bulk  CFPX-104 16.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL030819Reel  CFPX-104 16.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL035082Cutt  CFPX-104 16.0MHz ±50ppm ±50ppm -40°C to 85°C 10.00pF
LFXTAL050910Bulk  CFPX-104 16.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL050910Cutt  CFPX-104 16.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL057849Bulk  CFPX-104 16.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059527Bulk  CFPX-104 16.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL061636Bulk  CFPX-104 16.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL059528Bulk  CFPX-104 16.384MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059528Reel  CFPX-104 16.384MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059529Bulk  CFPX-104 18.432MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059529Reel  CFPX-104 18.432MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL033265Bulk  CFPX-104 20.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033265Cutt  CFPX-104 20.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033265Reel  CFPX-104 20.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL056808Bulk  CFPX-104 20.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL056808Reel  CFPX-104 20.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL060218Bulk  CFPX-104 20.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL061045Bulk  CFPX-104 20.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL061639Cutt  CFPX-104 20.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL065376Cutt  CFPX-104 22.5792MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL032817Bulk  CFPX-104 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL032817Cutt  CFPX-104 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL032817Reel  CFPX-104 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL051735Bulk  CFPX-104 24.0MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL053798Reel  CFPX-104 24.0MHz ±10ppm ±25ppm -40°C to 85°C 18.00pF
LFXTAL058856Bulk  CFPX-104 24.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL059530Bulk  CFPX-104 24.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059530Reel  CFPX-104 24.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059693Reel  CFPX-104 24.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL061087Bulk  CFPX-104 24.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL063939Bulk  CFPX-104 24.0MHz ±30ppm ±30ppm -20°C to 70°C 8.00pF
LFXTAL071469Bulk  CFPX-104 24.0MHz ±30ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL071469Reel  CFPX-104 24.0MHz ±30ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL033644Bulk  CFPX-104 24.576MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033644Reel  CFPX-104 24.576MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL059531Bulk  CFPX-104 24.576MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059531Reel  CFPX-104 24.576MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL033075Bulk  CFPX-104 25.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033075Cutt  CFPX-104 25.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033075Reel  CFPX-104 25.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL051737Bulk  CFPX-104 25.0MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL055172Bulk  CFPX-104 25.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL057895Bulk  CFPX-104 25.0MHz ±30ppm ±50ppm -40°C to 85°C 15.00pF
LFXTAL058401Bulk  CFPX-104 25.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL059532Bulk  CFPX-104 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059532Reel  CFPX-104 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL061642Cutt  CFPX-104 25.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL083060Cutt  CFPX-104 25.0MHz ±50ppm ±50ppm -40°C to 85°C 30.00pF
LFXTAL035240Reel  CFPX-104 26.0MHz ±10ppm ±10ppm -10°C to 60°C 16.00pF
LFXTAL064726Bulk  CFPX-104 26.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072404Bulk  CFPX-104 26.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072404Reel  CFPX-104 26.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL052412Cutt  CFPX-104 27.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL059697Bulk  CFPX-104 27.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL063478Bulk  CFPX-104 27.12MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL055896Bulk  CFPX-104 28.6363MHz ±20ppm ±20ppm -20°C to 70°C 18.00pF
LFXTAL059487Bulk  CFPX-104 28.63636MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL030820Bulk  CFPX-104 30.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL030820Reel  CFPX-104 30.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL063464Cutt  CFPX-104 30.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL065460Reel  CFPX-104 30.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL054902Bulk  CFPX-104 32.0MHz ±10ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL059535Bulk  CFPX-104 32.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059535Reel  CFPX-104 32.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL033645Bulk  CFPX-104 40.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033645Reel  CFPX-104 40.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL059537Bulk  CFPX-104 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059537Reel  CFPX-104 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059539Bulk  CFPX-104 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059539Reel  CFPX-104 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL063491Cutt  CFPX-104 48.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL023899Bulk  87SMX 3.6864MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023899Cutt  87SMX 3.6864MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023899Reel  87SMX 3.6864MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL052142Bulk  87SMX 3.6864MHz ±50ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL052142Reel  87SMX 3.6864MHz ±50ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL056684Bulk  87SMX 3.6864MHz ±50ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL056684Reel  87SMX 3.6864MHz ±50ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL073137Reel  87SMX 3.6864MHz ±50ppm ±50ppm -40°C to 85°C 30.00pF
LFXTAL073293Cutt  87SMX 3.6864MHz ±100ppm ±150ppm -40°C to 90°C 16.00pF
LFXTAL022544Reel  87SMX 4.0MHz ±50ppm ±100ppm -40°C to 90°C 30.00pF
LFXTAL029774Bulk  87SMX 4.0MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL029774Cutt  87SMX 4.0MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL029774Reel  87SMX 4.0MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL057771Cutt  87SMX 4.0MHz ±50ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL057801Reel  87SMX 4.0MHz ±30ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL058357Bulk  87SMX 4.0MHz ±15ppm ±100ppm -55°C to 105°C 30.00pF
LFXTAL058357Cutt  87SMX 4.0MHz ±15ppm ±100ppm -55°C to 105°C 30.00pF
LFXTAL058357Reel  87SMX 4.0MHz ±15ppm ±100ppm -55°C to 105°C 30.00pF
LFXTAL073195Reel  87SMX 4.0MHz ±50ppm ±50ppm -40°C to 85°C 15.00pF
LFXTAL073201Cutt  87SMX 4.0MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL073239Bulk  87SMX 4.0MHz ±30ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL073239Reel  87SMX 4.0MHz ±30ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL073445Reel  87SMX 4.0MHz ±30ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL076128Reel  87SMX 4.0MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL077252Cutt  87SMX 4.0MHz ±50ppm ±50ppm -20°C to 70°C 30.00pF
LFXTAL083532Cutt  87SMX 4.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL083532Reel  87SMX 4.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL083563Reel  87SMX 4.0MHz ±30ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL073237Cutt  87SMX 4.096MHz ±100ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL023399Bulk  87SMX 4.9152MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023399Cutt  87SMX 4.9152MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023399Reel  87SMX 4.9152MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL073191Cutt  87SMX 4.9152MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL032749Reel  87SMX 6.0MHz ±20ppm ±30ppm -40°C to 85°C 30.00pF
LFXTAL037119Bulk  87SMX 6.0MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL037119Reel  87SMX 6.0MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL083533Reel  87SMX 6.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL083535Cutt  87SMX 6.144MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083535Reel  87SMX 6.144MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL023628Bulk  87SMX 7.3728MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023628Reel  87SMX 7.3728MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL065699Cutt  87SMX 7.902708MHz ±100ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL065699Reel  87SMX 7.902708MHz ±100ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL023401Bulk  87SMX 8.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023401Cutt  87SMX 8.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023401Reel  87SMX 8.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL056525Bulk  87SMX 8.0MHz ±50ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL059455Cutt  87SMX 8.0MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL059455Reel  87SMX 8.0MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL076060Reel  87SMX 8.0MHz ±50ppm ±100ppm -20°C to 70°C SR
LFXTAL083499Reel  87SMX 8.0MHz ±50ppm ±100ppm -40°C to 85°C 18.00pF
LFXTAL083528Cutt  87SMX 8.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083528Reel  87SMX 8.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL033471Reel  87SMX 8.192MHz ±30ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033867Bulk  87SMX 9.8304MHz ±30ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL083498Reel  87SMX 9.8304MHz ±50ppm ±100ppm -40°C to 85°C 18.00pF
LFXTAL083529Cutt  87SMX 9.8304MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083529Reel  87SMX 9.8304MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL023561Cutt  87SMX 10.0MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL023561Reel  87SMX 10.0MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL073675Reel  87SMX 10.0MHz ±30ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL083536Cutt  87SMX 10.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL023372Cutt  87SMX 11.0592MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL023372Reel  87SMX 11.0592MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL023524Reel  87SMX 11.0592MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL076416Reel  87SMX 11.0592MHz ±50ppm ±50ppm -40°C to 85°C 10.00pF
LFXTAL083537Cutt  87SMX 11.0592MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083537Reel  87SMX 11.0592MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL050029Reel  87SMX 12.0MHz ±50ppm ±100ppm -40°C to 85°C 20.00pF
LFXTAL056949Bulk  87SMX 12.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL056949Cutt  87SMX 12.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL056949Reel  87SMX 12.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL072590Cutt  87SMX 12.0MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL072591Reel  87SMX 12.0MHz ±50ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL075188Bulk  87SMX 12.0MHz ±50ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL075188Reel  87SMX 12.0MHz ±50ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL077403Cutt  87SMX 12.0MHz ±10ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL083497Reel  87SMX 12.0MHz ±50ppm ±100ppm -40°C to 85°C 18.00pF
LFXTAL083530Reel  87SMX 12.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL060787Cutt  87SMX 14.7456MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL060787Reel  87SMX 14.7456MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023688Cutt  87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL032756Reel  87SMX 16.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033689Reel  87SMX 16.0MHz ±30ppm ±50ppm -20°C to 70°C SR
LFXTAL050025Reel  87SMX 16.0MHz ±50ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL052725Bulk  87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C SR
LFXTAL052725Cutt  87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C SR
LFXTAL052725Reel  87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C SR
LFXTAL058519Cutt  87SMX 16.0MHz ±50ppm ±100ppm -40°C to 85°C 20.00pF
LFXTAL058519Reel  87SMX 16.0MHz ±50ppm ±100ppm -40°C to 85°C 20.00pF
LFXTAL067749Bulk  87SMX 16.0MHz ±30ppm ±50ppm -40°C to 85°C 30.00pF
LFXTAL073118Cutt  87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL073118Reel  87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL083496Reel  87SMX 16.0MHz ±50ppm ±100ppm -40°C to 85°C 18.00pF
LFXTAL083531Cutt  87SMX 16.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083531Reel  87SMX 16.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL023496Bulk  87SMX 18.432MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL023496Cutt  87SMX 18.432MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL023496Reel  87SMX 18.432MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL083539Cutt  87SMX 19.6608MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055924Bulk  87SMX 20.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL055924Cutt  87SMX 20.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL055924Reel  87SMX 20.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL083625Cutt  87SMX 20.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083625Reel  87SMX 20.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072723Cutt  87SMX 22.1184MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL083534Cutt  87SMX 22.1184MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083534Reel  87SMX 22.1184MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL058564Reel  87SMX 24.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL065724Cutt  87SMX 25.0MHz ±50ppm ±100ppm -10°C to 60°C 16.00pF
TH-6 890

联系方式/CONTACT US

泰河电话服务热线:0755-27872782  13824306246

泰河传真贸易通:泰河科技

泰河客服在线客服:794113422  泰河微信号:taiheth794113422  公众号:taihekj

泰河邮箱泰河邮箱:taiheth@163.com

泰河地址泰河地址:广东深圳市宝安区40区33号工业城6楼

跟此产品相关的产品 / Related Products

501BAA16M0000BAG,Si501,16MHz,5032mm,Silicon多功能打印机晶振
501BAA16M0000BAG,Si501,16MHz,5032mm,Silicon多功能打印机晶振
501BAA16M0000BAG,Si501,16MHz,5032mm,Silicon多功能打印机晶振美国进口晶振,Silicon晶振,型号:Si501系列晶振,编码为:501BAA16M0000BAG,频率:16.000MHz,电压:3.3V,频率稳定性:±50ppm,工作温度范围:-40℃至+85℃,小体积晶振尺寸:5.0x3.2mm封装,四脚贴片晶振,有源晶振,SMD晶振,5032晶振,石英晶振,石英晶体振荡器。具有超小型,轻薄型,高性能,耐热及耐环境等特点。应用程序:通用处理器晶振,工业控制器晶振,嵌入式控制器,流量控制,办公室设备晶振,显示和控制面板,多功能打印机等应用。
501HCAM032768BAF,32.768kHz,5032mm,Si501,Silicon通用处理器晶振
501HCAM032768BAF,32.768kHz,5032mm,Si501,Silicon通用处理器晶振
501HCAM032768BAF,32.768kHz,5032mm,Si501,Silicon通用处理器晶振美国进口晶振,Silicon晶振,型号:Si501系列晶振,编码为:501HCAM032768BAF,频率:32.768KHz,电压:1.7V-3.6V,频率稳定性:±20ppm,工作温度范围:-20℃至+70℃,小体积晶振尺寸:5.0x3.2mm封装,四脚贴片晶振,有源晶振,石英晶体振荡器。具有超小型,轻薄型,高精度,高性能,高品质等特点。应用程序:通用处理器,工业控制器,嵌入式控制器,机控制,流量控制,办公室/家庭自动化,IP摄像头/监控,显示和控制面板,户外电子设备,多功能打印机等。
WC146SMF-32.768KHZ-T,Mmdcomp时钟晶振,7015mm谐振器
WC146SMF-32.768KHZ-T,Mmdcomp时钟晶振,7015mm谐振器
WC146SMF-32.768KHZ-T,Mmdcomp时钟晶振,7015mm谐振器,美国Mmdcomp晶振,麦迪康品牌晶振,型号:WC146SM系列,编码为:WC146SMF-32.768KHZ-T贴片晶振,频率为:32.768KHz,负载:12.5pF,精度:±20ppm,工作温度范围:-40℃至+85℃,小体积晶振尺寸:7.0x1.5x1.4mm陶瓷SMD封装,四脚贴片晶振,石英晶振,无源晶振,陶瓷晶振,7015晶振,石英晶体谐振器。具有超小型,轻薄型,高性能,高品质,耐热及耐环境特点。应用于:通讯设备晶振,时钟晶振,数字电子晶振,电脑主板晶振,计算机等应用。
泰河盛产品中心 Product Center

石英晶振

谐振器

滤波器

雾化片

SMD晶振

有源晶振

KDS晶振

爱普生晶振

京瓷晶振

32.768K

联系泰河电子
咨询热线 咨询热线:0755-27872782

手机:13824306246

QQ:794113422QQ

邮箱:taiheth@163.com

地址:广东深圳市宝安区40区33号工业城6楼
