IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振

当前位置：首页 » 石英晶振 » IQD晶振 » IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振

prevnext

IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振

频率：16 MHz

尺寸：11.35mm× 4.85mm

IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振,IQD Crystal,HC-49/3.5H无源晶振,进口晶振,LFXTAL078424Bulk晶振,11.35×4.85mm晶振,49S插件晶振,石英晶振,二脚封装晶振,频率16MHz,负载20pF,频率容差30ppm,工作温度-10~70°C,行业标准铅封装,采用电阻焊接,在惰性气体中密封,引线上的玻璃与金属密封,无铅环保晶振,高稳定性晶振,无线路由器晶振,摄像头晶振,录音笔晶振,移动应用晶振.

咨询热线：0755-27872782

TH-1 890

IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振,IQD Crystal,HC-49/3.5H无源晶振,进口晶振,LFXTAL078424Bulk晶振,11.35×4.85mm晶振,49S插件晶振,石英晶振,二脚封装晶振,频率16MHz,负载20pF,频率容差30ppm,工作温度-10~70°C,行业标准铅封装,采用电阻焊接,在惰性气体中密封,引线上的玻璃与金属密封,无铅环保晶振,高稳定性晶振,无线路由器晶振,摄像头晶振,录音笔晶振,移动应用晶振. TH-2 890

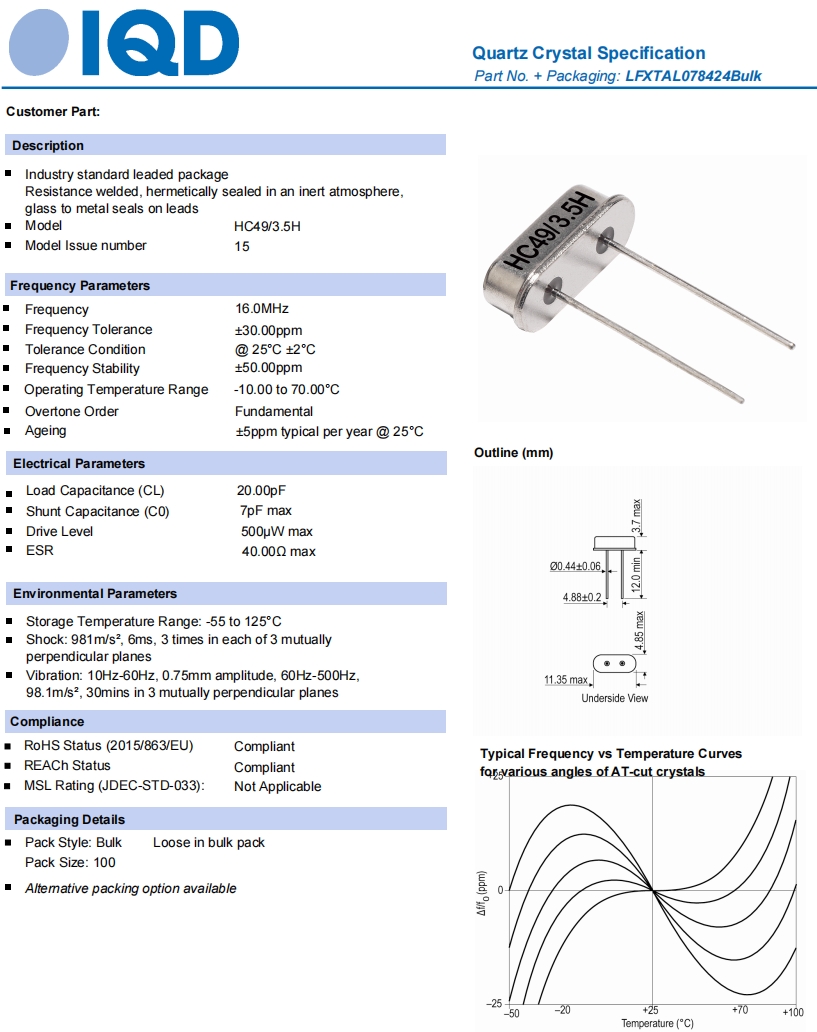

IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振规格表

参数	数值
频率	16 MHz
频率容差@ 25°C ± 3°C	±30 ppm
频率稳定性	±50 ppm
工作温度	-10~70°C
储存温度	-55~125°C
负载	20 pF
并联电容	7pF max
驱动电平	500µW max.
老化@ 25°C ± 3°C	±5 ppm typical per year

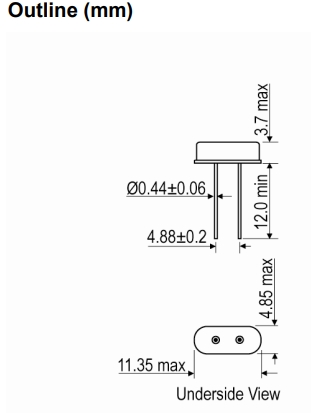

IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL078520Bulk	HC49/3.5H	3.6864MHz	±30ppm	±50ppm	-10°C to 70°C	18.00pF
LFXTAL078430Bulk	HC49/3.5H	4.0MHz	±30ppm	±50ppm	-10°C to 70°C	20.00pF
LFXTAL083666Reel	HC49/3.5H	4.0MHz	±30ppm	±30ppm	-40°C to 105°C	30.00pF
LFXTAL083726Bulk	HC49/3.5H	4.608MHz	±30ppm	±30ppm	-20°C to 70°C	30.00pF
LFXTAL083450Reel	HC49/3.5H	5.0MHz	±30ppm	±30ppm	-20°C to 70°C	20.00pF
LFXTAL083386Reel	HC49/3.5H	7.68MHz	±30ppm	±30ppm	-20°C to 70°C	30.00pF
LFXTAL060602Reel	HC49/3.5H	8.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL078427Bulk	HC49/3.5H	8.0MHz	±30ppm	±50ppm	-10°C to 70°C	18.00pF
LFXTAL078428Bulk	HC49/3.5H	8.0MHz	±50ppm	±50ppm	-10°C to 70°C	20.00pF
LFXTAL078431Bulk	HC49/3.5H	8.0MHz	±30ppm	±100ppm	-55°C to 125°C	20.00pF
LFXTAL078521Bulk	HC49/3.5H	8.0MHz	±30ppm	±50ppm	-10°C to 70°C	20.00pF
LFXTAL078570Bulk	HC49/3.5H	10.0MHz	±30ppm	±50ppm	-10°C to 70°C	18.00pF
LFXTAL078426Bulk	HC49/3.5H	11.0592MHz	±30ppm	±50ppm	-10°C to 70°C	30.00pF
LFXTAL078519Bulk	HC49/3.5H	11.0592MHz	±30ppm	±50ppm	-10°C to 70°C	20.00pF
LFXTAL078424Bulk	HC49/3.5H	16.0MHz	±30ppm	±50ppm	-10°C to 70°C	20.00pF
LFXTAL078432Bulk	HC49/3.5H	16.0MHz	±50ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL083614Reel	HC49/3.5H	16.0MHz	±30ppm	±30ppm	-20°C to 70°C	20.00pF
LFXTAL080810Bulk	HC49/3.5H	16.384MHz	±20ppm	±20ppm	-20°C to 70°C	20.00pF
LFXTAL051945Reel	HC49/3.5H	20.0MHz	±10ppm	±10ppm	-10°C to 70°C	20.00pF
LFXTAL078433Bulk	HC49/3.5H	20.0MHz	±30ppm	±50ppm	-10°C to 70°C	20.00pF
LFXTAL078434Bulk	HC49/3.5H	20.0MHz	±20ppm	±30ppm	-10°C to 70°C	20.00pF
LFXTAL078435Bulk	HC49/3.5H	20.0MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL058394Bulk	HC49/3.5H	22.1184MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL078574Bulk	HC49/3.5H	24.0MHz	±30ppm	±50ppm	-10°C to 70°C	20.00pF
LFXTAL011429Bulk	HC49	24.0MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL011543Bulk	HC49	24.0MHz	Inclusive	±50ppm	-55°C to 105°C	30.00pF
LFXTAL015013Bulk	HC49	24.0MHz	±20ppm	±20ppm	-20°C to 70°C	20.00pF
LFXTAL032962Bulk	HC49	24.0MHz	±30ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL060368Bulk	HC49	24.0MHz	±20ppm	±100ppm	-20°C to 70°C	18.00pF
LFXTAL083000Reel	HC49	24.0MHz	±30ppm	±30ppm	-20°C to 70°C	30.00pF
LFXTAL012803Bulk	HC49	24.00014MHz	±15ppm	±30ppm	0°C to 50°C	18.00pF
LFXTAL003386Bulk	HC49	24.576MHz	±20ppm	±50ppm	-10°C to 60°C	30.00pF
LFXTAL003317Bulk	HC49	25.0MHz	±20ppm	±50ppm	-10°C to 60°C	SR
LFXTAL062735Reel	HC49	25.0MHz	±30ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL015108Bulk	HC49	26.2144MHz	±20ppm	±20ppm	-10°C to 60°C	30.00pF
LFXTAL078685Bulk	HC49	26.2144MHz	±20ppm	±20ppm	-20°C to 70°C	30.00pF
LFXTAL000159Bulk	HC49	27.0MHz	±30ppm	±30ppm	-10°C to 60°C	30.00pF
LFXTAL021628Bulk	HC49	27.145MHz	±20ppm	±30ppm	-10°C to 60°C	30.00pF
LFXTAL023173Bulk	HC49	27.145MHz	±20ppm	±30ppm	-10°C to 60°C	20.00pF
LFXTAL024566Bulk	HC49	27.145MHz	±20ppm	±50ppm	-20°C to 70°C	SR
LFXTAL053009Bulk	HC49	27.145MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL061210Bulk	HC49	27.145MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL020607Bulk	HC49	27.195MHz	±20ppm	±30ppm	-10°C to 60°C	20.00pF
LFXTAL003342Bulk	HC49	30.0MHz	±20ppm	±50ppm	-10°C to 60°C	SR
LFXTAL003248Bulk	HC49	32.0MHz	±20ppm	±30ppm	-10°C to 60°C	SR
LFXTAL022196Bulk	HC49	32.0MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL012482Bulk	HC49	40.685MHz	±30ppm	±50ppm	-10°C to 60°C	30.00pF
LFXTAL031247Bulk	HC49	40.685MHz	±20ppm	±50ppm	-20°C to 70°C	30.00pF
LFXTAL019521Bulk	HC49	48.25MHz	±30ppm	±50ppm	-10°C to 60°C	30.00pF
LFXTAL014208Bulk	HC49	54.0MHz	±15ppm	±15ppm	0°C to 50°C	SR
LFXTAL033804Reel	HC49	54.0MHz	±15ppm	±30ppm	-10°C to 60°C	10.00pF
LFXTAL030179Bulk	HC49	59.9MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL003344Bulk	HC49	60.0MHz	±20ppm	±30ppm	-10°C to 60°C	SR
LFXTAL030178Bulk	HC49	60.0MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL028681Reel	HC49	100.0MHz	±25ppm	±50ppm	-40°C to 90°C	20.00pF
LFXTAL083238Bulk	HC49	106.7778MHz	±10ppm	±20ppm	-20°C to 70°C	SR
LFXTAL079267Reel	HC49/4HSMX	25.0MHz	±30ppm	±30ppm	0°C to 70°C	16.00pF
LFXTAL081323Reel	HC49/4HSMX	25.0MHz	±22ppm	±25ppm	-40°C to 85°C	30.00pF
LFXTAL084691Reel	HC49/4HSMX	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL062157Reel	HC49/4HSMX	26.0MHz	±10ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL036860Reel	HC49/4HSMX	26.45125MHz	±25ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL053961Reel	HC49/4HSMX	26.45125MHz	±25ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL078783Reel	HC49/4HSMX	26.45125MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL027841Cutt	HC49/4HSMX	27.0MHz	±30ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL029490Reel	HC49/4HSMX	27.0MHz	±20ppm	±30ppm	-20°C to 70°C	20.00pF
LFXTAL029819Reel	HC49/4HSMX	27.0MHz	±20ppm	±30ppm	-20°C to 70°C	30.00pF
LFXTAL033182Reel	HC49/4HSMX	27.0MHz	±20ppm	±20ppm	-20°C to 70°C	16.00pF
LFXTAL033532Reel	HC49/4HSMX	27.0MHz	±15ppm	±15ppm	0°C to 50°C	18.00pF
LFXTAL034242Bulk	HC49/4HSMX	27.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL034242Reel	HC49/4HSMX	27.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL036222Reel	HC49/4HSMX	27.0MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL054154Reel	HC49/4HSMX	27.0MHz	±50ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL058489Reel	HC49/4HSMX	27.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL059980Reel	HC49/4HSMX	27.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL081957Reel	HC49/4HSMX	27.0MHz	±20ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL084259Reel	HC49/4HSMX	27.0MHz	±30ppm	±30ppm	-40°C to 85°C	30.00pF
LFXTAL036706Reel	HC49/4HSMX	27.12MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL032630Reel	HC49/4HSMX	28.322MHz	±30ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053491Reel	HC49/4HSMX	28.63636MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL081958Reel	HC49/4HSMX	28.636363MHz	±30ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL026916Bulk	HC49/4HSMX	29.4912MHz	±30ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL033965Bulk	HC49/4HSMX	29.4912MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL050764Bulk	HC49/4HSMX	29.5MHz	±50ppm	±50ppm	-10°C to 60°C	30.00pF
LFXTAL034099Bulk	HC49/4HSMX	30.0MHz	±30ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL034099Reel	HC49/4HSMX	30.0MHz	±30ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL036351Bulk	HC49/4HSMX	30.0MHz	±20ppm	±20ppm	-20°C to 70°C	20.00pF
LFXTAL036362Reel	HC49/4HSMX	30.0MHz	±30ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL055269Reel	HC49/4HSMX	30.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL057058Reel	HC49/4HSMX	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL062542Reel	HC49/4HSMX	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	16.00pF
LFXTAL066117Reel	HC49/4HSMX	32.0MHz	±30ppm	±30ppm	-10°C to 60°C	12.00pF
LFXTAL084234Reel	HC49/4HSMX	32.0MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL035743Reel	HC49/4HSMX	32.768MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL028788Bulk	HC49/4HSMX	33.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL028788Reel	HC49/4HSMX	33.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL035811Reel	HC49/4HSMX	33.0MHz	±30ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL051893Bulk	HC49/4HSMX	33.0MHz	±30ppm	±50ppm	-10°C to 60°C	30.00pF
LFXTAL078208Reel	HC49/4HSMX	34.4064MHz	±30ppm	±50ppm	-40°C to 85°C	22.00pF
LFXTAL082922Reel	HC49/4HSMX	35.328MHz	±50ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL036043Reel	HC49/4HSMX	36.0MHz	±20ppm	±30ppm	0°C to 50°C	18.00pF
LFXTAL013925Bulk	HC49/4HSMX	40.0MHz	±30ppm	±50ppm	-20°C to 70°C	SR
LFXTAL062239Reel	HC49/4HSMX	50.0MHz	±30ppm	±30ppm	-10°C to 60°C	18.00pF
LFXTAL034108Reel	HC49/4HSMX	60.0MHz	±30ppm	±50ppm	-20°C to 70°C	SR
