12.87180|32.768KHz|9.0pF|格耶耐高温晶振

产品简介

12.87180|32.768KHz|9.0pF|格耶耐高温晶振,欧美进口晶振,格耶晶振,KX-327NHF石英晶振,无源晶振,12.87180晶振,晶体谐振器,贴片晶振,3215晶振,二脚晶振,频率32.768KHz,负载9.0pF,工作温度-40~125°C,频率容差20ppm,耐高温晶振,小体积晶振,抗冲击晶振,GPS导航系统晶振,高级驾驶辅助系统晶振,汽车音响控制器晶振,图像处理晶振.

产品详情

TH-1 890 Ja-1

12.87180|32.768KHz|9.0pF|格耶耐高温晶振,欧美进口晶振,格耶晶振,KX-327NHF石英晶振,无源晶振,12.87180晶振,晶体谐振器,贴片晶振,3215晶振,二脚晶振,频率32.768KHz,负载9.0pF,工作温度-40~125°C,频率容差20ppm,耐高温晶振,小体积晶振,抗冲击晶振,GPS导航系统晶振,高级驾驶辅助系统晶振,汽车音响控制器晶振,图像处理晶振.

TH-2 890 TH--TC2

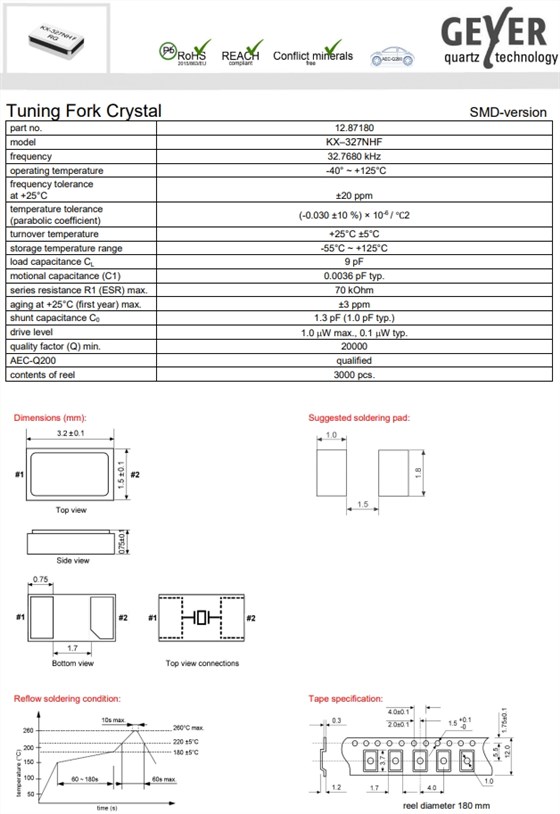

12.87180|32.768KHz|9.0pF|格耶耐高温晶振规格表

part no.	12.87180
model	KX-327NHF
frequency	32.768 kHz
operating temperature	-40°~+125℃
frequency tolerance(df/F) at +25°C ±3°C	土20ppm
temperature tolerance (parabolic coefficient)	(-0.030 ±10 %) × 10-6 / ℃2
turnover temperature	+25°C±5℃
storage temperature range	-55°C~+125℃
load capacitance CL	9.0pF
motional capacitance( C1) typ.	0.0036pFtyp.
shunt capacitance C0 typ.	1.0 pF
series resistance R1 (ESR)	70k Ohm max.
aging at +25°℃ (first year) max.	±3 ppm
drive levelmax.	1.0 uW
contents of reel	3000 pcs.
