405C35B24M00000/24MHz/405系列5032mm/CTS晶体谐振器

返回列表 来源：泰河盛 查看手机网址
扫一扫!405C35B24M00000/24MHz/405系列5032mm/CTS晶体谐振器扫一扫!
 浏览：- 发布日期：2024-03-19 08:52:48【大 中 小】

405C35B24M00000/24MHz/405系列5032mm/CTS晶体谐振器

CTS晶振规格参数 405系列晶振
频率范围 24.000 MHZ
频率稳定度公差 ±20ppm
工作温度范围  -40 °C ~ +85 °C
频率温度公差 ±30ppm
负载电容  5pF，7pF
激励功率 50μW typ
老化@ + 25°C ±3 ppm/yr
绝缘电阻(@直流100 v) 500 Ohms @ DC 100V
储存温度范围 -55°C ~ +125°C

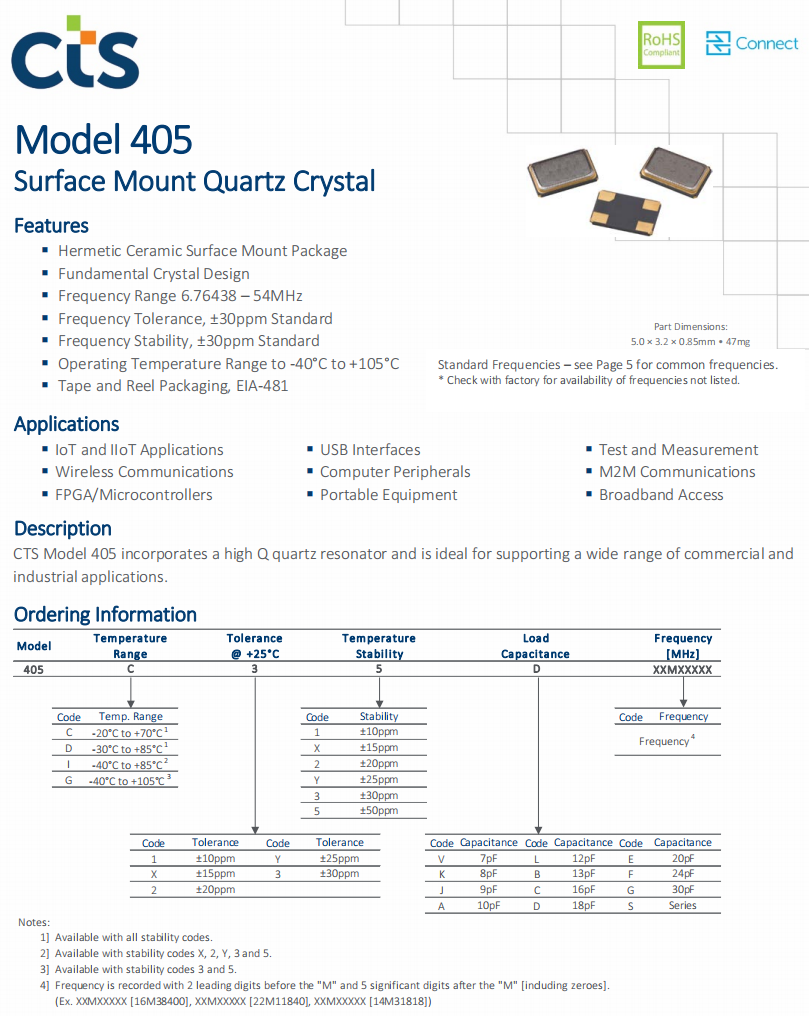

405规格

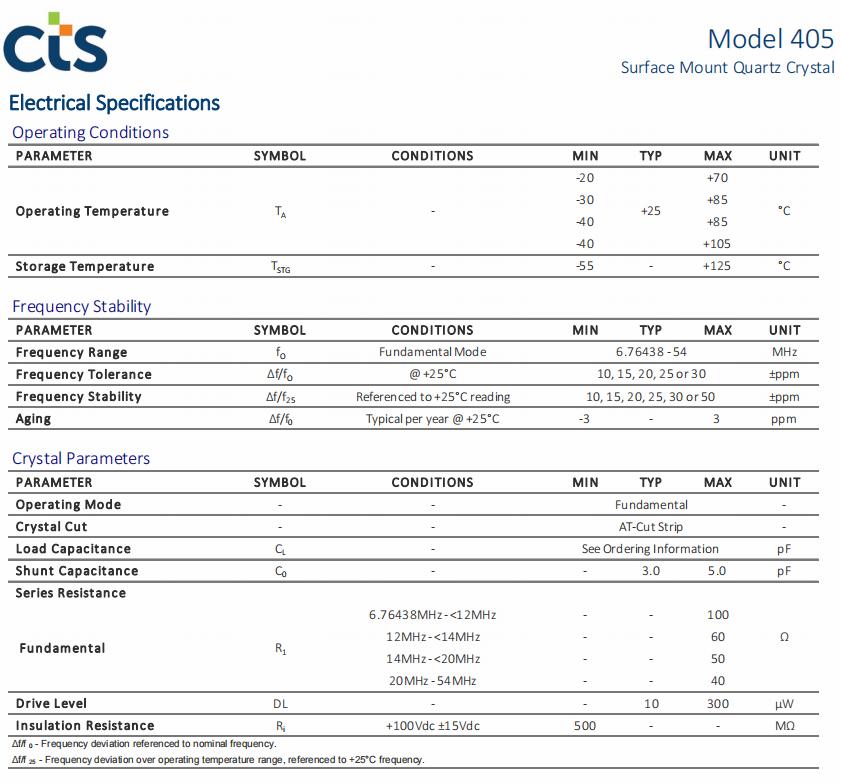

405参数

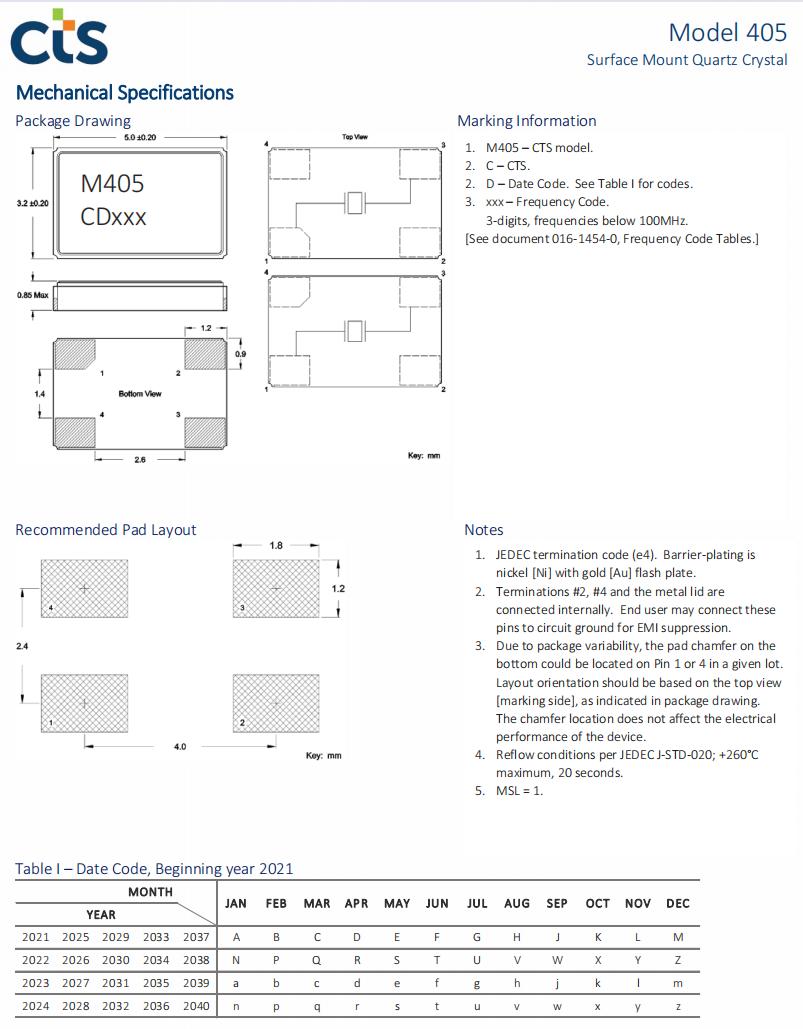

405规格1

石英晶体谐振器 厂家 型号 频率 包装/封装 Size / Dimension 尺寸
405C35B16M00000 CTS晶振 405 16MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D12M00000 CTS晶振 405 12MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D12M00000 CTS晶振 405 12MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B12M00000 CTS晶振 405 12MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B24M00000 CTS晶振 405 24MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D27M00000 CTS晶振 405 27MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B16M36800 CTS晶振 405 16.368MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B19M20000 CTS晶振 405 19.2MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D48M00000 CTS晶振 405 48MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B11M05920 CTS晶振 405 11.0592MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E16M00000 CTS晶振 405 16MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D10M00000 CTS晶振 405 10MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11B26M00000 CTS晶振 405 26MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A16M00000 CTS晶振 405 16MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A19M20000 CTS晶振 405 19.2MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B12M80000 CTS晶振 405 12.8MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B13M00000 CTS晶振 405 13MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E12M00000 CTS晶振 405 12MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B40M00000 CTS晶振 405 40MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D40M00000 CTS晶振 405 40MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D14M31818 CTS晶振 405 14.31818MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D12M28800 CTS晶振 405 12.288MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B16M00000 CTS晶振 405 16MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D30M00000 CTS晶振 405 30MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D20M00000 CTS晶振 405 20MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B26M00000 CTS晶振 405 26MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E10M00000 CTS晶振 405 10MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D24M00000 CTS晶振 405 24MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E24M00000 CTS晶振 405 24MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B20M00000 贴片晶振 405 20MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A40M00000 CTS晶振 405 40MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A26M00000 CTS晶振 405 26MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A18M43200 CTS晶振 405 18.432MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A14M74560 CTS晶振 405 14.7456MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A20M00000 CTS晶振 405 20MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A30M00000 CTS晶振 405 30MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A10M00000 CTS晶振 405 10MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A11M05920 CTS晶振 405 11.0592MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A15M36000 CTS晶振 405 15.36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A13M56000 CTS晶振 405 13.56MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B32M00000 CTS晶振 405 32MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D16M00000 CTS晶振 405 16MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B14M74560 CTS晶振 405 14.7456MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D18M43200 CTS晶振 405 18.432MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D16M00000 CTS晶振 405 16MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D10M00000 CTS晶振 405 10MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A12M00000 CTS晶振 405 12MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A12M80000 CTS晶振 405 12.8MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A24M00000 CTS晶振 405 24MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D24M00000 CTS晶振 405 24MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B27M00000 CTS晶振 405 27MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B14M31818 CTS晶振 405 14.31818MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B14M40000 CTS晶振 405 14.4MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B15M36000 CTS晶振 405 15.36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B19M68000 CTS晶振 405 19.68MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B33M00000 CTS晶振 405 33MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B40M00000 CTS晶振 405 40MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B44M00000 CTS晶振 405 44MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D20M00000 CTS晶振 405 20MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E20M00000 CTS晶振 405 20MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D48M00000 CTS晶振 405 48MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B14M74560 CTS晶振 405 14.7456MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D13M00000 CTS晶振 405 13MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D13M82400 CTS晶振 405 13.824MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D15M36000 CTS晶振 405 15.36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D16M38400 CTS晶振 405 16.384MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D18M43200 CTS晶振 405 18.432MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D24M57600 CTS晶振 405 24.576MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D32M00000 CTS晶振 405 32MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D36M00000 CTS晶振 405 36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D50M00000 CTS晶振 405 50MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E08M00000 CTS晶振 405 8MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E12M28800 CTS晶振 405 12.288MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E13M00000 CTS晶振 405 13MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E13M82400 CTS晶振 405 13.824MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E14M31818 CTS晶振 405 14.31818MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E15M36000 CTS晶振 405 15.36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E16M38400 CTS晶振 405 16.384MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E18M43200 CTS晶振 405 18.432MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E24M57600 CTS晶振 405 24.576MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E27M00000 CTS晶振 405 27MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E30M00000 CTS晶振 405 30MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E32M00000 CTS晶振 405 32MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E36M00000 CTS晶振 405 36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E40M00000 CTS晶振 405 40MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E48M00000 CTS晶振 405 48MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35E50M00000 CTS晶振 405 50MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35S27M00000 CTS晶振 405 27MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35S30M00000 CTS晶振 405 30MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35S36M00000 CTS晶振 405 36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B11M05920 CTS晶振 405 11.0592MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B12M00000 CTS晶振 405 12MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B12M80000 CTS晶振 405 12.8MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B13M00000 CTS晶振 405 13MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B13M50000 CTS晶振 405 13.5MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B14M31818 CTS晶振 405 14.31818MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B14M40000 进口晶振 405 14.4MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B15M36000 CTS晶振 405 15.36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B16M36800 CTS晶振 405 16.368MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B18M43200 CTS晶振 405 18.432MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B19M20000 CTS晶振 405 19.2MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B19M68000 CTS晶振 405 19.68MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B20M00000 CTS晶振 405 20MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B24M00000 CTS晶振 405 24MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B26M00000 CTS晶振 405 26MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B27M00000 CTS晶振 405 27MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B30M00000 CTS晶振 405 30MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B32M00000 CTS晶振 405 32MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B33M00000 CTS晶振 405 33MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B44M00000 CTS晶振 405 44MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35B48M00000 CTS晶振 405 48MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D08M00000 CTS晶振 405 8MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D12M28800 CTS晶振 405 12.288MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D13M00000 CTS晶振 405 13MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D13M82400 CTS晶振 405 13.824MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D14M31818 CTS晶振 405 14.31818MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D15M36000 CTS晶振 405 15.36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D16M38400 CTS晶振 405 16.384MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D24M57600 CTS晶振 405 24.576MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D27M00000 CTS晶振 405 27MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D30M00000 CTS晶振 405 30MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D32M00000 CTS晶振 405 32MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D36M00000 CTS晶振 405 36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D40M00000 CTS晶振 405 40MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35D50M00000 CTS晶振 405 50MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E08M00000 CTS晶振 405 8MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E10M00000 CTS晶振 405 10MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E12M00000 CTS晶振 405 12MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E12M28800 CTS晶振 405 12.288MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E13M00000 CTS晶振 405 13MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E13M82400 CTS晶振 405 13.824MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E14M31818 CTS晶振 405 14.31818MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E15M36000 CTS晶振 405 15.36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E16M00000 CTS晶振 405 16MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E16M38400 CTS晶振 405 16.384MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E18M43200 CTS晶振 405 18.432MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E20M00000 CTS晶振 405 20MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E24M00000 CTS晶振 405 24MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E24M57600 CTS晶振 405 24.576MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E27M00000 CTS晶振 405 27MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E30M00000 CTS晶振 405 30MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E32M00000 CTS晶振 405 32MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E36M00000 CTS晶振 405 36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E40M00000 CTS晶振 405 40MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E48M00000 CTS晶振 405 48MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35E50M00000 CTS晶振 405 50MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35S27M00000 CTS晶振 405 27MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35S30M00000 CTS晶振 405 30MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35S36M00000 CTS晶振 405 36MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C22D25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C24A13M00000 CTS晶振 405 13MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C25D25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C33B25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C33K25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35A13M00000 CTS晶振 405 13MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35A16M93440 CTS晶振 405 16.9344MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B13M56000 CTS晶振 405 13.56MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B18M43200 CTS晶振 405 18.432MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35B48M00000 CTS晶振 405 48MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35K16M00000 CTS晶振 405 16MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35L16M38400 CTS晶振 405 16.384MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I33D14M31818 CTS晶振 405 14.31818MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I33D16M00000 CTS晶振 405 16MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35A14M40000 CTS晶振 405 14.4MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35A40M00000 CTS晶振 405 40MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35C12M00000 CTS晶振 405 12MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35F25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35L24M00000 CTS晶振 405 24MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I35S13M00000 CTS晶振 405 13MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A12M28800 CTS晶振 405 12.288MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A13M00000 CTS晶振 405 13MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A13M50000 CTS晶振 405 13.5MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A14M40000 CTS晶振 405 14.4MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A16M38400 CTS晶振 405 16.384MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A16M80000 CTS晶振 405 16.8MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A19M44000 CTS晶振 405 19.44MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A19M68000 CTS晶振 405 19.68MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A19M80000 CTS晶振 405 19.8MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A22M00000 CTS晶振 405 22MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A24M57600 CTS晶振 405 24.576MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A28M63636 CTS晶振 405 28.63636MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A29M49120 CTS晶振 405 29.4912MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A44M00000 CTS晶振 405 44MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A48M00000 CTS晶振 405 48MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I22B24M00000 CTS晶振 405 24MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I22D25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I22L25M00000 CTS晶振 405 25MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405I12D24M00000 CTS晶振 405 24MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C35D08M00000 CTS晶振 405 8MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)
405C11A08M00000 CTS晶振 405 8MHz 4-SMD, No Lead 0.197" L x 0.126" W (5.00mm x 3.20mm)


“推荐阅读”

【本文标签】：405C35B24M00000/24MHz/405系列5032mm/CTS晶体谐振器
【责任编辑】：泰河盛版权所有：http://www.smdcrystal.com转载请注明出处

相关晶振编码查询

最新资讯文章

快速通道快速通道

泰河盛公众号泰河盛微信号
首页KDS晶振爱普生晶振京瓷晶振SMD晶振石英晶振有源晶振雾化片-滤波器-谐振器行业新闻关于泰河联系泰河网站地图
Copyright © 1996-2017 泰河电子 版权所有 地址：广东深圳市宝安区40区33号工业城6楼 备案号：粤ICP备2022069225号
