晶振编码查询/CSM1Z-A5B2C5-60-24.0D18/24MHz/SMD Crystal/Cardinal无源晶振
晶振编码查询/CSM1Z-A5B2C5-60-24.0D18/24MHz/SMD Crystal/Cardinal无源晶振
Parameter | Min | Typ | Max | Unit | Condition (Consult factory for other options) | |||||||||||||||||||||||
Frequency Range | 3.579545 | - | 80 | MHz | ||||||||||||||||||||||||

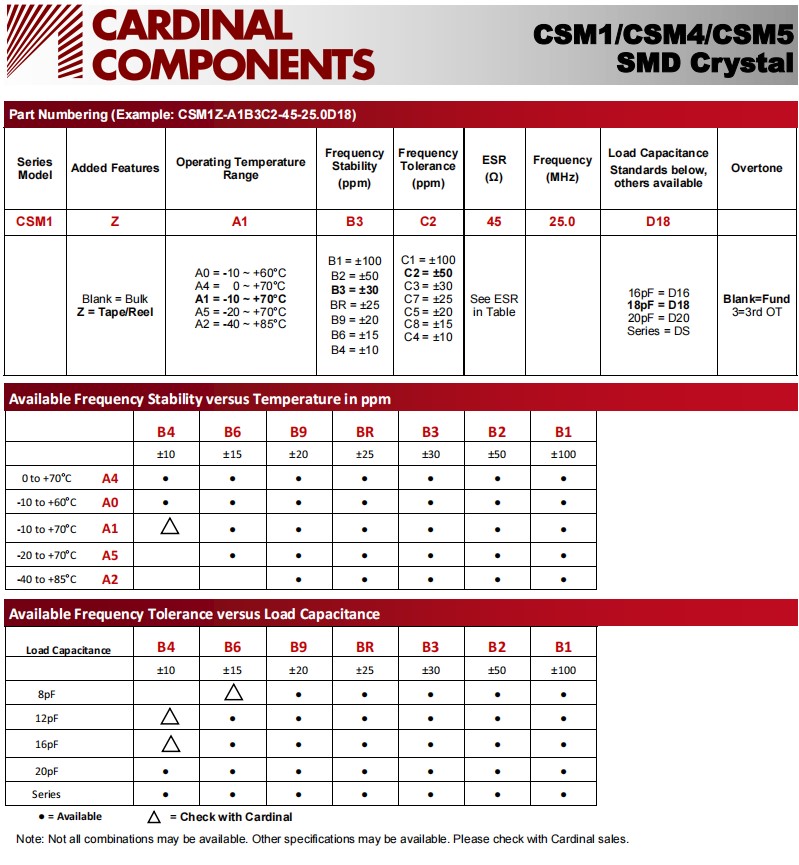

Calibration Frequency Tolerance | ±10 | - | ±100 | ppm | at +25°C ± 3°C, see part number guide below for available options | |||||||||||||||||||||||
Frequency Stability | ±10 | - | ±100 | ppm | see part number guide below for available options | |||||||||||||||||||||||
Operating Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | |||||||||||||||||||||||
Storage Temperature Range | -55 | - | +125 | °C | ||||||||||||||||||||||||
Equivalent Series Resistance (ESR) |
- | - |
140 120 80 45 40 35 30 25 25 80 80 |
Ω |
Freq < 4 MHz 4 MHz ≤ Freq < 5 MHz 5 MHz ≤ Freq ≤ 7 MHz 7 MHz < Freq ≤ 9 MHz 9 MHz ≤ Freq < 13 MHz 13 MHz ≤ Freq < 16 MHz 16 MHz ≤ Freq < 20 MHz 20 MHz ≤ Freq < 30 MHz 30 MHz ≤ Freq ≤ 36MHz 30 MHz ≤ Freq ≤ 36MHz (3rd Overtone) 36 MHz ≤ Freq ≤ 80MHz (3rd Overtone) |
|||||||||||||||||||||||
Drive Level | - | 0.1 | 1.0 | mW | ||||||||||||||||||||||||
Shunt Capacitance (C0) | - | - | 7.0 | pF | Pad to Pad Capacitance | |||||||||||||||||||||||
Aging at 25°C ± 3°C | - | - | ±5 | ppm | for the first year |
原厂编码 | 晶振厂家 | 型号 | 系列 | 频率 | 频率稳定度 |
CSM1Z-A5B2C3-40-14.31818D18 | Cardinal晶振 | CSM1 | MHz Crystal | 14.31818MHz | ±50ppm |
CSM1Z-A5B2C5-60-24.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 24MHz | ±50ppm |
CSM1Z-A2B2C3-40-30.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 30MHz | ±50ppm |
CSM1Z-A0B2C3-50-22.1184D18 | Cardinal晶振 | CSM1 | MHz Crystal | 22.1184MHz | ±50ppm |
CSM1Z-A0B2C3-100-5.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 5MHz | ±50ppm |
CSM1Z-A5B2C5-40-14.7456D18 | Cardinal晶振 | CSM1 | MHz Crystal | 14.7456MHz | ±50ppm |
CSM1Z-A5B2C3-40-25.0D18-F | Cardinal晶振 | CSM1 | MHz Crystal | 25MHz | ±50ppm |
CSM1Z-A0B2C3-50-16.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 16MHz | ±50ppm |
CSM1Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 20MHz | ±50ppm |
CSM1Z-A1B2C3-90-8.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 8MHz | ±50ppm |
CSM1Z-A5B2C5-40-11.0592D18 | Cardinal晶振 | CSM1 | MHz Crystal | 11.0592MHz | ±50ppm |
CSM1Z-A0B2C3-50-15.360D18 | Cardinal晶振 | CSM1 | MHz Crystal | 15.36MHz | ±50ppm |
CSM1Z-A0B2C3-50-19.6608D18 | Cardinal晶振 | CSM1 | MHz Crystal | 19.6608MHz | ±50ppm |
CSM1Z-A5B2C3-40-14.7456D20 | Cardinal晶振 | CSM1 | MHz Crystal | 14.7456MHz | ±50ppm |
CSM1Z-A0B2C3-80-13.5D18 | Cardinal晶振 | CSM1 | MHz Crystal | 13.5MHz | ±50ppm |
CSM1Z-A0B2C3-50-16.257D18 | Cardinal晶振 | CSM1 | MHz Crystal | 16.257MHz | ±50ppm |
CSM1Z-A5B2C3-40-24.576D18 | Cardinal晶振 | CSM1 | MHz Crystal | 24.576MHz | ±50ppm |
CSM1Z-A0B2C3-50-16.000312D18 | Cardinal晶振 | CSM1 | MHz Crystal | 16.000312MHz | ±50ppm |
CSM1Z-A0B2C3-50-18.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 18MHz | ±50ppm |
CSM1Z-A0B2C3-200-3.6864D18 | Cardinal晶振 | CSM1 | MHz Crystal | 3.6864MHz | ±50ppm |
CSM1Z-A5B2C3-200-3.6864D18 | Cardinal晶振 | CSM1 | MHz Crystal | 3.6864MHz | ±50ppm |
CSM1Z-A0B2C3-150-4.9152D18 | Cardinal晶振 | CSM1 | MHz Crystal | 4.915MHz | ±50ppm |
CSM1Z-A0B2C3-40-25.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 25MHz | ±50ppm |
CSM1Z-A5B2C5-70-10.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 10MHz | ±50ppm |
CSM1Z-A0B2C3-50-25.175D18 | 卡迪纳尔晶振 | CSM1 | MHz Crystal | 25.175MHz | ±50ppm |
CSM1Z-A5B2C3-120-6.144D18 | Cardinal晶振 | CSM1 | MHz Crystal | 6.144MHz | ±50ppm |
CSM1-A1B2C3-50-20.0D16 | Cardinal晶振 | CSM1 | MHz Crystal | 20MHz | ±50ppm |
CSM1Z-A5B2C5-150-3.6864D18 | Cardinal晶振 | CSM1 | MHz Crystal | 3.6864MHz | ±50ppm |
CSM1Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 10MHz | ±50ppm |
CSM1Z-A0B2C3-50-27.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 27MHz | ±50ppm |
CSM1Z-A0B2C3-100-7.3728D18 | Cardinal晶振 | CSM1 | MHz Crystal | 7.3728MHz | ±50ppm |
CSM1Z-A0B2C3-100-6.144D18 | Cardinal晶振 | CSM1 | MHz Crystal | 6.144MHz | ±50ppm |
CSM1Z-A5B2C3-40-27.0D18-F | Cardinal晶振 | CSM1 | MHz Crystal | 27MHz | ±50ppm |
CSM1Z-A5B2C3-120-7.3728D18 | Cardinal晶振 | CSM1 | MHz Crystal | 7.3728MHz | ±50ppm |
CSM1Z-A0B2C3-50-28.63636D18 | Cardinal晶振 | CSM1 | MHz Crystal | 28.63636MHz | ±50ppm |
CSM1Z-A5B2C3-60-9.216D18 | Cardinal晶振 | CSM1 | MHz Crystal | 9.216MHz | ±50ppm |
CSM1Z-A5B2C3-120-6.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 6MHz | ±50ppm |
CSM1Z-A5B2C5-120-7.3728D18 | Cardinal晶振 | CSM1 | MHz Crystal | 7.3728MHz | ±50ppm |
CSM1Z-A5B2C3-40-18.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 18MHz | ±50ppm |
CSM1Z-A0B2C3-50-24.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 24MHz | ±50ppm |
CSM1Z-A0B2C3-80-10.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 10MHz | ±50ppm |
CSM1Z-A5B2C5-150-4.9152D18 | Cardinal晶振 | CSM1 | MHz Crystal | 4.9152MHz | ±50ppm |
CSM1-A1B2C3-70-14.7456D20 | Cardinal晶振 | CSM1 | MHz Crystal | 14.7456MHz | ±50ppm |
CSM1-A5B2C5-180-3.579545D18 | Cardinal晶振 | CSM1 | MHz Crystal | 3.579545MHz | ±50ppm |
CSM1Z-A5B2C3-40-12.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 12MHz | ±50ppm |
CSM1Z-A5B2C5-150-5.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 5MHz | ±50ppm |
CSM1Z-A0B2C3-80-12.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 12MHz | ±50ppm |
CSM1Z-A0B2C3-80-11.0592D18 | Cardinal晶振 | CSM1 | MHz Crystal | 11.0592MHz | ±50ppm |
CSM1Z-A5B2C5-60-8.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 8MHz | ±50ppm |
CSM1Z-A5B2C3-30-25.0D20 | Cardinal晶振 | CSM1 | MHz Crystal | 25MHz | ±50ppm |
CSM1Z-A3B1C3-200-3.6864D18 | Cardinal晶振 | CSM1 | MHz Crystal | 3.6864MHz | ±100ppm |
CSM1Z-A5B2C3-60-8.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 8MHz | ±50ppm |
CSM1Z-A5B2C3-40-13.0D18 | 石英晶振 | CSM1 | MHz Crystal | 13MHz | ±50ppm |
CSM1Z-A0B2C3-70-14.7456D18 | Cardinal晶振 | CSM1 | MHz Crystal | 14.7456MHz | ±50ppm |
CSM1Z-A0B2C3-50-17.734475D18 | Cardinal晶振 | CSM1 | MHz Crystal | 17.734475MHz | ±50ppm |
CSM1Z-A1B2C3-200-3.6864D20 | Cardinal晶振 | CSM1 | MHz Crystal | 3.6864MHz | ±50ppm |
CSM1Z-A0B2C3-50-18.432D18 | Cardinal晶振 | CSM1 | MHz Crystal | 18.432MHz | ±50ppm |
CSM1Z-A5B2C3-40-16.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 16MHz | ±50ppm |
CSM1Z-A0B2C3-200-3.579545D18 | Cardinal晶振 | CSM1 | MHz Crystal | 3.579545MHz | ±50ppm |
CSM1Z-A0B2C3-50-20.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 20MHz | ±50ppm |
CSM1Z-A5B2C5-150-4.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 4MHz | ±50ppm |
CSM1Z-A0B2C3-100-6.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 6MHz | ±50ppm |
CSM1-A1B2C3-150-3.579545D17 | Cardinal晶振 | CSM1 | MHz Crystal | 3.579545MHz | ±50ppm |
CSM1Z-A5B2C3-40-18.432D18 | Cardinal晶振 | CSM1 | MHz Crystal | 18.432MHz | ±50ppm |
CSM1Z-A1B2C3-40-24-0D12 | Cardinal晶振 | CSM1 | MHz Crystal | 24MHz | ±50ppm |
CSM1Z-A0B2C3-150-4.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 4MHz | ±50ppm |
CSM1Z-A5B2C3-150-4.0D20 | Cardinal晶振 | CSM1 | MHz Crystal | 4MHz | ±50ppm |
CSM1Z-A5B2C3-200-4.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 4MHz | ±50ppm |
CSM1Z-A5B2C5-50-19.6608D18 | Cardinal晶振 | CSM1 | MHz Crystal | 19.6608MHz | ±50ppm |
CSM1Z-A5B2C5-40-16.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 16MHz | ±50ppm |
CSM1Z-A5B2C5-40-25.0D18-F | Cardinal晶振 | CSM1 | MHz Crystal | 25MHz | ±50ppm |
CSM1Z-A5B2C5-40-18.432D18 | Cardinal晶振 | CSM1 | MHz Crystal | 18.432MHz | ±50ppm |
CSM1Z-A5B2C5-40-12.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 12MHz | ±50ppm |
CSM1Z-A2B1C2-80-7.3728D33 | Cardinal晶振 | CSM1 | MHz Crystal | 7.3728MHz | ±100ppm |
CSM1Z-A0B2C3-100-40.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 40MHz | ±50ppm |
CSM1Z-A0B2C3-100-49.152D18 | Cardinal晶振 | CSM1 | MHz Crystal | 49.152MHz | ±50ppm |
CSM1Z-A2B4C7-60-24.0D18-F | Cardinal晶振 | CSM1 | MHz Crystal | 24MHz | ±10ppm |
CSM1Z-ARB2C5-60-8.0D18 | Cardinal晶振 | CSM1 | MHz Crystal | 8MHz | ±50ppm |
CSM1Z-ARB3C3-50-14.7456D18 | Cardinal晶振 | CSM1 | MHz Crystal | 14.7456MHz | ±30ppm |
