12.91500,低频控制晶振,格耶有源晶振,KXO-210服务应用晶振

频率：1.0 MHz

尺寸：13.2X13.2MM

原厂型号 Originalmodel：	12.91500
Manufacturer品牌	Geyer格耶晶振
Series型号	KXO-210
Type类型	XO物联网应用晶振
Frequency频率	1.0 MHz
输出方式 Output：	TTL / HCMOS
Voltage-Supply电压	5.0 V
FrequencyStability频率稳定度	± 100 ppm
Size/Dimension尺寸	13.2X13.2MM

咨询热线：0755-27872782

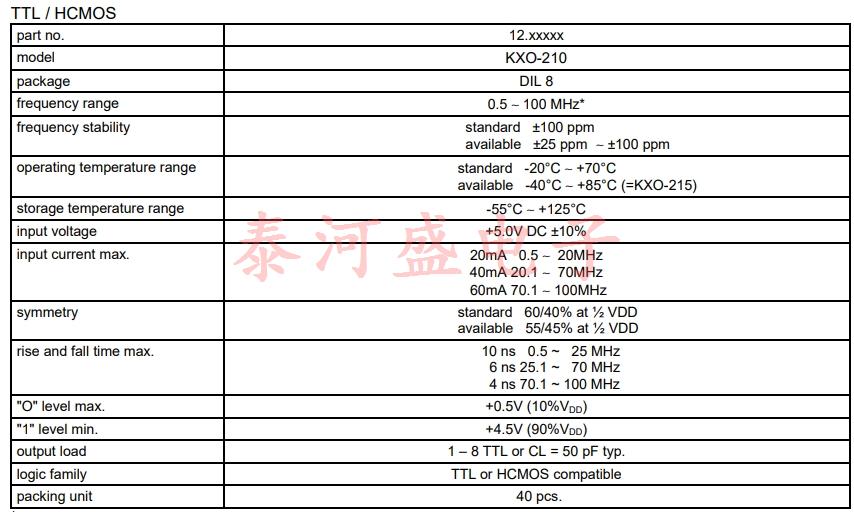

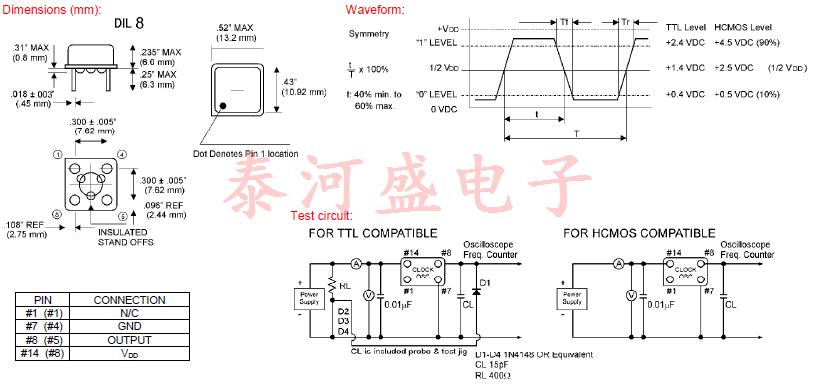

12.91500,低频控制晶振,格耶有源晶振,KXO-210服务应用晶振

原厂型号 Originalmodel：	12.91500	品牌brand：	Geyer格耶晶振
Manufacturer品牌	Geyer格耶晶振	OperatingTemperature温度	-20°C to +70°C
Series型号	KXO-210	Current-Supply(Max)	-
Type类型	XO高清视频晶振	PackageHeight高度	0.8mm
Frequency频率	1.0 MHz	Termination 脚位	4pad
输出方式 Output：	TTL / HCMOS	PackageType 封装类型	DIL 8
Voltage-Supply电压	5.0 V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	± 100 ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	13.2X13.2MM	最小包装数MPQ：	-

12.91500,低频控制晶振,格耶有源晶振,KXO-210服务应用晶振

12.73009	KXO-V93	1.6 \| 1.2 \| 0.6 mm	24.0 MHz	-40°C to +85°C	± 30 ppm	+3.3 V ± 5%
12.73010	KXO-V93	1.6 \| 1.2 \| 0.6 mm	8.0 MHz	-40°C to +85°C	± 30 ppm	+3.3 V ± 5%
12.73011	KXO-V93	1.6 \| 1.2 \| 0.6 mm	3.68640 MHz	-40°C to +85°C	± 30 ppm	+3.3 V ± 5%
12.73012	KXO-V93	1.6 \| 1.2 \| 0.6 mm	16.0 MHz	-40°C to +85°C	± 30 ppm	+3.3 V ± 5%
12.73013	KXO-V93	1.6 \| 1.2 \| 0.6 mm	25.0 MHz	-40°C to +85°C	± 30 ppm	+3.3 V ± 5%
12.73014	KXO-V93	1.6 \| 1.2 \| 0.6 mm	12.0 MHz	-40°C to +85°C	± 30 ppm	+1.8 V ± 5%
12.73015	KXO-V93	1.6 \| 1.2 \| 0.6 mm	27.0 MHz	-40°C to +85°C	± 30 ppm	+1.8 V ± 5%
12.73016	KXO-V93	1.6 \| 1.2 \| 0.6 mm	19,20 MHz	-40°C to +85°C	± 30 ppm	+3.3 V ± 5%
12.73017	KXO-V93	1.6 \| 1.2 \| 0.6 mm	12.2880 MHz	-40°C to +85°C	± 25 ppm	+3.3 V ± 5%
12.73018	KXO-V93	1.6 \| 1.2 \| 0.6 mm	12.0 MHz	-40°C to +85°C	± 30 ppm	+3.3 V ± 5%
12.73019	KXO-V93	1.6 \| 1.2 \| 0.6 mm	27.120 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.73021	KXO-V93	1.6 \| 1.2 \| 0.6 mm	32.7680 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.73022	KXO-V93	1.6 \| 1.2 \| 0.6 mm	12.0 MHz	-40°C to +85°C	± 25 ppm	+3.3 V ± 5%
12.73023	KXO-V93	1.6 \| 1.2 \| 0.6 mm	13.560 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90000	KXO-200	20.8 \| 13.2 \| 5.08 mm	1.0 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90013	KXO-200	20.8 \| 13.2 \| 5.08 mm	14.187570 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90045	KXO-200	20.8 \| 13.2 \| 5.08 mm	33.0 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90101	KXO-200	20.8 \| 13.2 \| 5.08 mm	1.84320 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90121	KXO-200	20.8 \| 13.2 \| 5.08 mm	12.0 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90124	KXO-200	20.8 \| 13.2 \| 5.08 mm	14.318180 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90126	KXO-200	20.8 \| 13.2 \| 5.08 mm	16.0 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90147	KXO-200	20.8 \| 13.2 \| 5.08 mm	5.0 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90149	KXO-200	20.8 \| 13.2 \| 5.08 mm	80.0 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90150	KXO-200	20.8 \| 13.2 \| 5.08 mm	48.0 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90151	KXO-200	20.8 \| 13.2 \| 5.08 mm	50.0 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90240	KXO-400	20.8 \| 13.2 \| 5.08 mm	20.0 MHz	-20°C to +70°C	± 100 ppm	+5.0 V ± 5%
12.90300	KXO-V94	2.0 \| 1.6 \| 0.8 mm	27.0 MHz	-20°C to +70°C	± 50 ppm	+1.8 V ± 5%
12.90301	KXO-V94	2.0 \| 1.6 \| 0.8 mm	1.0 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90302	KXO-V94	2.0 \| 1.6 \| 0.8 mm	8.0 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90303	KXO-V94	2.0 \| 1.6 \| 0.8 mm	3.68640 MHz	-40°C to +85°C	± 100 ppm	+3.3 V ± 5%
12.90304	KXO-V94	2.0 \| 1.6 \| 0.8 mm	25.0 MHz	-40°C to +85°C	± 100 ppm	+3.3 V ± 5%
12.90305	KXO-V94	2.0 \| 1.6 \| 0.8 mm	20.0 MHz	-20°C to +70°C	± 50 ppm	+3.3 V ± 5%
12.90306	KXO-V94	2.0 \| 1.6 \| 0.8 mm	14.0 MHz	-20°C to +70°C	± 50 ppm	+3.3 V ± 5%
12.90307	KXO-V94	2.0 \| 1.6 \| 0.8 mm	1.84320 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90308	KXO-V94	2.0 \| 1.6 \| 0.8 mm	3.68640 MHz	-20°C to +70°C	± 50 ppm	+3.3 V ± 5%
12.90309	KXO-V94	2.0 \| 1.6 \| 0.8 mm	25.0 MHz	-20°C to +70°C	± 50 ppm	+3.3 V ± 5%
12.90310	KXO-V94	2.0 \| 1.6 \| 0.8 mm	1.84320 MHz	-20°C to +70°C	± 50 ppm	+3.3 V ± 5%
12.90311	KXO-V94	2.0 \| 1.6 \| 0.8 mm	14.74560 MHz	-40°C to +85°C	± 100 ppm	+3.3 V ± 5%
12.90312	KXO-V94	2.0 \| 1.6 \| 0.8 mm	40.0 MHz	-40°C to +85°C	± 50 ppm	+1.8 V ± 5%
12.90313	KXO-V94	2.0 \| 1.6 \| 0.8 mm	40.0 MHz	-20°C to +70°C	± 50 ppm	+1.8 V ± 5%
12.90314	KXO-V94	2.0 \| 1.6 \| 0.8 mm	19,20 MHz	-40°C to +85°C	± 20 ppm	+1.8 V ± 5%
12.90315	KXO-V94	2.0 \| 1.6 \| 0.8 mm	20.0 MHz	-40°C to +85°C	± 25 ppm	+3.3 V ± 5%
12.90316	KXO-V94	2.0 \| 1.6 \| 0.8 mm	26.0 MHz	-40°C to +85°C	± 20 ppm	+1.8 V ± 5%
12.90317	KXO-V94	2.0 \| 1.6 \| 0.8 mm	38.40 MHz	-40°C to +85°C	± 20 ppm	+1.8 V ± 5%
12.90318	KXO-V94	2.0 \| 1.6 \| 0.8 mm	40.0 MHz	-40°C to +85°C	± 25 ppm	+3.3 V ± 5%
12.90319	KXO-V94	2.0 \| 1.6 \| 0.8 mm	52.0 MHz	-40°C to +85°C	± 20 ppm	+1.8 V ± 5%
12.90320	KXO-V94	2.0 \| 1.6 \| 0.8 mm	27.0 MHz	-40°C to +85°C	± 100 ppm	+3.3 V ± 5%
12.90321	KXO-V94	2.0 \| 1.6 \| 0.8 mm	14.74560 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90322	KXO-V94	2.0 \| 1.6 \| 0.8 mm	20.0 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90323	KXO-V94	2.0 \| 1.6 \| 0.8 mm	25.0 MHz	-40°C to +85°C	± 25 ppm	+3.3 V ± 5%
12.90324	KXO-V94	2.0 \| 1.6 \| 0.8 mm	27.0 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90325	KXO-V94	2.0 \| 1.6 \| 0.8 mm	3.68640 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90327	KXO-V94	2.0 \| 1.6 \| 0.8 mm	48.0 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90328	KXO-V94	2.0 \| 1.6 \| 0.8 mm	16.0 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90329	KXO-V94	2.0 \| 1.6 \| 0.8 mm	32.0 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90330	KXO-V94	2.0 \| 1.6 \| 0.8 mm	10.0 MHz	-40°C to +85°C	± 100 ppm	+3.3 V ± 5%
12.90331	KXO-V94	2.0 \| 1.6 \| 0.8 mm	50.0 MHz	-40°C to +85°C	± 100 ppm	+3.3 V ± 5%
12.90332	KXO-V94	2.0 \| 1.6 \| 0.8 mm	16.80 MHz	-40°C to +85°C	± 100 ppm	+3.3 V ± 5%
12.90333	KXO-V94	2.0 \| 1.6 \| 0.8 mm	40.0 MHz	-40°C to +85°C	± 50 ppm	+3.3 V ± 5%
12.90334	KXO-V94	2.0 \| 1.6 \| 0.8 mm	27.0 MHz	-40°C to +85°C	± 25 ppm	+3.3 V ± 5%

联系方式/CONTACT US

泰河电话服务热线：0755-27872782 13824306246

泰河传真贸易通：泰河科技

泰河客服在线客服：794113422　　泰河微信号：taiheth794113422　　公众号：taihekj

泰河邮箱泰河邮箱：taiheth@163.com

泰河地址泰河地址：广东深圳市宝安区40区33号工业城6楼

泰河地址泰河官网：http://www.smdcrystal.com/

12.91500 低频控制晶振格耶有源晶振 KXO-210服务应用晶振
