进口7050Skyworks晶振,6G交换机压控有源晶振,515CBB27M0000BAGR六脚晶振

频率：27MHz

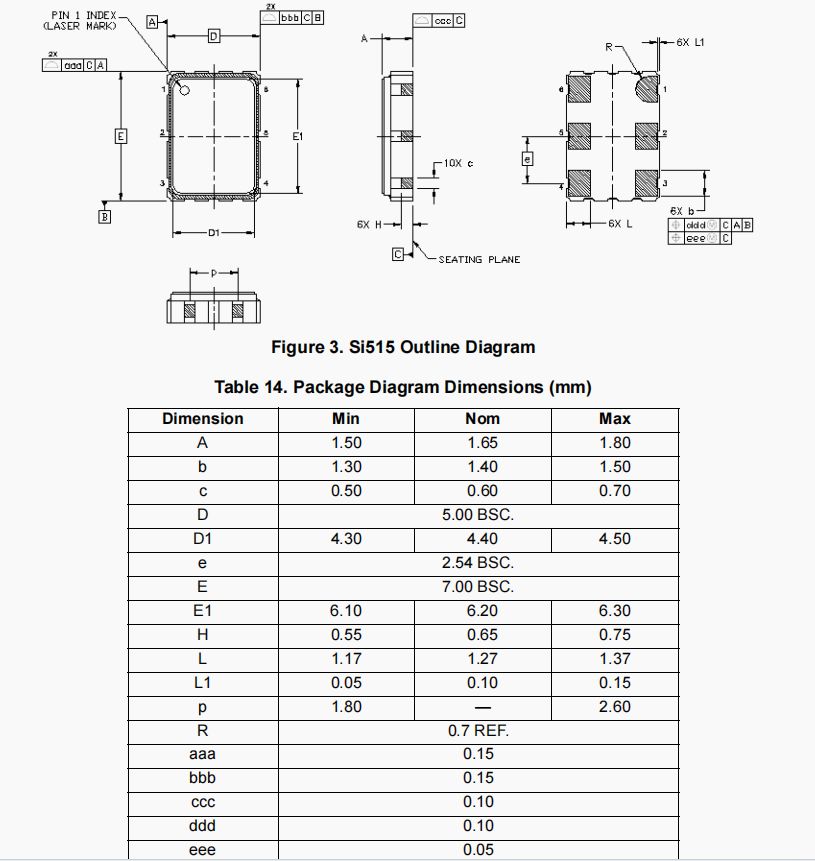

尺寸：7.0*5.0mm

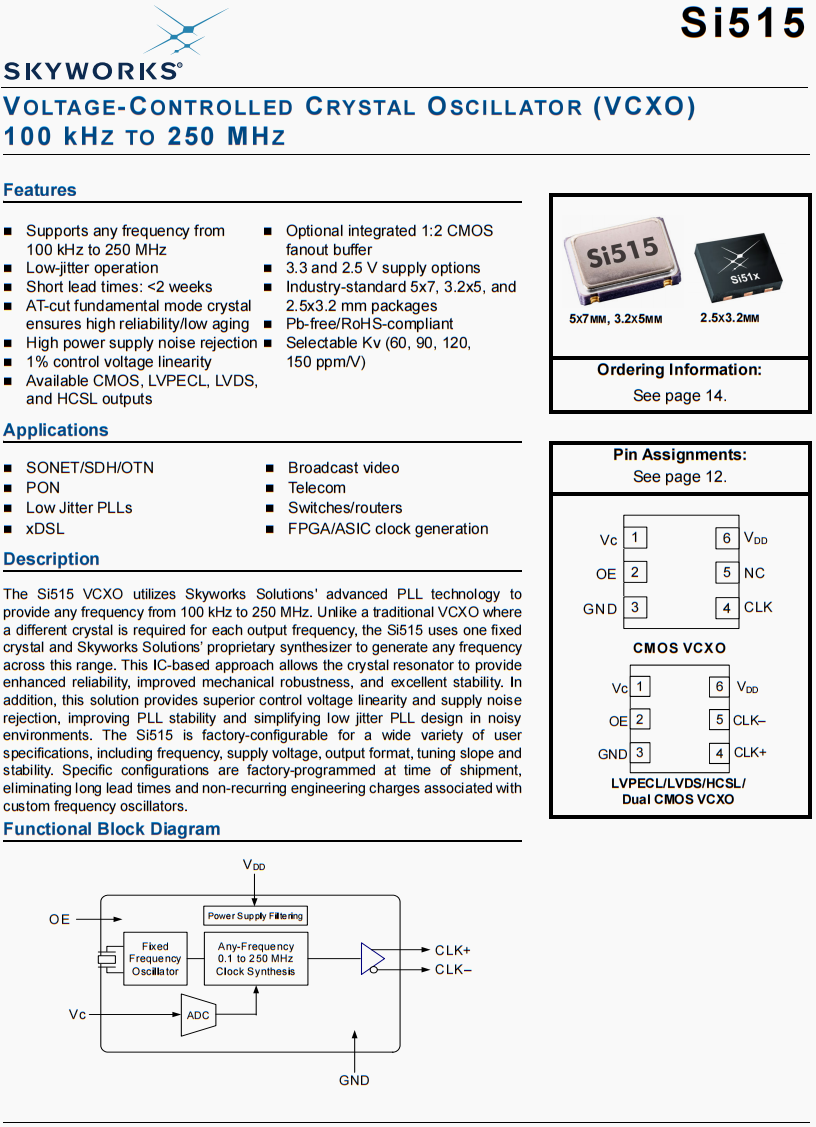

进口7050Skyworks晶振,6G交换机压控有源晶振,515CBB27M0000BAGR六脚晶振，美国Skyworks晶振公司，欧美晶振，有源晶振，压控晶振，石英晶体谐振器，VCXO晶振，6G交换机晶振，六脚晶振，贴片晶振，石英晶振，7050晶振，支持从100 kHz到250 MHz的任何频率低抖动工作前置时间短:<2周AT-cut基模晶体确保高可靠性/低老化高电源噪声抑制1%控制电压线性度CMOS, LVPECL, LVDS和HCSL输出可选集成1:2 CMOS风扇输出缓冲3.3和2.5 V电源选项工业标准5x7, 3.2x5和2.5x3.2 mm封装无铅/符合rohs可选Kv (60, 90, 120,150 ppm/V)

咨询热线：0755-27872782

相关产品说明下载PDF资料

TH-1 890

TH-2 890

进口7050Skyworks晶振,6G交换机压控有源晶振,515CBB27M0000BAGR六脚晶振

参数	标志	使用环境	最小值	典型的	最大值	单位
电源电压	VDD	3.3 V option	2.97	3.3	3.63	V
电源电压	VDD	2.5 V option	2.25	2.5	2.75	V
供应电流	IDD	CMOS, 100 MHz,single-ended	—	24	29	mA
		LVDS(output enabled)	—	22	26	mA
		LVPECL(output enabled)	—	42	46	mA
		HCSL(output enabled)	—	44	47	mA
		Tristate (output disabled)	—	—	22	mA
工作温度	TA		–40	—	85	oC
标称频率	FO	CMOS, Dual CMOS	0.1	—	212.5	MHz
标称频率	FO	LVDS/LVPECL/HCSL	0.1	—	250	MHz
温度稳定度	ST	TA = –40 to +85 oC	–20	—	+20	ppm
老化	A	Frequency drift over 10 year life	—	—	±8.5	ppm
最小绝对拉力范围	APR	Ordering option	±30, ±50,±80, ±100			ppm
启动时间	TSU	Minimum VDD to output fre- quency (FO) within specification	—	—	10	ms
禁用时间	TD	FO ? 10 MHz	—	—	5	µs
禁用时间	TD	FO < 10 MHz			40	µs
启用时间	TE	FO ? 10 MHz	—	—	20	µs
启用时间	TE	FO < 10 MHz			60	µs

进口7050Skyworks晶振,6G交换机压控有源晶振,515CBB27M0000BAGR六脚晶振

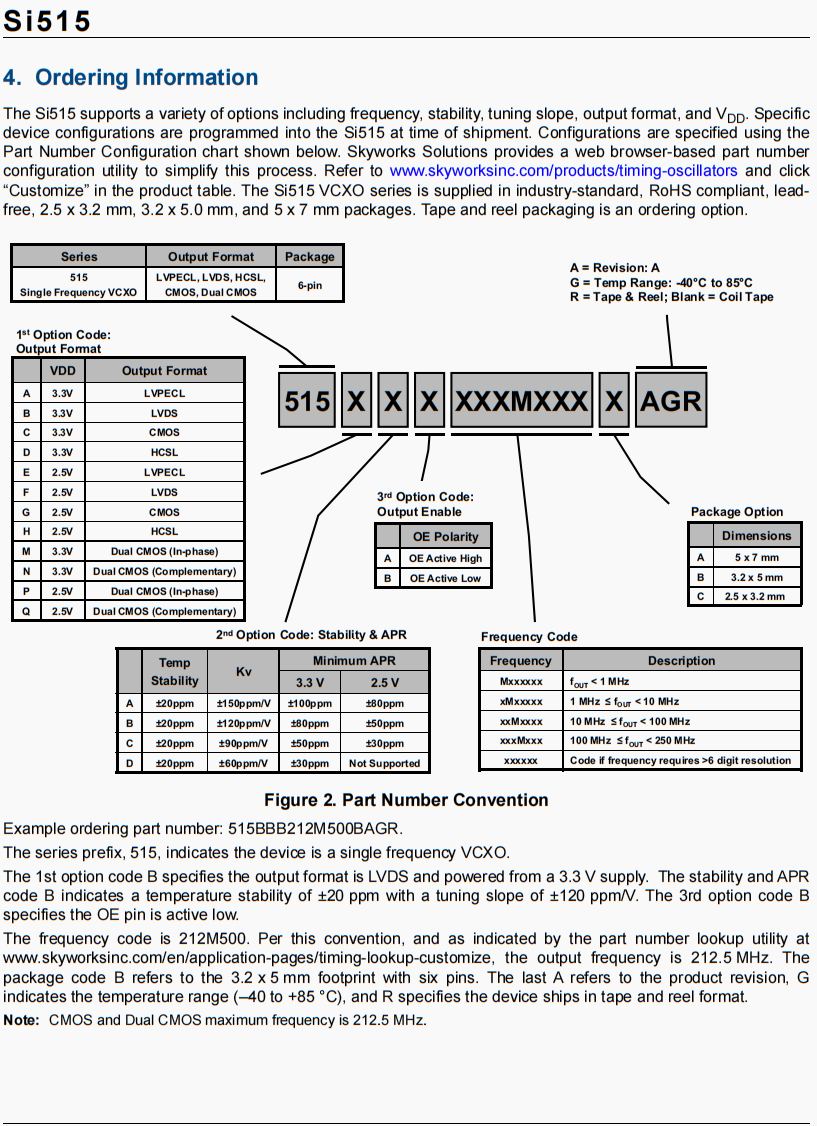

Skywork原厂编码	生产商	型号	类型	频率	输出	电源电压
515CAAM100000AAGR	Skyworks晶振	Si515	VCXO	100 kHz	CMOS	3.3V
515CAB32M7680AAGR	Skyworks晶振	Si515	VCXO	32.768 MHz	CMOS	3.3V
515CBA4M09600AAGR	Skyworks晶振	Si515	VCXO	4.096 MHz	CMOS	3.3V
515CDA8M00000AAGR	Skyworks晶振	Si515	VCXO	8 MHz	CMOS	3.3V
515GCA10M0000AAGR	Skyworks晶振	Si515	VCXO	10 MHz	CMOS	2.5V
515CAA10M0000BAGR	Skyworks晶振	Si515	VCXO	10 MHz	CMOS	3.3V
515CAA22M5792BAGR	Skyworks晶振	Si515	VCXO	22.5792 MHz	CMOS	3.3V
515CAA24M5760BAGR	Skyworks晶振	Si515	VCXO	24.576 MHz	CMOS	3.3V
515CAA27M0000BAGR	Skyworks晶振	Si515	VCXO	27 MHz	CMOS	3.3V
515CAA4M09600BAGR	Skyworks晶振	Si515	VCXO	4.096 MHz	CMOS	3.3V
515CAA7M37472BAGR	Skyworks晶振	Si515	VCXO	7.37472 MHz	CMOS	3.3V
515CAA80M0000BAGR	Skyworks晶振	Si515	VCXO	80 MHz	CMOS	3.3V
515CAAM172162BAGR	Skyworks晶振	Si515	VCXO	172.162 kHz	CMOS	3.3V
515CAB27M0000BAGR	Skyworks晶振	Si515	VCXO	27 MHz	CMOS	3.3V
515CAB4M09600BAGR	Skyworks晶振	Si515	VCXO	4.096 MHz	CMOS	3.3V
515CAB5M00000BAGR	Skyworks晶振	Si515	VCXO	5 MHz	CMOS	3.3V
515CBA24M0000BAGR	Skyworks晶振	Si515	VCXO	24 MHz	CMOS	3.3V
515CBA36M8640BAGR	Skyworks晶振	Si515	VCXO	36.864 MHz	CMOS	3.3V
515CBA38M4000BAGR	Skyworks晶振	Si515	VCXO	38.4 MHz	CMOS	3.3V
515CBA80M0000BAGR	Skyworks晶振	Si515	VCXO	80 MHz	CMOS	3.3V
515CBB14M3182BAGR	Skyworks晶振	Si515	VCXO	14.3182 MHz	CMOS	3.3V
515CBB27M0000BAGR	Skyworks晶振	Si515	VCXO	27 MHz	CMOS	3.3V
515CBB6M00000BAGR	Skyworks晶振	Si515	VCXO	6 MHz	CMOS	3.3V
515CCA10M0000BAGR	Skyworks晶振	Si515	VCXO	10 MHz	CMOS	3.3V
515CCA122M880BAGR	Skyworks晶振	Si515	VCXO	122.88 MHz	CMOS	3.3V
515CCA40M0000BAGR	Skyworks晶振	Si515	VCXO	40 MHz	CMOS	3.3V
515CCA61M4400BAGR	Skyworks晶振	Si515	VCXO	61.44 MHz	CMOS	3.3V
515CCA64M0000BAGR	Skyworks晶振	Si515	VCXO	64 MHz	CMOS	3.3V
515CCB122M880BAGR	Skyworks晶振	Si515	VCXO	122.88 MHz	CMOS	3.3V
515CCB14M3182BAGR	Skyworks晶振	Si515	VCXO	14.3182 MHz	CMOS	3.3V
515CCB16M3840BAGR	Skyworks晶振	Si515	VCXO	16.384 MHz	CMOS	3.3V
515CCB25M0000BAGR	Skyworks晶振	Si515	VCXO	25 MHz	CMOS	3.3V
515CDA10M0000BAGR	Skyworks晶振	Si515	VCXO	10 MHz	CMOS	3.3V
515CDA27M0000BAGR	Skyworks晶振	Si515	VCXO	27 MHz	CMOS	3.3V
515CDA32M7680BAGR	Skyworks晶振	Si515	VCXO	32.768 MHz	CMOS	3.3V
515CDAM134200BAGR	Skyworks晶振	Si515	VCXO	1.342 kHz	CMOS	3.3V
515CDB25M0000BAGR	Skyworks晶振	Si515	VCXO	25 MHz	CMOS	3.3V
515CDB6M00000BAGR	Skyworks晶振	Si515	VCXO	6 MHz	CMOS	3.3V
515GAA25M0000BAGR	Skyworks晶振	Si515	VCXO	25 MHz	CMOS	2.5V
515MDA17M1776BAGR	Skyworks晶振	Si515	VCXO	17.1776 MHz	CMOS	3.3V
515NDAM134200BAGR	Skyworks晶振	Si515	VCXO	134.2 kHz	CMOS	3.3V
515CAA12M2870BAGR	Skyworks晶振	Si515	VCXO	12.287 MHz	CMOS	3.3V
515CAA12M2880BAGR	Skyworks晶振	Si515	VCXO	12.287 MHz	CMOS	3.3V
515CAA98M3040BAGR	Skyworks晶振	Si515	VCXO	98.3 MHz	CMOS	3.3V
515CCA50M0000BAGR	Skyworks晶振	Si515	VCXO	50 MHz	CMOS	3.3V
515CAA000282CAGR	Skyworks晶振	Si515	VCXO	14.31818 MHz	CMOS	3.3V
515CDA51M2000BAGR	Skyworks晶振	Si515	VCXO	51.2 MHz	CMOS	3.3V
515CAA16M7770CAGR	Skyworks晶振	Si515	VCXO	16.777 MHz	CMOS	3.3V
515GAA54M0000CAGR	Skyworks晶振	Si515	VCXO	54 MHz	CMOS	2.5V
515CAA16M0000BAGR	Skyworks晶振	Si515	VCXO	16 MHz	CMOS	3.3V
515CBA32M7680CAGR	Skyworks晶振	Si515	VCXO	32.768 MHz	CMOS	3.3V
515CAA12M2880CAGR	Skyworks晶振	Si515	VCXO	12.288 MHz	CMOS	3.3V
515CBA27M0000CAGR	Skyworks晶振	Si515	VCXO	27 MHz	CMOS	3.3V
515GAA54M0000BAGR	Skyworks晶振	Si515	VCXO	54 MHz	CMOS	2.5V
515GCA27M0000CAGR	Skyworks晶振	Si515	VCXO	27 MHz	CMOS	2.5V
515GCA10M0000CAGR	Skyworks晶振	Si515	VCXO	10 MHz	CMOS	2.5V
515CAA004711CAGR	Skyworks晶振	Si515	VCXO	16.777215 MHz	CMOS	3.3V
515CBA96M0000BAGR	Skyworks晶振	Si515	VCXO	96 MHz	CMOS	3.3V
515CCA12M8000CAGR	Skyworks晶振	Si515	VCXO	12.8 MHz	CMOS	3.3V
515CCA125M000CAGR	Skyworks晶振	Si515	VCXO	125 MHz	CMOS	3.3V
515CAA27M0000CAGR	Skyworks晶振	Si515	VCXO	27 MHz	CMOS	3.3V
515CCA2M04800CAGR	Skyworks晶振	Si515	VCXO	2.048 MHz	CMOS	3.3V
515CAA49M1520BAGR	Skyworks晶振	Si515	VCXO	49.152 MHz	CMOS	3.3V
515GAA32M7680CAGR	Skyworks晶振	Si515	VCXO	32.768 MHz	CMOS	2.5V
515CCA65M0000CAGR	Skyworks晶振	Si515	VCXO	65 MHz	CMOS	3.3V
515CCAM100000CAGR	Skyworks晶振	Si515	VCXO	100 kHz	CMOS	3.3V
515CCA8M00000CAGR	Skyworks晶振	Si515	VCXO	8 MHz	CMOS	3.3V
515ABA10M0000BAGR	Skyworks晶振	Si515	VCXO	10 MHz	LVPECL	3.3V
515BBA10M0000BAGR	Skyworks晶振	Si515	VCXO	10 MHz	LVDS	3.3V
