领先全球的Skyworks晶振,6G网络传输晶振,530AB24M5760DG差分晶振

频率：24.576MHz

尺寸：7050mm

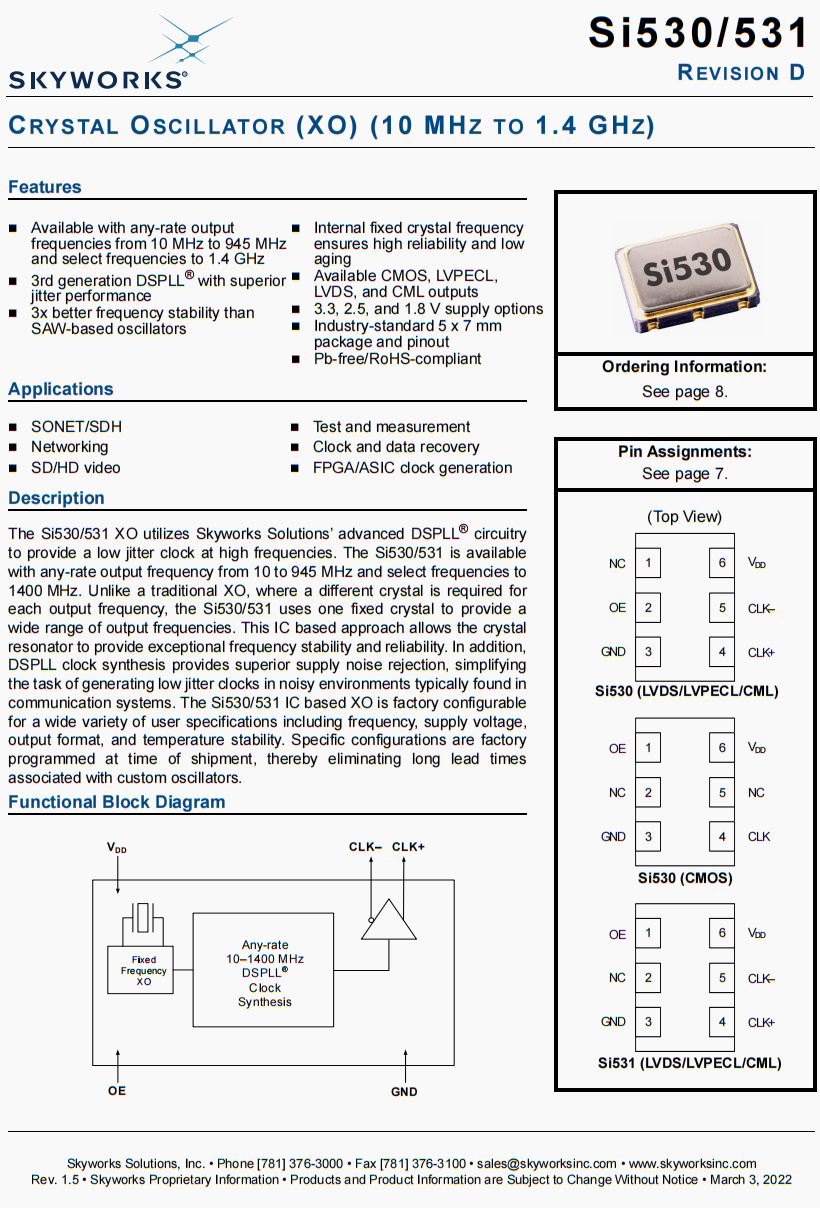

领先全球的Skyworks晶振,6G网络传输晶振,530AB24M5760DG差分晶振，美国Skyworks晶振公司，高品质进口晶振，欧美晶振，OSC晶振，有源晶振，贴片晶振，7050晶振，六脚晶振，小体积晶振，差分晶振，LVDS晶振，530FC200M000DG晶振，石英晶振，金属面晶振，可提供10 MHz至945 MHz的任意速率输出频率，并可选择频率至1.4 GHz的第三代DSPLL®，具有卓越的抖动性能，频率稳定性比基于saw的振荡器高3倍。内部固定晶体频率确保高可靠性和低老化。可提供CMOS, LVPECL, LVDS和CML输出3.3,2.5和1.8 V电源选项，行业标准5 x 7 mm封装和引脚无pb / rohs兼容

咨询热线：0755-27872782

TH-1 890

领先全球的Skyworks晶振,6G网络传输晶振,530AB24M5760DG差分晶振，美国Skyworks晶振公司，高品质进口晶振，欧美晶振，OSC晶振，有源晶振，贴片晶振，7050晶振，六脚晶振，小体积晶振，差分晶振，LVDS晶振，530FC200M000DG晶振，石英晶振，金属面晶振，可提供10 MHz至945 MHz的任意速率输出频率，并可选择频率至1.4 GHz的第三代DSPLL®，具有卓越的抖动性能，频率稳定性比基于saw的振荡器高3倍。内部固定晶体频率确保高可靠性和低老化。可提供CMOS, LVPECL, LVDS和CML输出3.3,2.5和1.8 V电源选项，行业标准5 x 7 mm封装和引脚无pb / rohs兼容

TH-2 890

领先全球的Skyworks晶振,6G网络传输晶振,530AB24M5760DG差分晶振

参数	标志	条件	最小值	典型的	最大值	单位
电源电压	VDD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
供应电流	IDD	Output enabled LVPECL CML LVDS CMOS	— — — —	111 99 90 81	121 108 98 88	mA
供应电流	IDD	Tristate mode	—	60	75	mA
输出启用(OE)2		VIH	0.75 x VDD	—	—	V
输出启用(OE)2		VIL	—	—	0.5	V
工作温度范围	TA		–40	—	85	ºC
标称频率	fO	LVPECL/LVDS/CML	10	—	945	MHz
标称频率	fO	CMOS	10	—	160	MHz
最初的准确性	fi	Measured at +25 °C at time of shipping	—	±1.5	—	ppm
温度稳定度			–7 –20 –50	— — —	+7 +20 +50	ppm
老化	fa	Frequency drift over first year	—	—	±3	ppm
老化	fa	Frequency drift over 20 year life	—	—	±10	ppm

TH-3 890

领先全球的Skyworks晶振,6G网络传输晶振,530AB24M5760DG差分晶振

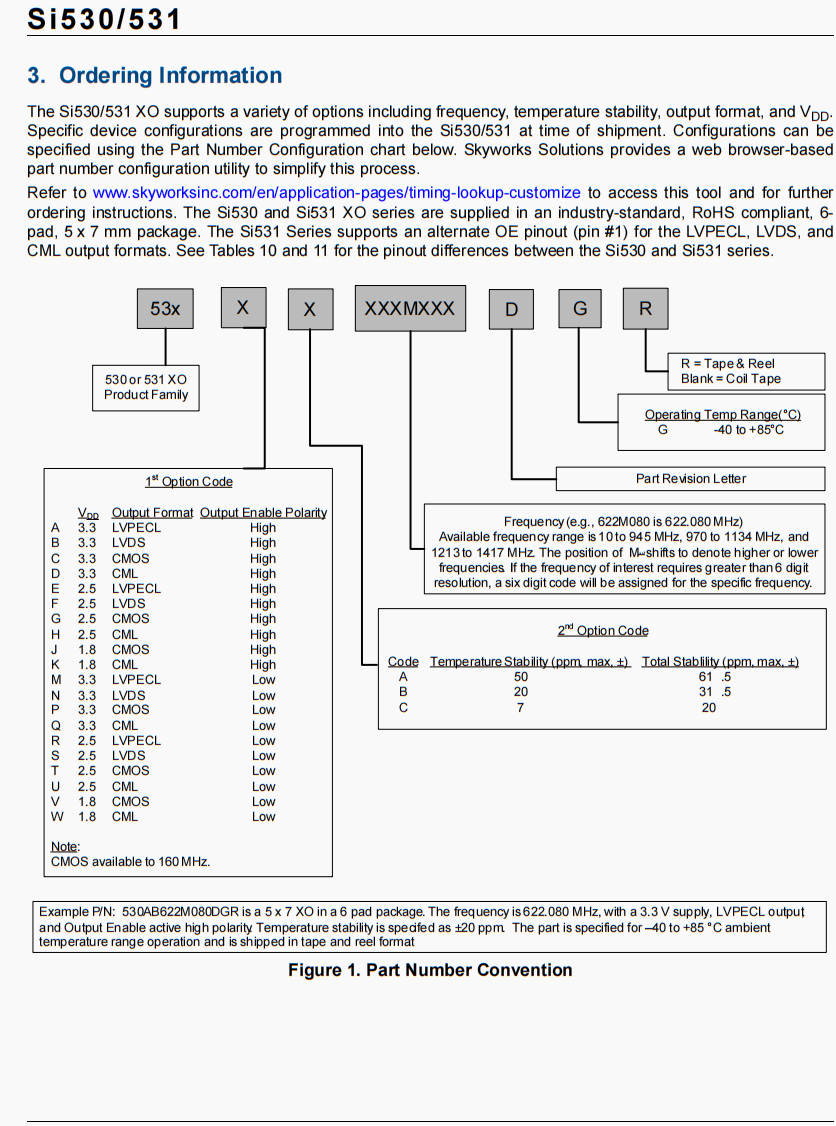

Skywork原厂编码	生产商	型号	类型	频率	输出	电源电压	频率稳定度
530BB125M000DG	Skyworks晶振	Si530	XO	125 MHz	LVDS	3.3V	±20ppm
530BA125M000DG	Skyworks晶振	Si530	XO	125 MHz	LVDS	3.3V	±50ppm
530CA25M0000DG	Skyworks晶振	Si530	XO	25 MHz	CMOS	3.3V	±50ppm
530CA28M6000DG	Skyworks晶振	Si530	XO	28.6 MHz	CMOS	3.3V	±50ppm
530GB25M0000DG	Skyworks晶振	Si530	XO	25 MHz	CMOS	2.5V	±20ppm
530FC200M000DG	Skyworks晶振	Si530	XO	200 MHz	LVDS	2.5V	±7ppm
530EC125M000DG	Skyworks晶振	Si530	XO	125 MHz	LVPECL	2.5V	±7ppm
530BC100M000DG	Skyworks晶振	Si530	XO	100 MHz	LVDS	3.3V	±20ppm
530AC622M080DGR	Skyworks晶振	Si530	XO	622.08 MHz	LVPECL	3.3V	±7ppm
530CB20M0000DG	Skyworks晶振	Si530	XO	20 MHz	CMOS	3.3V	±20ppm
530BC114M285DG	Skyworks晶振	Si530	XO	114.285 MHz	LVDS	3.3V	±7ppm
530CC19M2000DG	Skyworks晶振	Si530	XO	19.2 MHz	CMOS	3.3V	±7ppm
530CA26M0000DG	Skyworks晶振	Si530	XO	26 MHz	CMOS	3.3V	±50ppm
530EB50M0000DGR	Skyworks晶振	Si530	XO	50 MHz	LVPECL	2.5V	±20ppm
530EA312M500DG	Skyworks晶振	Si530	XO	312.5 MHz	LVPECL	2.5V	±50ppm
530FC311M040DG	Skyworks晶振	Si530	XO	311.04 MHz	LVDS	2.5V	±7ppm
530FC233M250DGR	Skyworks晶振	Si530	XO	233.25 MHz	LVDS	2.5V	±7ppm
530AB25M0000DG	Skyworks晶振	Si530	XO	25 MHz	LVPECL	3.3V	±20ppm
530FB125M000DG	Skyworks晶振	Si530	XO	125 MHz	LVDS	2.5V	±20ppm
530EB121M109DG	Skyworks晶振	Si530	XO	121.109 MHz	LVPECL	2.5V	±20ppm
530AC125M000DG	Skyworks晶振	Si530	XO	125 MHz	LVPECL	3.3V	±7ppm
530BC125M000DG	Skyworks晶振	Si530	XO	125 MHz	LVDS	3.3V	±7ppm
530FC125M000DG	Skyworks晶振	Si530	XO	125 MHz	LVDS	2.5V	±7ppm
530BA156M250DG	Skyworks晶振	Si530	XO	156.25 MHz	LVDS	3.3V	±50ppm
530FA200M000DG	Skyworks晶振	Si530	XO	200 MHz	LVDS	2.5V	±50ppm
530AC156M250DG	Skyworks晶振	Si530	XO	156.25 MHz	LVPECL	3.3V	±7ppm
530BC156M250DG	Skyworks晶振	Si530	XO	156.25 MHz	LVDS	3.3V	±7ppm
530FC156M250DG	Skyworks晶振	Si530	XO	156.25 MHz	LVDS	2.5V	±7ppm
530AC200M000DG	Skyworks晶振	Si530	XO	200 MHz	LVPECL	3.3V	±7ppm
530BC148M500DG	Skyworks晶振	Si530	XO	148.5 MHz	LVDS	3.3V	±7ppm
530FB100M000DG	Skyworks晶振	Si530	XO	100 MHz	LVDS	2.5V	±20ppm
530CB50M0000DG	Skyworks晶振	Si530	XO	50 MHz	CMOS	3.3V	±20ppm
530FA156M250DG	Skyworks晶振	Si530	XO	156.25 MHz	LVDS	2.5V	±50ppm
530FB200M000DG	Skyworks晶振	Si530	XO	200 MHz	LVDS	2.5V	±20ppm
530FC50M0000DG	Skyworks晶振	Si530	XO	50 MHz	LVDS	2.5V	±7ppm
530AC250M000DG	Skyworks晶振	Si530	XO	250 MHz	LVPECL	3.3V	±7ppm
530BC622M080DG	Skyworks晶振	Si530	XO	622.08 MHz	LVDS	3.3V	±7ppm
530CB50M0000DGR	Skyworks晶振	Si530	XO	50 MHz	CMOS	3.3V	±20ppm
530BC125M000DGR	Skyworks晶振	Si530	XO	125 MHz	LVDS	3.3V	±7ppm
530AC155M520DGR	Skyworks晶振	Si530	XO	155.52 MHz	LVPECL	3.3V	±7ppm
530BB156M250DG	Skyworks晶振	Si530	XO	156.25 MHz	LVDS	3.3V	±20ppm
530EC156M250DG	Skyworks晶振	Si530	XO	156.25 MHz	LVPECL	2.5V	±7ppm
530BC187M500DG	Skyworks晶振	Si530	XO	187.5 MHz	LVDS	3.3V	±7ppm
530BC200M000DG	Skyworks晶振	Si530	XO	200 MHz	LVDS	3.3V	±7ppm
530BB100M000DG	Skyworks晶振	Si530	XO	100 MHz	LVDS	3.3V	±20ppm
530BC312M500DG	Skyworks晶振	Si530	XO	312.5 MHz	LVDS	3.3V	±7ppm
530BC250M000DG	Skyworks晶振	Si530	XO	250 MHz	LVDS	3.3V	±7ppm
530AC106M250DG	Skyworks晶振	Si530	XO	106.25 MHz	LVPECL	3.3V	±7ppm
530FC106M250DG	Skyworks晶振	Si530	XO	106.25 MHz	LVDS	2.5V	±7ppm
530EB50M0000DG	Skyworks晶振	Si530	XO	50 MHz	LVPECL	2.5V	±20ppm
530AA156M250DG	Skyworks晶振	Si530	XO	156.25 MHz	LVPECL	3.3V	±50ppm
530EC148M500DG	Skyworks晶振	Si530	XO	148.5 MHz	LVPECL	2.5V	±7ppm
530FC148M500DG	Skyworks晶振	Si530	XO	148.5 MHz	LVDS	2.5V	±7ppm
530AB156M250DG	Skyworks晶振	Si530	XO	156.25 MHz	LVPECL	3.3V	±20ppm
530AC25M0000DG	Skyworks晶振	Si530	XO	25 MHz	LVPECL	3.3V	±7ppm
530CA36M0000DG	Skyworks晶振	Si530	XO	36 MHz	CMOS	3.3V	±50ppm
530AA40M0790DGR	Skyworks晶振	Si530	XO	40.079 MHz	LVPECL	3.3V	±50ppm
530FA40M0790DGR	Skyworks晶振	Si530	XO	40.079 MHz	LVDS	2.5V	±50ppm
530CA36M0000DGR	Skyworks晶振	Si530	XO	36 MHz	CMOS	3.3V	±50ppm
530AA127M000DGR	Skyworks晶振	Si530	XO	127 MHz	LVPECL	3.3V	±50ppm
530AA40M0790DG	Skyworks晶振	Si530	XO	40.079 MHz	LVPECL	3.3V	±50ppm
530FA40M0790DG	Skyworks晶振	Si530	XO	40.079 MHz	LVDS	2.5V	±50ppm
530AA127M000DG	Skyworks晶振	Si530	XO	127 MHz	LVPECL	3.3V	±50ppm
530AB24M0000DGR	Skyworks晶振	Si530	XO	24 MHz	LVPECL	3.3V	±20ppm
530AB24M5760DGR	Skyworks晶振	Si530	XO	24.576 MHz	LVPECL	3.3V	±20ppm
530BB122M880DGR	Skyworks晶振	Si530	XO	122.88 MHz	LVDS	3.3V	±20ppm
530DB10M0000DGR	Skyworks晶振	Si530	XO	10 MHz	CML	3.3V	±20ppm
530NB122M880DGR	Skyworks晶振	Si530	XO	122.88 MHz	LVDS	3.3V	±20ppm
530AB24M0000DG	Skyworks晶振	Si530	XO	24 MHz	LVPECL	3.3V	±20ppm
530AB24M5760DG	Skyworks晶振	Si530	XO	24.576 MHz	LVPECL	3.3V	±20ppm
530BB122M880DG	Skyworks晶振	Si530	XO	122.88 MHz	LVDS	3.3V	±20ppm
530DB10M0000DG	Skyworks晶振	Si530	XO	10 MHz	CML	3.3V	±20ppm
530NB122M880DG	Skyworks晶振	Si530	XO	122.88 MHz	LVDS	3.3V	±20ppm
530CA96M0000DG	Skyworks晶振	Si530	XO	96 MHz	CMOS	3.3V	±50ppm
530CA98M3040DG	Skyworks晶振	Si530	XO	98.304 MHz	CMOS	3.3V	±50ppm
530GA100M000DG	Skyworks晶振	Si530	XO	100 MHz	CMOS	2.5V	±50ppm
530GA103M000DG	Skyworks晶振	Si530	XO	103 MHz	CMOS	2.5V	±50ppm
530GA106M250DG	Skyworks晶振	Si530	XO	106.25 MHz	CMOS	2.5V	±50ppm
530GA125M000DG	Skyworks晶振	Si530	XO	125 MHz	CMOS	2.5V	±50ppm
530GA12M4000DG	Skyworks晶振	Si530	XO	12.4 MHz	CMOS	2.5V	±50ppm
