ABM10W-16.0132MHZ-7-J1Z-T3,美国Abracon晶振,蓝牙模块晶振
频率：16.0132MHz
尺寸：2.5x2.0x0.6mm
ABM10W-16.0132MHZ-7-J1Z-T3,美国Abracon晶振,蓝牙模块晶振，美国Abracon晶振，艾博康晶振，型号：ABM10W系列，编码为：ABM10W-16.0132MHZ-7-J1Z-T3，频率为：16.0132MHz，频率稳定性：±50ppm，频率容差：±10ppm，负载电容：7pF，工作温度范围：-40℃至+105℃，小体积晶振尺寸：2.5x2.0x0.6mm封装，四脚贴片晶振，石英晶振，2520晶振，石英晶体谐振器，无源晶振，耐高温晶振。具有超小型晶振，轻薄型晶振，耐热及耐环境等特点。应用程序：可穿戴设备晶振，物联网晶振，无线晶振，蓝牙模块晶振，汽车电子晶振，智能家居等应用。
ABM10W-16.0132MHZ-7-J1Z-T3,美国Abracon晶振,蓝牙模块晶振，产品特点：
针对节能可穿戴设备和物联网应用进行优化
•电镀电容极低，低至4pF，具有优化的ESR晶体谐振器
•最大高度0.6 mm，非常适合高度受限的设计
•接缝密封，实现长期可靠性

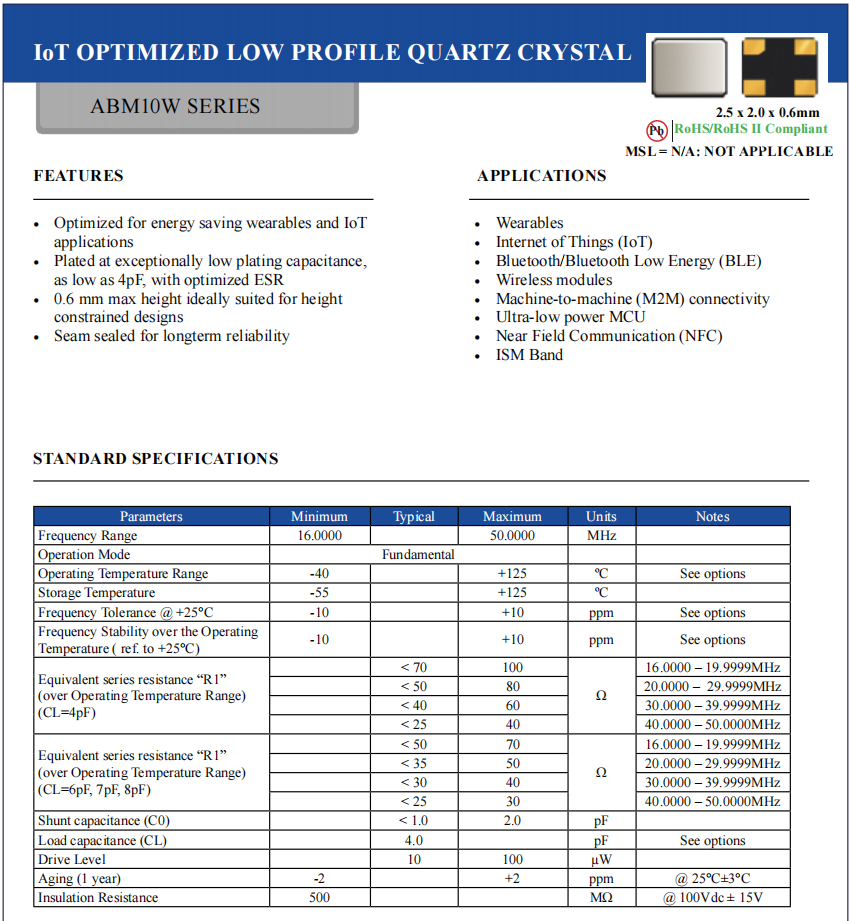

ABM10W-16.0132MHZ-7-J1Z-T3,美国Abracon晶振,蓝牙模块晶振,规格表
| 品牌 | Abracon艾博康晶振 |
| 型号 | ABM10W |
| 物料编码 |
ABM10W-16.0132MHZ-7-J1Z-T3 |
| 频率 | 16.0132MHz |
| 频率稳定性 | ±50ppm |
| 频率容差 | ±10ppm |
| 负载电容 | ±7pF |
| 工作温度 | -40℃至+105℃ |
| 尺寸 |
2.5x2.0x0.6mm |

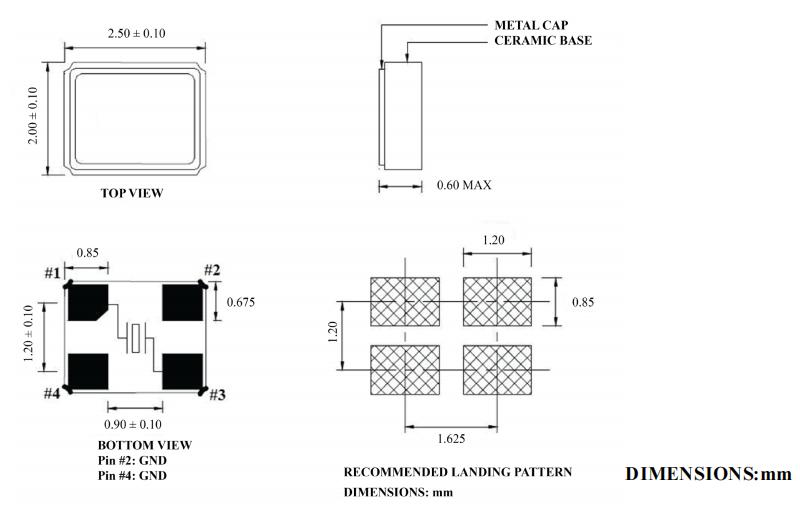

ABM10W-16.0132MHZ-7-J1Z-T3,美国Abracon晶振,蓝牙模块晶振,尺寸图
| 产品编码 | 进口晶振 | 型号 | 频率 | 长度 | 宽度 | 高度 |
| ABM10W-16.0132MHZ-6-J1Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-6-J2Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-6-K1Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-6-K2Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-7-D1X-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-7-D2X-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-7-J1Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-7-J2Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-7-K1Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-7-K2Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-8-D1X-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-8-D2X-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-8-J1Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-8-J2Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-8-K1Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.0132MHZ-8-K2Z-T3 | Abracon晶振 | ABM10W | 16.0132 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-4-B1U-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-4-B2U-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-4-D1X-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-4-D2X-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-4-J1Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-4-J2Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-6-D1X-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-6-D2X-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-6-J1Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-6-J2Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-6-K1Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-6-K2Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-7-D1X-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-7-D2X-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-7-J1Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-7-J2Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-7-K1Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-7-K2Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-8-D1X-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-8-D2X-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-8-J1Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-8-J2Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-8-K1Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3676MHZ-8-K2Z-T3 | Abracon晶振 | ABM10W | 16.3676 MHz | 2.5mm | 2mm | 0.6mm |
| ABM10W-16.3840MHZ-4-B1U-T3 | Abracon晶振 | ABM10W | 16.384 MHz | 2.5mm | 2mm | 0.6mm |
