CX5032GB20000H0PESZZ/20MHz/5032mm/12pF/SMD-2P/办公设备晶振

频率：20MHz

尺寸：5.0x3.2mm

CX5032GB20000H0PESZZ/20MHz/5032mm/12pF/SMD-2P/办公设备晶振，日本进口晶振，Kyocera京瓷晶振CX5032GB（CX-53F），编码为CX5032GB20000H0PESZZ，是一款小体积晶振尺寸5.0x3.2x1.0mm表面贴装型陶瓷包装产品，两脚贴片晶振，石英晶体谐振器，陶瓷谐振器，石英晶振，无铅环保晶振，频率为：20.000MHz，工作温度范围：-10℃至+70℃，具有超小型，轻薄型，耐热及耐环境特点，该无源晶振应用于通讯设备，数字电子视听，办公设备，数码家电晶振，普通民用设备，无线蓝牙晶振，智能手机晶振，平板电脑晶振，智能家居晶振，汽车电子，可穿戴设备，小型便捷式设备等应用。

咨询热线：0755-27872782

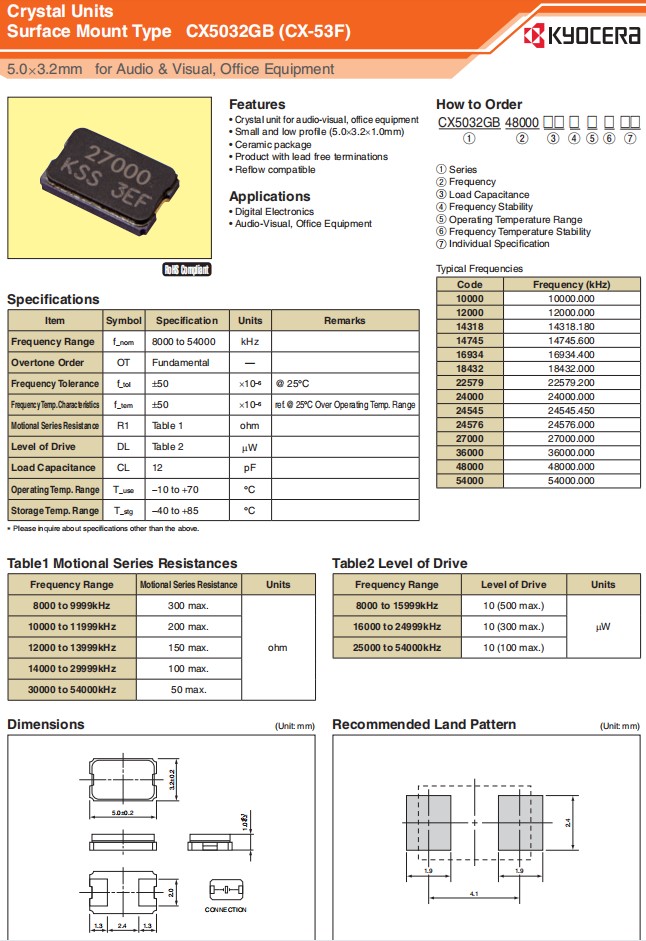

CX5032GB20000H0PESZZ/20MHz/5032mm/12pF/SMD-2P/办公设备晶振，参数表

项目	符号	CX5032GB 规格说明	Units	备注
频率范围	f_nom	8000 to 54000	kHz
序曲顺序	OT	Fundamental	—
频率容差	f_tol	±50	× 10−6	@ 25°C
频率温度,特点	f_tem	±50	× 10−6	参考温度高于工作温度范围25°C时
运动串联电阻	R1	Table 1	ohm
驱动级别	DL	Table 2	µW
负载电容	CL	12	pF
工作温度范围	T_use	− 10 to +70	°C
储存温度范围	T_stg	−40 to +85	°C

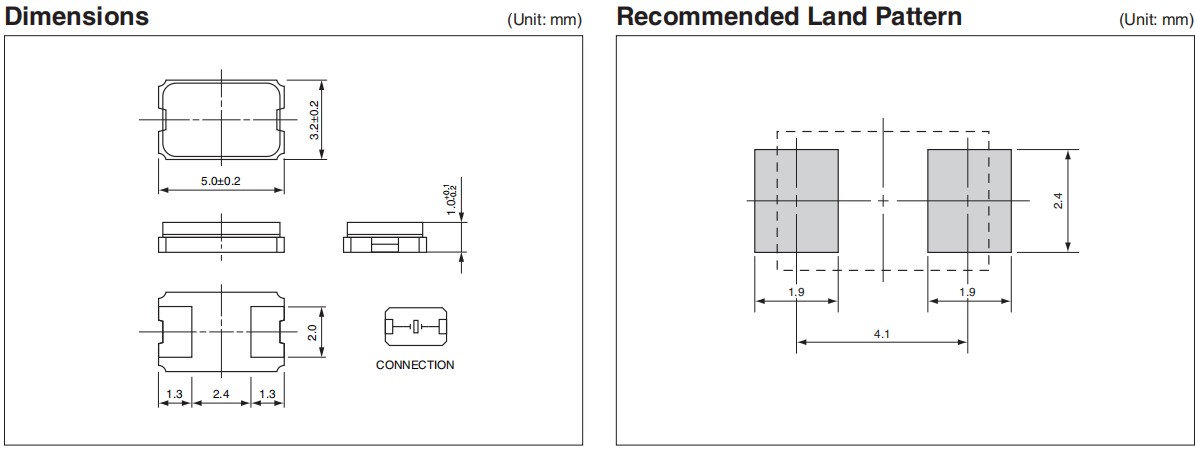

CX5032GB20000H0PESZZ/20MHz/5032mm/12pF/SMD-2P/办公设备晶振，尺寸图

原厂编码	晶振工厂	型号	频率	工作温度	包装/封装
ST3215SB32768H5HPWAA	Kyocera京瓷晶振	ST3215SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
ST3215SB32768C0HPWBB	Kyocera京瓷晶振	ST3215SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
ST2012SB32768C0HPWBB	Kyocera京瓷晶振	ST2012SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
CX5032GA08000H0PST02	Kyocera京瓷晶振	CX5032GA	8MHz	-40°C ~ 125°C	2-SMD, No Lead
CX5032GB10000H0PESZZ	Kyocera京瓷晶振	CX5032GB	10MHz	-10°C ~ 70°C	2-SMD, No Lead
CX5032GB16000H0PESZZ	Kyocera京瓷晶振	CX5032GB	16MHz	-10°C ~ 70°C	2-SMD, No Lead
CX5032GB20000H0PESZZ	Kyocera京瓷晶振	CX5032GB	20MHz	-10°C ~ 70°C	2-SMD, No Lead
CX5032GB12000H0HPQZ1	Kyocera京瓷晶振	CX5032GB	12MHz	-40°C ~ 85°C	2-SMD, No Lead
ST3215SB32768C0HSZA1	Kyocera京瓷晶振	ST3215SB	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead
ST3215SB32768Z0HPWBB	Kyocera京瓷晶振	ST3215SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
CX5032GB27000H0PESZZ	Kyocera京瓷晶振	CX5032GB	27MHz	-10°C ~ 70°C	2-SMD, No Lead
CX5032GB14318H0PESZZ	Kyocera京瓷晶振	CX5032GB	14.31818MHz	-10°C ~ 70°C	2-SMD, No Lead
CX-96F-040.000-E0107	Kyocera京瓷晶振	CX5032SB	40MHz	0°C ~ 85°C	4-SMD, No Lead
CX5032GB16000H0HPQZ1	Kyocera京瓷晶振	CX5032GB	16MHz	-40°C ~ 85°C	2-SMD, No Lead
CX5032GB08000H0HPQZ1	Kyocera京瓷晶振	CX5032GB	8MHz	-40°C ~ 85°C	2-SMD, No Lead
CX5032GB10000H0HPQZ1	Kyocera京瓷晶振	CX5032GB	10MHz	-40°C ~ 85°C	2-SMD, No Lead
ST3215SB32768H5HSZA1	Kyocera京瓷晶振	ST3215SB	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead
CX5032GB14745H0PESZZ	Kyocera京瓷晶振	CX5032GB	14.7456MHz	-10°C ~ 70°C	2-SMD, No Lead
CX5032GB24576H0PESZZ	Kyocera京瓷晶振	CX5032GB	24.576MHz	-10°C ~ 70°C	2-SMD, No Lead
ST3215SB32768E0HPWBB	Kyocera京瓷晶振	ST3215SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
ST2012SB32768E0HPWBB	Kyocera京瓷晶振	ST2012SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
ST3215SB32768B0HSZA1	Kyocera京瓷晶振	ST3215SB	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead
ST3215SB32768E0HSZB1	晶体谐振器	ST3215SB	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead
ST3215SB32768B0HPWB3	Kyocera京瓷晶振	ST3215SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
ST2012SB32768Z0HPWB4	Kyocera京瓷晶振	ST2012SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
CX5032GB08000H0HEQZ1	Kyocera京瓷晶振	CX5032GB	8MHz	-10°C ~ 70°C	2-SMD, No Lead
CX5032GB12000H0PESZZ	Kyocera京瓷晶振	CX5032GB	12MHz	-10°C ~ 70°C	2-SMD, No Lead
ST3215SB32768E0HPWAA	Kyocera京瓷晶振	ST3215SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
CX8045GA04000H0PST03	Kyocera京瓷晶振	CX8045GA	4MHz	-40°C ~ 125°C	2-SMD, No Lead
ST3215SB32768H5WZZAP	Kyocera京瓷晶振	ST3215SB	32.768kHz	-25°C ~ 75°C	2-SMD, No Lead
ST2012SB32768H5WZZAP	Kyocera京瓷晶振	ST2012SB	32.768kHz	-25°C ~ 75°C	2-SMD, No Lead
CX5032SA08000H0PSVZ1	Kyocera京瓷晶振	CX5032SA	8MHz	-40°C ~ 125°C	4-SMD, No Lead
ST2012SB32768H5HPWAA	Kyocera京瓷晶振	ST2012SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
CX5032GB19200P0HEQZ1	Kyocera京瓷晶振	CX5032GB	19.2MHz	-10°C ~ 70°C	2-SMD, No Lead
ST3215SB32768H5HPWZZ	Kyocera京瓷晶振	ST3215SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
ST3215SB32768E0HPWZZ	Kyocera京瓷晶振	ST3215SB	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead
