DSC1102BI2-153.6000,5032mm,Microchip微芯晶振,存储区域网络应用

当前位置：首页 » 石英晶振 » DSC1102BI2-153.6000,5032mm,Microchip微芯晶振,存储区域网络应用

prevnext

DSC1102BI2-153.6000,5032mm,Microchip微芯晶振,存储区域网络应用

频率：153.6MHz

尺寸：5.00mm x 3.20mm

原厂型号 Originalmodel：	DSC1102BI2-153.6000
Manufacturer品牌	Microchip有源晶振
Series型号	DSC1102
Type类型	MEMS
Frequency频率	153.6MHz
输出方式 Output：	LVPECL
Voltage-Supply电压	2.25 V ~ 3.6 V
FrequencyStability频率稳定度	±25ppm

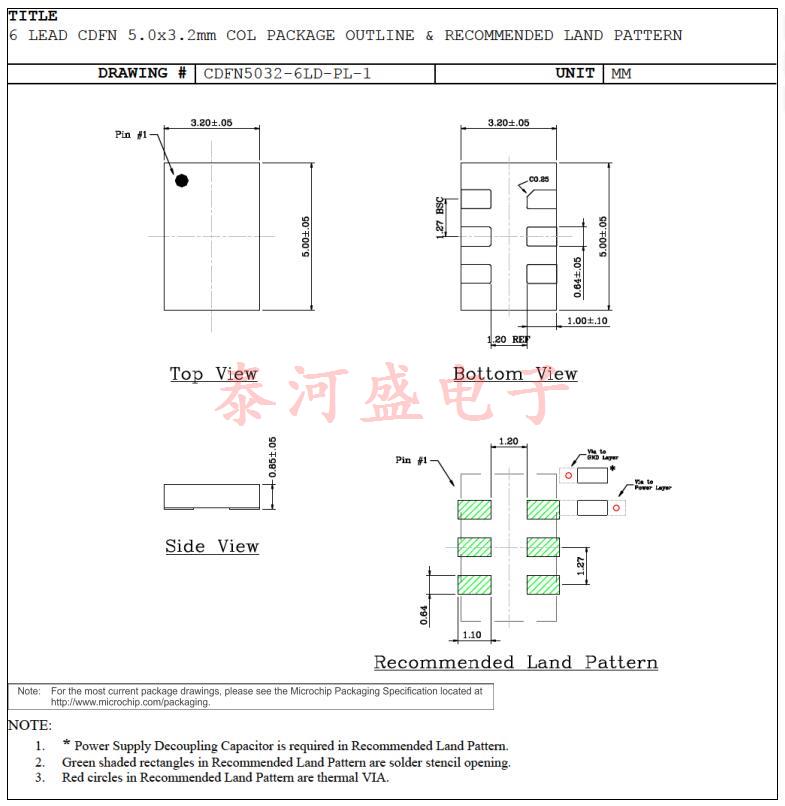

Size/Dimension尺寸	5032贴片晶振

咨询热线：0755-27872782

DSC1102BI2-153.6000,5032mm,Microchip微芯晶振,存储区域网络应用

原厂型号 Originalmodel：	DSC1102BI2-153.6000	品牌brand：	Microchip有源晶振
Manufacturer品牌	Microchip晶振	OperatingTemperature温度	-40°C ~ 85°C
Series型号	DSC1102	Current-Supply(Max)	32mA
Type类型	MEMS	PackageHeight高度	0.90mm
Frequency频率	153.6MHz	Termination 脚位	6pad
输出方式 Output：	LVPECL	PackageType 封装类型	6-SMD
Voltage-Supply电压	2.25 V ~ 3.6 V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±25ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	5.00mm x 3.20mm	最小包装数MPQ：	1000

DSC1102BI2-153.6000,5032mm,Microchip微芯晶振,存储区域网络应用

DSC1101AI2-040.0000	Microchip有源晶振	DSC1101	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-080.0000	Microchip有源晶振	DSC1101	MEMS	80MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-064.0000	Microchip有源晶振	DSC1101	MEMS	64MHz	CMOS	2.25 V ~ 3.6 V
DSC1124CI5-100.0000	Microchip有源晶振	DSC1124	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
DSC1121CM2-040.0000	Microchip有源晶振	DSC1121	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V
DSC1101DL5-020.0000	Microchip有源晶振	DSC1101	MEMS	20MHz	CMOS	2.25 V ~ 3.6 V
DSC1101BI5-133.0000	Microchip有源晶振	DSC1101	MEMS	133MHz	CMOS	2.25 V ~ 3.6 V
DSC1101CL5-100.0000	Microchip有源晶振	DSC1101	MEMS	100MHz	CMOS	2.25 V ~ 3.6 V
DSC1122NE1-025.0000	Microchip有源晶振	DSC1122	MEMS	25MHz	LVPECL	2.25 V ~ 3.6 V
DSC1123CE1-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz晶振	LVDS	2.25 V ~ 3.6 V
DSC1122DI2-200.0000	Microchip有源晶振	DSC1122	MEMS	200MHz	LVPECL	2.25 V ~ 3.6 V
DSC1123CI2-333.3333	Microchip有源晶振	DSC1123	MEMS	333.3333MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-020.0000	Microchip有源晶振	DSC1123	MEMS	20MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CE1-125.0000	Microchip有源晶振	DSC1103	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI1-027.0000	Microchip有源晶振	DSC1123	MEMS	27MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-333.3300	Microchip有源晶振	DSC1123	MEMS	333.33MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-156.2570	Microchip有源晶振	DSC1123	MEMS	156.257MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-148.5000	Microchip有源晶振	DSC1123	MEMS	148.5MHz	LVDS	2.25 V ~ 3.6 V
DSC1123BL5-156.2500	Microchip有源晶振	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123BI2-100.0000	Microchip有源晶振	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
DSC1103BI2-148.5000	Microchip有源晶振	DSC1103	MEMS	148.5MHz	LVDS	2.25 V ~ 3.6 V
DSC1103BI2-135.0000	Microchip有源晶振	DSC1103	MEMS	135MHz	LVDS	2.25 V ~ 3.6 V
DSC1102BI2-125.0000	Microchip有源晶振	DSC1102	MEMS	125MHz	LVPECL	2.25 V ~ 3.6 V
DSC1102BI2-153.6000	Microchip有源晶振	DSC1102	MEMS	153.6MHz	LVPECL	2.25 V ~ 3.6 V
DSC1123CI5-100.0000	Microchip有源晶振	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI5-156.2500	Microchip有源晶振	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DL1-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
MX575ABC70M0000	Microchip有源晶振	MX57	XO (Standard)	70MHz	LVCMOS	2.375 V ~ 3.63 V
MX553BBD156M250	Microchip有源晶振	MX55	XO (Standard)	156.25MHz	HCSL	2.375 V ~ 3.63 V
MX575ABB50M0000	Microchip有源晶振	MX57	XO (Standard)	50MHz	LVDS	2.375 V ~ 3.63 V
MX573LBB148M500	Microchip有源晶振	MX57	XO (Standard)	148.5MHz	LVDS	2.375 V ~ 3.63 V
MX554BBD322M265	Microchip有源晶振	MX55	XO (Standard)	322.265625MHz	HCSL	2.375 V ~ 3.63 V
MX573NBB311M040	Microchip有源晶振	MX57	XO (Standard)	311.04MHz	LVDS	2.375 V ~ 3.63 V
MX573NBD311M040	Microchip有源晶振	MX57	XO (Standard)	311.04MHz	HCSL	2.375 V ~ 3.63 V
MX573NBA622M080	Microchip有源晶振	MX57	XO (Standard)	622.08MHz	LVPECL	2.375 V ~ 3.63 V
DSC1033DC1-012.0000	Microchip有源晶振	DSC1033	MEMS	12MHz	CMOS	3.3V
DSC1001CI2-066.6666B	Microchip有源晶振	DSC1001	MEMS	66.6666MHz	CMOS	1.8 V ~ 3.3 V
DSC1001CI2-066.6666B	Microchip有源晶振	DSC1001	MEMS	66.6666MHz	CMOS	1.8 V ~ 3.3 V
DSC1001CI2-066.6666B	Microchip有源晶振	DSC1001	MEMS	66.6666MHz	CMOS	1.8 V ~ 3.3 V
DSC1001DI1-026.0000T	Microchip有源晶振	DSC1001	MEMS	26MHz	CMOS	1.8 V ~ 3.3 V
DSC1001DI1-026.0000T	Microchip有源晶振	DSC1001	MEMS	26MHz	CMOS	1.8 V ~ 3.3 V
DSC1001DI1-026.0000T	Microchip有源晶振	DSC1001	MEMS	26MHz	CMOS	1.8 V ~ 3.3 V
DSC1101CM2-062.2080T	Microchip有源晶振	DSC1101	MEMS	62.208MHz	CMOS	2.25 V ~ 3.6 V
DSC1101CM2-062.2080T	Microchip有源晶振	DSC1101	MEMS	62.208MHz	CMOS	2.25 V ~ 3.6 V
DSC1101CM2-062.2080T	Microchip有源晶振	DSC1101	MEMS	62.208MHz	CMOS	2.25 V ~ 3.6 V
DSC1121DM1-033.3333	Microchip有源晶振	DSC1121	MEMS	33.3333MHz	CMOS	2.25 V ~ 3.6 V
DSC1001DI2-004.0960T	Microchip有源晶振	DSC1001	MEMS	4.096MHz	CMOS	1.8 V ~ 3.3 V
DSC1001DI2-004.0960T	Microchip有源晶振	DSC1001	MEMS	4.096MHz	CMOS	1.8 V ~ 3.3 V
DSC1001DI2-004.0960T	Microchip有源晶振	DSC1001	MEMS	4.096MHz	CMOS	1.8 V ~ 3.3 V
DSC1121BM1-024.0000	Microchip有源晶振	DSC1121	MEMS	24MHz	CMOS	2.25 V ~ 3.6 V
DSC1101CI5-020.0000T	Microchip有源晶振	DSC1101	MEMS	20MHz	CMOS	2.25 V ~ 3.6 V
DSC1101CI5-020.0000T	Microchip有源晶振	DSC1101	MEMS	20MHz	CMOS	2.25 V ~ 3.6 V
DSC1101CI5-020.0000T	Microchip有源晶振	DSC1101	MEMS	20MHz	CMOS	2.25 V ~ 3.6 V
DSC1123CI2-125.0000T	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1101CL5-014.7456	Microchip有源晶振	DSC1101	MEMS	14.7456MHz	CMOS	2.25 V ~ 3.6 V
DSC1104BE2-100.0000	Microchip有源晶振	DSC1104	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
DSC1123AI2-062.5000T	Microchip有源晶振	DSC1123	MEMS	62.5MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-062.5000T	Microchip有源晶振	DSC1123	MEMS	62.5MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-062.5000T	Microchip有源晶振	DSC1123	MEMS	62.5MHz	LVDS	2.25 V ~ 3.6 V
DSC1103BI2-100.0000T	Microchip有源晶振	DSC1103	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
