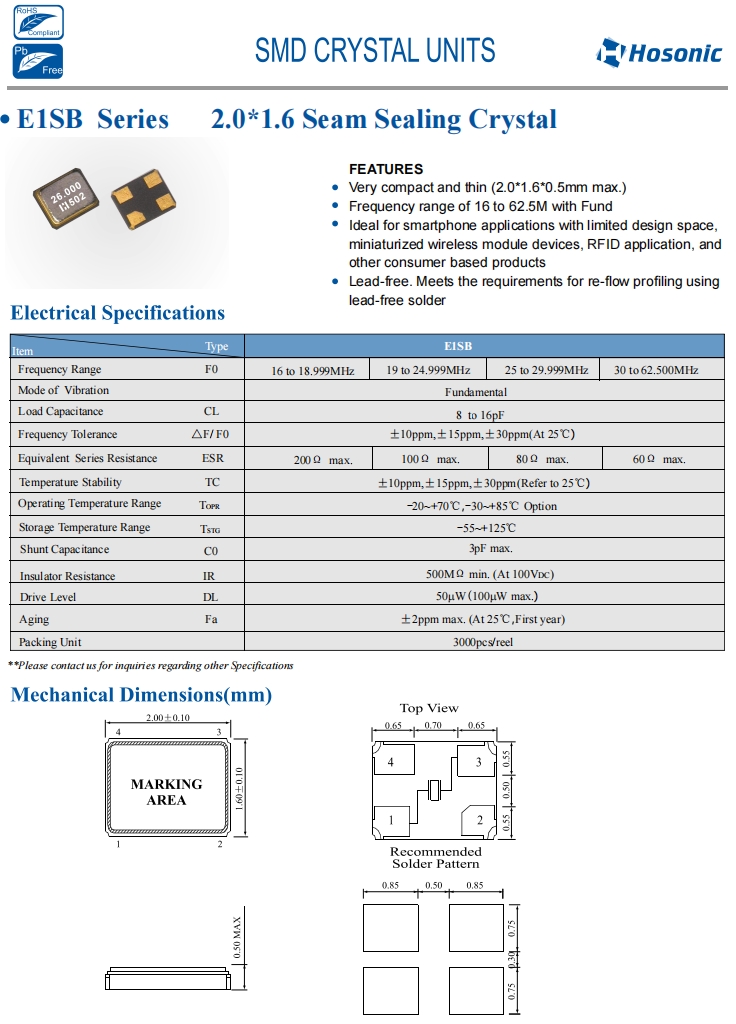

E1SB24E002702E|Hosonic|Resonator Crystal

频率：24 MHz

尺寸：2.0mm x 1.6mm

E1SB24E002702E|Hosonic|Resonator Crystal,Hosonic晶振,台湾进口晶振,E1SB石英晶振,E1SB24E002702E晶振,无源晶振,石英晶体谐振器,贴片晶振,2016mm晶振,频率24MHz,负载9pF,工作温度-30~85°C,频率稳定性10ppm,高精度晶振,无铅环保晶振,超小型晶振,数字设备晶振,便携式设备晶振,消费电子产品晶振,数码产品晶振.

咨询热线：0755-27872782

TH-1 890

E1SB24E002702E|Hosonic|Resonator Crystal,Hosonic晶振,台湾进口晶振,E1SB石英晶振,E1SB24E002702E晶振,无源晶振,石英晶体谐振器,贴片晶振,2016mm晶振,频率24MHz,负载9pF,工作温度-30~85°C,频率稳定性10ppm,高精度晶振,无铅环保晶振,超小型晶振,数字设备晶振,便携式设备晶振,消费电子产品晶振,数码产品晶振.

E1SB24E002702E|Hosonic|Resonator Crystal特点：

•非常紧凑和薄(2.0*1.6*0.5mm max)
•频率范围为16 ~ 62.5M，带Fund
•适用于设计空间有限的智能手机应用、小型化无线模块设备、RFID应用和其他消费类产品
•无铅，满足使用无铅焊料的回流剖面要求

TH-2 890

E1SB24E002702E|Hosonic|Resonator Crystal 规格表

Item	Type	E1SB
Frequency Range	F0	24 MHz
Mode of Vibration		Fundamental
Load Capacitance	CL	9 pF
Frequency Tolerance	ΔF/ F0	±10ppm (At 25℃)
Equivalent Series Resistance	ESR	100 Ω max.
Temperature Stability	TC	±10ppm (Refer to 25℃)
Operating Temperature Range	TOPR	-30~+85℃
Storage Temperature Range	TSTG	-55~+125℃
Shunt Capacitance	C0	3pF max.
Insulator Resistance	IR	500MΩ min. (At 100VDC)
Drive Level	DL	50μW(100μW max.)
Aging	Fa	±2ppm max. (At 25℃,First year)
Packing Unit		3000pcs/reel

TH-3 890

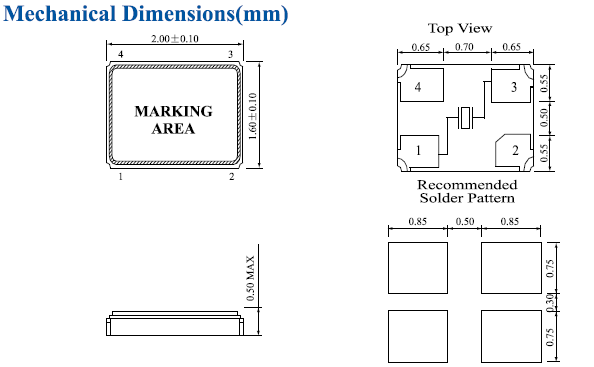

E1SB24E002702E|Hosonic|Resonator Crystal尺寸图
