Hosonic Crystal|E2SB12E00000ME|TAIHETH
prevnext

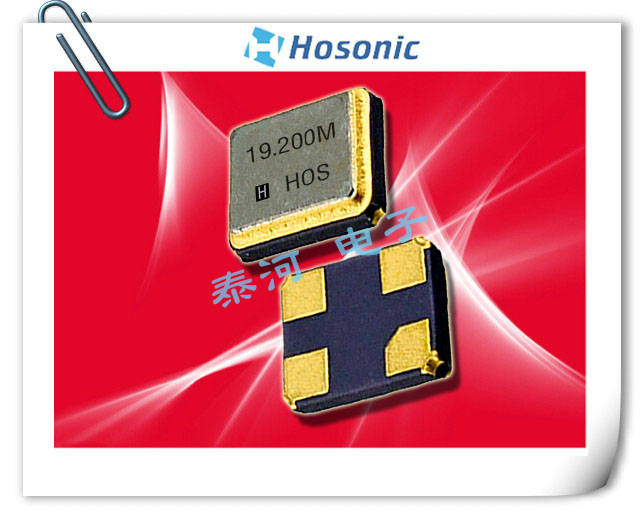

Hosonic Crystal|E2SB12E00000ME|TAIHETH

频率：12 MHz

尺寸：2.5mm x 2.0mm

Hosonic Crystal|E2SB12E00000ME|TAIHETH,台湾Hosonic Crystal,E2SB无源晶振,石英晶体谐振器,E2SB12E00000ME晶振,四脚贴片晶振,SMD晶体,2520mm晶振,频率12MHz,负载18pF,工作温度-40~85°C,频率稳定性20ppm,高稳定性晶振,低老化晶振,无铅环保晶振,无线局域网晶振,视听设备晶振,便携式电脑晶振,调制解调器晶振.
咨询热线：0755-27872782
QQ咨询 财付通

TH-1 890

Hosonic Crystal|E2SB12E00000ME|TAIHETH,台湾Hosonic Crystal,E2SB无源晶振,石英晶体谐振器,E2SB12E00000ME晶振,四脚贴片晶振,SMD晶体,2520mm晶振,频率12MHz,负载18pF,工作温度-40~85°C,频率稳定性20ppm,高稳定性晶振,低老化晶振,无铅环保晶振,无线局域网晶振,视听设备晶振,便携式电脑晶振,调制解调器晶振.

Hosonic Crystal|E2SB12E00000ME|TAIHETH特点：

•非常紧凑和薄(2.5*2.0*0.65mm max)

•频率范围为12M至62.5M，带Fund

•优异的电气性能，是OA(办公自动化)，AV(视听)，蓝牙和无线局域网应用的理想选择
•优异的耐热性和抗震性
•无铅，满足使用无铅焊料的回流剖面要求

TH-2 890

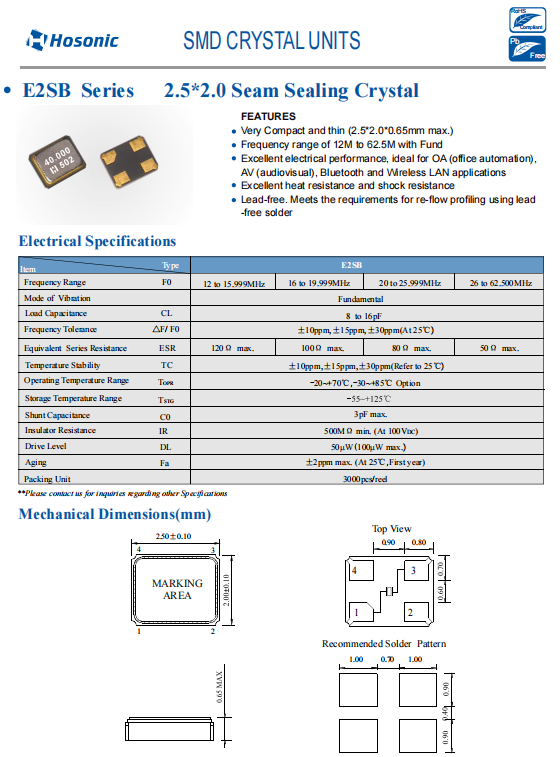

Hosonic Crystal|E2SB12E00000ME|TAIHETH规格表

Item   Type E2SB
Frequency Range   F0 12 MHz
Mode of Vibration Fundamental
Load Capacitance   CL 18 pF
Frequency Tolerance ΔF/ F0 ±20ppm (At 25℃)
Equivalent  Series Resistance ESR 120 Ω max.
Temperature Stability TC ±20ppm  (Refer to 25℃)
Operating Temperature Range TOPR -40~+85℃
Storage Temperature Range TSTG -55~+125℃
Shunt Capacitance C0 3pF max.
Insulator Resistance IR 500MΩ min. (At 100VDC)
Drive Level DL 50μW(100μW max.)
Aging Fa ±2ppm max. (At 25℃,First year)
Packing Unit 3000pcs/reel

TH-3 890

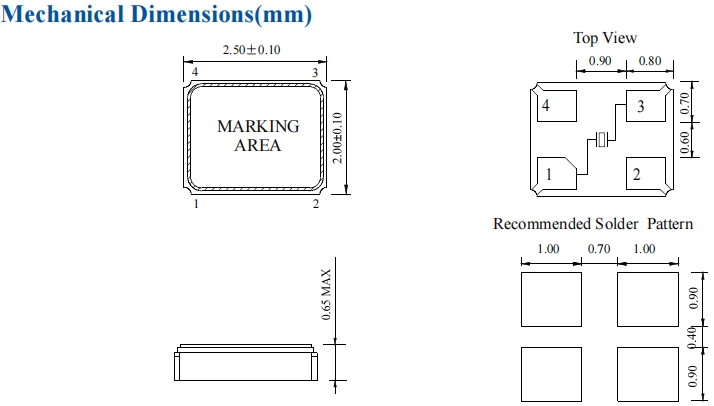

Hosonic Crystal|E2SB12E00000ME|TAIHETH尺寸图

E2SB-1

E2SB

原厂编码 制造厂家 型号 频率 负载电容 频率容差 频率稳定度 尺寸
E3FB16.0000F18E33 Hosonic晶振 E3FB 16MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB17.0000F18E33 Hosonic晶振 E3FB 17MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB18.0000F18E33 Hosonic晶振 E3FB 18MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB19.0000F18E33 Hosonic晶振 E3FB 19MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB20.0000F18E33 Hosonic晶振 E3FB 20MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB21.0000F18E33 Hosonic晶振 E3FB 21MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB22.0000F18E33 Hosonic晶振 E3FB 22MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB23.0000F18E33 Hosonic晶振 E3FB 23MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB24.0000F18E33 Hosonic晶振 E3FB 24MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB25.0000F18E33 Hosonic晶振 E3FB 25MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB26.0000F18E33 Hosonic晶振 E3FB 26MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB27.0000F18E33 Hosonic晶振 E3FB 27MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB28.0000F18E33 Hosonic晶振 E3FB 28MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB29.0000F18E33 Hosonic晶振 E3FB 29MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB30.0000F18E33 Hosonic晶振 E3FB 30MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB31.0000F18E33 Hosonic晶振 E3FB 31MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB32.0000F18E33 Hosonic晶振 E3FB 32MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB33.0000F18E33 Hosonic晶振 E3FB 33MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB34.0000F18E33 Hosonic晶振 E3FB 34MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB35.0000F18E33 Hosonic晶振 E3FB 35MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB36.0000F18E33 Hosonic晶振 E3FB 36MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB37.0000F18E33 Hosonic晶振 E3FB 37MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB38.0000F18E33 Hosonic晶振 E3FB 38MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB39.0000F18E33 Hosonic晶振 E3FB 39MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB40.0000F18E33 Hosonic晶振 E3FB 40MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB41.0000F18E33 Hosonic晶振 E3FB 41MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB42.0000F18E33 Hosonic晶振 E3FB 42MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB43.0000F18E33 Hosonic晶振 E3FB 43MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB44.0000F18E33 Hosonic晶振 E3FB 44MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB45.0000F18E33 Hosonic晶振 E3FB 45MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB46.0000F18E33 Hosonic晶振 E3FB 46MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB47.0000F18E33 Hosonic晶振 E3FB 47MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB48.0000F18E33 Hosonic晶振 E3FB 48MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB49.0000F18E33 Hosonic晶振 E3FB 49MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB50.0000F18E33 Hosonic晶振 E3FB 50MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB51.0000F18E33 Hosonic晶振 E3FB 51MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB52.0000F18E33 Hosonic晶振 E3FB 52MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB53.0000F18E33 Hosonic晶振 E3FB 53MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB54.0000F18E33 Hosonic晶振 E3FB 54MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB55.0000F18E33 Hosonic晶振 E3FB 55MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB56.0000F18E33 Hosonic晶振 E3FB 56MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB57.0000F18E33 Hosonic晶振 E3FB 57MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB58.0000F18E33 Hosonic晶振 E3FB 58MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB59.0000F18E33 Hosonic晶振 E3FB 59MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB60.0000F18E33 Hosonic晶振 E3FB 60MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB61.0000F18E33 Hosonic晶振 E3FB 61MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB62.0000F18E33 Hosonic晶振 E3FB 62MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB63.0000F18E33 Hosonic晶振 E3FB 63MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB64.0000F18E33 Hosonic晶振 E3FB 64MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB65.0000F18E33 Hosonic晶振 E3FB 65MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB66.0000F18E33 Hosonic晶振 E3FB 66MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E2SB10.0000F10E12 Hosonic晶振 E2SB 10MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB12.0000F10E11 Hosonic晶振 E2SB 12MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.55 mm
E2SB16.0000F10E12 Hosonic晶振 E2SB 16MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB17.0000F10E12 Hosonic晶振 E2SB 17MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB18.4320F10E12 Hosonic晶振 E2SB 18.432MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB18.0000F10E12 Hosonic晶振 E2SB 18MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB19.0000F10E12 Hosonic晶振 E2SB 19MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB20.0000F10E12 Hosonic晶振 E2SB 20MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB21.0000F10E12 Hosonic晶振 E2SB 21MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB22.0000F10E12 Hosonic晶振 E2SB 22MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB23.0000F10E12 Hosonic晶振 E2SB 23MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB24.0000F10E12 Hosonic晶振 E2SB 24MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB25.0000F10E12 Hosonic晶振 E2SB 25MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E49A12E00000ME Hosonic晶振 E49A 12 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A13E00000ME Hosonic晶振 E49A 13 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A14E00000ME Hosonic晶振 E49A 14 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A15E00000ME Hosonic晶振 E49A 15 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A16E00000ME Hosonic晶振 E49A 16 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A17E00000ME Hosonic晶振 E49A 17 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A18E00000ME Hosonic晶振 E49A 18 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A19E00000ME Hosonic晶振 E49A 19 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A20E00000ME Hosonic晶振 E49A 20 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A21E00000ME Hosonic晶振 E49A 21 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A22E00000ME Hosonic晶振 E49A 22 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A23E00000ME Hosonic晶振 E49A 23 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A24E00000ME Hosonic晶振 E49A 24 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A25E00000ME Hosonic晶振 E49A 25 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A26E00000ME Hosonic晶振 E49A 26 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A27E00000ME Hosonic晶振 E49A 27 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A28E00000ME Hosonic晶振 E49A 28 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A29E00000ME Hosonic晶振 E49A 29 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A30E00000ME Hosonic晶振 E49A 30 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A31E00000ME Hosonic晶振 E49A 31 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A32E00000ME Hosonic晶振 E49A 32 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A33E00000ME Hosonic晶振 E49A 33 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A34E00000ME Hosonic晶振 E49A 34 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A35E00000ME Hosonic晶振 E49A 35 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A36E00000ME Hosonic晶振 E49A 36 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A37E00000ME Hosonic晶振 E49A 37 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A38E00000ME Hosonic晶振 E49A 38 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A39E00000ME Hosonic晶振 E49A 39 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A40E00000ME Hosonic晶振 E49A 40 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A41E00000ME Hosonic晶振 E49A 41 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A42E00000ME Hosonic晶振 E49A 42 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A43E00000ME Hosonic晶振 E49A 43 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A44E00000ME Hosonic晶振 E49A 44 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A45E00000ME Hosonic晶振 E49A 45 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A46E00000ME Hosonic晶振 E49A 46 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A47E00000ME Hosonic晶振 E49A 47 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A48E00000ME Hosonic晶振 E49A 48 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A49E00000ME Hosonic晶振 E49A 49 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A50E00000ME Hosonic晶振 E49A 50 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A51E00000ME Hosonic晶振 E49A 51 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A52E00000ME Hosonic晶振 E49A 52 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A53E00000ME Hosonic晶振 E49A 53 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A54E00000ME Hosonic晶振 E49A 54 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A55E00000ME Hosonic晶振 E49A 55 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A56E00000ME Hosonic晶振 E49A 56 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A57E00000ME Hosonic晶振 E49A 57 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E2SB26.0000F10E12 Hosonic晶振 E2SB 26MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB27.0000F10E12 Hosonic晶振 E2SB 27MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB28.0000F10E12 Hosonic晶振 E2SB 28MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB29.0000F10E12 Hosonic晶振 E2SB 29MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB30.0000F10E12 Hosonic晶振 E2SB 30MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB31.0000F10E12 Hosonic晶振 E2SB 31MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB32.0000F10E12 Hosonic晶振 E2SB 32MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB33.0000F10E12 Hosonic晶振 E2SB 33MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB34.0000F10E12 Hosonic晶振 E2SB 34MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB35.0000F10E12 Hosonic晶振 E2SB 35MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB36.0000F10E12 Hosonic晶振 E2SB 36MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB37.0000F10E12 Hosonic晶振 E2SB 37MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB38.0000F10E12 Hosonic晶振 E2SB 38MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB39.0000F10E12 Hosonic晶振 E2SB 39MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB40.0000F10E12 Hosonic晶振 E2SB 40MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB41.0000F10E12 Hosonic晶振 E2SB 41MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB42.0000F10E12 Hosonic晶振 E2SB 42MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB43.0000F10E12 Hosonic晶振 E2SB 43MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB44.0000F10E12 Hosonic晶振 E2SB 44MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB45.0000F10E12 Hosonic晶振 E2SB 45MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB46.0000F10E12 Hosonic晶振 E2SB 46MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB47.0000F10E12 Hosonic晶振 E2SB 47MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB48.0000F10E12 Hosonic晶振 E2SB 48MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB49.0000F10E12 Hosonic晶振 E2SB 49MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB50.0000F10E12 Hosonic晶振 E2SB 50MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB51.0000F10E12 Hosonic晶振 E2SB 51MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB52.0000F10E12 Hosonic晶振 E2SB 52MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB53.0000F10E12 Hosonic晶振 E2SB 53MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB54.0000F10E12 Hosonic晶振 E2SB 54MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB55.0000F10E12 Hosonic晶振 E2SB 55MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB56.0000F10E12 Hosonic晶振 E2SB 56MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E3SB13.0000F18E22 Hosonic晶振 E3SB 13 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB14.0000F18E22 Hosonic晶振 E3SB 14 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB15.0000F18E22 Hosonic晶振 E3SB 15 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB16.0000F18E22 Hosonic晶振 E3SB 16 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB17.0000F18E22 Hosonic晶振 E3SB 17 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB18.0000F18E22 Hosonic晶振 E3SB 18 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB19.0000F18E22 Hosonic晶振 E3SB 19 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB20.0000F18E22 Hosonic晶振 E3SB 20 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB21.0000F18E22 Hosonic晶振 E3SB 21 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB22.0000F18E22 Hosonic晶振 E3SB 22 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB23.0000F18E22 Hosonic晶振 E3SB 23 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB24.0000F18E22 Hosonic晶振 E3SB 24 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB25.0000F18E22 Hosonic晶振 E3SB 25 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB26.0000F18E22 Hosonic晶振 E3SB 26 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB27.0000F18E22 Hosonic晶振 E3SB 27 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB28.0000F18E22 Hosonic晶振 E3SB 28 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB29.0000F18E22 Hosonic晶振 E3SB 29 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB30.0000F18E22 Hosonic晶振 E3SB 30 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB31.0000F18E22 Hosonic晶振 E3SB 31 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB32.0000F18E22 Hosonic晶振 E3SB 32 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB33.0000F18E22 Hosonic晶振 E3SB 33 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB34.0000F18E22 Hosonic晶振 E3SB 34 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB35.0000F18E22 Hosonic晶振 E3SB 35 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB36.0000F18E22 Hosonic晶振 E3SB 36 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB37.0000F18E22 Hosonic晶振 E3SB 37 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB38.0000F18E22 Hosonic晶振 E3SB 38 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB39.0000F18E22 Hosonic晶振 E3SB 39 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB40.0000F18E22 Hosonic晶振 E3SB 40 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB41.0000F18E22 Hosonic晶振 E3SB 41 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB42.0000F18E22 Hosonic晶振 E3SB 42 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB43.0000F18E22 Hosonic晶振 E3SB 43 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB44.0000F18E22 Hosonic晶振 E3SB 44 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB45.0000F18E22 Hosonic晶振 E3SB 45MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB46.0000F18E22 Hosonic晶振 E3SB 46MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB47.0000F18E22 Hosonic晶振 E3SB 47MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB48.0000F18E22 Hosonic晶振 E3SB 48MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB49.0000F18E22 Hosonic晶振 E3SB 49MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB50.0000F18E22 Hosonic晶振 E3SB 50MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB51.0000F18E22 Hosonic晶振 E3SB 51MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB52.0000F18E22 Hosonic晶振 E3SB 52MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB53.0000F18E22 Hosonic晶振 E3SB 53MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB54.0000F18E22 Hosonic晶振 E3SB 54MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB55.0000F18E22 Hosonic晶振 E3SB 55MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB56.0000F18E22 Hosonic晶振 E3SB 56MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
TH-6 890

联系方式/CONTACT US

泰河电话服务热线：0755-27872782  13824306246

泰河传真贸易通：泰河科技

泰河客服在线客服：794113422　　泰河微信号：taiheth794113422　　公众号：taihekj

泰河邮箱泰河邮箱：taiheth@163.com

泰河地址泰河地址：广东深圳市宝安区40区33号工业城6楼

泰河地址泰河官网：http://www.smdcrystal.com/

Hosonic Crystal E2SB12E00000ME TAIHETH

跟此产品相关的产品 / Related Products

501BAA16M0000BAG,Si501,16MHz,5032mm,Silicon多功能打印机晶振
501BAA16M0000BAG,Si501,16MHz,5032mm,Silicon多功能打印机晶振
501BAA16M0000BAG,Si501,16MHz,5032mm,Silicon多功能打印机晶振，美国进口晶振，Silicon晶振，型号：Si501系列晶振，编码为：501BAA16M0000BAG，频率：16.000MHz，电压：3.3V，频率稳定性：±50ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：5.0x3.2mm封装，四脚贴片晶振，有源晶振，SMD晶振，5032晶振，石英晶振，石英晶体振荡器。具有超小型，轻薄型，高性能，耐热及耐环境等特点。应用程序：通用处理器晶振，工业控制器晶振，嵌入式控制器，流量控制，办公室设备晶振，显示和控制面板，多功能打印机等应用。
D32G-026.0M-T,3225mm,ConnorWinfield温补晶体振荡器
D32G-026.0M-T,3225mm,ConnorWinfield温补晶体振荡器
D32G-026.0M-T,3225mm,ConnorWinfield温补晶体振荡器，美国进口晶振，ConnorWinfield晶振，康纳温菲尔德晶振，型号：D32G系列，晶振编码为：D32G-026.0M-T石英晶振，电压：3.3V，频率为：26.000MHz，工作温度范围：-30℃至+85℃，小体积晶振尺寸：3.2x2.5mm表面安装，四脚贴片晶振，有源晶振，温补晶体振荡器，3225晶振，SMD晶振，TCXO温补晶振。具有超小型，轻薄型，低抖动，低电压，低相位噪声，低损耗，低耗能等特点。设计用于在一个非常小的封装中需要紧密频率稳定性的应用。符合RoHS的表面安装包是设计为高密度安装，是最佳的大规模生产。应用于：通讯设备晶振，导航仪晶振，无线网络晶振，物联网晶振，汽车电子晶振，安防设备等。
CWX825-15.36M,7050mm,ConnorWinfield导航仪晶振
CWX825-15.36M,7050mm,ConnorWinfield导航仪晶振
CWX825-15.36M,7050mm,ConnorWinfield导航仪晶振，美国ConnorWinfield晶振，康纳温菲尔德晶振，型号：CWX8xx系列，编码为：CWX825-15.36M石英晶振，频率为：15.36MHz，频率稳定性：±50ppm，电压5.0V，工作温度范围：-20℃至+70℃，是一款小体积晶振尺寸：7.0x5.0mm四脚贴片晶振，CMOS输出晶振，有源晶振，石英晶体振荡器(XO)。为使用而设计在要求严格频率的应用中稳定性和低抖动，表面贴装CMOS时钟晶体振荡器系列，封装设计用于高密度安装，应用于：通讯设备晶振，无线网络晶振，北斗导航晶振，GPS定位系统，导航仪，医疗设备，物联网等应用。
泰河盛产品中心 Product Center

石英晶振

谐振器

滤波器

雾化片

SMD晶振

有源晶振

KDS晶振

爱普生晶振

京瓷晶振

32.768K

联系泰河电子
咨询热线 咨询热线：0755-27872782

手机：13824306246

QQ：794113422QQ

邮箱：taiheth@163.com

地址：广东深圳市宝安区40区33号工业城6楼

快速通道快速通道

泰河盛公众号泰河盛微信号
首页KDS晶振爱普生晶振京瓷晶振SMD晶振石英晶振有源晶振雾化片-滤波器-谐振器行业新闻关于泰河联系泰河网站地图
Copyright © 1996-2017 泰河电子 版权所有 地址：广东深圳市宝安区40区33号工业城6楼 备案号：粤ICP备2022069225号
