Jauch Crystal|Q 0.032768-MTF32-9-20-T1-LF|TAIHETH

频率：32.768KHZ

尺寸：3.0mm x 8.0mm

Jauch Crystal|Q 0.032768-MTF32-9-20-T1-LF|TAIHETH,Jauch晶振,MTF32音叉晶体,Q 0.032768-MTF32-9-20-T1-LF晶振,圆柱32.768K晶振,石英晶体谐振器,3×8mm晶振,小体积无源晶振,频率32.768KHz,负载9pF,工作温度-40~85°C,频率稳定性20ppm,耐高温晶振,高精度晶振,抗冲击晶振,家用电视机顶盒晶振,物联网晶振,GPS导航晶振,智能手表晶振.

咨询热线：0755-27872782

TH-1 890

Jauch Crystal|Q 0.032768-MTF32-9-20-T1-LF|TAIHETH,Jauch晶振,MTF32音叉晶体,Q 0.032768-MTF32-9-20-T1-LF晶振,圆柱32.768K晶振,石英晶体谐振器,3×8mm晶振,小体积无源晶振,频率32.768KHz,负载9pF,工作温度-40~85°C,频率稳定性20ppm,耐高温晶振,高精度晶振,抗冲击晶振,家用电视机顶盒晶振,物联网晶振,GPS导航晶振,智能手表晶振.

Jauch Crystal|Q 0.032768-MTF32-9-20-T1-LF|TAIHETH特点：

•音叉晶体·3.0 x 8.0 mm

•3 × 8mm气缸型

•32.768 kHz标准

TH-2 890

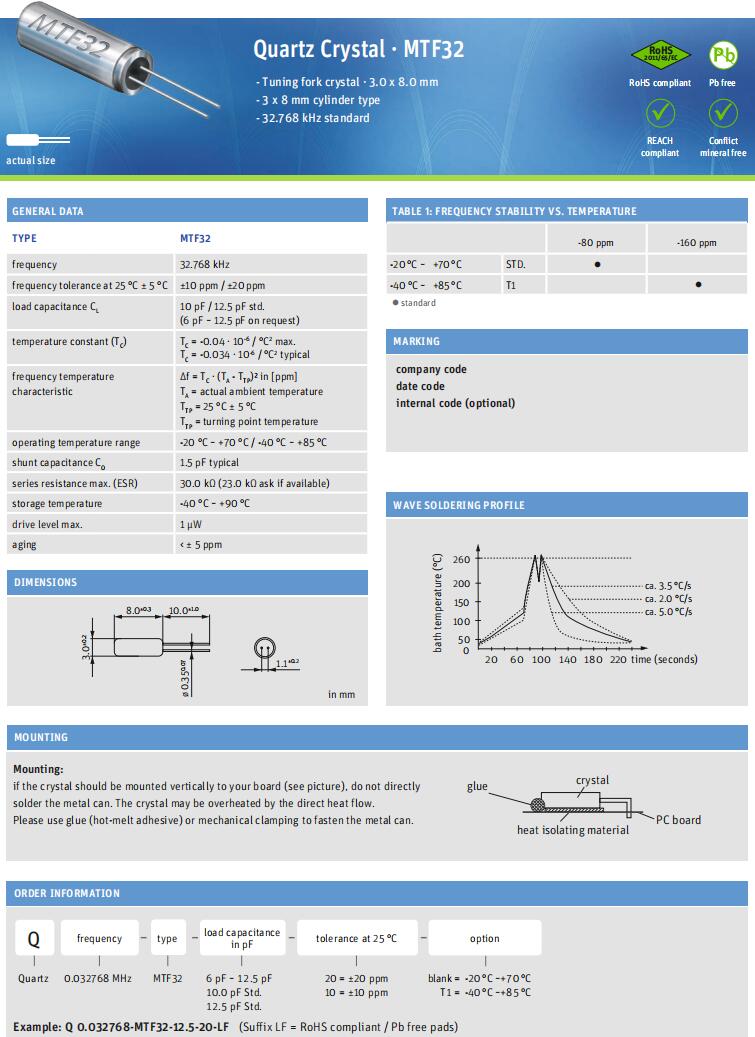

Jauch Crystal|Q 0.032768-MTF32-9-20-T1-LF|TAIHETH规格表

TYPE		MTF32
frequency		32.768KHz
frequency tolerance at 25 °C± 5 °C		± 20ppm
load capacitance CL		9pF
temperature constant (TC)		TC = -0.04 ppm / °C2 max. TC = -0.034 ppm / °C2 typical
frequency temperature characteristic		Δf = TC · (TA - TTP)2 in [ppm] TA = actual ambient temperature TTP = 25 °C ± 5 °C TTP = turning point temperature
operating temperature range		-40°C ~ +85°C
shunt capacitance Co		1.5 pF typical
storage temperature		-40°C ~ +90°C
series resistance max. (ESR)		30 kΩ (23 kΩ ask if available)
drive level max.		1 µW
aging first year		< ±5 ppm

TH-3 890

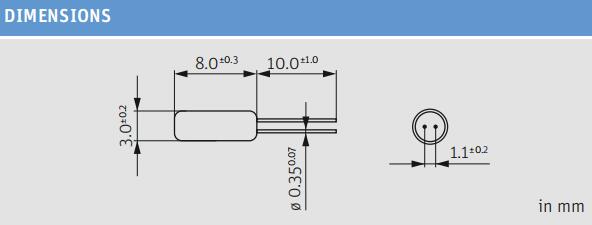

Jauch Crystal|Q 0.032768-MTF32-9-20-T1-LF|TAIHETH尺寸图

Jauch晶振原厂编码	制造商	型号	频率	频率容差	负载电容	Operating Mode	工作温度
Q 0.032768-JTX410-7-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	8pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	10pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	9pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	7pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	8pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	9pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	8pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	7pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	10pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	26MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	26MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	26MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
