NDK光通信6G晶振,NP2520SA-156.250MHz-NSC5300A,LVPECL差分输出振荡器
频率：156.250MHz
尺寸：2.5x2.0mm

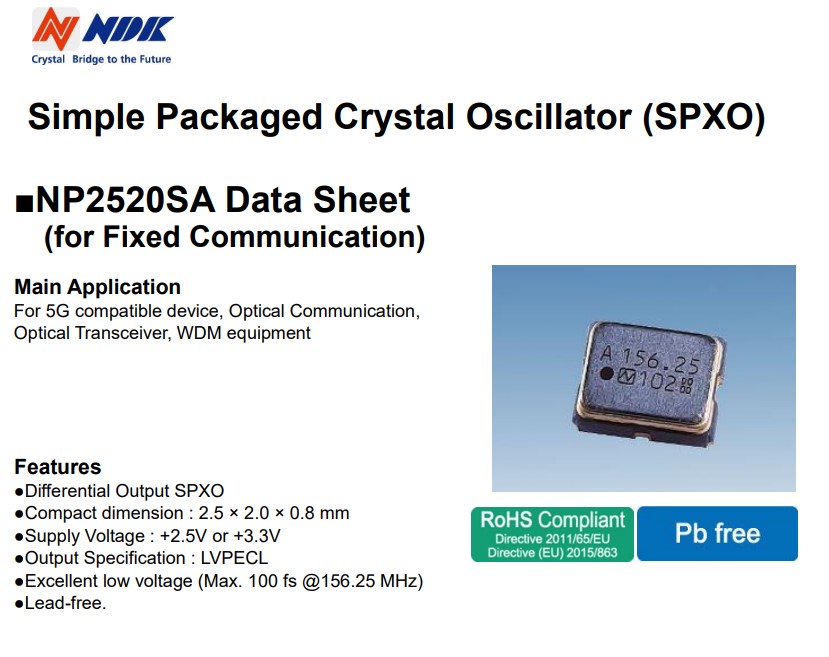

NDK光通信6G晶振,NP2520SA-156.250MHz-NSC5300A,LVPECL差分输出振荡器，日本进口晶振，NDK晶振，型号为：NP2520SA，编码为：NP2520SA-156.250MHz-NSC5300A，频率为：156.250MHz，紧凑尺寸：2.5x2.0mm，是一款LV-PECL差分晶体振荡器，六脚贴片晶振，有源晶振，SPXO石英晶体振荡器，电源电压：2.5V，3.3V，出色的低电压(最大值100 fs(156.25MHz)。具有低相位噪声，低抖动，低功耗，低损耗，低电源电压，低电平等特点。使用于产品中能够很容易地识别小信号，能够从容精确地处理'双极'信号，对外部电磁干扰（EMI）是高度免疫的。适用于通信网络，光通信， 光收发器、WDM设备，无线网络，蓝牙模块，机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、测试血糖仪应用等。
差分晶振一般为六脚贴片，工作温度范围-40℃至+85℃，差分晶振的频率相对都比较高，比如从50MHz起可以做到700MHz或者更低和更高频率，且任意频率精确到个位小数点后六位。电源电压能够做到2.5V-3.3V之间。例如：2.25V、2.5V 、3.0V、3.3V、3.6V可任意选择应用。常见的封装尺寸有7050(7.0x5.0mm)、5032(5.0x3.2mm)、3225(3.2x2.5mm)，更小封装可达到2520(2.5x2.0mm)，常用的输出方式主要有LVPECL和LVDS两种。
NDK光通信6G晶振,NP2520SA-156.250MHz-NSC5300A,LVPECL差分输出振荡器，参数表
Item
Model
NP2520SA
Output Specification
LVPECL
Nominal Frequency Range (MHz)
100 to 170
Standard Frequency Range (MHz)
156.25
Overall Frequency Tolerance *1
Max. ±50 ×10-6
Operating Temperature Range (°C)
-40 to +85
Supply Voltage [VCC] (V)
+2.5 ± 5 %
+3.3 ± 10 %
Current
Enable (mA)
+25°C
Max. 60 (STAND-BY=VCC or OPEN, RL=50Ω)
Consumption
Stand-by (μA)
+25°C
Max. 30 (STAND-BY=GND)
Output Voltage (V)
VOL: Max. VCC-1.5(DC characteristics)
VOH: Min. VCC-1.1 (DC characteristics)
Rise Time / Fall Time (ns)
Max. 0.5 (20 to 80% Waveform)
Symmetry (%)
45 to 55 (at 50% Waveform)
Output Load (Ω)
50 (Terminated to VCC–2.0V)
Start-up Time (ms)
Max. 10
Phase Jitter (fs)
+3.3V, +25°C
Max.100 (156.25MHz)
(Offset Frequency : 12kHz to 20MHz)
Specification Number
NSC5300A
NSC5300B

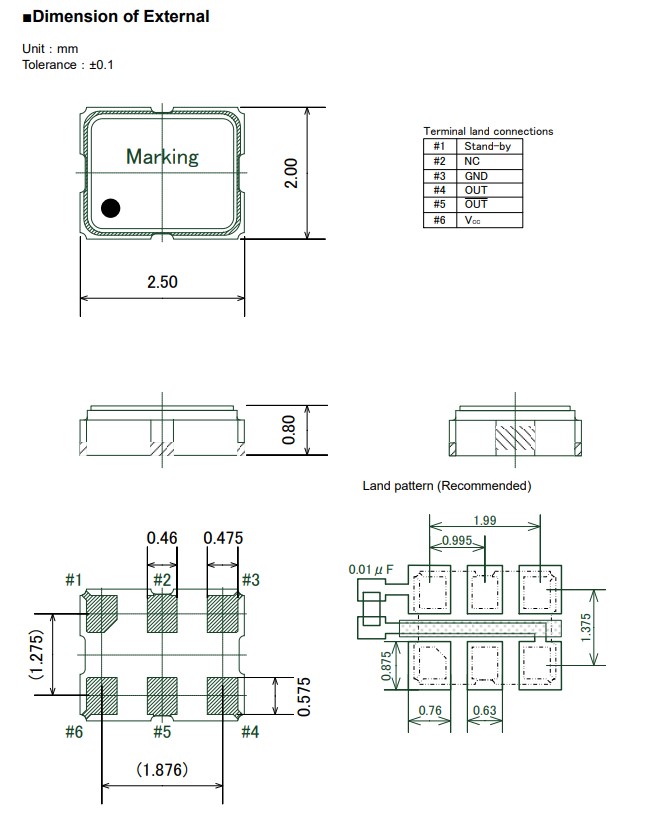

NDK光通信6G晶振,NP2520SA-156.250MHz-NSC5300A,LVPECL差分输出振荡器，尺寸图

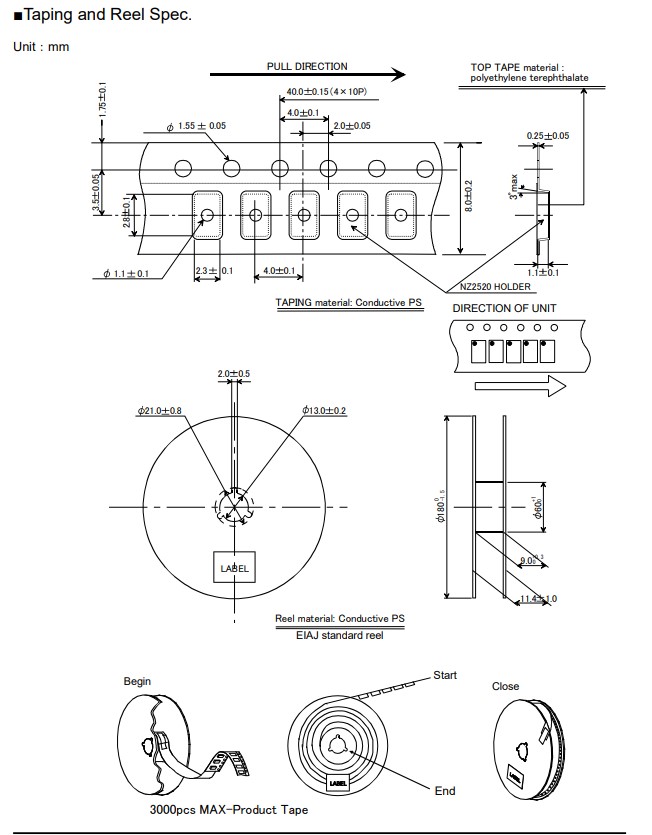

NDK光通信6G晶振,NP2520SA-156.250MHz-NSC5300A,LVPECL差分输出振荡器
特点：
●差分输出SPXO
●紧凑尺寸：2.5×2.0×0.8毫米
●电源电压：+2.5V或+3.3V
●输出规格：LVPECL输出晶体振荡器
●出色的低电压（最高100 fs@156.25MHz）
●无铅。
