HCSL输出SPXO振荡器,NP3225SC-125.000000MHz-NSC5082B,NDK低抖动6G车载导航晶振
频率：125.000000MHz
尺寸：3.2x2.5x0.9mm

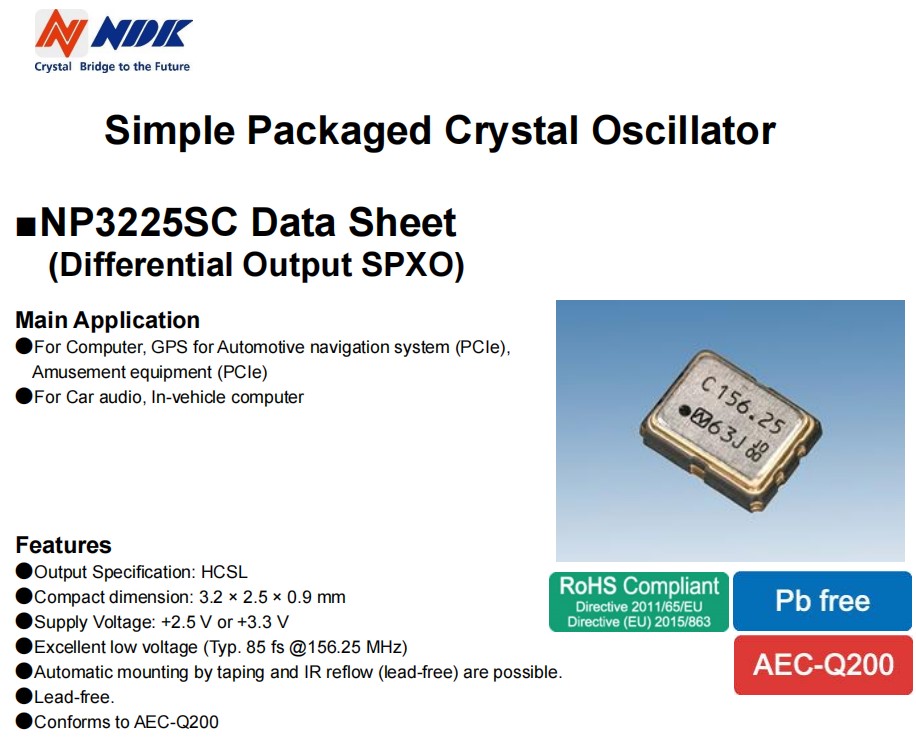

HCSL输出SPXO振荡器,NP3225SC-125.000000MHz-NSC5082B,NDK低抖动6G车载导航晶振，日本进口晶振，NDK晶振，型号为：NP3225SC，编码为：NP3225SC-125.000000MHz-NSC5082B，频率为：125.000000MHz，紧凑尺寸：3.2x2.5x0.9mm，是一款HCSL输出差分晶振，六脚贴片晶振，有源晶振，SPXO石英晶体振荡器，电源电压：+2.5V或+3.3V，工作温度范围：-40℃至+85℃/-40℃至+105℃，优秀的低电压(Typ。85 fs @156.25 MHz)，自动安装通过胶带和红外回流（无铅）是可能的。是无铅的。符合AEC-Q200标准。具有低相位噪声，低抖动，低功耗，低损耗，低电源电压，低电平等特点。NP3225SC石英晶振主要用于：电脑，汽车导航系统GPS（PCIe），娱乐设备（PCIe），汽车音频，车载电脑， 无线网络，蓝牙模块，机顶盒、光端机、安防设备、仪器仪表、测试血糖仪应用等。

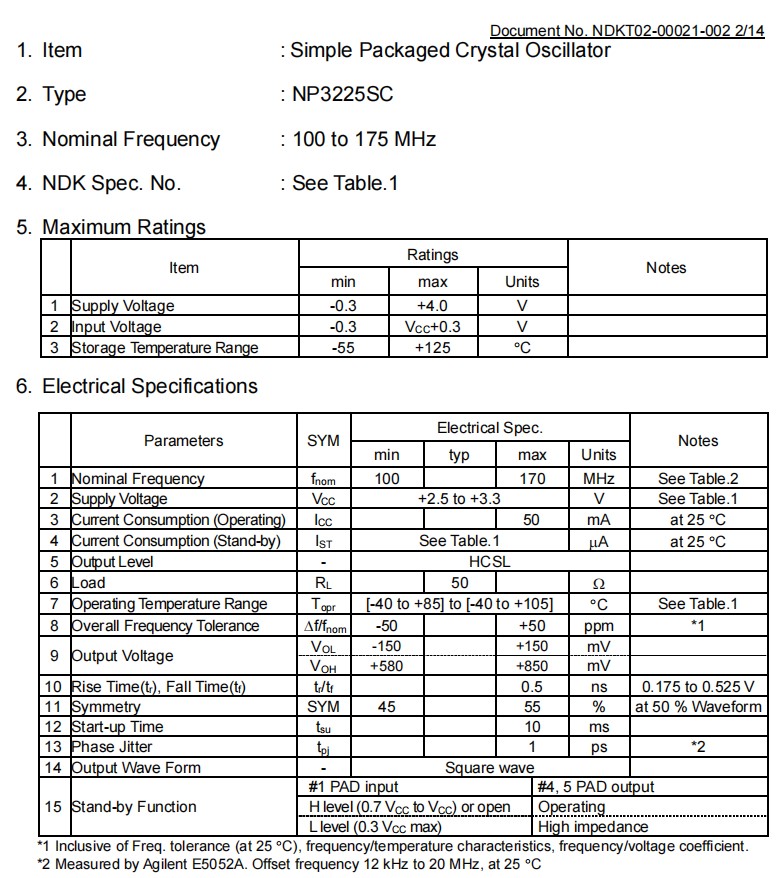

HCSL输出SPXO振荡器,NP3225SC-125.000000MHz-NSC5082B,NDK低抖动6G车载导航晶振，参数表
Item
Symbol
NP3225SC
Unit
Nominal frequency range
fnom
125.000000MHz
MHz
Package size (L×W×H)
-
3.2×2.5×0.9
mm
Supply voltage
Vcc
+2.5 to +3.3
V
Current consumption
ICC
Max. 50
mA
Stand-by current
IST
Max. 15
Max. 30
μA
Output specification
-
HCSL
-
Load
RL
50
Ω
Storage temperature range
Tstr
-55 to +125
℃
Operating temperature range
Topr
-40 to +85
-40 to +105
℃
Overall frequency tolerance
Δf/fnom
Max. ±50
ppm
Output voltage
VOL
-150 to +150
V
Output voltage
VOH
+580 to +850
V
Rise (tr), fall (tf) time (0.175 to 0.525 V)
tr/tf
Max. 0.5
ns
Symmetry (at 50 % Waveform)
SYM
45 to 55
%
Start-up time
tsu
Max. 10
ms
Phase jitter
tpj
Max. 1
ps
Specification number （Vcc=2.5V±5%）
-
NSC5082A
NSC5191A
-
Specification number （Vcc=3.3V±10%）
-
NSC5345B
NSC5346B
-

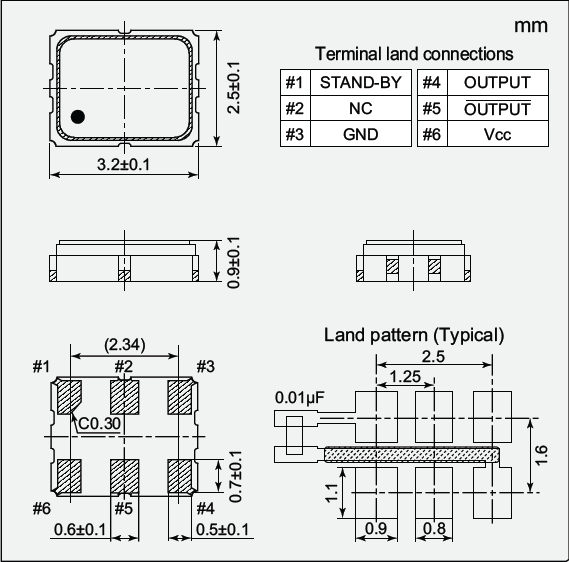

HCSL输出SPXO振荡器,NP3225SC-125.000000MHz-NSC5082B,NDK低抖动6G车载导航晶振，尺寸图
HCSL输出SPXO振荡器,NP3225SC-125.000000MHz-NSC5082B,NDK低抖动6G车载导航晶振
近几年互联网高速发展，随着5G时代的到来，智能汽车的发展也越发的迅速。汽车电子对晶振的要求比消费类的科技数码产品高的多，特别是耐高温这一块，汽车电子中的晶振最好能在高温和低温状态下正常工作。针对各种车载电子设备对石英晶振在高温、抗振动等方面的更高要求，NDK晶振可以提供全面的符合AEC-Q200/100技术标准的汽车用车规晶振。
