O 28.636360-JO75-B-1.8-2-T1-LF|Jauch|Oscillator Crystal
prevnext

O 28.636360-JO75-B-1.8-2-T1-LF|Jauch|Oscillator Crystal

频率：28.63636MHz

尺寸：7.5mm x 5.0mm

O 28.636360-JO75-B-1.8-2-T1-LF|Jauch|Oscillator Crystal,Jauch晶振,欧美晶振,JO75进口晶振,O 28.636360-JO75-B-1.8-2-T1-LF晶振,有源晶振,OSCillator晶振,7050mm晶振,石英晶振,四脚贴片晶振,频率28.63636MHz,电压1.8V,工作温度-40~85°C,频率稳定性50ppm,耐高温晶振,低相位抖动晶振,高品质晶振,无锁相环晶振,移动通信晶振,监控摄像头晶振,GPS导航模块晶振.
咨询热线：0755-27872782
QQ咨询 财付通

TH-1 890

O 28.636360-JO75-B-1.8-2-T1-LF|Jauch|Oscillator Crystal,Jauch晶振,欧美晶振,JO75进口晶振,O 28.636360-JO75-B-1.8-2-T1-LF晶振,有源晶振,Oscillator晶振,7050mm晶振,石英晶振,四脚贴片晶振,频率28.63636MHz,电压1.8V,工作温度-40~85°C,频率稳定性50ppm,耐高温晶振,低相位抖动晶振,高品质晶振,无锁相环晶振,移动通信晶振,监控摄像头晶振,GPS导航模块晶振.

O 28.636360-JO75-B-1.8-2-T1-LF|Jauch|Oscillator Crystal特点：

•SMD振荡器与停止功能•7.5 x 5.0 mm

• LVCMOS / HCMOS兼容输出

•低相位抖动，无锁相环

•接缝密封陶瓷/金属封装

TH-2 890

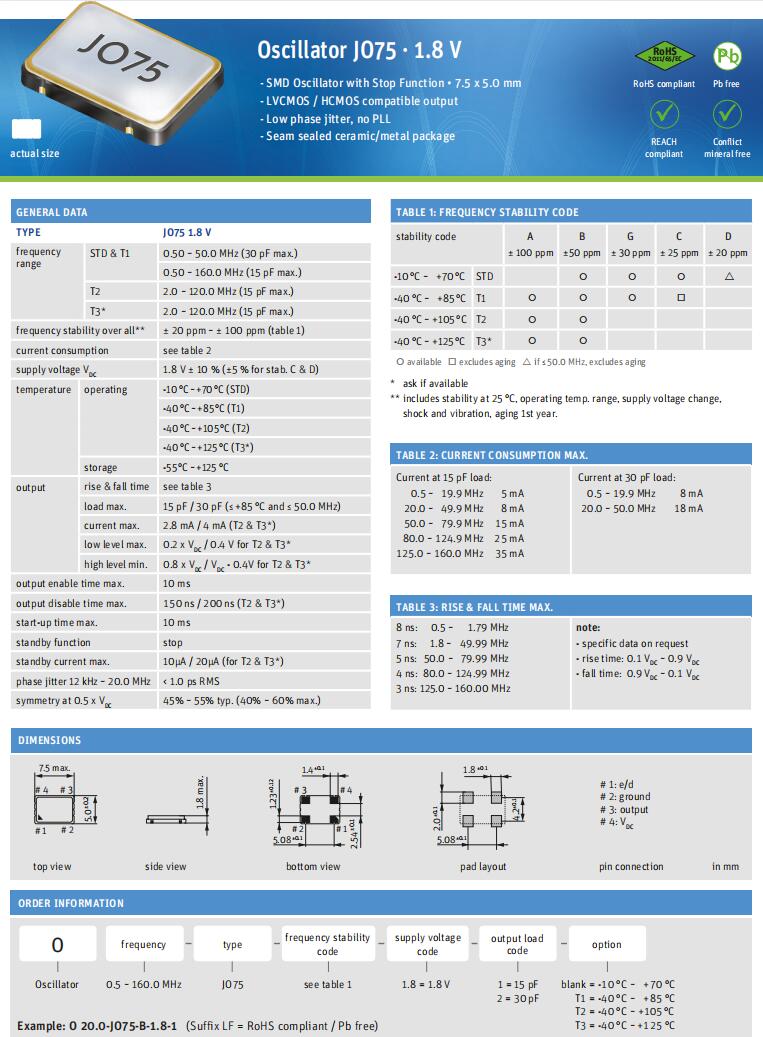

O 28.636360-JO75-B-1.8-2-T1-LF|Jauch|Oscillator Crystal规格表

type JO75
frequency range 28.63636MHz
frequency stability over all* ± 50ppm
current consumption 25 mA
supply voltage VDC 1.8 V ± 10%
temperature operating -40°C~85°C
storage -55 °C ~ +125 °C
output rise & fall time 5ns
load max 30pF
current max. 8mA
low level max. 0.1 x VDC
high level min. 0.9 x VDC
output enable time max 10ms
output disable time max 150ns
start-up time max. 10ms
standby function stop
standby current max. 10µA
symmetry at 0.5 x VDC 45% ~ 55% max.

TH-3 890

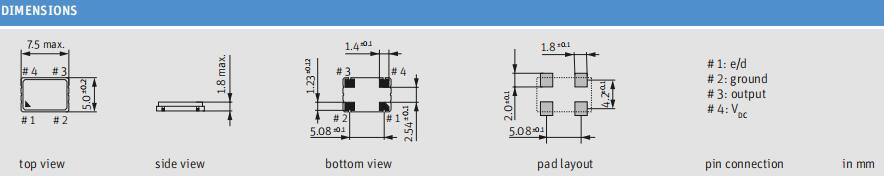

O 28.636360-JO75-B-1.8-2-T1-LF|Jauch|Oscillator Crystal尺寸图

JO75-1

JO75-1.8
