EPSON差分晶振SG3225EAN,X1G0042510009,高精度测量6G晶振

频率：212.500000MHz

尺寸：3.2x2.5mm

EPSON差分晶振SG3225EAN,X1G0042510009,高精度测量6G晶振，日本进口晶振，EPSON爱普生晶振，型号为：SG3225EAN，编码为：X1G0042510009，频率为：212.500000MHz，小体积晶振尺寸3.2x2.5mm，是一款LV-PECL差分晶体振荡器，六脚贴片晶振，石英晶振，SPXO石英晶体振荡器，具有低相位噪声，低抖动，低功耗，低损耗，低电源电压，低电平等特点。使用于产品中能够很容易地识别小信号，能够从容精确地处理'双极'信号，对外部电磁干扰（EMI）是高度免疫的。SG3225EAN贴片晶振适用于通信网络，无线网络，蓝牙模块，机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、测试血糖仪，SAS，光纤通信，10G以太网及各种频率控制设备上。

咨询热线：0755-27872782

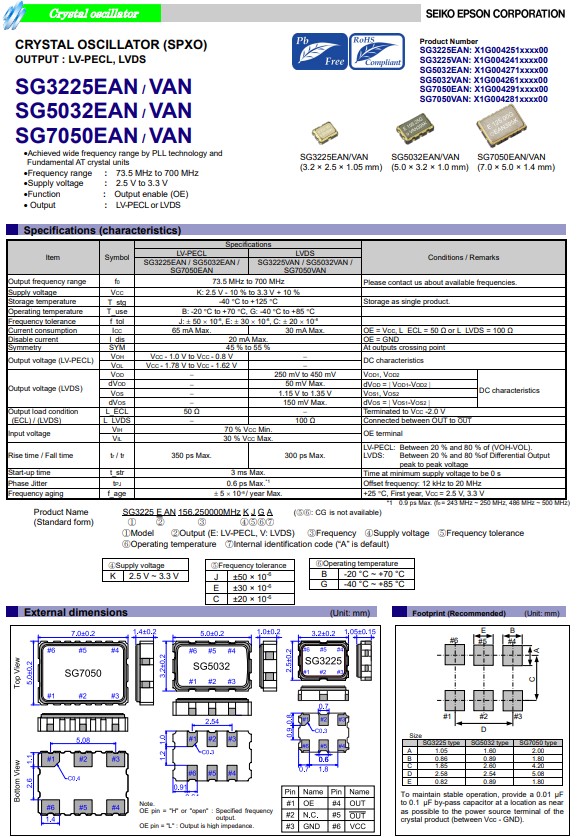

EPSON差分晶振SG3225EAN,X1G0042510009,高精度测量6G晶振，参数表

Item	Symbol	Specifications		Condition/Remarks
		LV-PECL	LVDS
		SG3225EAN	SG3225VAN
		SG5032EAN	SG5032VAN
		SG7050EAN	SG7050VAN
Output frequency range	f0	73.5 MHz to 700 MHz		Please contact us about available frequencies.
Supply voltage	VCC	K : 2.5 V to 3.3 V		VCC = ±10 %
Storage temperature	T_stg	-40 °C to +125 °C		Store as bare product.
Operating temperature	T_use	B : -20 °C to +70 °C
		G : -40 °C to +85 °C
Frequency tolerance	f_tol	C : ±20 × 10-6
		E : ±30 × 10-6
		J : ±50 × 10-6
Current consumption	ICC	65 mA Max.	30 mA Max.	OE = VCC
				L_ECL = 50 Ω or L_LVDS = 100 Ω
				f0 = 700 MHz
Disable current	I_dis	20 mA Max.		OE = GND
Symmetry	SYM	45 % to 55 %		At outputs crossing point
Output voltage	VOH	VCC - 1.0 V to VCC - 0.8 V	-	DC characteristics
(LV-PECL)	VOL	VCC - 1.78 V to VCC -1.62 V	-
Output voltage	VOD	-	250 mV to 450 mV	VOD1 , VOD2	DC characteristics
(LVDS)	dVOD	-	50 mV Max.	dVOD = \| VOD1 - VOD2 \|
	VOS	-	1.15 V to 1.35 V	VOS1 , VOS2
	dVOS	-	150 mV Max.	dVOS = \| VOS1 - VOS2 \|
Output load condition	L_ECL	50 Ω	-	Terminated to VCC - 2.0 V
(ECL)/(LVDS)	L_LVDS	-	100 Ω	Connected between OUT to OUT
Input voltage	VIH	70 % VCC Min.		OE terminal
	VIL	30 % VCC Max.
Rise time / Fall time	tr/tf	350 ps Max.	-	Between 20 % and 80 % of ( VOH - VOL )
		-	300 ps Max.	Between 20 % and 80 %of Differential Output peak to peak voltage.
Start-up time	t_str	3ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.6 ps Max. *1		Offset frequency : 12 kHz to 20 MHz
Frequency aging	f_aging	±5 × 10-6 / year Max.		+25 °C , VCC = 2.5 V or 3.3 V
				First year.

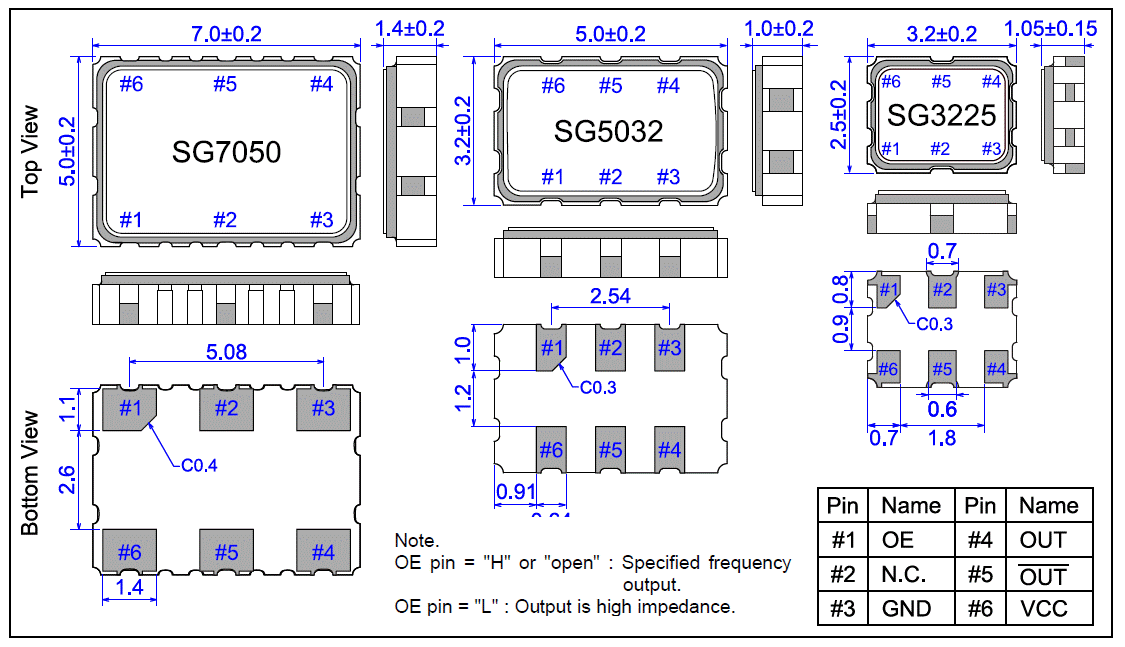

EPSON差分晶振SG3225EAN,X1G0042510009,高精度测量6G晶振，尺寸图

EPSON差分晶振SG3225EAN,X1G0042510009,高精度测量6G晶振

LV-PECL即Low Voltage PosiTIve Emitter-Couple Logic，也就是低压正发射极耦合逻辑，使用3.3V或2.5V电源，LV-PECL差分晶振是由PECL演变而来的。PECL即PosiTIve Emitter-Couple Logic，也就是正发射极耦合逻辑的意思，使用5.0V电源。PECL 是由ECL 演变而来的，ECL 即Emitter-Couple Logic，也就是发射极耦合逻辑。该电路是一种非饱和型的数字逻辑电路，电路内晶体管工作在线性区或截止区，速度不受少数载流子的存储时间的限制，所以它是现有各种逻辑电路中速度快的一种，能满足高达10Gbps工作速率。ECL 有两个供电电压VCC和VEE。当VEE接地时，VCC接正电压时，这时的逻辑称为PECL；当VCC 接地时，VEE接负电压时，这时的逻辑成为NECL，VEE一般接-5.2V电源；一般狭义的ECL 就是指NECL。由于PECL/LVPECL可以和系统内其他电路共用一个正电源供电，所以PECL/ LV-PECL相对于ECL应用更为广泛。起初的PECL器件是将VCC接+5V，后来为了直接利用广泛使用的3.3V和2.5V电压，出现了VCC=3.3V/2.5V的LVPECL（Low Voltage PECL）。

编码	晶振厂家	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0042510001	EPSON晶振	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510002	EPSON晶振	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510003	EPSON晶振	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510004	EPSON晶振	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510006	EPSON晶振	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510007	EPSON晶振	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510008	EPSON晶振	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510009	EPSON晶振	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510010	EPSON晶振	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510011	EPSON晶振	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510012	EPSON晶振	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510013	EPSON晶振	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510014	EPSON晶振	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510015	EPSON晶振	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL晶振	2.250 to 3.630 V	-40 to 85 °C
X1G0042510016	EPSON晶振	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510017	EPSON晶振	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510018	EPSON晶振	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510021	EPSON晶振	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510022	EPSON晶振	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510024	EPSON晶振	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510025	EPSON晶振	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510026	EPSON晶振	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510027	EPSON晶振	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510028	EPSON晶振	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510029	EPSON晶振	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510030	EPSON晶振	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510031	EPSON晶振	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510032	EPSON晶振	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510033	EPSON晶振	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510034	EPSON晶振	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510035	EPSON晶振	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
