爱普生LVDS振荡器,X1G005351000700,SG3225VEN通讯设备6G晶振
频率：156.250000MHz
尺寸：3.2x2.5mm
爱普生LVDS振荡器,X1G005351000700,SG3225VEN通讯设备6G晶振，日本进口晶振，爱普生晶振SG3225VEN，编码为：X1G005351000700，频率为：156.250000MHz，小体积晶振尺寸3.2x2.5mm有源晶振，是一款LVDS差分晶体振荡器，六脚贴片晶振，电源电压3.135V至3.465V，石英晶体振荡器，具有超小型，轻薄型，低抖动，低电源电压，低功耗，低损耗，低耗能，低相位噪声等特点，能够轻易识别网络信号以及精确的处理双极信号，该石英晶振适用于5G通信网络，机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、测试血糖仪，SAS，光纤通信，10G以太网及各种频率控制设备上。

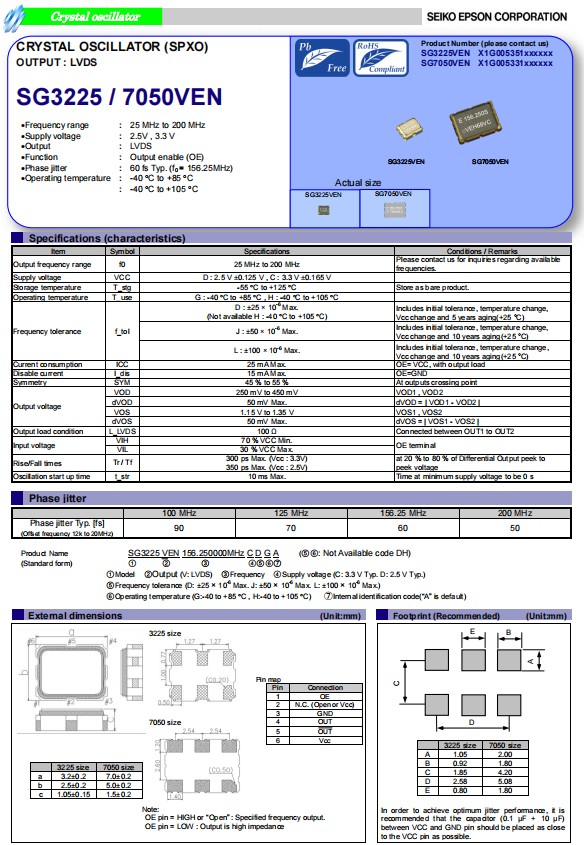

爱普生LVDS振荡器,X1G005351000700,SG3225VEN通讯设备6G晶振，参数表
Item
Symbol
SG3225VEN
Conditions / Remarks
Output frequency range
f0
156.250 MHz
Please contact us for inquiries regarding available frequencies.
Supply voltage
VCC
D : 2.5 V ±0.125 V , C : 3.3 V ±0.165 V
Storage temperature
T_stg
-55 °C to +125 °C
Store as bare product.
Operating temperature
T_use
G : -40 °C to +85 °C , H : -40 °C to +105 °C
Frequency tolerance
f_tol
D : ±25 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 5 years aging(+25 °C)
(Not available H : -40 °C to +105 °C)
J : ±50 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25 °C)
L : ±100 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25 °C)
Current consumption
ICC
25 mA Max.
OE= VCC, with output load
Disable current
I_dis
15 mA Max.
OE=GND
Symmetry
SYM
45 % to 55 %
At outputs crossing point
Output voltage
VOD
250 mV to 450 mV
VOD1 , VOD2
dVOD
50 mV Max.
dVOD = | VOD1 - VOD2 |
VOS
1.15 V to 1.35 V
VOS1 , VOS2
dVOS
50 mV Max.
dVOS = | VOS1 - VOS2 |
Output load condition
L_LVDS
100 Ω
Connected between OUT1 to OUT2
Input voltage
VIH
70 % VCC Min.
OE terminal
VIL
30 % VCC Max.
Rise/Fall times
Tr / Tf
300 ps Max. (Vcc : 3.3V) 350 ps Max. (Vcc : 2.5V)
at 20 % to 80 % of Differential Output peek to peek voltage
Oscillation start up time
t_str
10 ms Max.
Time at minimum supply voltage to be 0 s

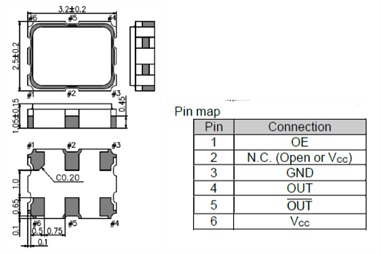

爱普生LVDS振荡器,X1G005351000700,SG3225VEN通讯设备6G晶振，尺寸图
爱普生LVDS振荡器,X1G005351000700,SG3225VEN通讯设备6G晶振
常用的差分晶振输出均属于方波，输出功率比较大，驱动能力较强，但谐波分量非常多。这两种输出模式是差分晶振的输出逻辑，两者的相位刚好相反，因此它们能够组成更高性能的系统，同时还能消除共模噪声。差分输出（例如PECL，LVDS，HCSL) 可以满足高速数据传输，应用于高速计算机，数字通信系统，雷达，测量仪器，频率合成器等。
爱普生LVDS振荡器,X1G005351000700,SG3225VEN通讯设备6G晶振
差分晶振是普通贴片晶振所不能够达到的,差分晶振具有低电平,低抖动,低功耗等特性.差分晶振作为目前行业中高要求,高技术石英晶体振荡器,具有相位低,损耗低的特点,差分晶振使用于产品中能够很容易地识别小信号,能够从容精确地处理双级信号,对外部电磁干扰(EMI)是高度免疫的,差分石英晶振满足市场需求,实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性.
| 产品编码 |
 爱普生晶振
|
 频率
|
 尺寸
|
 输出波
|
 电源电压
|
 工作温度
|
| X1G005521000100 | SG3225VEN | 212.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005521000200 | SG3225VEN | 312.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005521000500 | SG3225VEN | 322.265600MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005521000900 | SG3225VEN | 333.330000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005521001100 | SG3225VEN | 245.760000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005521100700 | SG3225VEN | 322.265625MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351000100 |
  SG3225VEN
|
  72.000000MHz
|
  3.20x2.50x1.20mm
|
  LVDS
|
  2.375 to 2.625V
|
  -40 to 85°C
|
| X1G005351000200 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351000300 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351000700 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351000800 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351001100 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351001200 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351001900 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351002000 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351002100 | SG3225VEN | 148.351640MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351002200 | SG3225VEN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351002300 | SG3225VEN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351002400 | SG3225VEN | 74.250000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351002600 | SG3225VEN | 30.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351002700 | SG3225VEN | 36.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351002800 | SG3225VEN | 42.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351002900 | SG3225VEN | 48.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351003000 | SG3225VEN | 54.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351003100 | SG3225VEN | 60.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351003200 | SG3225VEN | 70.656000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351003300 | SG3225VEN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351003400 | SG3225VEN | 182.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351003600 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351003700 | SG3225VEN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351004100 | SG3225VEN | 135.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351004200 | SG3225VEN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351004400 | SG3225VEN | 25.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351004500 | SG3225VEN | 27.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351004600 | SG3225VEN | 160.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351004700 | SG3225VEN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351004800 | SG3225VEN | 156.253906MHz | 3.20x2.50x1.20mm | LVDS差分晶体 | 3.135 to 3.465V | -40 to 85°C |
| X1G005351004900 | SG3225VEN | 48.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351005100 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351005200 | SG3225VEN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351005400 | SG3225VEN | 130.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351005500 | SG3225VEN | 70.656000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351005600 | SG3225VEN | 25.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351006100 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351006200 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351006500 | SG3225VEN | 135.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351006900 | SG3225VEN | 161.132812MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007100 | SG3225VEN | 60.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007200 | SG3225VEN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007300 | SG3225VEN | 148.351648MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007600 | SG3225VEN | 26.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007700 | SG3225VEN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007800 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007900 | SG3225VEN | 155.520000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351100200 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351100400 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351100600 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351100700 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
| X1G005351100800 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351100900 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351101000 | SG3225VEN | 25.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351101100 | SG3225VEN | 72.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351101200 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
| X1G005351101300 | SG3225VEN | 133.333000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351101400 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351101500 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
| X1G005351101600 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
| X1G005351101800 | SG3225VEN | 156.242187MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351101900 | SG3225VEN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351102000 | SG3225VEN | 148.351648MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351102100 | SG3225VEN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
