爱普生LVDS差分晶振MG7050VAN,X1M0004210003,高频振荡器6G无线晶振
prevnext

爱普生LVDS差分晶振MG7050VAN,X1M0004210003,高频振荡器6G无线晶振

频率：156.250000 MHz

尺寸：7.0x5.0mm

爱普生LVDS差分晶振MG7050VAN,X1M0004210003,高频振荡器6G无线晶振，日本进口晶振，EPSON爱普生晶振型号：MG7050VAN，编码为：X1M0004210003，频率：156.250000 MHz，小体积晶振尺寸7.0x5.0mm封装，14垫脚贴片晶振，LVDS输出差分晶振，石英晶振，有源晶振，石英晶体振荡器。本产品是利用锯波谐振器的基本振荡的LVDS输出的高频振荡器。这实现了频率为100~700MHz的低抖动和低噪声，具有超小型，轻薄型，低抖动，低功耗晶振，低电源电压，低耗能，低损耗，低相位噪声等特点。适用于PCI Express等参考时钟。MG7050VAN贴片晶振应用于：GbE、光纤通道、SAS、PCI表达，服务器、存储、路由器/交换机、无线网络、OTN等。
咨询热线：0755-27872782
QQ咨询 财付通

TH-1 890

爱普生LVDS差分晶振MG7050VAN,X1M0004210003,高频振荡器6G无线晶振，日本进口晶振，EPSON爱普生晶振型号：MG7050VAN，编码为：X1M0004210003，频率：156.250000 MHz，小体积晶振尺寸7.0x5.0mm封装，14垫脚贴片晶振，LVDS输出差分晶振，石英晶振，有源晶振，石英晶体振荡器。本产品是利用锯波谐振器的基本振荡的LVDS输出的高频振荡器。这实现了频率为100~700MHz的低抖动和低噪声，具有超小型，轻薄型，低抖动，低功耗晶振，低电源电压，低耗能，低损耗，低相位噪声等特点。适用于PCI Express等参考时钟。MG7050VAN贴片晶振应用于：GbE、光纤通道、SAS、PCI表达，服务器、存储、路由器/交换机、无线网络、OTN等。

TH-2 890

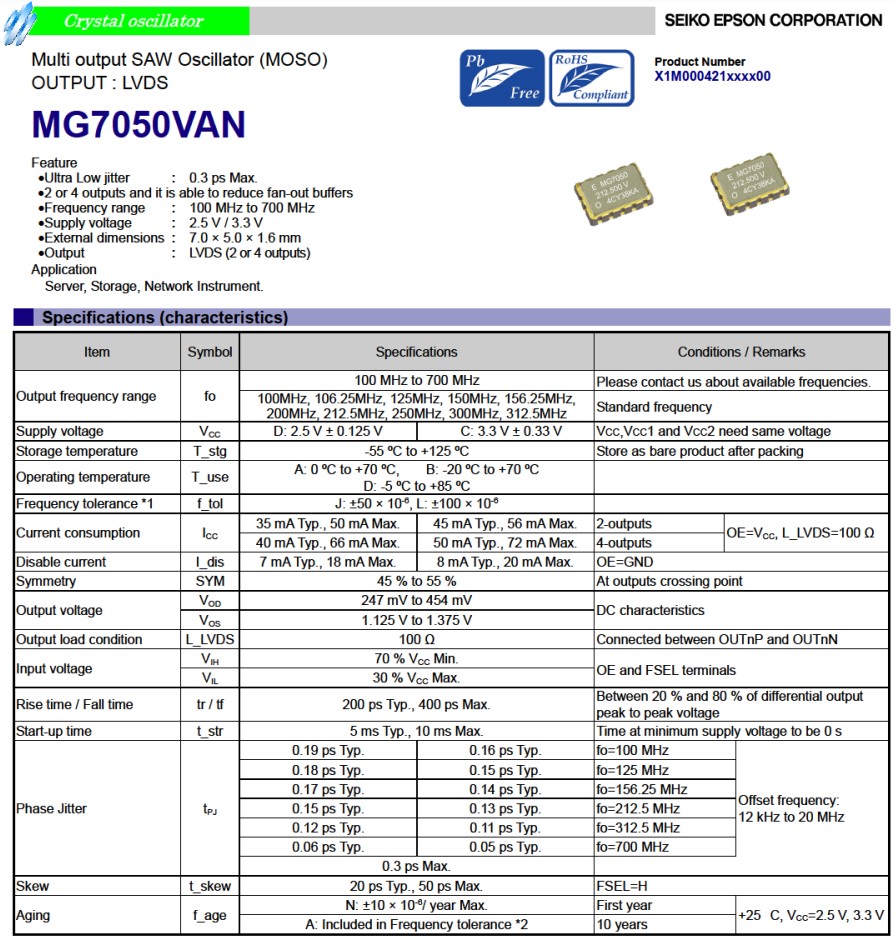

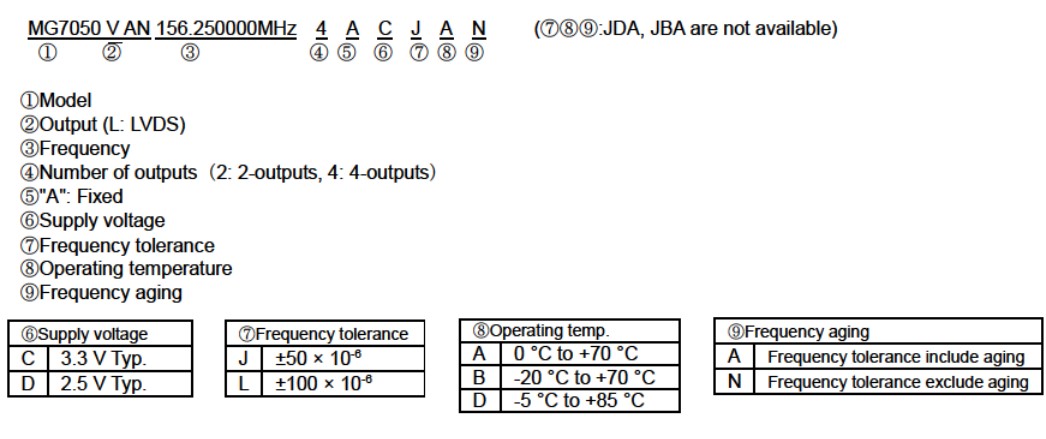

爱普生LVDS差分晶振MG7050VAN,X1M0004210003,高频振荡器6G无线晶振，参数表

Item Symbol MG7050VAN  规格说明 Conditions / Remarks
Output frequency range f0 156.250000MHz Please contact us about available frequencies.
100MHz , 106.25MHz , 125MHz , 150MHz Standard frequency
156.25MHz , 200MHz , 212.5MHz , 250MHz
300MHz,312.5MHz
Supply voltage VCC D : 2.5V ± 0.125V C : 3.3V ± 0.33V VCC1 and VCC2 need same voltage
Storage temperature T_stg -55°C to +125°C Store as bare product after packing
Operating temperature T_use A : 0°C to +70°C
B : -20°C to +70°C
D : -5°C to +85°C
Frequency tolerance *1 f_tol J : ± 50 × 10-6
L : ±100 × 10-6
Current consumption ICC 35mA Typ. 45mA Typ. 2-outputs OE = VCC ,
50mA Max. 56mA Max. L_LVDS = 100Ω
40mA Typ. 50mA Typ. 4-outputs
66 mA Max. 72 mA Max.
Disable current I_dis 7mA Typ. 8mA Typ. OE = GND
18mA Max. 20mA Max.
Symmetry SYM 45% to 55% At outputs crossing point
Output voltage VOH 247 mV to 454 mV DC characteristics
VOL 1.125 V to 1.375 V
Output load condition L_LVDS 100 Ω Connected between OUTnP and OUTnN
Input voltage VIH 70% VCC Min. OE and FSEL terminals
VIL 30% VCC Max.
Rise time / Fall time tr / tf 200 ps Typ., 400 ps Max. Between 20% and 80% of differential output peak to peak voltage
Start-up time t_str 5 ms Typ., 10 ms Max. Time at minimum supply voltage to be 0 s
Phase Jitter tPJ 0.19 ps Typ. 0.16 ps Typ. f0 = 100MHz Offset frequency:
0.18 ps Typ. 0.15 ps Typ. f0 = 125MHz 12kHz to 20MHz
0.17 ps Typ. 0.14 ps Typ. f0 = 156.25MHz
0.15 ps Typ. 0.13 ps Typ. f0 = 212.5MHz
0.12 ps Typ. 0.11 ps Typ. f0 = 312.5MHz
0.06 ps Typ. 0.05 ps Typ. f0 = 700MHz
0.3 ps Max.
Skew t_skew 20ps Typ. 50ps Max. FSEL = H
Aging f_aging N:± 10 × 10-6 / year Max. First year +25°C,
A: Included in Frequency tolerance *2 10 years VCC = 2.5V , 3.3V
TH-3 890

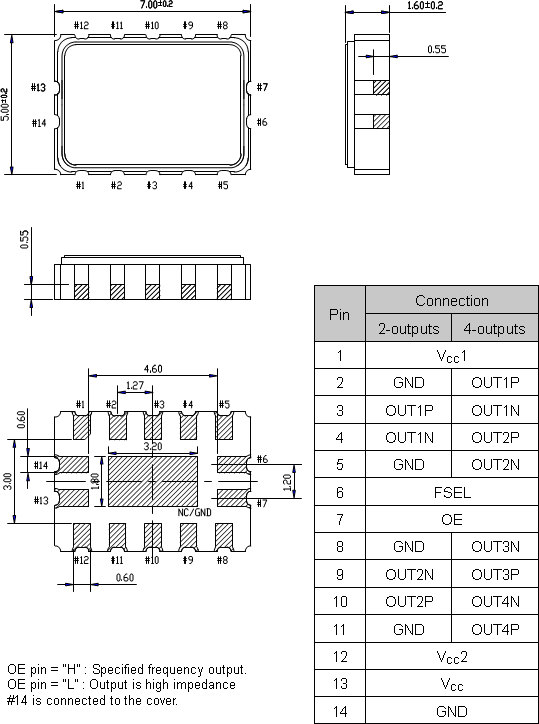

爱普生LVDS差分晶振MG7050VAN,X1M0004210003,高频振荡器6G无线晶振，尺寸图

MG7050VAN


爱普生LVDS差分晶振MG7050VAN,X1M0004210003,高频振荡器6G无线晶振

差分晶振是普通贴片晶振所不能够达到的，差分晶振具有低电平，低抖动，低功耗等特性.差分晶振作为目前行业中高要求，高技术石英晶体振荡器，具有相位低，损耗低的特点，爱普生差分晶振使用于产品中能够很容易地识别小信号，能够从容精确地处理双级信号，对外部电磁干扰(EMI)是高度免疫的，差分石英晶振满足市场需求，实现高频高精度等要求，更加保障了各种系统参考时钟的可靠性


MG7050VAN

MG7050VAN.7050
