X1M0004610006,XG5032HAN低相位噪声振荡器,EPSON光纤通信6G晶振

频率：100.000000MHz

尺寸：5.0x3.2mm

X1M0004610006,XG5032HAN低相位噪声振荡器,EPSON光纤通信6G晶振，日本进口晶振，EPSON爱普生晶振，型号XG5032HAN，编码为：X1M0004610006，频率为：100.000000MHz，小体积晶振尺寸：5.0x3.2mm，六脚贴片晶振，HCSL输出差分晶体振荡器，石英晶体振荡器，石英晶振，有源晶振，低抖动表面声波(SAW)振荡器 (SPSO)，SAW单元的极低抖动振荡器，能够轻易识别网络信号以及精确的处理双极信号。具有超小型，轻薄型，低抖动，低功耗，低耗能，低电源电压，低损耗，低相位噪声，低电平，满足产品低消耗电流的特点。XG5032HAN贴片晶振被广泛应用于：通讯设备、机顶盒、无线网络，蓝牙模块，光端机、6GWIFI，安防设备、路由器/交换机、仪器仪表、光纤通信，10G以太网，消费电子等应用。

咨询热线：0755-27872782

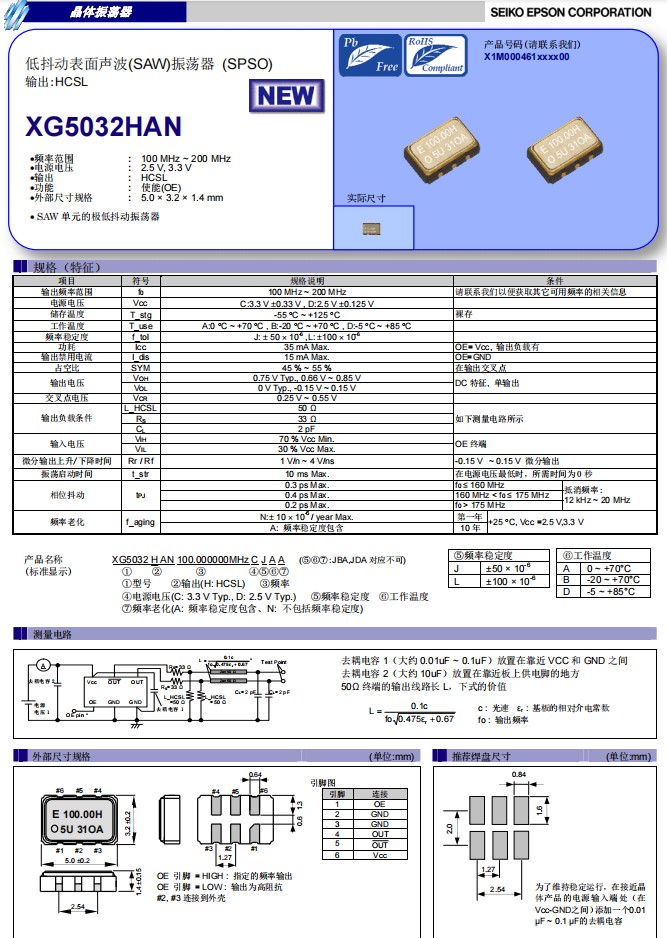

X1M0004610006,XG5032HAN低相位噪声振荡器,EPSON光纤通信6G晶振，参数表

Item	Symbol	XG5032HAN	Conditions / Remarks
Output frequency range	f0	100MHz	Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	C : 3.3V ± 0.33V
		D : 2.5V ± 0.125V
Storage temperature	T_stg	-55°C to +125°C	Store as bare product.
Operating temperature *1	T_use	A : 0°C to +70°C
		B : -20°C to +70°C
		D : -5°C to +85°C
Frequency tolerance *1	f_tol	J : ± 50 × 10-6
		L : ±100 × 10-6
Current consumption	ICC	35mA Max.	OE = VCC , with output load
Disable current	I_dis	15mA Max.	OE = GND
Symmetry	SYM	45% to 55%	at outputs crossing point
Output voltage	VOH	0.75V Typ. , 0.66V to 0.85V	DC characteristics,Single output
	VOL	0 V Typ. , -0.15V to 0.15V
Crossing Voltage	Vcr	0.25V to 0.55V
Input voltage	VIH	70% VCC Min.	OE terminal
	VIL	30% VCC Max.
differential output	Rr / Rf	1V/n to 4V/ns	Between -0.15% and 0.15 defferential output
rise slew rate/
fall slew rate
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0s
Phase Jitter	tPJ	0.3ps Max.	f0 ≦ 160 MHz	Offset frequency:
		0.4ps Max.	160 MHz < f0 ≦ 175 MHz	12kHz to 20MHz
		0.2ps Max.	f0 > 175 MHz
Frequency aging	f_aging	± 10 × 10-6 / year Max.	First year	+25°C , First year
		A : Included in Frequency tolerance	10years	VCC = 2.5V , 3.3V

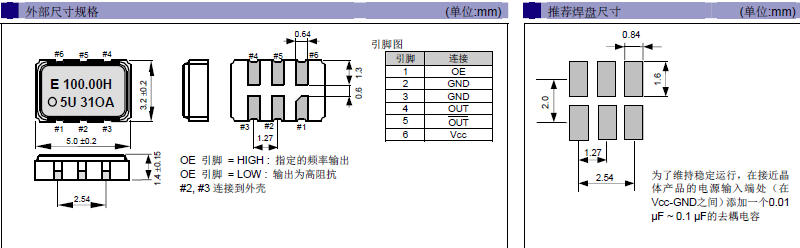

X1M0004610006,XG5032HAN低相位噪声振荡器,EPSON光纤通信6G晶振，尺寸图
