加高遥遥领先的超小型晶振,X2C027120FA1H-HV晶振,6G局域网晶振

当前位置：首页 » SMD晶振 » 加高晶振 » 加高遥遥领先的超小型晶振,X2C027120FA1H-HV晶振,6G局域网晶振

prevnext

加高遥遥领先的超小型晶振,X2C027120FA1H-HV晶振,6G局域网晶振

频率：27.12MHz

尺寸：2016mm

加高遥遥领先的超小型晶振,X2C027120FA1H-HV晶振,6G局域网晶振，台湾加高晶振公司，特点:超小型贴片型晶体器件。精度高，可靠性好，耐热性好。适用于设计空间有限的智能手机应用程序、初始化无线模块设备、RFID应用程序和其他基于消费者的产品.石英晶振,无源晶振，四脚晶振，超小型晶振，高品质晶振，贴片晶振，高精度晶振，智能手机晶振，平板电脑晶振，6G型号传输设备晶振，北斗卫星晶振，无人机晶振，6G路由器晶振，石英晶体谐振器.

咨询热线：0755-27872782

HELE-1

TH-2 890

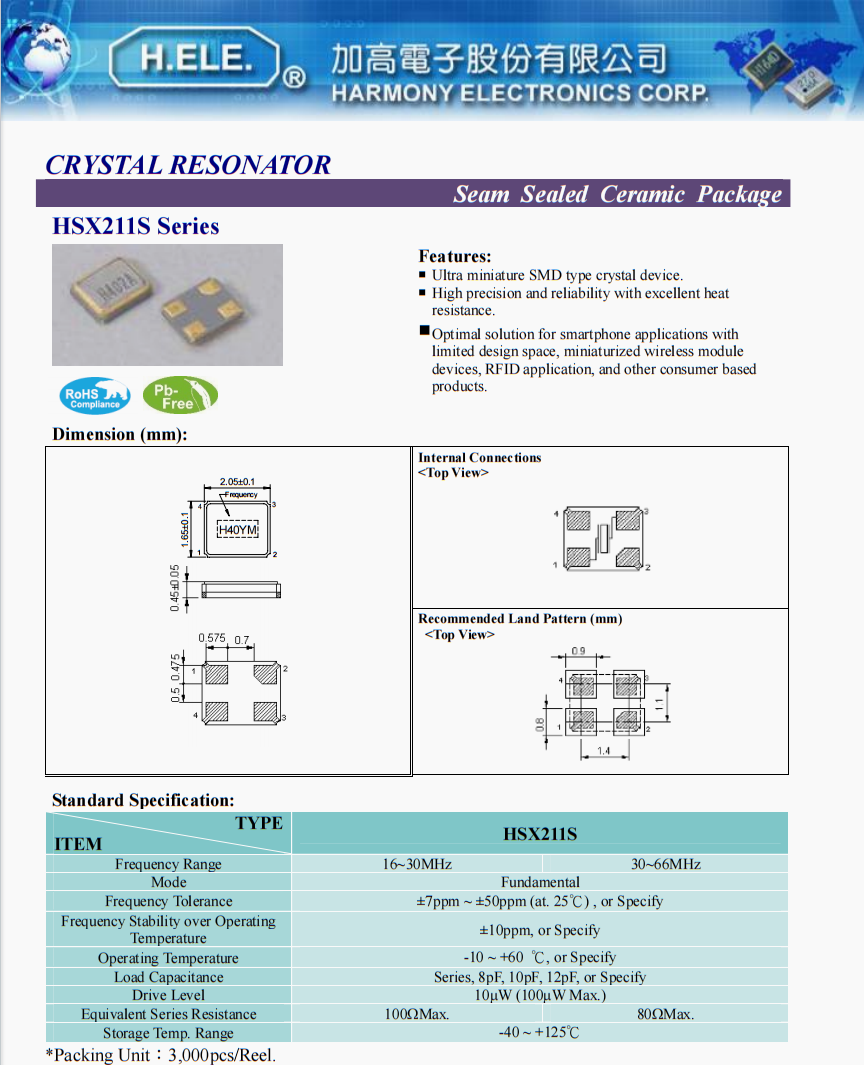

加高遥遥领先的超小型晶振,X2C027120FA1H-HV晶振,6G局域网晶振

项目	HSX211S
频率范围	16~30MHz
工作模式	Fundamental
频率容差	±7ppm ~ ±50ppm (at. 25℃) , or Specify
温度范围内的频率稳定度	±10ppm, or Specify
工作温度	-10 ~ +60 ℃, or Specify
负载电容	Series, 8pF, 10pF, 12pF, or Specify
驱动电平	10μW (100μW Max.)
等效串联电子	100?Max.
储存温度范围	-40 ~ +125℃

TH-3 890

加高遥遥领先的超小型晶振,X2C027120FA1H-HV晶振,6G局域网晶振

原厂编码	生产商	型号	频率	频率稳定度	频率容差	负载电容	工作温度
X3S027000BA1H-U	加高晶振	HSX321S	27 MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
X3S024000B91H-HS	加高晶振	HSX321S	24 MHz	±15ppm	±10ppm	9pF	-
X3S027120BA1H-X	加高晶振	HSX321S	27.12 MHz	±20ppm	±10ppm	10pF	-40°C ~ 105°C
X3S032000BC1HA-CHPZ	加高晶振	HSX321S	32 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
X3S016000DI1H-HW	加高晶振	HSX321S	16 MHz	±20ppm	±20ppm	18pF	-40°C ~ 105°C
X3S012000FI1H-HV	加高晶振	HSX321S	12 MHz	±30ppm	±30ppm	18pF	-40°C ~ 125°C
X3S025000D81H-HU	加高晶振	HSX321S	25 MHz	±20ppm	±20ppm	8pF	-40°C ~ 105°C
X3S026000B91H-NZ	加高晶振	HSX321S	26 MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
X2B026000M81H-HS	加高晶振	HSX221SA	26 MHz	±15ppm	±7ppm	8pF	-
X2B016000BA1H-U	加高晶振	HSX221SA	16 MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
X2B012000BC1H-U	加高晶振	HSX221SA	12 MHz	±20ppm	±10ppm	12pF	-40°C ~ 105°C
X2B040000BC1H-DHZ	加高晶振	HSX221SA	40 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
X2C025000DZ1H-U	加高晶振	HSX211S	25 MHz	±20ppm	±20ppm	6pF	-40°C ~ 105°C
X2C032000BA1H-HZ	加高晶振	HSX211S	32 MHz	±15ppm	±10ppm	10pF	-
X2C024000DZ1H-HU	加高晶振	HSX211S	24 MHz	±20ppm	±20ppm	6pF	-40°C ~ 105°C
X2C016000B81H-R	加高晶振	HSX211S	16 MHz	±10ppm	±10ppm	8pF	-30°C ~ 85°C
X2C026000BC1H-Z	加高晶振	HSX211S	26 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
X1C032000B81H-HR	加高晶振	HSX111S	32 MHz	±10ppm	±10ppm	8pF	-
X1C024000B81H-HV	加高晶振	HSX111S	24 MHz	±30ppm	±10ppm	8pF	-
X2C048000L71HH-CEHZ	加高晶振	HSX211S	48 MHz	±14ppm	±8ppm	11.1pF	-
X2R026000BZ1HAZ-DHPZ	加高晶振	HSX221SR	26 MHz	-	±10ppm	7pF	-30°C ~ 105°C
X1R038400B81HA-CEHPZ	加高晶振	HSX111SR	38.4 MHz	±10ppm	-	8pF	-
X2U026000B81HBZ-DHPZ	加高晶振	HSX211SR	26 MHz	-	±10ppm	8pF	-40°C ~ 105°C
X2R026000B91HZ-DEHPZ	加高晶振	HSX221SR	26 MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
X2R019200BZ1H-CHZ	加高晶振	HSX221SR	19.2 MHz	-	±10ppm	7pF	-30°C ~ 85°C
X2U019200BZ1H-CEHQZ	加高晶振	HSX211SR	19.2 MHz	-	±10ppm	7pF	-40°C ~ 105°C
X2U038400B81H-EPQZ	加高晶振	HSX211SR	38.4 MHz	-	±10ppm	8pF	-30°C ~ 85°C
X1R052000B81HZ-DEHPZ	加高晶振	HSX111SR	52 MHz	±10ppm	-	8pF	-40°C ~ 105°C
X12A040000BZ1H-HZ	加高晶振	HSX1210A	40 MHz	±10ppm	±12ppm	6pF	-20°C ~ 85°C
X12A032000B81H-HZ	加高晶振	HSX1210A	32 MHz	±10ppm	±10ppm	8pF	-30°C ~ 85°C
XSA004000DK1HA-OX	加高晶振	SMD-49	4 MHz	±20ppm	±50ppm	20pF	-40°C ~ 85°C
XSA008000DC1H-OX	加高晶振	SMD-49	8 MHz	±20ppm	±30ppm	12pF	-20°C ~ 70°C
X1C026000B81H-V	加高晶振	HSX111SA	26 MHz	±10ppm	±20ppm	26pF	-20°C ~ 80°C
X1C032000B81H-HU	加高晶振	HSX111SA	32 MHz	±10ppm	±10ppm	8pF	-20°C ~ 80°C
X1C048000FK1H-HX	加高晶振	HSX111SA	48 MHz	±30ppm	±30ppm	20pF	-20°C ~ 80°C
X2C016000B81H-HPU	加高晶振	HSX211S	16 MHz	±10ppm	±20ppm	8pF	-40°C ~ 85°C
X2C016000B91H-R_C254270	加高晶振	HSX211S	16 MHz	±10ppm	±10ppm	9pF	-40°C ~ 85°C
X2C024000B91H-HZ	加高晶振	HSX211S	24 MHz	±10ppm	±10ppm	9pF	-40°C ~ 85°C
X2C024000BA1H	加高晶振	HSX211S	24 MHz	±10ppm	±30ppm	10pF	-40°C ~ 85°C
X2C024000FA1H-X	加高晶振	HSX211S	24 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
X2C024000B71H-V	加高晶振	HSX211S	24 MHz	±10ppm	±30ppm	12.5pF	-40°C ~ 85°C
X2C026000B91H-V	加高晶振	HSX211S	26 MHz	±10ppm	±15ppm	9pF	-20°C ~ 70°C
X2C027120FA1H-HV	加高晶振	HSX211S	27.12 MHz	±30ppm	±30ppm	10pF	-30°C ~ 85°C
X2C032000B81H-HS	加高晶振	HSX211S	32 MHz	±10ppm	±15ppm	8pF	-30°C ~ 85°C
X2C032000BA1HA-U	加高晶振	HSX211S	32 MHz	±10ppm	±20ppm	10pF	-40°C ~ 85°C
X2C032000BC1H-R	加高晶振	HSX211S	32 MHz	±10ppm	±10ppm	12pF	-20°C ~ 70°C
X2C037400BG1H-U	加高晶振	HSX211S	37.4 MHz	±10ppm	±10ppm	16pF	-20°C ~ 70°C
X2C038400BA1H-HZ	加高晶振	HSX211S	38.4 MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
X2C040000B91HA-Z	加高晶振	HSX211S	40 MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
X2C048000L71H-CEHZ	加高晶振	HSX211S	48 MHz	±8ppm	±12ppm	7.8pF	-30°C ~ 85°C
X2C048000BA1H-HZ	加高晶振	HSX211S	48 MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
X2B050000BC1H-V	加高晶振	HSX221S	50 MHz	±10ppm	±30ppm	12pF	-40°C ~ 85°C
X2B012000B91H-U	加高晶振	HSX221SA	12 MHz	±10ppm	±10ppm	9pF	-20°C ~ 70°C
X2B012000DC1H-X	加高晶振	HSX221SA	12 MHz	±20ppm	±20ppm	12pF	-10°C ~ 60°C
X2B016000B91H-HU	加高晶振	HSX221SA	16 MHz	±10ppm	±10ppm	9pF	-20°C ~ 70°C
X2B016000BC1H-HV	加高晶振	HSX221SA	16 MHz	±10ppm	±20ppm	12pF	-20°C ~ 75°C
X2B019200BZ1H-CHZ	加高晶振	HSX221SA	19.2 MHz	±10ppm	±12ppm	7pF	-30°C ~ 85°C
X2B024000BC1HA-V	加高晶振	HSX221SA	24 MHz	±10ppm	±20ppm	12pF	-20°C ~ 75°C
X2B024000BC1H-HV	加高晶振	HSX221SA	24 MHz	±10ppm	±30ppm	12pF	-30°C ~ 85°C
X2B024000BCIH-HV	加高晶振	HSX221SA	24 MHz	±10ppm	±30ppm	12pF	-40°C ~ 85°C
X2B024000FK1H-V	加高晶振	HSX221SA	24 MHz	±30ppm	±30ppm	20pF	-20°C ~ 75°C
X2B025000BI1H-U	加高晶振	HSX221SA	25 MHz	±10ppm	±20ppm	18pF	-40°C ~ 85°C
X2B026000B71HZ-HPR	加高晶振	HSX221SA	26 MHz	±10ppm	±10ppm	7.2pF	-20°C ~ 75°C
X2B026000B81H-CHZ	加高晶振	HSX221SA	26 MHz	±10ppm	±11ppm	8pF	-30°C ~ 85°C
X2B026000B91H-HR	加高晶振	HSX221SA	26 MHz	±10ppm	±10ppm	9pF	-20°C ~ 75°C
X2B026000B91H-HV	加高晶振	HSX221SA	26 MHz	±10ppm	±15ppm	9pF	-20°C ~ 75°C
X2B026000B91H-HZ	加高晶振	HSX221SA	26 MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
X2B026000B91H-U	加高晶振	HSX221SA	26 MHz	±10ppm	±20ppm	9pF	-40°C ~ 85°C
X2B026000L91H-S	加高晶振	HSX221SA	26 MHz	±8ppm	±12ppm	9pF	-20°C ~ 75°C
X2B026000B71HZ	加高晶振	HSX221SA	26 MHz	±7ppm	±10ppm	11.5pF	-10°C ~ 60°C
X2B026000BC1H-Z	加高晶振	HSX221SA	26 MHz	±10ppm	±10ppm	12pF	-20°C ~ 85°C
X2B027000BC1H-HU	加高晶振	HSX221SA	27 MHz	±10ppm	±10ppm	12pF	-10°C ~ 70°C
X2B02863ADC1H-W	加高晶振	HSX221SA	28.6363 MHz	±20ppm	±20ppm	12pF	-20°C ~ 70°C
X2B030000BA1H-HW	加高晶振	HSX221SA	30 MHz	±10ppm	±20ppm	10pF	-20°C ~ 70°C
X2B030000BA1H-U	加高晶振	HSX221SA	30 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
X2B030000FA1H-X	加高晶振	HSX221SA	30 MHz	±30ppm	±30ppm	10pF	-20°C ~ 70°C
X2B032000C81H-HU	加高晶振	HSX221SA	32 MHz	±15ppm	±15ppm	8pF	-20°C ~ 75°C
X2B032000D81H-U	加高晶振	HSX221SA	32 MHz	±20ppm	±20ppm	8pF	-30°C ~ 85°C
X2B032000BC1H-HZ	加高晶振	HSX221SA	32 MHz	±10ppm	±12ppm	12pF	-30°C ~ 85°C
X2B038400BA1H-U	加高晶振	HSX221SA	38.4 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
X2B040000B91H-U	加高晶振	HSX221SA	40 MHz	±10ppm	±10ppm	9pF	-20°C ~ 70°C
X2B040000BC1H-DHZ	加高晶振	HSX221SA	40 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
X2B04000BF1H-HZ	加高晶振	HSX221SA	40 MHz	±10ppm	±10ppm	15pF	-30°C ~ 85°C
X2B040000BF1H-HT	加高晶振	HSX221SA	40 MHz	±10ppm	±18ppm	15pF	0°C ~ 85°C
X2B040000BF1H-HZ	加高晶振	HSX221SA	40 MHz	±10ppm	±10ppm	15pF	-30°C ~ 85°C
X2R026000BZ1HZ-DEHPZ	加高晶振	HSX221SR	26 MHz	±10ppm	±10ppm	7pF	-30°C ~ 85°C
