瑞萨RENESAS晶振,XLH336050.000000X晶振,有源六脚晶振
频率：50MHZ

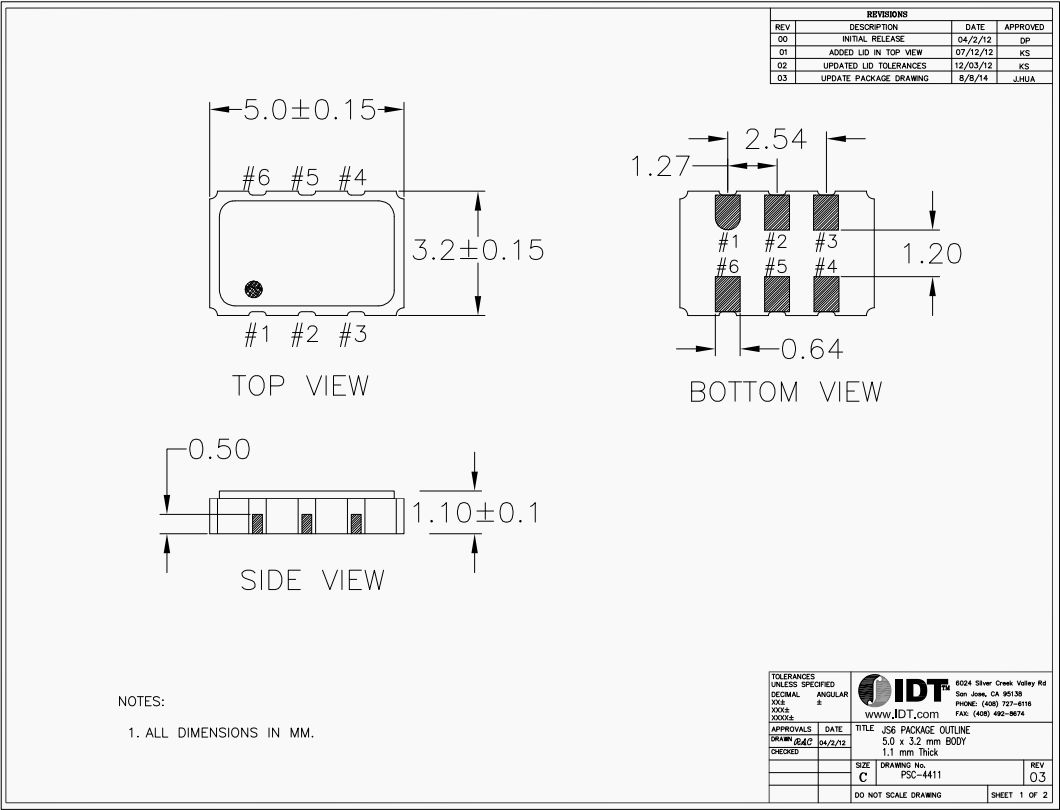

尺寸：5032mm

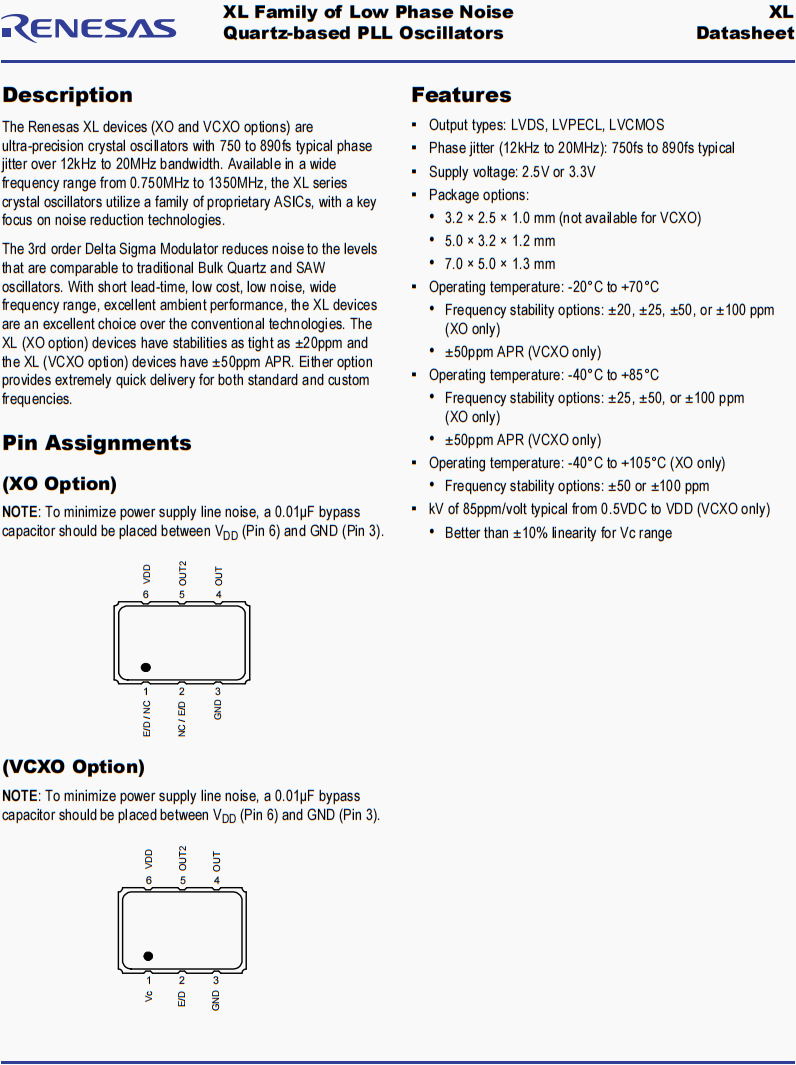

瑞萨RENESAS晶振,XLH336050.000000X晶振,有源六脚晶振，瑞萨XL器件(XO和VCXO选项)是超精密晶体振荡器，典型相位抖动为750至890fs，带宽为12kHz至20MHz。XL系列晶体振荡器的频率范围从0.750MHz到1350MHz，瑞萨晶振采用一系列专有的asic，重点关注降噪技术。三阶δ σ调制器将噪声降低到与传统的大块石英和SAW振荡器相当的水平。XL设备交货时间短，成本低，噪音低，频率范围宽，环境性能优异，是传统技术的绝佳选择。XL (XO选项)设备的稳定性为±20ppm, XL (VCXO选项)设备的apr为±50ppm。任何一种选项都可以为标准和定制频率提供极快的交付。
瑞萨RENESAS晶振,XLH336050.000000X晶振,有源六脚晶振
| 标志 | 参数 | Test Condition | Minimum | Typical | Maximum | Units |
| F | 输出频率范围 | LVDS. | 0.75 | - | 1350 | MHz |
| LVPECL. | 0.75 | - | 1350 | |||
| LVCMOS. | 0.75 | - | 250 | |||
| 频率容差 | Temperature = -20°C to +70°C. |
-20 -25 -50 -100 |
- |
+20 +25 +50 +100 |
ppm | |
| Temperature = -40°C to +85°C. |
-25 -50 -100 |
- |
+25 +50 +100 |
ppm | ||
| Temperature = -40°C to +105°C. |
-50 -100 |
- |
+50 +100 |
ppm | ||
| 输出负载 | LVDS. | - | 100 | - | Ω | |
| LVPECL. | - | 50 | - | |||
| LVCMOS. | - | 15 | - | pF | ||
| TST | 启动时间 | Output valid time after VDD meets minimum specified level. | - | - | 10 | ms |
| tR | 输出上升时间 | LVDS. | - | - | 400 | ps |
| LVPECL. | - | - | 400 | |||
| LVCMOS. | - | - | 3 | ns | ||
| tF | 输出下降时间 | LVDS. | - | - | 400 | ps |
| LVPECL. | - | - | 400 | |||
| LVCMOS. | - | - | 3 | ns | ||
| ODC | 输出时钟占空比 | LVDS. | 47 | - | 53 | % |
| LVPECL. | 47 | - | 53 | |||
| LVCMOS. | 47 | - | 53 | |||
| TOE | 输出启动/禁用时间 | - | - | - | 100 | ns |
| JPER | 周期抖动，RMS | LVDS. | - | 3 | - | ps |
| LVPECL. | - | 5.8 | - | |||
| LVCMOS. | - | 5 | - | |||
| RJ | 随机抖动 | LVDS. | - | 1.3 | - | ps |
| LVPECL. | - | 1.29 | - | |||
| LVCMOS. | - | 0.6 | - |
瑞萨RENESAS晶振,XLH336050.000000X晶振,有源六脚晶振

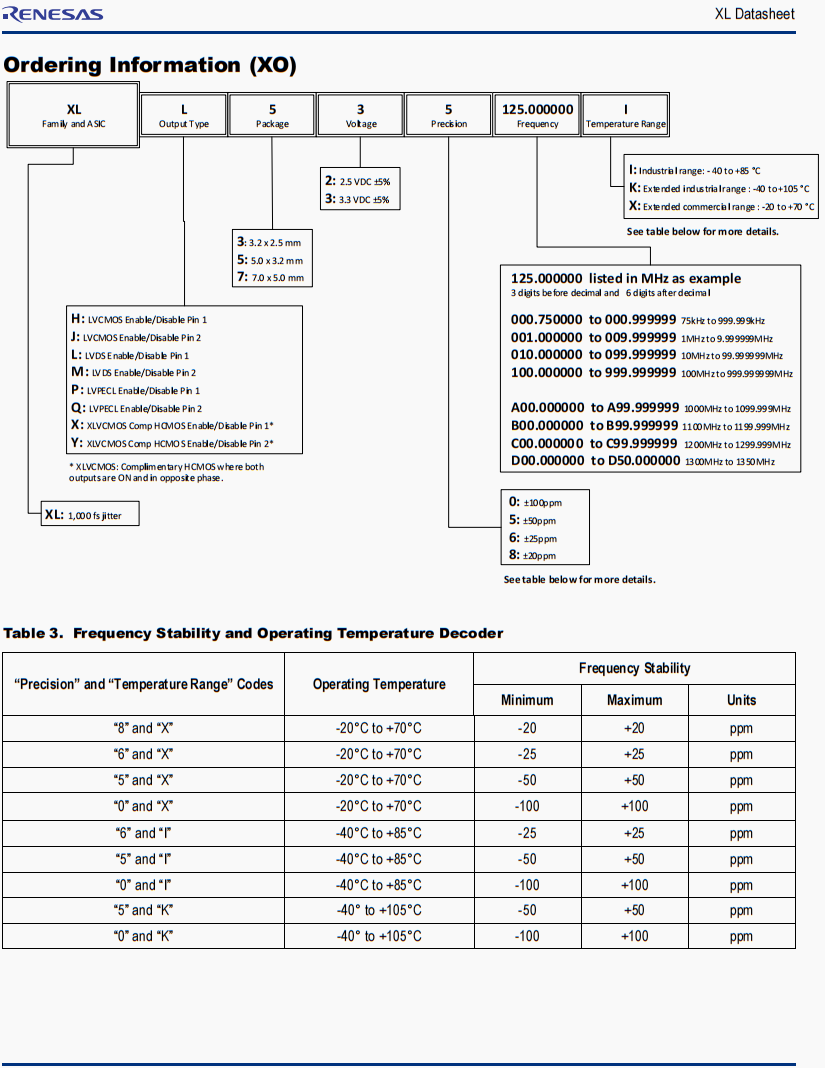

| 原厂编码 | 生产商品牌 | 型号 | 频率 | 输出 | 电源电压 |
| XLL525212.500000I | Renesas晶振 | XL | 212.5 MHz | LVDS | 2.5V |
| XLH335050.000000K | Renesas晶振 | XL | 50 MHz | HCMOS | 3.3V |
| XLL330120.000000X | Renesas晶振 | XL | 120 MHz | LVDS | 3.3V |
| XLH335001.024000I | Renesas晶振 | XL | 1.024 MHz | HCMOS | 3.3V |
| XLL325040.000000I | Renesas晶振 | XL | 40 MHz | LVDS | 2.5V |
| XLL530108.000000I | Renesas晶振 | XL | 108 MHz | LVDS | 3.3V |
| XLL338C50.000000X | Renesas晶振 | XL | 1.25 GHz | LVDS | 3.3V |
| XLH335016.625000I | Renesas晶振 | XL | 16.625 MHz | HCMOS | 3.3V |
| XLH736040.000000I | Renesas晶振 | XL | 40 MHz | HCMOS | 3.3V |
| XLH330012.000000I | Renesas晶振 | XL | 12 MHz | HCMOS | 3.3V |
| XLL335125.000000I | Renesas晶振 | XL | 125 MHz | LVDS | 3.3V |
| XLH335001.000000X | Renesas晶振 | XL | 1 MHz | HCMOS | 3.3V |
| XLH330016.000000X | Renesas晶振 | XL | 16 MHz | HCMOS | 3.3V |
| XLH325020.000000X | Renesas晶振 | XL | 20 MHz | HCMOS | 2.5V |
| XLH526020.000000X | Renesas晶振 | XL | 20 MHz | HCMOS | 2.5V |
| XLH725027.000000I | Renesas晶振 | XL | 27 MHz | HCMOS | 2.5V |
| XLH336050.000000X | Renesas晶振 | XL | 50 MHz | HCMOS | 3.3V |
| XLH336012.000000X | Renesas晶振 | XL | 12 MHz | HCMOS | 3.3V |
| XLH335050.000JX4I | Renesas晶振 | XL | 50 MHz | LVCMOS | 3.3V |
| XLH335025.000JX4I | Renesas晶振 | XL | 25 MHz | LVCMOS | 3.3V |
| XLH735024.576JU4X | Renesas晶振 | XL | 24.576 MHz | LVCMOS | 3.3V |
| XLH735012.000JU4X | Renesas晶振 | XL | 12 MHz | LVCMOS | 3.3V |
| XLH336024.000000I | Renesas晶振 | XL | 24 MHz | HCMOS | 3.3V |
| XLH526040.000000I | Renesas晶振 | XL | 40 MHz | HCMOS | 2.5V |
| XLH336020.000000I | Renesas晶振 | XL | 20 MHz | HCMOS | 3.3V |
| XLH526012.000000I | Renesas晶振 | XL | 12 MHz | HCMOS | 2.5V |
| XLH336050.000000I | Renesas晶振 | XL | 50 MHz | HCMOS | 3.3V |
| XLH336016.000000I | Renesas晶振 | XL | 16 MHz | HCMOS | 3.3V |
| XLH336012.000000I | Renesas晶振 | XL | 12 MHz | HCMOS | 3.3V |
| XLH536016.000JS4I | Renesas晶振 | XL | 16 MHz | LVCMOS | 3.3V |
| XLH736025.000JU4I | Renesas晶振 | XL | 25 MHz | LVCMOS | 3.3V |
| XLH736012.000JU4I | Renesas晶振 | XL | 12 MHz | LVCMOS | 3.3V |
| XLH526030.000000X | Renesas晶振 | XL | 30 MHz | HCMOS | 2.5V |
| XLH526027.000000X | 有源晶振 | XL | 27 MHz | HCMOS | 2.5V |
| XLH526026.000000X | Renesas晶振 | XL | 26 MHz | HCMOS | 2.5V |
| XLH520012.000000X | Renesas晶振 | XL | 12 MHz | HCMOS | 2.5V |
| XLH720026.000000X | Renesas晶振 | XL | 26 MHz | HCMOS | 2.5V |
| XLH520026.000000X | Renesas晶振 | XL | 26 MHz | HCMOS | 2.5V |
| XLH320027.000000X | Renesas晶振 | XL | 27 MHz | HCMOS | 2.5V |
| XLH520030.000000X | Renesas晶振 | XL | 30 MHz | HCMOS | 2.5V |
| XLH720016.000000X | Renesas晶振 | XL | 16 MHz | HCMOS | 2.5V |
| XLH520025.000000X | Renesas晶振 | XL | 25 MHz | HCMOS | 2.5V |
| XLH320030.000000X | Renesas晶振 | XL | 30 MHz | HCMOS | 2.5V |
| XLH320033.333000X | Renesas晶振 | XL | 33.333 MHz | HCMOS | 2.5V |
| XLH520050.000000X | Renesas晶振 | XL | 50 MHz | HCMOS | 2.5V |
| XLH725020.000000X | Renesas晶振 | XL | 20 MHz | HCMOS | 2.5V |
| XLH526024.000000X | Renesas晶振 | XL | 24 MHz | HCMOS | 2.5V |
| XLH520016.000000X | Renesas晶振 | XL | 16 MHz | HCMOS | 2.5V |
| XLH525024.000000X | Renesas晶振 | XL | 24 MHz | HCMOS | 2.5V |
| XLH330048.000000X | Renesas晶振 | XL | 48 MHz | HCMOS | 3.3V |
| XLH320012.000000X | Renesas晶振 | XL | 12 MHz | HCMOS | 2.5V |
| XLH525030.000000X | Renesas晶振 | XL | 30 MHz | HCMOS | 2.5V |
| XLH520048.000000X | Renesas晶振 | XL | 48 MHz | HCMOS | 2.5V |
| XLH520040.000000X | Renesas晶振 | XL | 40 MHz | HCMOS | 2.5V |
| XLH720040.000000X | Renesas晶振 | XL | 40 MHz | HCMOS | 2.5V |
| XLH725012.000000X | Renesas晶振 | XL | 12 MHz | HCMOS | 2.5V |
| XLH725024.000000X | Renesas晶振 | XL | 24 MHz | HCMOS | 2.5V |
| XLH720050.000000X | Renesas晶振 | XL | 50 MHz | HCMOS | 2.5V |
| XLH525012.000000X | Renesas晶振 | XL | 12 MHz | HCMOS | 2.5V |
| XLH325024.000000X | Renesas晶振 | XL | 24 MHz | HCMOS | 2.5V |
| XLH526050.000000X | Renesas晶振 | XL | 50 MHz | HCMOS | 2.5V |
| XLH525010.000000X | Renesas晶振 | XL | 10 MHz | HCMOS | 2.5V |
| XLH720030.000000X | Renesas晶振 | XL | 30 MHz | HCMOS | 2.5V |
| XLH320026.000000X | Renesas晶振 | XL | 26 MHz | HCMOS | 2.5V |
