瑞萨电子,领先同行的智能辅助驾驶模块晶振,XTP332087.000000I晶振
频率：87MHZ
尺寸：3225mm

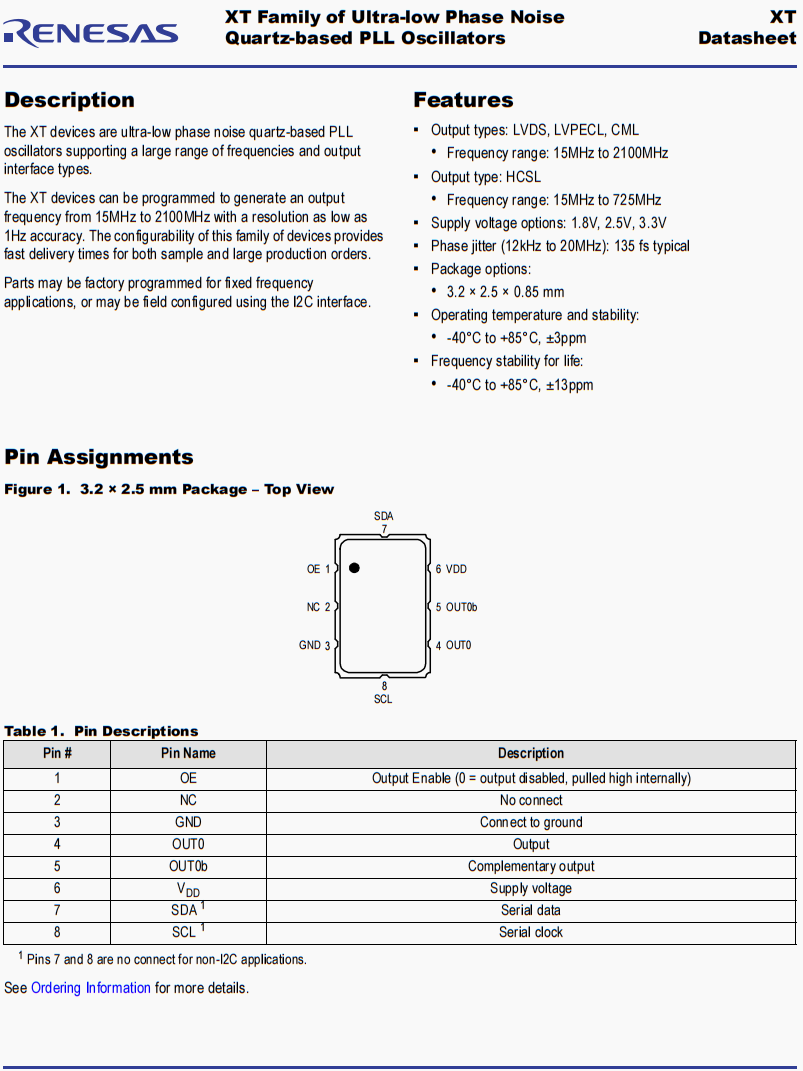

瑞萨电子,领先同行的智能辅助驾驶模块晶振,XTP332087.000000I晶振，瑞萨晶振公司，Renesas晶振，石英晶振，进口晶振，SMD晶振，小体积晶振，3225晶振，XT器件是超低相位噪声石英基锁相环振荡器，支持大范围的频率和输出接口类型。XT设备可编程为产生15MHz至2100MHz的输出频率，分辨率低至1Hz精度。该系列设备的可配置性为样品和大型生产订单提供了快速交付时间。部件可能是工厂编程的固定频率应用，或者可能是现场配置使用I2C接口。6G室外基站晶振，无人机晶振，6G路由器晶振，6G通讯终端晶振
瑞萨电子,领先同行的智能辅助驾驶模块晶振,XTP332087.000000I晶振
Symbol
Parameter
Test Condition
Minimum
Typical
Maximum
Units
F
输出频率范围
LVDS, LVPECL, CML.
15
—
2100
MHz
HCSL.
15
—
725
频率容差
Temperature = -40°C to +85°C.
—
—
±3
PPM
频率稳定度
TA = 25°C.
—
—
±2
老化（第一年）
TA = 25°C.
—
—
±1
老化（十年）
TA = 25°C.
—
—
±7
输出负载
LVDS.
—
100
—
Ω
LVPECL.
—
50
—
HCSL.
—
50
—
TST
启动时间
Output valid time after VDD meets minimum specified level.
—
5
—
ms
tR
输出上升时间
LVDS.
—
299
400
ps
LVPECL.
—
287
400
HCSL.
—
306
400
CML
—
301
400
tF
输出下降时间
LVDS.
—
279
400
ps
LVPECL.
—
274
400
HCSL.
—
284
400
CML
—
279
400
ODC
输出时钟工作周期
LVDS.
45
—
55
%
LVPECL.
45
—
55
HCSL.
45
—
55
CML
45
—
55
TOE
输出启用/禁用时间
—
—
1
—
ms
瑞萨电子,领先同行的智能辅助驾驶模块晶振,XTP332087.000000I晶振

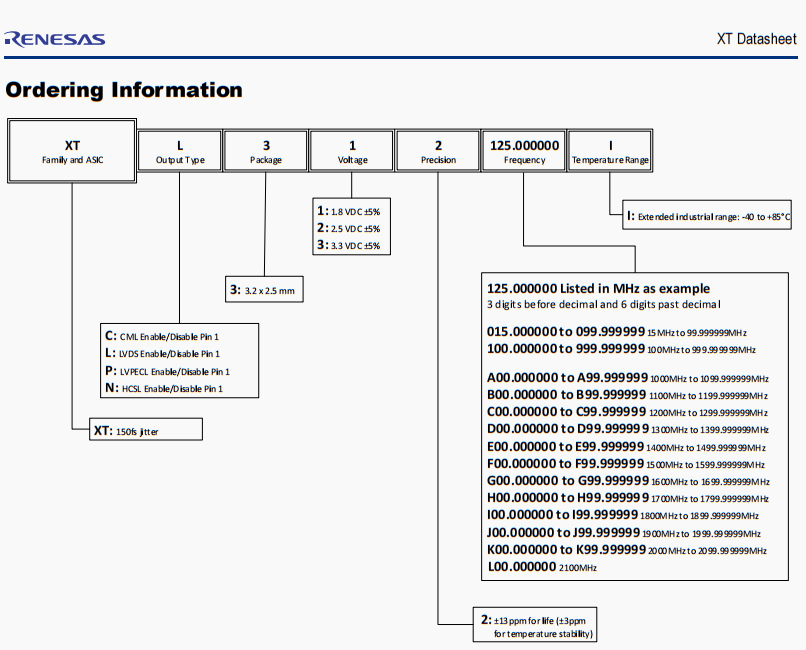

| 原厂编码 | 生产商品牌 | 型号 | 频率 | 输出 | 电源电压 | 频率容差 |
| XTP332156.250000I | Renesas晶振 | XT | 156.25 MHz | LVPECL | 3.3V | ±3ppm |
| XTL312625.000000I | Renesas晶振 | XT | 625 MHz | LVDS | 1.8V | ±3ppm |
| XTN312100.000000I | Renesas晶振 | XT | 100 MHz | HCSL | 1.8V | ±3ppm |
| XTL322080.000000I | Renesas晶振 | XT | 80 MHz | LVDS | 2.5V | ±3ppm |
| XTP322100.000000I | Renesas晶振 | XT | 100 MHz | LVPECL | 2.5V | ±3ppm |
| XTP332100.000000I | Renesas晶振 | XT | 100 MHz | LVPECL | 3.3V | ±3ppm |
| XTL312100.000000I | Renesas晶振 | XT | 100 MHz | LVDS | 1.8V | ±3ppm |
| XTP332K48.479000I | Renesas晶振 | XT | 2.048479 GHz | LVPECL | 3.3V | ±3ppm |
| XTP332087.000000I | Renesas晶振 | XT | 87 MHz | LVPECL | 3.3V | ±3ppm |
| XTC312272.800000I | Renesas晶振 | XT | 272.8 MHz | CML | 1.8V | ±3ppm |
| XTC332272.800000I | Renesas晶振 | XT | 272.8 MHz | CML | 3.3V | ±3ppm |
| XTN322100.000000I | Renesas晶振 | XT | 100 MHz | HCSL | 2.5V | ±3ppm |
| XTP332025.000000I | Renesas晶振 | XT | 25 MHz | LVPECL | 3.3V | ±3ppm |
| XTL322100.000000I | Renesas晶振 | XT | 100 MHz | LVDS | 2.5V | ±3ppm |
| XTL332125.000000I | Renesas晶振 | XT | 125 MHz | LVDS | 3.3V | ±3ppm |
| XTN312032.000000I | Renesas晶振 | XT | 32 MHz | HCSL | 1.8V | ±3ppm |
| XTP322025.000000I | Renesas晶振 | XT | 25 MHz | LVPECL | 2.5V | ±3ppm |
| XTL312156.250000I | Renesas晶振 | XT | 156.25 MHz | LVDS | 1.8V | ±3ppm |
| XTP332204.800000I | Renesas晶振 | XT | 204.8 MHz | LVPECL | 3.3V | ±3ppm |
| XTL322200.000000I | Renesas晶振 | XT | 200 MHz | LVDS | 2.5V | ±3ppm |
| XTL312125.000000I | Renesas晶振 | XT | 125 MHz | LVDS | 1.8V | ±3ppm |
| XTP332039.145000I | Renesas晶振 | XT | 39.145 MHz | LVPECL | 3.3V | ±3ppm |
| XTP332045.000000I | Renesas晶振 | XT | 45 MHz | LVPECL | 3.3V | ±3ppm |
| XTL332148.351648I | Renesas晶振 | XT | 148.351648 MHz | LVDS | 3.3V | ±3ppm |
| XTL312L00.000000I | Renesas晶振 | XT | 2.1 GHz | LVDS | 1.8V | ±3ppm |
| XTL312A00.000000I | Renesas晶振 | XT | 1 GHz | LVDS | 1.8V | ±3ppm |
| XTC332100.000000I | Renesas晶振 | XT | 100 MHz | CML | 3.3V | ±3ppm |
| XTL312016.000000I | Renesas晶振 | XT | 16 MHz | LVDS | 1.8V | ±3ppm |
| XTP332L00.000000I | Renesas晶振 | XT | 2.1 GHz | LVPECL | 3.3V | ±3ppm |
| XTP332040.000000I | Renesas晶振 | XT | 40 MHz | LVPECL | 3.3V | ±3ppm |
| XTP322K99.999999I | Renesas晶振 | XT | 2.099999999 GHz | LVPECL | 2.5V | ±3ppm |
| XTN332100.000000I | Renesas晶振 | XT | 100 MHz | HCSL | 3.3V | ±3ppm |
| XTL312779.215495I | Renesas晶振 | XT | 779.215495 MHz | LVDS | 1.8V | ±3ppm |
| XTL312779.215000I | Renesas晶振 | XT | 779.215 MHz | LVDS | 1.8V | ±3ppm |
| XTC312818.991000I | Renesas晶振 | XT | 818.991 MHz | CML | 1.8V | ±3ppm |
| XTC312779.215000I | Renesas晶振 | XT | 779.215 MHz | CML | 1.8V | ±3ppm |
| XTC312822.128000I | Renesas晶振 | XT | 822.128 MHz | CML | 1.8V | ±3ppm |
| XTC312G81.518000I | Renesas晶振 | XT | 1.681518 GHz | CML | 1.8V | ±3ppm |
| XTC312840.759000I | Renesas晶振 | XT | 840.759 MHz | CML | 1.8V | ±3ppm |
| XTC312G37.982000I | Renesas晶振 | XT | 1.637982 GHz | CML | 1.8V | ±3ppm |
| XTC312F88.430000I | Renesas晶振 | XT | 1.58843 GHz | CML | 1.8V | ±3ppm |
| XTC312G44.256000I | Renesas晶振 | XT | 1.644256 GHz | CML | 1.8V | ±3ppm |
