思佳讯振荡器,540BAA125M000BBG,125M差分晶振,6G存储器晶振
频率：125MHZ
尺寸：5.0mm x 3.2mm
思佳讯振荡器,540BAA125M000BBG,125M差分晶振,6G存储器晶振,思佳讯振荡器,125M差分晶振,Si540有源晶振提供卓越的可靠性和频率稳定性以及保证的老化性能,片上电源滤波提供业界领先的电源噪声抑制,简化了在使用开关模式电源的噪声系统中产生低抖动时钟的任务,Si540提供行业标准的足迹,大大简化了供应链,不同于传统的XO,每个输出频率都需要不同的晶体,Si540使用一个简单的晶体和基于DSPLL ic的方法来提供所需的输出频率,这个过程也保证了每个设备100%的电气测试,缩短了交货周期,SMD晶体,5032mm晶振,石英晶体振荡器,LVDS晶振,6G存储器晶振,100G/200G/400G OTN晶振,相干光学应用晶振.
咨询热线：0755-27872782
思佳讯振荡器,540BAA125M000BBG,125M差分晶振,6G存储器晶振,思佳讯振荡器,125M差分晶振,Si540有源晶振提供卓越的可靠性和频率稳定性以及保证的老化性能,片上电源滤波提供业界领先的电源噪声抑制,简化了在使用开关模式电源的噪声系统中产生低抖动时钟的任务,Si540提供行业标准的足迹,大大简化了供应链,不同于传统的XO,每个输出频率都需要不同的晶体,Si540使用一个简单的晶体和基于DSPLL ic的方法来提供所需的输出频率,这个过程也保证了每个设备100%的电气测试,缩短了交货周期,SMD晶体,5032mm晶振,石英晶体振荡器,LVDS晶振,6G存储器晶振,100G/200G/400G OTN晶振,相干光学应用晶振.

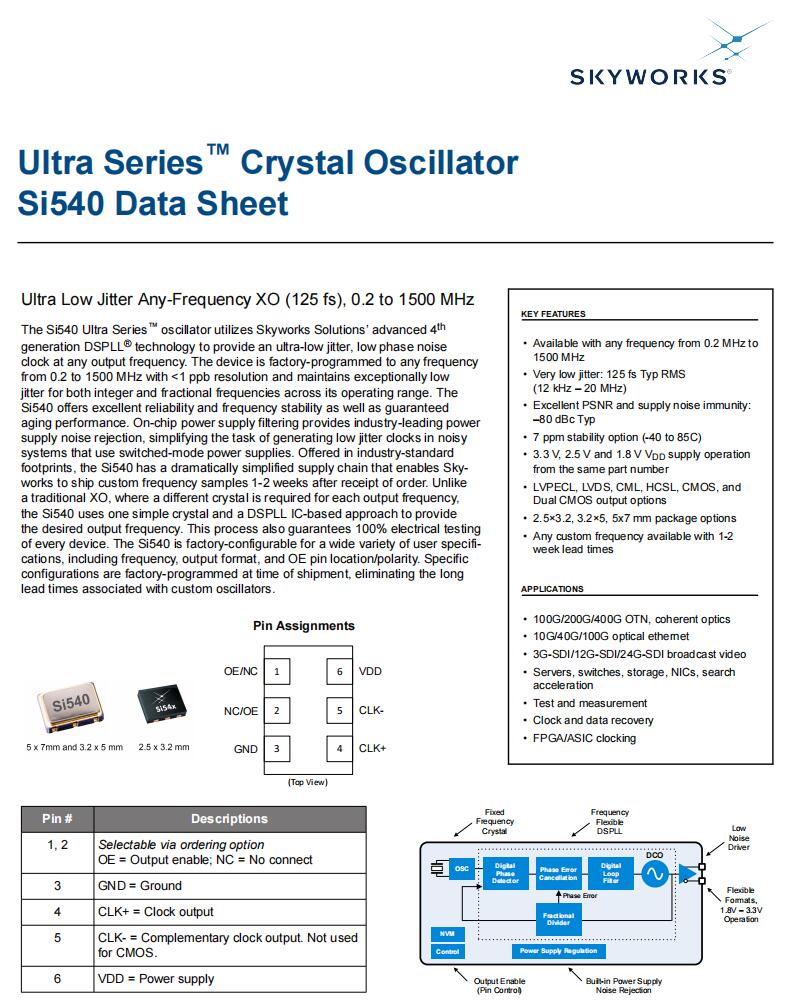

思佳讯振荡器,540BAA125M000BBG,125M差分晶振,6G存储器晶振特点
•可与任何频率从0.2 MHz到1500MHz
•极低的抖动:125 fs类型有效值(12 kHz - 20 MHz)
•出色的PSNR和电源抗噪性:- 80dbc类型
•7 ppm稳定性选项(-40至85℃)
•3.3 V, 2.5 V和1.8 V VDD供电操作来自相同的零件号
•LVPECL, LVDS, CML, HCSL, CMOS和双CMOS输出选项
•2.5×3.2, 3.2×5, 5x7mm包装选项
•任何定制频率，交货期1-2周
思佳讯振荡器,540BAA125M000BBG,125M差分晶振,6G存储器晶振规格表
项目
符号
规格说明
条件
额定频率
f_nom
125MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
3.3V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±20 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
111mA Max
LVDS
对称性（占空比）
SYM
45%~55%
在输出交叉点
输出电压
VOC
1.275V Max
LVDS
VO
0.9Vpp Max
输入电压
VIH
0.7×VDD Min
VIL
0.3×VDD Max
上升下降时间
tr/tf
350ps Max
LVDS
起始时间
t str
10ms Max
相位抖动
tpj
200fs Max
Differential Formats

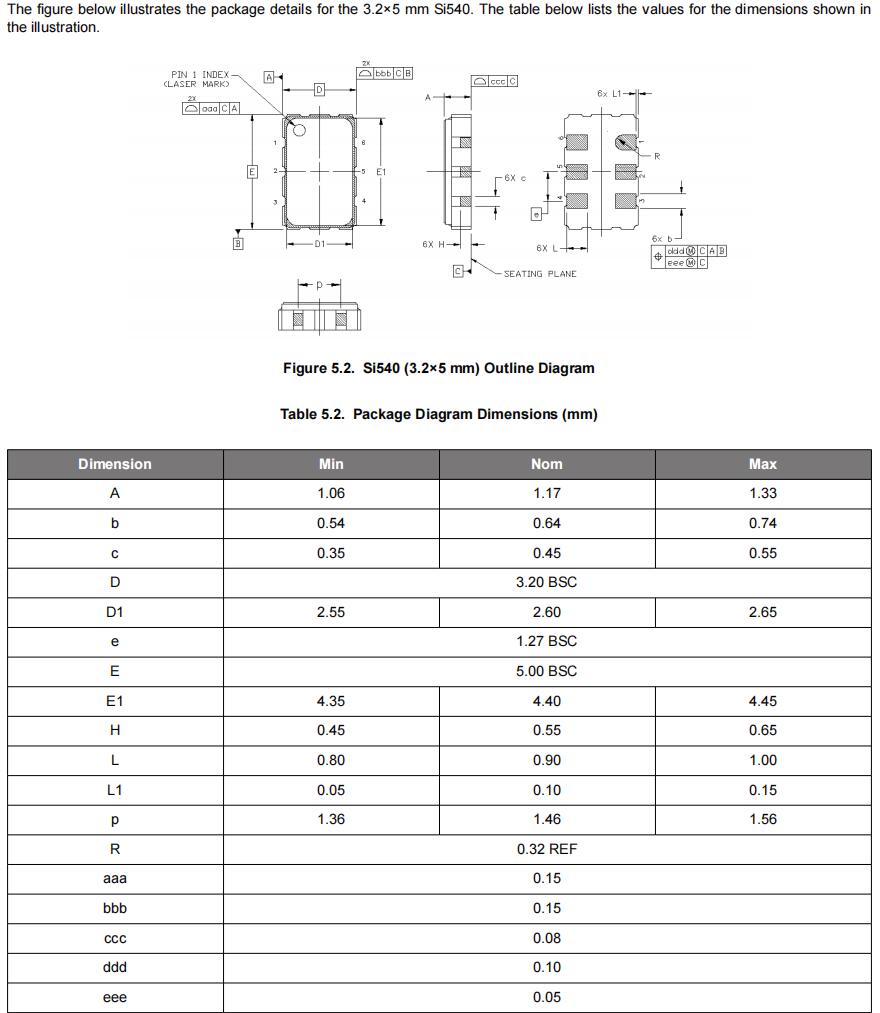

思佳讯振荡器,540BAA125M000BBG,125M差分晶振,6G存储器晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| 540BAA000274BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 322.265625 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA100M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA156M250BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA125M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA100M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA122M880BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000244BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.351648 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BCA000127BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 644.53125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAA100M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA100M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA10M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA114M285BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 114.285 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA122M880BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA125M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA24M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 24 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA25M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA48M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 48 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA50M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAC100M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAC70M6560BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA106M250BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA10M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA125M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA125M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA38M400BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 38.4 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA70M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA70M6560BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA80M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA96M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 96 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAC116M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 116 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAC70M6560BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA100M000ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA100M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA100M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA27M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA122M880BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA50M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA125M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA10M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA122M880BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA106M250BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA80M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA27M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BBA125M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA100M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABC121M109ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 121.109 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABA25M0000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABA25M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA100M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABC25M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA125M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABA74M1758ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 74.1758 MHz | LVPECL | 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABA78M1758ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 78.1758 MHz | LVPECL | 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA33M3330BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 33.333 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA100M000ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA100M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA125M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540EBC27M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA100M000ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA100M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA125M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540EBC27M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540EAA103M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 103 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA100M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ACA74M2500BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 74.25 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540HAA100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA100M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA70M6560BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA125M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA106M250BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 106.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA100M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000169BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 19.53125 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAB20M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BCA25M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540EAA100M000ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA100M000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA100M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA27M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA50M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA27M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA106M250BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA10M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA80M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA70M6560BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA100M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA125M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA100M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA100M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA100M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA106M250BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 106.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000169BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 19.53125 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BCA25M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAB20M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA103M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 103 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA100M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA100M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ACA74M2500BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 74.25 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540HAA100M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA122M880BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA125M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA10M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA114M285BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 114.285 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA24M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 24 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA25M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA48M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 48 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA50M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAC100M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAC70M6560BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA106M250BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA10M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA38M400BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 38.4 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA70M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA70M6560BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA96M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 96 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAC116M000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 116 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAC70M6560BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BCA74M2500CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 74.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA70M6560BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA100M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA70M0000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA20M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA122M880ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA125M000ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA20M0000ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA20M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA122M880ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ECA100M000ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA52M0000ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 52 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 540BBA100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA125M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABA25M0000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABA25M0000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABC121M109ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 121.109 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA125M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA100M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABC25M0000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABA78M1758ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 78.1758 MHz | LVPECL | 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABA74M1758ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 74.1758 MHz | LVPECL | 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA33M3330BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 33.333 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BCA52M0000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 52 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA50M0000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCD20M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA100M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA25M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCC25M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA100M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA26M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 26 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA10M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ECA100M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCC25M0000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCB100M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA25M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA100M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA122M880ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA125M000ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA20M0000ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA20M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA122M880ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ECA100M000ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA52M0000ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 52 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 540AAA156M25ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ABA156M250ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ACA000218ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 125.003125 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA122M880ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BBA250M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 250 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BAA270M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 270 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ACA156M250ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540AAA1000M00ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 1 GHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA25M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BCA52M0000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 52 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA50M0000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCD20M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCC25M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA25M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA70M6560BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA100M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA10M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA100M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA70M0000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 70 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCB100M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA74M2500CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 74.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA26M0000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 26 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA25M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA100M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCC25M0000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA20M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVPECL | 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ECA100M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAA250M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 250 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ACA122M880ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA125M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ECA100M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAC622M080ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 622.08 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BBA775M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 775 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BAC156M250ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ACA000305ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.2578 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BBA100M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ACA20M0000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BCA156M250ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACC125M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540AAC100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000274BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 322.265625 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAC100M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA125M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000110BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35165 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ABA156M250ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA100M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BCA122M880ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAA400M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 400 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA27M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA128M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 128 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ACA156M250ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAB240M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 240 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000274BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 322.265625 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA122M880BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA50M0000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA150M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 150 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000110BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35165 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EAA27M0000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BBA250M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 250 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BAA80M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 80 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA38M400BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 38.4 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAC622M080ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 622.08 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA830M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 830 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA830M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 830 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BCA156M250ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540AAA200M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 200 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA150M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 150 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EBC27M0000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BAC70M6560BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ACA000305ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.2578 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAC156M250ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA270M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 270 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000278ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.253906 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000185BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 161.132812 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000274BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 322.265625 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA156M250BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA156M250ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA148M352BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.352 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000244BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.351648 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA156M250ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA148M500BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.5 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA135M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 135 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA200M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000244BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.351648 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA156M250BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA156M250CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA333M330CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 333.33 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA333M330ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 333.33 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA297M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 297 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA208M125ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 208.125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA156M250CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BCA150M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 150 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540EAA156M250CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BCA148M351CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.351 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BBA000278CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.253906 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BAA296M703BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 296.703 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BBA133M250ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 133.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540AAA000274BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 148 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA148M500BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000274BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 322.265625 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA200M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 200 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA150M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 150 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000278ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.253906 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000278BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.253906 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000351BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 195.3125 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA156M250ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA156M25ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000110BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35165 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000185BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 161.132812 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000351BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 195.3125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA128M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 128 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA148M350BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA148M350BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA148M352BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA153M600BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 153.6 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA184M320BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 184.32 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA270M000ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 270 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA312M500BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 312.5 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAB240M000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 240 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAC156M250ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000278BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.253906 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAB240M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 240 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000110BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35165 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA135M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 135 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA156M250ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 540BAA250M000ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 250 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 540AAA000278BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.253906 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA200M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 200 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA10M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ACA000127BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 644.53125 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ABA000218BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125.003125 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BAA148M350BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EBA156M250BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | HCSL | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BAA148M350BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA270M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 270 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA125M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA10M0000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ACA20M0000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAA80M0000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 80 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA128M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 128 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAB240M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 240 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EBC27M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BAC70M6560BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ECA100M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAA122M880BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA150M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 150 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA156M250ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 540BAA250M000ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 250 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 540ACA122M880ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BBA775M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 775 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ACA000218ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125.003125 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA20M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540ACA20M0000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAA400M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 400 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540EBA156M250BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | HCSL | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 540AAA000278BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.253906 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA122M880BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ACA125M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAA38M400BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 38.4 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ACA622M080BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 622.08 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 540BAA250M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 250 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA50M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA122M880BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA156M25ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000244BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.351648 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000274BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 322.265625 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000278ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.253906 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000278BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.253906 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000351BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 195.3125 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA148M500BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.5 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA150M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 150 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA155M520BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 155.52 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA156M250ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA156M250BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA156M250BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA156M25ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA200M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 200 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000110BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35165 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000185BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 161.132812 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000244BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.351648 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000274BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 322.265625 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000274BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 322.265625 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000351BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 195.3125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA128M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 128 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA135M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 135 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA148M350BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA148M350BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA148M352BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA150M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 150 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA153M600BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 153.6 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA155M520BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 155.52 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA184M320BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 184.32 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA200M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 200 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA270M000ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 270 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA270M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 270 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA312M500BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 312.5 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAB240M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 240 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAC156M250ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000278BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.253906 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000274BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 322.265625 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAB240M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 240 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA200M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 200 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA200M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 200 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA156M250BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000244BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.351648 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000110BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.35165 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA000244BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.351648 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA135M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 135 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA148M500BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000244BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.351648 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA148M500BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA156M250BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA200M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 200 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540ABA000218BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125.003125 MHz | LVPECL | 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABA156M250ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540ABA156M250BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BBA156M250BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 540BAA70M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAC116M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 116 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA70M6560BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA155M520BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 155.52 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA48M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 48 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000351BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 195.3125 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAC70M6560BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA70M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA150M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 150 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA184M320BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 184.32 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA24M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 24 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA148M500BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 148.5 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAC70M6560BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA48M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 48 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAC116M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 116 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA000351BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 195.3125 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA10M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540AAA25M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 540BAA155M520BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 155.52 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
联系方式/CONTACT US
服务热线：0755-27872782 13824306246
贸易通：泰河科技
在线客服：794113422 泰河微信号：taiheth794113422 公众号：taihekj
泰河邮箱：taiheth@163.com
泰河地址：广东深圳市宝安区40区33号工业城6楼
跟此产品相关的产品 / Related Products
- 501HCAM032768BAF,32.768kHz,5032mm,Si501,Silicon通用处理器晶振
- 501HCAM032768BAF,32.768kHz,5032mm,Si501,Silicon通用处理器晶振，美国进口晶振，Silicon晶振，型号：Si501系列晶振，编码为：501HCAM032768BAF，频率：32.768KHz，电压：1.7V-3.6V，频率稳定性：±20ppm，工作温度范围：-20℃至+70℃，小体积晶振尺寸：5.0x3.2mm封装，四脚贴片晶振，有源晶振，石英晶体振荡器。具有超小型，轻薄型，高精度，高性能，高品质等特点。应用程序：通用处理器，工业控制器，嵌入式控制器，机控制，流量控制，办公室/家庭自动化，IP摄像头/监控，显示和控制面板，户外电子设备，多功能打印机等。
- CWX825-15.36M,7050mm,ConnorWinfield导航仪晶振
- CWX825-15.36M,7050mm,ConnorWinfield导航仪晶振，美国ConnorWinfield晶振，康纳温菲尔德晶振，型号：CWX8xx系列，编码为：CWX825-15.36M石英晶振，频率为：15.36MHz，频率稳定性：±50ppm，电压5.0V，工作温度范围：-20℃至+70℃，是一款小体积晶振尺寸：7.0x5.0mm四脚贴片晶振，CMOS输出晶振，有源晶振，石英晶体振荡器(XO)。为使用而设计在要求严格频率的应用中稳定性和低抖动，表面贴装CMOS时钟晶体振荡器系列，封装设计用于高密度安装，应用于：通讯设备晶振，无线网络晶振，北斗导航晶振，GPS定位系统，导航仪，医疗设备，物联网等应用。
- DSC1018DI1-048.0000T,48MHz,2520mm,Microchip晶体振荡器
- DSC1018DI1-048.0000T,48MHz,2520mm,Microchip晶体振荡器，美国进口晶振，Microchip晶振，型号：DSC1018，编码为：DSC1018DI1-048.0000T，频率为：48.000MHz，电压：1.8V，工作温度范围：-40℃至+85℃，频率稳定性：±50ppm，小体积晶振尺寸：2.5x2.0mm，四脚贴片晶振，石英晶振，晶体振荡器。DSC1018是一个1.8V固定频率MEMS基于纯硅™振荡器。它可以被工厂编程到从1到150MHz的任何频率。DSC1018包含了一个全硅谐振器，它非常坚固，几乎不受应力相关裂缝的影响，这是晶体振荡器常见的。在不牺牲当今系统所需的性能和稳定性的情况下，无晶体设计允许更高水平的可靠性，DSC1018非常适合坚固、工业和便携式应用，其中应力、冲击和振动可能会损害基于石英晶体的系统。应用程序：移动应用，消费电子产品，便携式电子设备，VTR摄像机的CCD时钟，低配置文件应用，工业用等。
泰河盛产品中心
Product Center
石英晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康纳温菲尔德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 维管晶振
- ECScrystal晶振
- 日蚀晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- ILSI晶振
- FOX晶振
- Fujicom晶振
- AEK晶振
- CRYSTEK晶振
- Interquip晶振
- Geyer晶振
- Quartzcom晶振
- qantek晶振
- EUROQUARTZ晶振
- Quarztechnik晶振
- Cardinal晶振
- FRE-TECH晶振
- KVG晶振
- Wi2wi晶振
- AEL晶振
- Transko晶振
- Suntsu晶振
- Mmdcomp晶振
- MERCURY晶振
- MTRONPTI晶振
- ACT晶振
- MTI-MILLIREN晶振
- LIHOM晶振
- CTECH晶振
- rubyquartz晶振
- OSCILENT晶振
- NAKA晶振
- Shinsung晶振
- ITTI晶振
- SMI晶振
- PDI晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- Filtronetics晶振
- Standard晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- AXTAL晶振
- ARGO晶振
- Renesas瑞萨晶振
谐振器
滤波器
雾化片
SMD晶振
有源晶振
KDS晶振
爱普生晶振
- 爱普生32.768K晶体
- 爱普生 OSC晶振
- 爱普生 OCXO晶振
- 爱普生 VCXO晶振
- 爱普生 TCXO晶振
- 爱普生无源晶振
- 爱普生 CMOS晶振
- 爱普生 LV-PECL晶振
- 爱普生 LVDS晶振
- 爱普生 HCSL晶振
- 爱普生 VC-TCXO晶振
京瓷晶振
32.768K
联系泰河电子
咨询热线：
快速通道
