思佳讯有源晶振,LVDS晶振,591BF004706DG,6G路由器晶振
频率：148.163548MHZ
尺寸：5.0mm x 3.2mm
思佳讯有源晶振,LVDS晶振,591BF004706DG,6G路由器晶振,欧美进口晶振,Skyworks晶体,思佳讯有源晶振,Si591差分晶振,591BF004706DG晶振,石英晶体振荡器,5032mm晶振,SMD晶体,LVDS晶振,频率148.163548MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,高稳定性晶振,低抖动晶振,低相噪晶振,6G路由器晶振,无线网络晶振,FPGA/ASIC时钟生成晶振,测试与测量仪器晶振.
咨询热线：0755-27872782
思佳讯有源晶振,LVDS晶振,591BF004706DG,6G路由器晶振,欧美进口晶振,Skyworks晶体,思佳讯有源晶振,Si591差分晶振,591BF004706DG晶振,石英晶体振荡器,5032mm晶振,SMD晶体,LVDS晶振,频率148.163548MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,高稳定性晶振,低抖动晶振,低相噪晶振,6G路由器晶振,无线网络晶振,FPGA/ASIC时钟生成晶振,测试与测量仪器晶振.
思佳讯有源晶振,LVDS晶振,591BF004706DG,6G路由器晶振特点
•可与任意速率输出频率从10MHz到810MHz
•第三代DSPLL®具有卓越的抖动性能：最大抖动1ps
•频率稳定性优于SAW-based振荡器
•内部基模晶体保证高可靠性
•可用CMOS, LVPECL，LVDS和CML输出
•3.3, 2.5 V和1.8V电源选项
•行业标准的5 × 7mm和3.2×2.5mm封装
•无铅，符合RoHS标准
•工作温度范围-40至+85ºC
思佳讯有源晶振,LVDS晶振,591BF004706DG,6G路由器晶振规格表
项目
符号
规格说明
条件
额定频率
f_nom
148.163548MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
3.3V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±25 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
100mA Max
LVDS
对称性（占空比）
SYM
45%~55%
在输出交叉点
输出电压
VOD
0.9VPP Max
LVDS
VO
1.275V Max
输入电压
VIH
0.75%×VDD Min
VIL
0.5V Max
上升下降时间
tr/tf
350ps Max
LVDS
起始时间
t str
10ms Max
相位抖动
tpj
1.0ps Max
LVDS

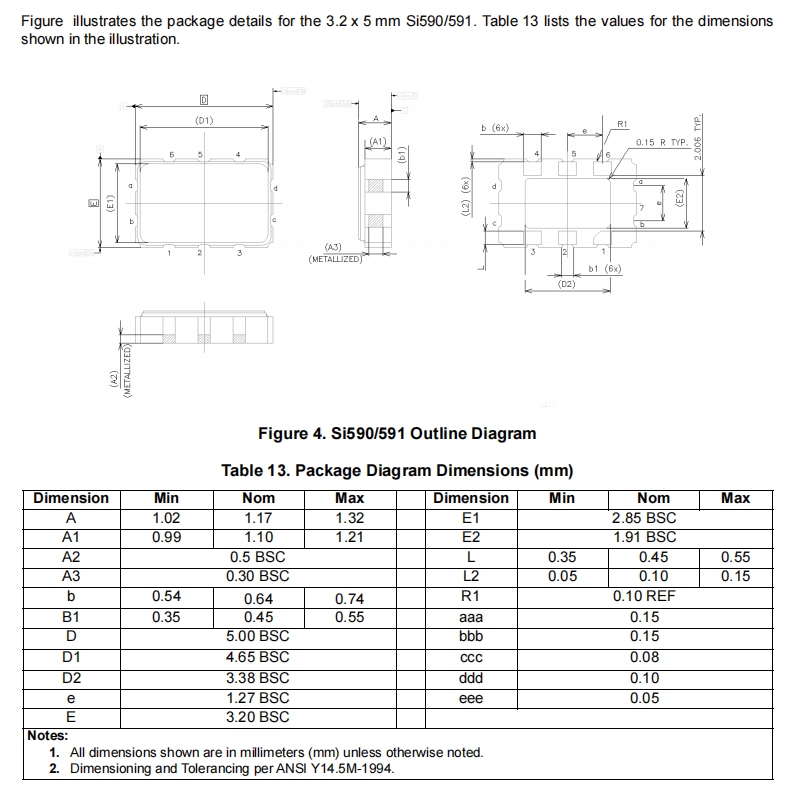

思佳讯有源晶振,LVDS晶振,591BF004706DG,6G路由器晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| 591BB100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB300M000DG | Skyworks Solutions Inc. | Si591 | 300 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BA120M000DG | Skyworks Solutions Inc. | Si591 | 120 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA120M000DGR | Skyworks Solutions Inc. | Si591 | 120 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AB100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB106M250DGR | Skyworks Solutions Inc. | Si591 | 106.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB108M000DGR | Skyworks Solutions Inc. | Si591 | 108 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB114M285DGR | Skyworks Solutions Inc. | Si591 | 114.285 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB74M2500DGR | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB80M0000DGR | Skyworks Solutions Inc. | Si591 | 80 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB92M4000DGR | Skyworks Solutions Inc. | Si591 | 92.4 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591EB125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591EB20M0000DGR | Skyworks Solutions Inc. | Si591 | 20 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB100M300DGR | Skyworks Solutions Inc. | Si591 | 100.3 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB40M0000DGR | Skyworks Solutions Inc. | Si591 | 40 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB72M0000DGR | Skyworks Solutions Inc. | Si591 | 72 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB80M0000DGR | Skyworks Solutions Inc. | Si591 | 80 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB81M0000DGR | Skyworks Solutions Inc. | Si591 | 81 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB85M0000DGR | Skyworks Solutions Inc. | Si591 | 85 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591MB10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591SB125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591BF25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AA106M250DG | Skyworks Solutions Inc. | Si591 | 106.25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA125M000DG | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA25M0000DG | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA64M1520DG | Skyworks Solutions Inc. | Si591 | 64.152 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA116M625DG | Skyworks Solutions Inc. | Si591 | 116.625 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA31M0025DG | Skyworks Solutions Inc. | Si591 | 31.0025 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA31M2500DG | Skyworks Solutions Inc. | Si591 | 31.25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA83M3360DG | Skyworks Solutions Inc. | Si591 | 83.336 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BD50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591FD50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 591FD50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 591AA100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA106M250DGR | Skyworks Solutions Inc. | Si591 | 106.25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA64M1520DGR | Skyworks Solutions Inc. | Si591 | 64.152 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA116M625DGR | Skyworks Solutions Inc. | Si591 | 116.625 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA31M0025DGR | Skyworks Solutions Inc. | Si591 | 31.0025 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA31M2500DGR | Skyworks Solutions Inc. | Si591 | 31.25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA83M3360DGR | Skyworks Solutions Inc. | Si591 | 83.336 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BD50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591FG150M000DGR | Skyworks Solutions Inc. | Si591 | 150 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FG200M000DGR | Skyworks Solutions Inc. | Si591 | 200 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EG200M000DGR | Skyworks Solutions Inc. | Si591 | 200 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AG156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG135M000DGR | Skyworks Solutions Inc. | Si591 | 135 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC000274DG | Skyworks Solutions Inc. | Si591 | 274 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC000274DG | Skyworks Solutions Inc. | Si591 | 274 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591FC300M000DG | Skyworks Solutions Inc. | Si591 | 300 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC000106DGR | Skyworks Solutions Inc. | Si591 | 106 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC000211DGR | Skyworks Solutions Inc. | Si591 | 211 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC143M360DGR | Skyworks Solutions Inc. | Si591 | 143.36 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC150M000DGR | Skyworks Solutions Inc. | Si591 | 150 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC155M520DGR | Skyworks Solutions Inc. | Si591 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AD25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591AD62M5000DGR | Skyworks Solutions Inc. | Si591 | 62.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591AD74M1758DGR | Skyworks Solutions Inc. | Si591 | 74.1758 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591AD74M2500DGR | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BC000244DGR | Skyworks Solutions Inc. | Si591 | 244 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC148M500DGR | Skyworks Solutions Inc. | Si591 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC166M000DGR | Skyworks Solutions Inc. | Si591 | 166 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC200M000DGR | Skyworks Solutions Inc. | Si591 | 200 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BD100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD122M880DGR | Skyworks Solutions Inc. | Si591 | 122.88 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD20M0000DGR | Skyworks Solutions Inc. | Si591 | 20 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD66M6670DGR | Skyworks Solutions Inc. | Si591 | 66.667 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD74M2500DGR | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD81M9200DGR | Skyworks Solutions Inc. | Si591 | 81.92 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591EC133M333DGR | Skyworks Solutions Inc. | Si591 | 133.333 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC148M500DGR | Skyworks Solutions Inc. | Si591 | 148.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC148M550DGR | Skyworks Solutions Inc. | Si591 | 148.55 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC155M520DGR | Skyworks Solutions Inc. | Si591 | 155.52 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC148M500DGR | Skyworks Solutions Inc. | Si591 | 148.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC150M000DGR | Skyworks Solutions Inc. | Si591 | 150 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC200M000DGR | Skyworks Solutions Inc. | Si591 | 200 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FD114M285DGR | Skyworks Solutions Inc. | Si591 | 114.285 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 591MC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591MD53M1250DGR | Skyworks Solutions Inc. | Si591 | 53.125 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591MD62M5000DGR | Skyworks Solutions Inc. | Si591 | 62.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591NC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591RC160M000DGR | Skyworks Solutions Inc. | Si591 | 160 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC000278DGR | Skyworks Solutions Inc. | Si591 | 156.253906 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591FD125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 591BD72M0000DGR | Skyworks Solutions Inc. | Si591 | 72 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD48M0000DGR | Skyworks Solutions Inc. | Si591 | 48 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591FG156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC125M000DG | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC30M7200DG | Skyworks Solutions Inc. | Si591 | 30.72 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC99M9925DG | Skyworks Solutions Inc. | Si591 | 99.9925 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591MC100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591SC75M0000DG | Skyworks Solutions Inc. | Si591 | 75 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC28M9000DG | Skyworks Solutions Inc. | Si591 | 28.9 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC10M0000DG | Skyworks Solutions Inc. | Si591 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC85M0000DG | Skyworks Solutions Inc. | Si591 | 85 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC10M0000DG | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG10M0000DG | Skyworks Solutions Inc. | Si591 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC20M7120DG | Skyworks Solutions Inc. | Si591 | 20.712 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG70M6560DG | Skyworks Solutions Inc. | Si591 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG80M0000DG | Skyworks Solutions Inc. | Si591 | 80 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG20M0000DG | Skyworks Solutions Inc. | Si591 | 20 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG81M0000DG | Skyworks Solutions Inc. | Si591 | 81 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG10M0000DG | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC000274DGR | Skyworks Solutions Inc. | Si591 | 274 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC000274DGR | Skyworks Solutions Inc. | Si591 | 274 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591FC300M000DGR | Skyworks Solutions Inc. | Si591 | 300 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC121M109DG | Skyworks Solutions Inc. | Si591 | 121.109 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC125M000DG | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC55M5555DG | Skyworks Solutions Inc. | Si591 | 55.5555 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC62M5000DG | Skyworks Solutions Inc. | Si591 | 62.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC74M2500DG | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC75M0000DG | Skyworks Solutions Inc. | Si591 | 75 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC125M000DG | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC69M0000DG | Skyworks Solutions Inc. | Si591 | 69 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC70M0000DG | Skyworks Solutions Inc. | Si591 | 70 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC74M2500DG | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591EC100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC125M000DG | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC25M0000DG | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC30M7200DG | Skyworks Solutions Inc. | Si591 | 30.72 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC106M250DG | Skyworks Solutions Inc. | Si591 | 106.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC121M109DGR | Skyworks Solutions Inc. | Si591 | 121.109 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC55M5555DGR | Skyworks Solutions Inc. | Si591 | 55.5555 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC62M5000DGR | Skyworks Solutions Inc. | Si591 | 62.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC74M2500DGR | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC75M0000DGR | Skyworks Solutions Inc. | Si591 | 75 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC69M0000DGR | Skyworks Solutions Inc. | Si591 | 69 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC70M0000DGR | Skyworks Solutions Inc. | Si591 | 70 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC74M2500DGR | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591EC100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC30M7200DGR | Skyworks Solutions Inc. | Si591 | 30.72 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC106M250DGR | Skyworks Solutions Inc. | Si591 | 106.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC30M7200DGR | Skyworks Solutions Inc. | Si591 | 30.72 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC99M9925DGR | Skyworks Solutions Inc. | Si591 | 99.9925 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591MC100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591SC75M0000DGR | Skyworks Solutions Inc. | Si591 | 75 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC28M9000DGR | Skyworks Solutions Inc. | Si591 | 28.9 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC85M0000DGR | Skyworks Solutions Inc. | Si591 | 85 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG80M0000DGR | Skyworks Solutions Inc. | Si591 | 80 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG20M0000DGR | Skyworks Solutions Inc. | Si591 | 20 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG81M0000DGR | Skyworks Solutions Inc. | Si591 | 81 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC20M7120DGR | Skyworks Solutions Inc. | Si591 | 20.712 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG70M6560DGR | Skyworks Solutions Inc. | Si591 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AB000172DG | Skyworks Solutions Inc. | Si591 | 172 kHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB000174DG | Skyworks Solutions Inc. | Si591 | 174 kHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB150M000DG | Skyworks Solutions Inc. | Si591 | 150 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB155M520DG | Skyworks Solutions Inc. | Si591 | 155.52 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB161M132DG | Skyworks Solutions Inc. | Si591 | 161.132 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB172M500DG | Skyworks Solutions Inc. | Si591 | 172.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB187M500DG | Skyworks Solutions Inc. | Si591 | 187.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB000292DG | Skyworks Solutions Inc. | Si591 | 292 kHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB133M333DG | Skyworks Solutions Inc. | Si591 | 133.333 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB135M000DG | Skyworks Solutions Inc. | Si591 | 135 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB148M350DG | Skyworks Solutions Inc. | Si591 | 148.35 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB148M500DG | Skyworks Solutions Inc. | Si591 | 148.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB155M520DG | Skyworks Solutions Inc. | Si591 | 155.52 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB156M250DG | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB161M132DG | Skyworks Solutions Inc. | Si591 | 161.132 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB162M000DG | Skyworks Solutions Inc. | Si591 | 162 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB200M000DG | Skyworks Solutions Inc. | Si591 | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
联系方式/CONTACT US
服务热线：0755-27872782 13824306246
贸易通：泰河科技
在线客服：794113422 泰河微信号：taiheth794113422 公众号：taihekj
泰河邮箱：taiheth@163.com
泰河地址：广东深圳市宝安区40区33号工业城6楼
跟此产品相关的产品 / Related Products
- ABLNO-100.000MHZ,ABLNO石英贴片晶振,军用通信晶振
- ABLNO-100.000MHZ,ABLNO石英贴片晶振,军用通信晶振,兼具高频性能,高可靠性与高适配性,是军用通信领域频率控制的优选方案.其100.000MHz高频输出可直接匹配军用通信设备的高频信号处理需求,无需额外频率转换电路,简化设备设计流程,贴片工艺与军用级环境耐受性的结合,既满足军用装备的集成化与机动性要求,又保障极端环境下的稳定运行,加上Abracon符合军用标准的生产管控与质量检测体系,产品可通过国军标(GJB)等相关认证,在军用通信,低相噪振荡器,航空航天,国防电子等领域树立了"高可靠,强适应"的高品质晶振形象,为国防电子设备的稳定运行提供核心技术保障.
- ABLJO-100.000MHZ-T2,3.3V有源晶振,Abracon艾博康晶振
- ABLJO-100.000MHZ-T2,3.3V有源晶振,Abracon艾博康晶振,以3.3V为标准供电电压,Abracon通信晶振在电路适配与能耗控制上具备显著优势.3.3V供电兼容当前主流电子设备的低压电路架构,可与FPGA,MCU,射频芯片等常用元器件无缝对接,无需额外电压转换模块,降低硬件设计复杂度与成本,同时,低压供电特性有效减少设备整体功耗,尤其适配电池供电的便携式设备(如高端智能穿戴,手持检测仪器)及对能耗敏感的服务器,通信基站等设备,在保障高频性能的同时,助力设备实现节能降耗目标.
- ABDFVCTCXO-10.000MHZ-E-2-CT,压控温补晶振,LVCMOS晶振
- ABDFVCTCXO-10.000MHZ-E-2-CT,压控温补晶振,LVCMOS晶振,凭借压控温补双重特性与LVCMOS信号优势,该晶振适配场景广泛.在无线通信领域,可用于基站,路由器,卫星通信设备,通过压控功能实现频率同步,温补功能保障不同环境温度下通信信号稳定,在物联网应用晶振终端设备中,低功耗的LVCMOS信号与精准的频率控制,能满足设备长期联网与数据传输的时钟需求,在工业自动化领域,可应用于PLC(可编程逻辑控制器),工业传感器,抵御工业环境温度波动与电磁干扰,确保设备精准运行,此外,还适配医疗电子设备,汽车电子(如车载导航,ADAS系统)等领域,为各类高精度电子系统提供可靠时钟支撑.
泰河盛产品中心
Product Center
石英晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康纳温菲尔德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 维管晶振
- ECScrystal晶振
- 日蚀晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- ILSI晶振
- FOX晶振
- Fujicom晶振
- AEK晶振
- CRYSTEK晶振
- Interquip晶振
- Geyer晶振
- Quartzcom晶振
- qantek晶振
- EUROQUARTZ晶振
- Quarztechnik晶振
- Cardinal晶振
- FRE-TECH晶振
- KVG晶振
- Wi2wi晶振
- AEL晶振
- Transko晶振
- Suntsu晶振
- Mmdcomp晶振
- MERCURY晶振
- MTRONPTI晶振
- ACT晶振
- MTI-MILLIREN晶振
- LIHOM晶振
- CTECH晶振
- rubyquartz晶振
- OSCILENT晶振
- NAKA晶振
- Shinsung晶振
- ITTI晶振
- SMI晶振
- PDI晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- Filtronetics晶振
- Standard晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- AXTAL晶振
- ARGO晶振
- Renesas瑞萨晶振
谐振器
滤波器
雾化片
SMD晶振
有源晶振
KDS晶振
爱普生晶振
- 爱普生32.768K晶体
- 爱普生 OSC晶振
- 爱普生 OCXO晶振
- 爱普生 VCXO晶振
- 爱普生 TCXO晶振
- 爱普生无源晶振
- 爱普生 CMOS晶振
- 爱普生 LV-PECL晶振
- 爱普生 LVDS晶振
- 爱普生 HCSL晶振
- 爱普生 VC-TCXO晶振
京瓷晶振
32.768K
联系泰河电子
咨询热线：
快速通道
