Skyworks晶振,530FC200M000DG,LVDS输出晶振,6G以太网晶振
prevnext

Skyworks晶振,530FC200M000DG,LVDS输出晶振,6G以太网晶振

频率：200MHz

尺寸：7.0×5.0mm

Skyworks晶振,530FC200M000DG,LVDS输出晶振,6G以太网晶振,Skyworks晶振,Si530进口晶振,石英晶体振荡器,是工厂可配置的适用于多种用户规格,包括频率,电源电压,输出格式,温度稳定.特定的配置是工厂在出货时编程,从而消除了与定制振荡器相关的长交货时间.低抖动晶振,无铅环保晶振,530FC200M000DG晶振,5 × 7mm封装晶振,LVDS输出晶振,6G以太网晶振,时钟和数据恢复晶振.
咨询热线：0755-27872782
QQ咨询 财付通

TH-1 890

Skyworks晶振,530FC200M000DG,LVDS输出晶振,6G以太网晶振,Skyworks晶振,Si530进口晶振,石英晶体振荡器,是工厂可配置的适用于多种用户规格,包括频率,电源电压,输出格式,温度稳定.特定的配置是工厂在出货时编程,从而消除了与定制振荡器相关的长交货时间.低抖动晶振,高稳定性晶振,530FC200M000DG晶振,5 × 7mm封装晶振,LVDS输出晶振,6G以太网晶振,时钟和数据恢复晶振.

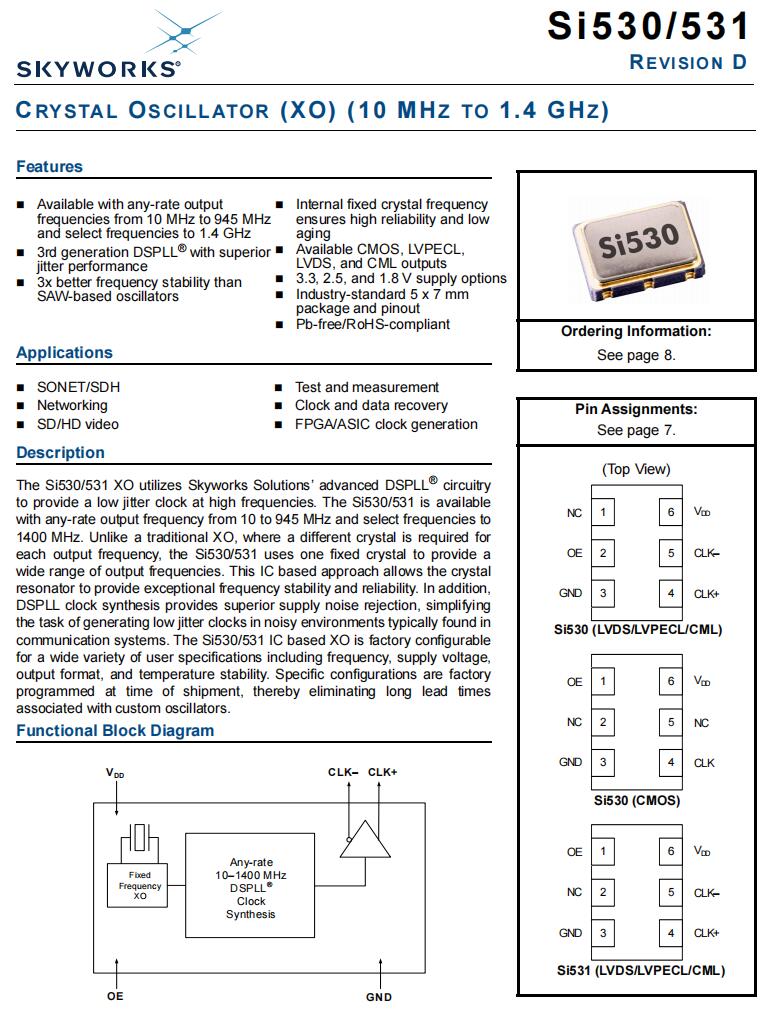

Skyworks晶振,530FC200M000DG,LVDS输出晶振,6G以太网晶振特点

•可与任意速率输出频率从10MHz到945MHz和选择频率到1.4 GHz

•第三代DSPLL®具有优越的抖动性能

•频率稳定性优于SAW-based振荡器

•内部固定晶频，可靠性高，老化低

•具备CMOS, LVPECL，LVDS和CML输出

•3.3, 2.5和1.8 V电源选项

•行业标准的5 × 7mm封装和引脚

•无铅，符合RoHS标准

TH-2 890

Skyworks晶振,530FC200M000DG,LVDS输出晶振,6G以太网晶振规格表

项目 符号 规格说明 条件
额定频率 f_nom 200MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 2.5V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use -40℃~ +85℃
频率稳定性 f_tol ±7 ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流 IDD 98mA Max
LVDS
对称性（占空比） SYM 45%~55% 在输出交叉点
输出电压 VOD 0.9VPP Max
LVDS
VO 1.275V Max
输入电压 VIH 0.75%×VDD Min

VIL 0.5V Max
上升下降时间 tr/tf 350ps Max
LVDS
起始时间 t str 10ms Max
相位抖动 tpj 0.50ps Max
LVDS

TH-3 890

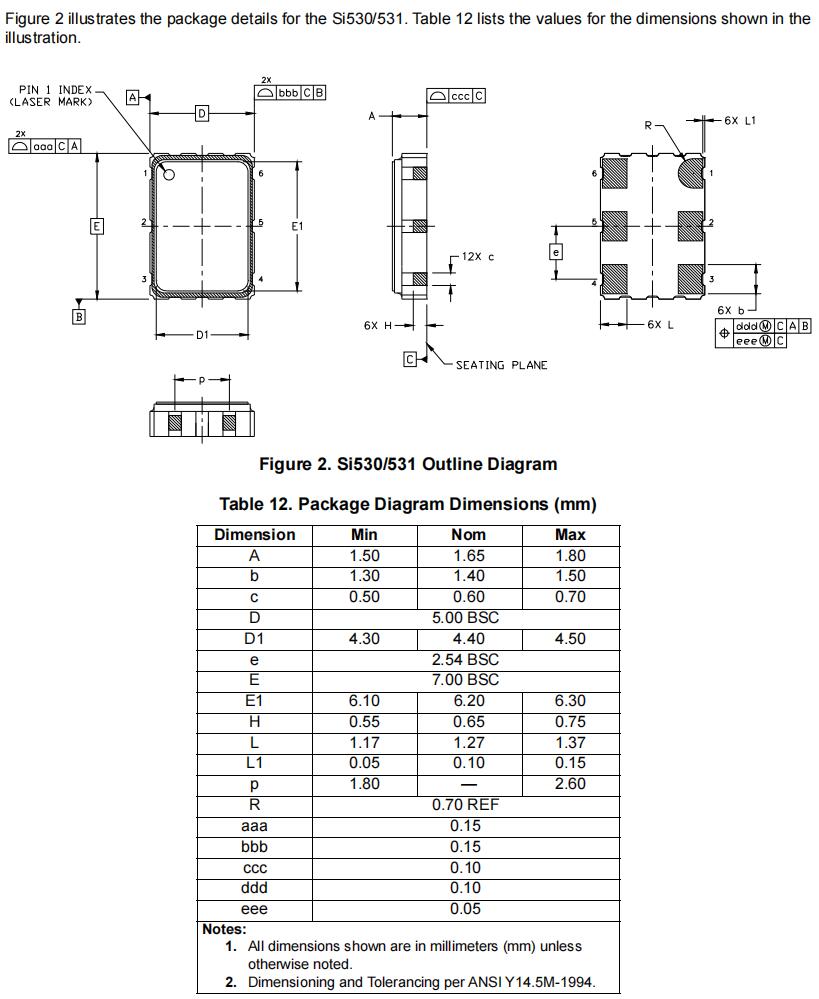

Skyworks晶振,530FC200M000DG,LVDS输出晶振,6G以太网晶振尺寸图

Si530-31-2

Si530-31

si530-31-1

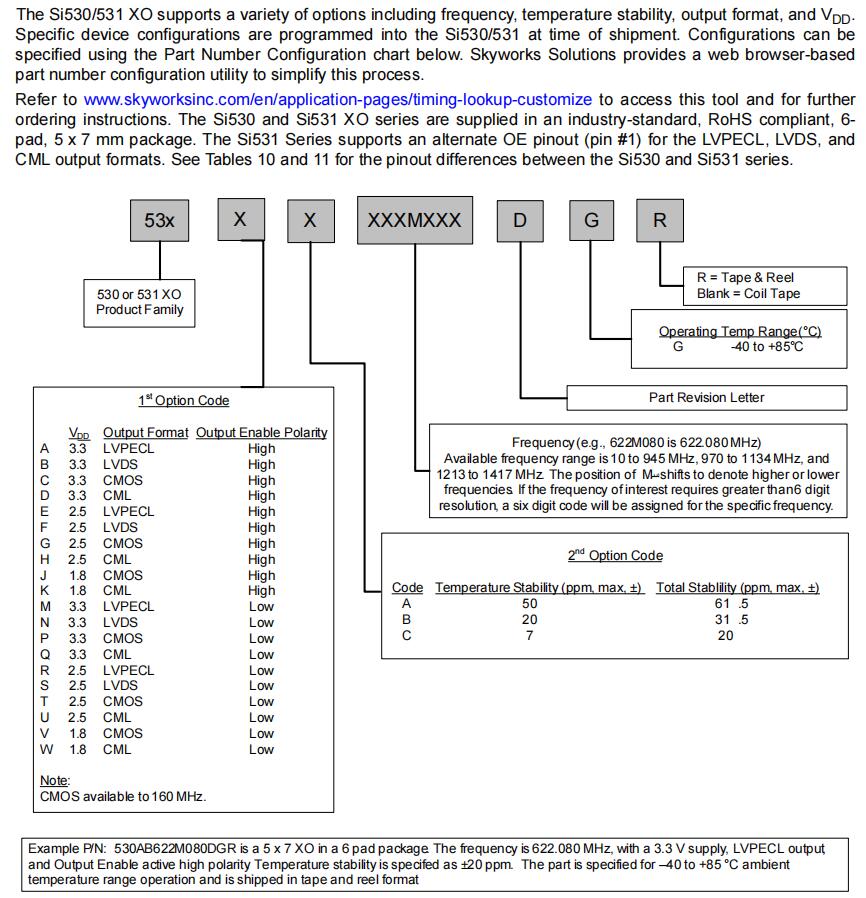

原厂编码 品牌 型号 频率 输出 电压 频率稳定性 工作温度
530BB125M000DG Skyworks Solutions Inc. Si530 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530BA125M000DG Skyworks Solutions Inc. Si530 125 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530FC200M000DG Skyworks Solutions Inc. Si530 200 MHz LVDS 2.5V ±7ppm -40°C ~ 85°C
530EC125M000DG Skyworks Solutions Inc. Si530 125 MHz LVPECL 2.5V ±7ppm -40°C ~ 85°C
530BC100M000DG Skyworks Solutions Inc. Si530 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530AC622M080DGR Skyworks Solutions Inc. Si530 622.08 MHz LVPECL 3.3V ±7ppm -40°C ~ 85°C
530BC114M285DG Skyworks Solutions Inc. Si530 114.285 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530EB50M0000DGR Skyworks Solutions Inc. Si530 50 MHz LVPECL 2.5V ±20ppm -40°C ~ 85°C
530EA312M500DG Skyworks Solutions Inc. Si530 312.5 MHz LVPECL 2.5V ±50ppm -40°C ~ 85°C
530FC311M040DG Skyworks Solutions Inc. Si530 311.04 MHz LVDS 2.5V ±7ppm -40°C ~ 85°C
530FC233M250DGR Skyworks Solutions Inc. Si530 233.25 MHz LVDS 2.5V ±7ppm -40°C ~ 85°C
530AB25M0000DG Skyworks Solutions Inc. Si530 25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
530FB125M000DG Skyworks Solutions Inc. Si530 125 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C
530EB121M109DG Skyworks Solutions Inc. Si530 121.109 MHz LVPECL 2.5V ±20ppm -40°C ~ 85°C
530AC125M000DG Skyworks Solutions Inc. Si530 125 MHz LVPECL 3.3V ±7ppm -40°C ~ 85°C
530BC125M000DG Skyworks Solutions Inc. Si530 125 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530FC125M000DG Skyworks Solutions Inc. Si530 125 MHz LVDS 2.5V ±7ppm -40°C ~ 85°C
530BA156M250DG Skyworks Solutions Inc. Si530 156.25 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530FA200M000DG Skyworks Solutions Inc. Si530 200 MHz LVDS 2.5V ±50ppm -40°C ~ 85°C
530AC156M250DG Skyworks Solutions Inc. Si530 156.25 MHz LVPECL 3.3V ±7ppm -40°C ~ 85°C
530BC156M250DG Skyworks Solutions Inc. Si530 156.25 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530FC156M250DG Skyworks Solutions Inc. Si530 156.25 MHz LVDS 2.5V ±7ppm -40°C ~ 85°C
530AC200M000DG Skyworks Solutions Inc. Si530 200 MHz LVPECL 3.3V ±7ppm -40°C ~ 85°C
530BC148M500DG Skyworks Solutions Inc. Si530 148.5 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530FB100M000DG Skyworks Solutions Inc. Si530 100 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C
530FA156M250DG Skyworks Solutions Inc. Si530 156.25 MHz LVDS 2.5V ±50ppm -40°C ~ 85°C
530FB200M000DG Skyworks Solutions Inc. Si530 200 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C
530FC50M0000DG Skyworks Solutions Inc. Si530 50 MHz LVDS 2.5V ±7ppm -40°C ~ 85°C
530AC250M000DG Skyworks Solutions Inc. Si530 250 MHz LVPECL 3.3V ±7ppm -40°C ~ 85°C
530BC622M080DG Skyworks Solutions Inc. Si530 622.08 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530BC125M000DGR Skyworks Solutions Inc. Si530 125 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530AC155M520DGR Skyworks Solutions Inc. Si530 155.52 MHz LVPECL 3.3V ±7ppm -40°C ~ 85°C
530BB156M250DG Skyworks Solutions Inc. Si530 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530EC156M250DG Skyworks Solutions Inc. Si530 156.25 MHz LVPECL 2.5V ±7ppm -40°C ~ 85°C
530BC187M500DG Skyworks Solutions Inc. Si530 187.5 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530BC200M000DG Skyworks Solutions Inc. Si530 200 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530BB100M000DG Skyworks Solutions Inc. Si530 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530BC312M500DG Skyworks Solutions Inc. Si530 312.5 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530BC250M000DG Skyworks Solutions Inc. Si530 250 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530AC106M250DG Skyworks Solutions Inc. Si530 106.25 MHz LVPECL 3.3V ±7ppm -40°C ~ 85°C
530FC106M250DG Skyworks Solutions Inc. Si530 106.25 MHz LVDS 2.5V ±7ppm -40°C ~ 85°C
530EB50M0000DG Skyworks Solutions Inc. Si530 50 MHz LVPECL 2.5V ±20ppm -40°C ~ 85°C
530AA156M250DG Skyworks Solutions Inc. Si530 156.25 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530EC148M500DG Skyworks Solutions Inc. Si530 148.5 MHz LVPECL 2.5V ±7ppm -40°C ~ 85°C
530FC148M500DG Skyworks Solutions Inc. Si530 148.5 MHz LVDS 2.5V ±7ppm -40°C ~ 85°C
530AB156M250DG Skyworks Solutions Inc. Si530 156.25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
530AC25M0000DG Skyworks Solutions Inc. Si530 25 MHz LVPECL 3.3V ±7ppm -40°C ~ 85°C
530AA40M0790DGR Skyworks Solutions Inc. Si530 40.079 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530FA40M0790DGR Skyworks Solutions Inc. Si530 40.079 MHz LVDS 2.5V ±50ppm -40°C ~ 85°C
530AA127M000DGR Skyworks Solutions Inc. Si530 127 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA40M0790DG Skyworks Solutions Inc. Si530 40.079 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530FA40M0790DG Skyworks Solutions Inc. Si530 40.079 MHz LVDS 2.5V ±50ppm -40°C ~ 85°C
530AA127M000DG Skyworks Solutions Inc. Si530 127 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AB24M0000DGR Skyworks Solutions Inc. Si530 24 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
530AB24M5760DGR Skyworks Solutions Inc. Si530 24.576 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
530BB122M880DGR Skyworks Solutions Inc. Si530 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530NB122M880DGR Skyworks Solutions Inc. Si530 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530AB24M0000DG Skyworks Solutions Inc. Si530 24 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
530AB24M5760DG Skyworks Solutions Inc. Si530 24.576 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
530BB122M880DG Skyworks Solutions Inc. Si530 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530NB122M880DG Skyworks Solutions Inc. Si530 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530AC12M9876DG Skyworks Solutions Inc. Si530 12.9876 MHz LVPECL 3.3V ±7ppm -40°C ~ 85°C
530BC32M5120DG Skyworks Solutions Inc. Si530 32.512 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530AC12M9876DGR Skyworks Solutions Inc. Si530 12.9876 MHz LVPECL 3.3V ±7ppm -40°C ~ 85°C
530BC32M5120DGR Skyworks Solutions Inc. Si530 32.512 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530BB000115DG Skyworks Solutions Inc. Si530 115 kHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530BB133M330DG Skyworks Solutions Inc. Si530 133.33 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530BB000115DGR Skyworks Solutions Inc. Si530 115 kHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530BB133M330DGR Skyworks Solutions Inc. Si530 133.33 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
530BA61M4400DGR Skyworks Solutions Inc. Si530 61.44 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530MA114M285DGR Skyworks Solutions Inc. Si530 114.285 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530BC400M000DGR Skyworks Solutions Inc. Si530 400 MHz LVDS 3.3V ±7ppm -40°C ~ 85°C
530BA31M2500DGR Skyworks Solutions Inc. Si530 31.25 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530AA112M000DGR Skyworks Solutions Inc. Si530 112 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530FA40M0000DGR Skyworks Solutions Inc. Si530 40 MHz LVDS 2.5V ±50ppm -40°C ~ 85°C
530FA49M2032DGR Skyworks Solutions Inc. Si530 49.2032 MHz LVDS 2.5V ±50ppm -40°C ~ 85°C
530FA50M0000DGR Skyworks Solutions Inc. Si530 50 MHz LVDS 2.5V ±50ppm -40°C ~ 85°C
530FA67M5840DGR Skyworks Solutions Inc. Si530 67.584 MHz LVDS 2.5V ±50ppm -40°C ~ 85°C
530FA99M9950DGR Skyworks Solutions Inc. Si530 99.995 MHz LVDS 2.5V ±50ppm -40°C ~ 85°C
530MA100M000DGR Skyworks Solutions Inc. Si530 100 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530MA106M250DGR Skyworks Solutions Inc. Si530 106.25 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530MA10M0000DGR Skyworks Solutions Inc. Si530 10 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530MA25M0000DGR Skyworks Solutions Inc. Si530 25 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530MA43M7500DGR Skyworks Solutions Inc. Si530 43.75 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530NA125M000DGR Skyworks Solutions Inc. Si530 125 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530NA65M0000DGR Skyworks Solutions Inc. Si530 65 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530RA25M0000DGR Skyworks Solutions Inc. Si530 25 MHz LVPECL 2.5V ±50ppm -40°C ~ 85°C
530SA26M0000DGR Skyworks Solutions Inc. Si530 26 MHz LVDS 2.5V ±50ppm -40°C ~ 85°C
530SA52M0000DGR Skyworks Solutions Inc. Si530 52 MHz LVDS 2.5V ±50ppm -40°C ~ 85°C
530AA000228DGR Skyworks Solutions Inc. Si530 122.167958 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA100M000DGR Skyworks Solutions Inc. Si530 100 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA106M250DGR Skyworks Solutions Inc. Si530 106.25 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA10M0000DGR Skyworks Solutions Inc. Si530 10 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA114M285DGR Skyworks Solutions Inc. Si530 114.285 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA11M2896DGR Skyworks Solutions Inc. Si530 11.2896 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA120M000DGR Skyworks Solutions Inc. Si530 120 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA122M880DGR Skyworks Solutions Inc. Si530 122.88 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA125M000DGR Skyworks Solutions Inc. Si530 125 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA12M0000DGR Skyworks Solutions Inc. Si530 12 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA14M7400DGR Skyworks Solutions Inc. Si530 14.74 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA15M0000DGR Skyworks Solutions Inc. Si530 15 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA16M0000DGR Skyworks Solutions Inc. Si530 16 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA19M4400DGR Skyworks Solutions Inc. Si530 19.44 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA20M0000DGR Skyworks Solutions Inc. Si530 20 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA25M0000DGR Skyworks Solutions Inc. Si530 25 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA25M0001DGR Skyworks Solutions Inc. Si530 25.0001 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA27M0000DGR Skyworks Solutions Inc. Si530 27 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA32M0000DGR Skyworks Solutions Inc. Si530 32 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA32M8600DGR Skyworks Solutions Inc. Si530 32.86 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA40M0000DGR Skyworks Solutions Inc. Si530 40 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA50M0000DGR Skyworks Solutions Inc. Si530 50 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA51M8400DGR Skyworks Solutions Inc. Si530 51.84 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA54M0000DGR Skyworks Solutions Inc. Si530 54 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA62M5000DGR Skyworks Solutions Inc. Si530 62.5 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA64M2000DGR Skyworks Solutions Inc. Si530 64.2 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA65M0000DGR Skyworks Solutions Inc. Si530 65 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA66M6600DGR Skyworks Solutions Inc. Si530 66.66 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA69M3300DGR Skyworks Solutions Inc. Si530 69.33 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA70M6560DGR Skyworks Solutions Inc. Si530 70.656 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA75M0000DGR Skyworks Solutions Inc. Si530 75 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA77M7600DGR Skyworks Solutions Inc. Si530 77.76 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA80M0000DGR Skyworks Solutions Inc. Si530 80 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA84M0000DGR Skyworks Solutions Inc. Si530 84 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530AA95M5730DGR Skyworks Solutions Inc. Si530 95.573 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
530BA100M000DGR Skyworks Solutions Inc. Si530 100 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA100M300DGR Skyworks Solutions Inc. Si530 100.3 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA106M250DGR Skyworks Solutions Inc. Si530 106.25 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA108M000DGR Skyworks Solutions Inc. Si530 108 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA10M0000DGR Skyworks Solutions Inc. Si530 10 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA119M000DGR Skyworks Solutions Inc. Si530 119 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA125M000DGR Skyworks Solutions Inc. Si530 125 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA12M2700DGR Skyworks Solutions Inc. Si530 12.27 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA25M0000DGR Skyworks Solutions Inc. Si530 25 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA32M0000DGR Skyworks Solutions Inc. Si530 32 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA32M5000DGR Skyworks Solutions Inc. Si530 32.5 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA33M3330DGR Skyworks Solutions Inc. Si530 33.333 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA40M0000DGR Skyworks Solutions Inc. Si530 40 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA40M0790DGR Skyworks Solutions Inc. Si530 40.079 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA41M6700DGR Skyworks Solutions Inc. Si530 41.67 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA50M0000DGR Skyworks Solutions Inc. Si530 50 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA53M1250DGR Skyworks Solutions Inc. Si530 53.125 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
530BA66M6670DGR Skyworks Solutions Inc. Si530 66.667 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
TH-6 890

联系方式/CONTACT US

泰河电话服务热线：0755-27872782  13824306246

泰河传真贸易通：泰河科技

泰河客服在线客服：794113422　　泰河微信号：taiheth794113422　　公众号：taihekj

泰河邮箱泰河邮箱：taiheth@163.com

泰河地址泰河地址：广东深圳市宝安区40区33号工业城6楼

泰河地址泰河官网：http://www.smdcrystal.com/

Skyworks晶振 530FC200M000DG LVDS输出晶振 6G以太网晶振

跟此产品相关的产品 / Related Products

ABLNO-100.000MHZ,ABLNO石英贴片晶振,军用通信晶振
ABLNO-100.000MHZ,ABLNO石英贴片晶振,军用通信晶振
ABLNO-100.000MHZ,ABLNO石英贴片晶振,军用通信晶振,兼具高频性能,高可靠性与高适配性,是军用通信领域频率控制的优选方案.其100.000MHz高频输出可直接匹配军用通信设备的高频信号处理需求,无需额外频率转换电路,简化设备设计流程,贴片工艺与军用级环境耐受性的结合,既满足军用装备的集成化与机动性要求,又保障极端环境下的稳定运行,加上Abracon符合军用标准的生产管控与质量检测体系,产品可通过国军标(GJB)等相关认证,在军用通信,低相噪振荡器,航空航天,国防电子等领域树立了"高可靠,强适应"的高品质晶振形象,为国防电子设备的稳定运行提供核心技术保障.
ABLJO-100.000MHZ-T2,3.3V有源晶振,Abracon艾博康晶振
ABLJO-100.000MHZ-T2,3.3V有源晶振,Abracon艾博康晶振
ABLJO-100.000MHZ-T2,3.3V有源晶振,Abracon艾博康晶振,以3.3V为标准供电电压,Abracon通信晶振在电路适配与能耗控制上具备显著优势.3.3V供电兼容当前主流电子设备的低压电路架构,可与FPGA,MCU,射频芯片等常用元器件无缝对接,无需额外电压转换模块,降低硬件设计复杂度与成本,同时,低压供电特性有效减少设备整体功耗,尤其适配电池供电的便携式设备(如高端智能穿戴,手持检测仪器)及对能耗敏感的服务器,通信基站等设备,在保障高频性能的同时,助力设备实现节能降耗目标.
ABDFVCTCXO-10.000MHZ-E-2-CT,压控温补晶振,LVCMOS晶振
ABDFVCTCXO-10.000MHZ-E-2-CT,压控温补晶振,LVCMOS晶振
ABDFVCTCXO-10.000MHZ-E-2-CT,压控温补晶振,LVCMOS晶振,凭借压控温补双重特性与LVCMOS信号优势,该晶振适配场景广泛.在无线通信领域,可用于基站,路由器,卫星通信设备,通过压控功能实现频率同步,温补功能保障不同环境温度下通信信号稳定,在物联网应用晶振终端设备中,低功耗的LVCMOS信号与精准的频率控制,能满足设备长期联网与数据传输的时钟需求,在工业自动化领域,可应用于PLC(可编程逻辑控制器),工业传感器,抵御工业环境温度波动与电磁干扰,确保设备精准运行,此外,还适配医疗电子设备,汽车电子(如车载导航,ADAS系统)等领域,为各类高精度电子系统提供可靠时钟支撑.
泰河盛产品中心 Product Center

石英晶振

谐振器

滤波器

雾化片

SMD晶振

有源晶振

KDS晶振

爱普生晶振

京瓷晶振

32.768K

联系泰河电子
咨询热线 咨询热线：0755-27872782

手机：13824306246

QQ：794113422QQ

邮箱：taiheth@163.com

地址：广东深圳市宝安区40区33号工业城6楼

快速通道快速通道

泰河盛公众号泰河盛微信号
首页KDS晶振爱普生晶振京瓷晶振SMD晶振石英晶振有源晶振雾化片-滤波器-谐振器行业新闻关于泰河联系泰河网站地图
Copyright © 1996-2017 泰河电子 版权所有 地址：广东深圳市宝安区40区33号工业城6楼 备案号：粤ICP备2022069225号
