Skyworks晶体,536FB156M250DG,LVDS晶振,6G以太网晶振
频率：156.25MHZ
尺寸：7.0×5.0mm
Skyworks晶体,536FB156M250DG,LVDS晶振,6G以太网晶振,Skyworks晶振,156.25M晶振,Si536石英晶体振荡器用DSPLL时钟合成提供了优越的电源噪声抑制,简化了在通信系统中通常存在的噪声环境中产生低抖动时钟的任务,基于536 IC的XO发货时在工厂进行编程,从而消除了与定制振荡器相关的长交货时间,7050贴片晶振,LVDS晶振,差分晶振,6G以太网晶振,数据中心晶振,网络交换晶振,测试与测量设备晶振.
咨询热线：0755-27872782
Skyworks晶体,536FB156M250DG,LVDS晶振,6G以太网晶振,Skyworks晶振,156.25M晶振,Si536石英晶体振荡器用DSPLL时钟合成提供了优越的电源噪声抑制,简化了在通信系统中通常存在的噪声环境中产生低抖动时钟的任务,基于536 IC的XO发货时在工厂进行编程,从而消除了与定制振荡器相关的长交货时间,7050贴片晶振,LVDS晶振,差分晶振,6G以太网晶振,数据中心晶振,网络交换晶振,测试与测量设备晶振.
Skyworks晶体,536FB156M250DG,LVDS晶振,6G以太网晶振特点
•可与任意速率输出频率从100MHz到312.5MHz
•第三代DSPLL®具有卓越的抖动性能和高电源噪声抑制
•频率稳定性优于SAW-based振荡器
•具备LVPECL和LVDS输出
•3.3和2.5 V电源选项
•行业标准的5 × 7mm封装和引脚
•无铅，符合RoHS标准
Skyworks晶体,536FB156M250DG,LVDS晶振,6G以太网晶振规格表
项目
符号
规格说明
条件
额定频率
f_nom
156.25MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
2.5V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±20 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
98mA Max
LVDS
对称性（占空比）
SYM
45%~55%
在输出交叉点
输出电压
VOD
0.9VPP Max
LVDS
VO
1.275V Max
输入电压
VIH
0.75%×VDD Min
VIL
0.5V Max
上升下降时间
tr/tf
350ps Max
LVDS
起始时间
t str
10ms Max
相位抖动
tpj
0.40ps Max
LVDS

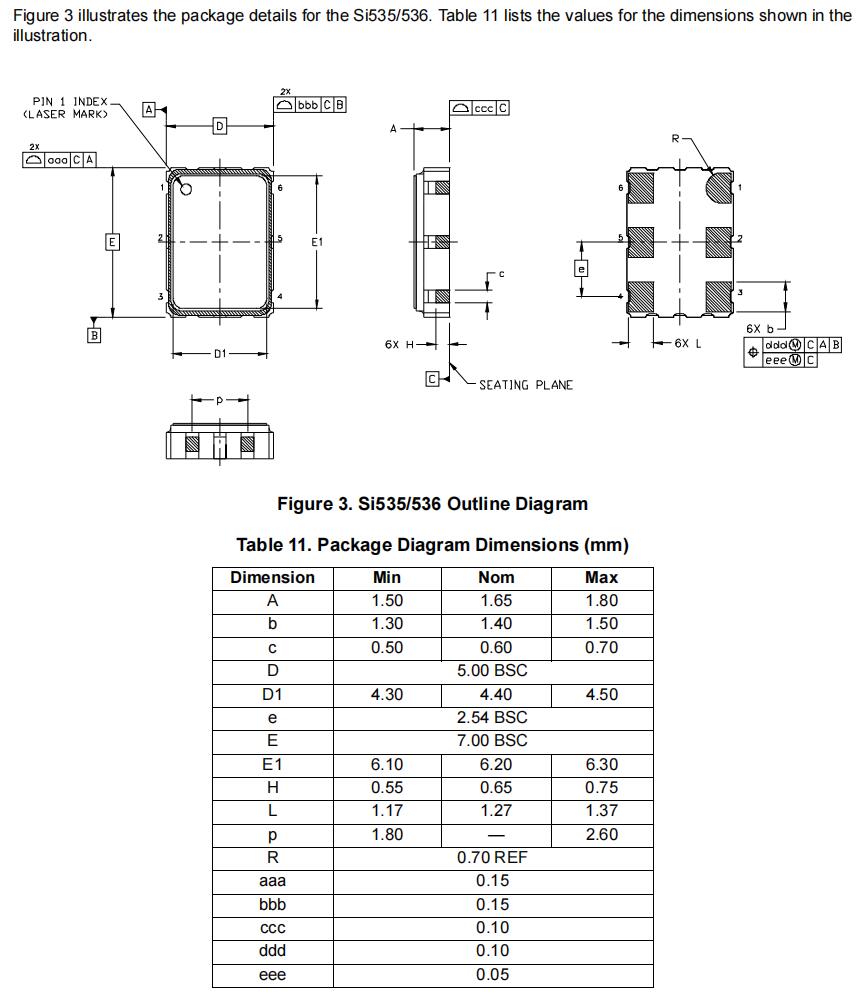

Skyworks晶体,536FB156M250DG,LVDS晶振,6G以太网晶振尺寸图

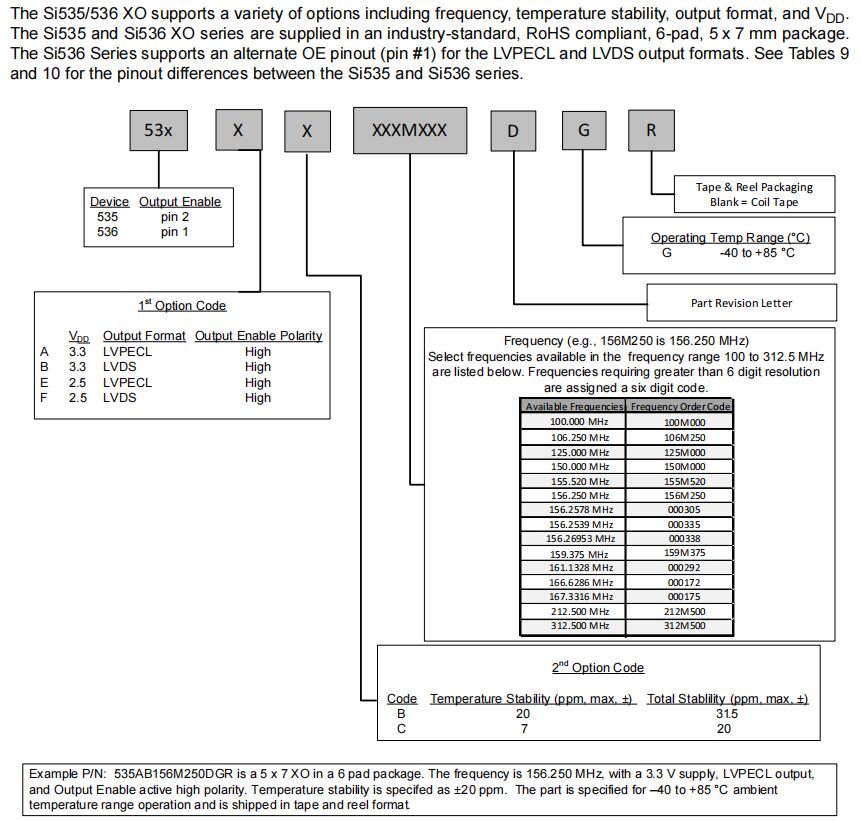

| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| 536BB125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536FB125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AB156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AC125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BB000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BC000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536FB000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FC000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000338DGR | Skyworks Solutions Inc. | Si536 | 338 kHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536BB000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BC000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536FB000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FC000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000338DG | Skyworks Solutions Inc. | Si536 | 338 kHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536AB000335DGR | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000335DGR | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536EB000119DGR | Skyworks Solutions Inc. | Si536 | 167.331646 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AB000335DG | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AC000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536EB000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EC000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536AB125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536EB125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AB000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AC000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536EB000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EC000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536AB100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000335DG | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536EB000119DG | Skyworks Solutions Inc. | Si536 | 167.331646 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AB212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536FB212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AB212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536FB212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AC000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000335DGR | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000335DGR | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536EC100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536AC000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000335DG | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000335DG | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536EC100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536BC212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
联系方式/CONTACT US
服务热线：0755-27872782 13824306246
贸易通：泰河科技
在线客服：794113422 泰河微信号：taiheth794113422 公众号：taihekj
泰河邮箱：taiheth@163.com
泰河地址：广东深圳市宝安区40区33号工业城6楼
跟此产品相关的产品 / Related Products
- P143-125.0M,7050mm,ConnorWinfield差分晶振,P系列时钟振荡器
- P143-125.0M,7050mm,ConnorWinfield差分晶振,P系列时钟振荡器，美国ConnorWinfield晶振，康纳温菲尔德晶振，型号：Pxxx系列晶振，编码为：P143-125.0M，频率：125M差分晶振，电压：3.3V，频率稳定性：±20ppm，工作温度范围：0至+70℃，小体积晶振尺寸：7.0x5.0x2.0mm封装，六脚贴片晶振，石英晶振，LVPECL输出晶振，差分晶体振荡器，SMD晶振。具有超小型，轻薄型，高性能，高精度，高品质，高质量，低相位噪声等特点。应用程序：通讯设备晶振，无线网络晶振，路由器晶振，交换机晶振，物联网晶振等应用。
- IQD CRYSTAL|IQXC-26|LFXTAL078691Cutt|1612无源晶振
IQD CRYSTAL|IQXC-26|LFXTAL078691Cutt|1612无源晶振,欧美进口晶振,IQD CRYSTAL,IQXC-26无源晶振,石英晶振,LFXTAL078691Cutt晶振,1612mm晶振,晶体谐振器,SMD晶振,四脚贴片晶振,频率24MHz,负载20pF,频率容差10ppm,工作温度-40~85°C,轻薄小晶振,耐老化晶振,高可靠性晶振,智能手机晶振,笔记本电脑晶振,调制解调器晶振,消费电子产品晶振.
- IQD晶振|HC-49|LFXTAL053009Bulk|插件石英晶振
IQD晶振|HC-49|LFXTAL053009Bulk|插件石英晶振,欧美进口晶振,IQD晶振,HC-49插件晶振,无源晶振,LFXTAL053009Bulk晶振,石英晶体谐振器,11.05×4.65mm晶振,二脚封装晶振,频率27.145MHz,负载20pF,频率容差30ppm,工作温度-40~85°C,采用电阻焊接,在惰性气体中密封,引线上的玻璃与金属密封,低成本晶振,高可靠性晶振,耐老化晶振,调制解调器晶振,DVD家电影音系统晶振,USB设备晶振,储存卡晶振.
泰河盛产品中心
Product Center
石英晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康纳温菲尔德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 维管晶振
- ECScrystal晶振
- 日蚀晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- ILSI晶振
- FOX晶振
- Fujicom晶振
- AEK晶振
- CRYSTEK晶振
- Interquip晶振
- Geyer晶振
- Quartzcom晶振
- qantek晶振
- EUROQUARTZ晶振
- Quarztechnik晶振
- Cardinal晶振
- FRE-TECH晶振
- KVG晶振
- Wi2wi晶振
- AEL晶振
- Transko晶振
- Suntsu晶振
- Mmdcomp晶振
- MERCURY晶振
- MTRONPTI晶振
- ACT晶振
- MTI-MILLIREN晶振
- LIHOM晶振
- CTECH晶振
- rubyquartz晶振
- OSCILENT晶振
- NAKA晶振
- Shinsung晶振
- ITTI晶振
- SMI晶振
- PDI晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- Filtronetics晶振
- Standard晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- AXTAL晶振
- ARGO晶振
- Renesas瑞萨晶振
谐振器
滤波器
雾化片
SMD晶振
有源晶振
KDS晶振
爱普生晶振
- 爱普生32.768K晶体
- 爱普生 OSC晶振
- 爱普生 OCXO晶振
- 爱普生 VCXO晶振
- 爱普生 TCXO晶振
- 爱普生无源晶振
- 爱普生 CMOS晶振
- 爱普生 LV-PECL晶振
- 爱普生 LVDS晶振
- 爱普生 HCSL晶振
- 爱普生 VC-TCXO晶振
京瓷晶振
32.768K
联系泰河电子
咨询热线：
快速通道
