1C208000BC0U|KDS晶振|株式会社大真空|陶瓷面晶体
| Model Name 型号 | DSX321G |
| Original code 原厂代码 | 1C208000BC0U |
| Device Name 产品名称系列 | CRYSTAL(石英晶体) |
| Nominal Frequency 标称频率 | 8.000000 MHZ |
|
LOAD CAPACITANCE(CL) 负载电容 |
12.0PF |
|
DRIVE LEVEL 驱动电平
|
10 uW |
|
FREQUENCY TOLERANCE 频率偏差 |
20ppm |
|
Operating Temperature Range 工作温度范围 |
-30~+85℃ |
|
Storage temperature 储存温度 |
-40~+85℃ |
|
SHUNT CAPACITANCE(C0) 并联电容 |
2.0pF max |
|
FREQUENCY CHARACTERISTICS OVER频率特性 |
30ppm |
|
INSULATION RESISTANCE 绝缘电阻 |
500 Mohms min.at 100v DC |
|
OVERTONE ORDER 泛音顺序 |
基本 |

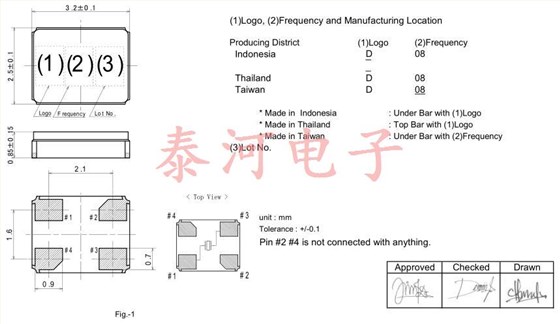

| SIZE 尺寸 | 3.2*2.5*0.85mm |

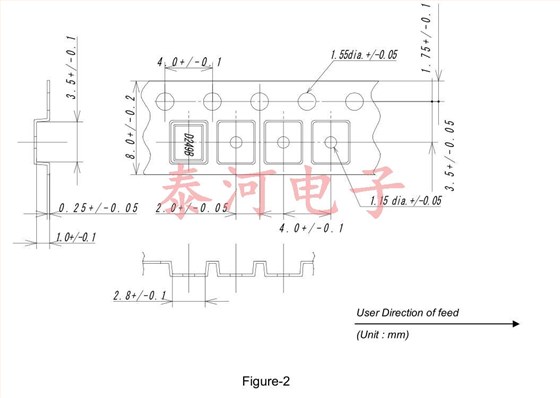

Dimensions of embossed carrier tape

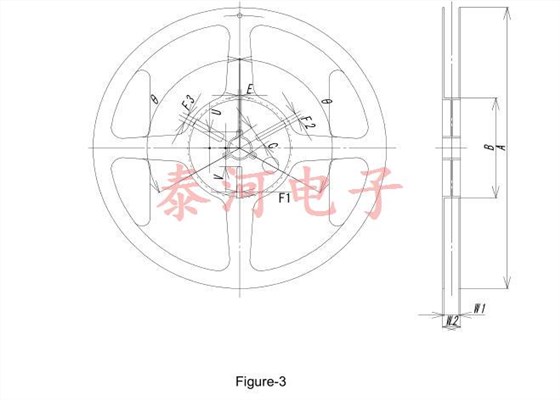

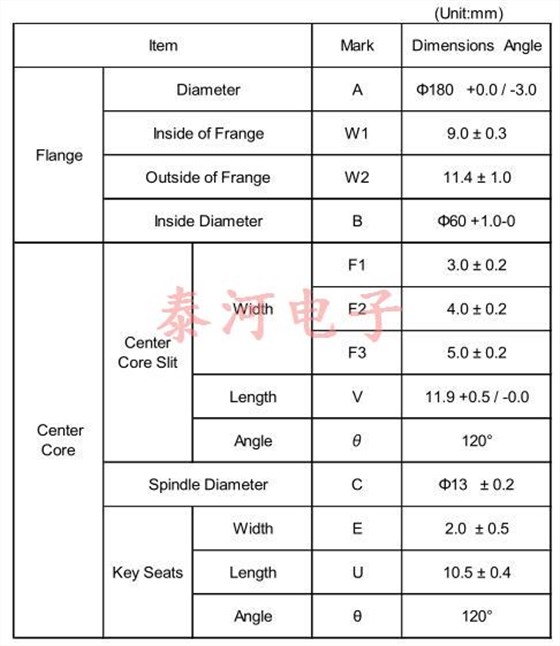

Dimensions of tape reel
