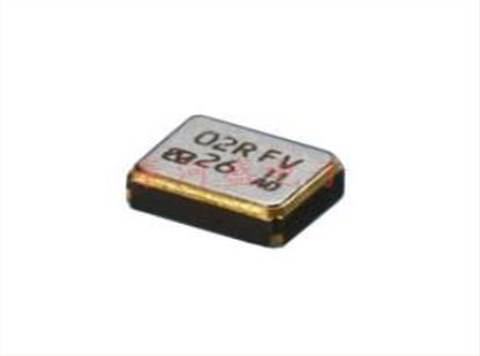

NT2016SF晶振,2016 32M TCXO,END5875A温补晶振参数描述
| Mfr.# 制造商产品编号 | END5875A |
| Series 系列型号 | NT2016SF |
| Product Type产品类型 | TCXO温补晶振 |
| Manufacturer品牌 | NDK |
| Frequency 频率 | 32M |
| Supply Voltage 电压 | 3V |
| Frequency Stability频率稳定性 | 2.5PPM |
|
Operating Temperature Range
工作温度范围 |
-40~-85度 |
|
Output Waveform 输出波形 |
Clipped sine wave (DC-Coupling) |
| 安装类型 | Surface Mount |

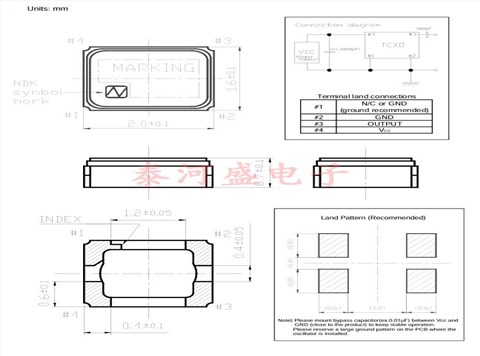

| Size包装尺寸 | 2016晶振 |
| Packaging包装 | Tape and Reel |
| Mounting Style: | SMD/SMT |
| Subcategory子类别 | Oscillator |
NT2016SF晶振,2016 32M TCXO,END5875A温补晶振相关产品
| Model | Features | Nominal frequency[MHz] | Specification number | Package size(LxW)[mm] | Output specification | Operating temperature rang[℃] | Supply voltage[V] |
| NT2016SA | TCXO(±0.5 ppm) | 16.368 | NSC5318A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 16.369 | NSC5318A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 16.384 | NSC5318A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 19.2 | NSC5318A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 20 | NSC5318A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 25 | NSC5318A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 26 | NSC5318B | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 32 | NSC5318C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 38.4 | NSC5318C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 40 | NSC5318C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 48 | NSC5318D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 50 | NSC5318D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) | 52 | NSC5318D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 16.368 | NSC5352A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 16.369 | NSC5352A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 16.384 | NSC5352A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 19.2 | NSC5352A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 20 | NSC5352A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 25 | NSC5352A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 26 | NSC5352B | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 32 | NSC5352C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 38.4 | NSC5352C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 40 | NSC5352C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 48 | NSC5352D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 50 | NSC5352D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) | 52 | NSC5352D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 16.368 | NSC5353A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 16.369 | NSC5353A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 16.384 | NSC5353A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 19.2 | NSC5353A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 20 | NSC5353A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 25 | NSC5353A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 26 | NSC5353B | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 32 | NSC5353C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 38.4 | NSC5353C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 40 | NSC5353C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 48 | NSC5353D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 50 | NSC5353D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±0.5 ppm) Automotive | 52 | NSC5353D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 16.368 | NSC5354A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 16.369 | NSC5354A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 16.384 | NSC5354A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 19.2 | NSC5354A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 20 | NSC5354A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 25 | NSC5354A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 26 | NSC5354B | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 32 | NSC5354C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 38.4 | NSC5354C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 40 | NSC5354C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 48 | NSC5354D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 50 | NSC5354D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SA | TCXO(±2.0 ppm) Automotive | 52 | NSC5354D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SB | TCXO(Stand-by function) | 19.2 | NSC5323A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SB | TCXO(Stand-by function) | 20 | NSC5323A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SB | TCXO(Stand-by function) | 25.6 | NSC5323A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SB | TCXO(Stand-by function) | 26 | NSC5323A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SB | TCXO(Stand-by function) | 32 | NSC5323A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SB | TCXO(Stand-by function) | 38.4 | NSC5323A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SB | TCXO(Stand-by function) | 36 | NSC5323A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SB | TCXO(Stand-by function) | 48 | NSC5323A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SB | TCXO(Stand-by function) | 40 | NSC5323A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SB | TCXO(Stand-by function) | 52 | NSC5323A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SE | TCXO(±0.5 ppm / +105 °C) Automotive | 16.368 | NSC5350B | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±0.5 ppm / +105 °C) Automotive | 16.369 | NSC5350B | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±0.5 ppm / +105 °C) Automotive | 26 | NSC5350B | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±0.5 ppm / +105 °C) Automotive | 32 | NSC5350C | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±0.5 ppm / +105 °C) Automotive | 40 | NSC5350C | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±0.5 ppm / +105 °C) Automotive | 48 | NSC5350C | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±0.5 ppm / +105 °C) Automotive | 50 | NSC5350C | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±0.5 ppm / +105 °C) Automotive | 52 | NSC5350C | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 16.368 | NSC5363A | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 16.369 | NSC5363A | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 16.384 | NSC5363A | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 19.2 | NSC5363A | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 20 | NSC5363A | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 25 | NSC5363A | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 26 | NSC5363B | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 32 | NSC5363C | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 38.4 | NSC5363C | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 40 | NSC5363C | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 32.74 | NSC5363C | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 48 | NSC5363D | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 50 | NSC5363D | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SE | TCXO(±2.0 ppm / +105 °C) Automotive | 52 | NSC5363D | 2.0×1.6 | Clipped Sine | -40?+105 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 16.368 | NSC5359A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 16.369 | NSC5359A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 22.5792 | NSC5359A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 24.576 | NSC5359A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 26 | NSC5359B | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 32 | NSC5359C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 38.4 | NSC5359C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 40 | NSC5359C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 45.1584 | NSC5359D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 48 | NSC5359D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 49.152 | NSC5359D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 50 | NSC5359D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 52 | NSC5359D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 76.8 | NSC5359D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 16.368 | NSC5360A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 16.369 | NSC5360A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 22.5792 | NSC5360A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 24.576 | NSC5360A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 26 | NSC5360B | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 32 | NSC5360C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 38.4 | NSC5360C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 40 | NSC5360C | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 45.1584 | NSC5360D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 48 | NSC5360D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 49.152 | NSC5360D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 50 | NSC5360D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 52 | NSC5360D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJA | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 76.8 | NSC5360D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJB | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 22.5792 | NSC5361A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJB | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 24.576 | NSC5361A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJB | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 45.1584 | NSC5361D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJB | TCXO(Low phase noise / Stand-by function / ±0.5 pp | 49.152 | NSC5361D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJB | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 22.5792 | NSC5362A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJB | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 24.576 | NSC5362A | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJB | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 45.1584 | NSC5362D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SJB | TCXO(Low phase noise / Stand-by function/ ±2.0 ppm | 49.152 | NSC5362D | 2.0×1.6 | Clipped Sine | -30?+85 | 1.8 |
| NT2016SLA | TCXO(CMOS output) | 12 | NSC5364A | 2.0×1.6 | CMOS | -30?+85 | 1.8 |
| NT2016SLA | TCXO(CMOS output) | 20 | NSC5364A | 2.0×1.6 | CMOS | -30?+85 | 1.8 |
| NT2016SLA | TCXO(CMOS output) | 24 | NSC5364A | 2.0×1.6 | CMOS | -30?+85 | 1.8 |
| NT2016SLA | TCXO(CMOS output) | 25 | NSC5364A | 2.0×1.6 | CMOS | -30?+85 | 1.8 |
| NT2016SLA | TCXO(CMOS output) | 40 | NSC5364A | 2.0×1.6 | CMOS | -30?+85 | 1.8 |
| NT2016SLA | TCXO(CMOS output) | 50 | NSC5364A | 2.0×1.6 | CMOS | -30?+85 | 1.8 |
| NT2016SLA | TCXO(CMOS output) | 12 | NSC5365A | 2.0×1.6 | CMOS | -30?+85 | 3.3 |
| NT2016SLA | TCXO(CMOS output) | 20 | NSC5365A | 2.0×1.6 | CMOS | -30?+85 | 3.3 |
| NT2016SLA | TCXO(CMOS output) | 24 | NSC5365A | 2.0×1.6 | CMOS | -30?+85 | 3.3 |
| NT2016SLA | TCXO(CMOS output) | 25 | NSC5365A | 2.0×1.6 | CMOS | -30?+85 | 3.3 |
| NT2016SLA | TCXO(CMOS output) | 40 | NSC5365A | 2.0×1.6 | CMOS | -30?+85 | 3.3 |
| NT2016SLA | TCXO(CMOS output) | 50 | NSC5365A | 2.0×1.6 | CMOS | -30?+85 | 3.3 |
