晶振编码查询/ABM13W-32.0000MHZ-5-D2G-T5/1210mm/32MHz/Abracon无源晶振

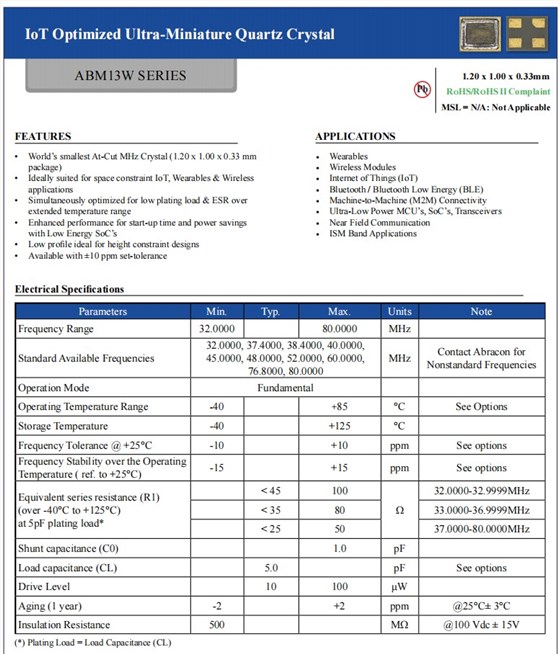

Parameters | Min. | Typ. | Max. | Units | Note | |||||||||||||
Frequency Range | 32.0000 | 80.0000 | MHz | |||||||||||||||
Standard Available Frequencies | 32.0000, 37.4000, 38.4000, 40.0000,45.0000, 48.0000,52.0000, 60.0000,76.8000, 80.0000 | MHz | Contact Abracon for Nonstandard Frequencies |
|||||||||||||||
Operation Mode | Fundamental | |||||||||||||||||
Operating Temperature Range | -40 | +85 | °C | See Options | ||||||||||||||
Storage Temperature | -40 | +125 | °C | |||||||||||||||
Frequency Tolerance @ +25°C | -10 | +10 | ppm | See options | ||||||||||||||
Frequency Stability over the Operating Temperature ( ref. to +25°C) |
-15 | +15 | ppm | See options | ||||||||||||||
Equivalent series resistance (R1) (over -40°C to +125°C) at 5pF plating load* |
< 45 | 100 | Ω | 32.0000-32.9999MHz | ||||||||||||||
< 35 | 80 | 33.0000-36.9999MHz | ||||||||||||||||
< 25 | 50 | 37.0000-80.0000MHz | ||||||||||||||||
Shunt capacitance (C0) | 1.0 | pF | ||||||||||||||||
Load capacitance (CL) | 5.0 | pF | See options | |||||||||||||||
Drive Level | 10 | 100 | μW | |||||||||||||||
Aging (1 year) | -2 | +2 | ppm | @25°C± 3°C | ||||||||||||||
Insulation Resistance | 500 | MΩ | @100 Vdc ± 15V |

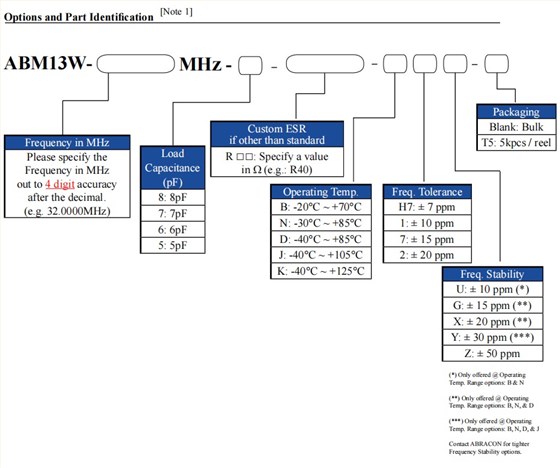

产品编码 | 晶振厂家 | 型号 | 频率 | 长度 | 宽度 | 高度 |
ABM13W-32.0000MHZ-5-B1G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-B1U-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-B1X-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-B1Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-B1Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-B2G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-B2U-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-B2X-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-B2Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-B2Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-BH7G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-BH7U-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-BH7X-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-BH7Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-BH7Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-D1G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-D1X-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-D1Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-D1Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-D2G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-D2X-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-D2Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-D2Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-DH7G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-DH7X-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-DH7Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-DH7Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-J1Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-J1Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-J2Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-J2Z-T5 | 贴片晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-JH7Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-JH7Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-K1Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-K2Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-KH7Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-N1G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-N1U-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-N1X-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-N1Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-N1Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-N2G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-N2U-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-N2X-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-N2Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-N2Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-NH7G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-NH7U-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-NH7X-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-NH7Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-5-NH7Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-B1G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-B1U-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-B1X-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-B1Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-B1Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-B2G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-B2U-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-B2X-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-B2Y-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-B2Z-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-BH7G-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
ABM13W-32.0000MHZ-6-BH7U-T5 | Abracon晶振 | ABM13W | 32 MHz | 1.2mm | 1mm | 0.33mm |
