汽车级SMD晶振ASEKDVAIG-32.768kHz-KC-T3非常适合汽车或工业应用

Abracon’s ASEKDVAIG, ASAKDVAIG, and ASDKDVAIGOscilent Crystalare AEC-Q200 qualified and manufactured on fully certified IATF 16949 production lines, giving long-term reliability while reducing cost. The automotive-grade products are offered at a wide operating temperature range from -40°C to +125°C, supporting applications like in-vehicle networking or GPS/navigation. The AIG Continuous Voltage series can be dropped in various voltage supplies, making it easier to implement in a design requiring different voltages. With a wide operating temperature range optimized for low current consumption, these devices are favorable for automotive or industrial use.

Abracon晶振ASEKDVAIG、ASAKDVAIG和ASDKDVAIG通过了AEC-Q200认证，并在完全认证的IATF 16949生产线上生产，在降低成本的同时提供了长期的可靠性。汽车级产品的工作温度范围很宽，从-40°C到+125°C，支持车载网络或GPS/导航等应用。AIG连续电压系列可以在各种电源电压下下降，使其更容易在需要不同电压的设计中实施。这些器件具有针对低功耗而优化的宽工作温度范围。汽车级SMD晶振ASEKDVAIG-32.768kHz-KC-T3非常适合汽车或工业应用

汽车级SMD晶振ASEKDVAIG-32.768kHz-KC-T3非常适合汽车或工业应用

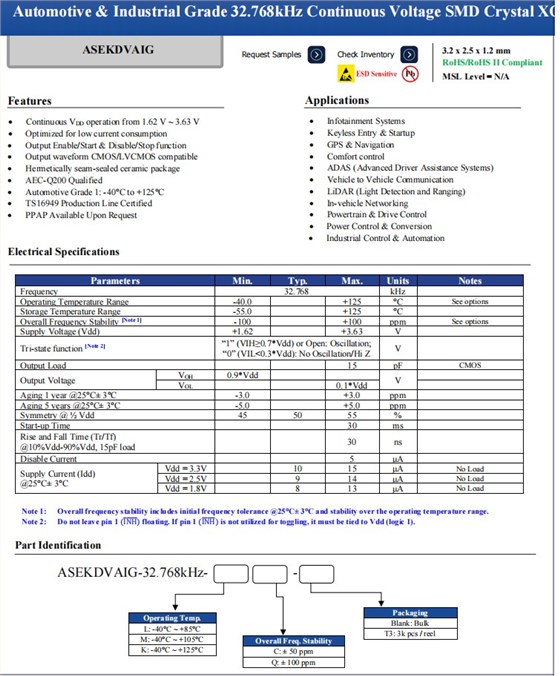

ASEKDVAIG Features：
Continuous VDD operation from 1.62V~3.63V
Optimized for low current consumption
Output Enable/Start & Disable/Stop function
Output waveform CMOS/LVCMOS compatible
Hermetically seam-sealed ceramic package
AEC-Q200 Qualified
Automotive Grade 1: -40°C to +125°C
TS16949 Production Line Certified
PPAP Available Upon Request
ASEKDVAIG晶体振荡器特征：
1.62V~3.63V范围内的连续VDD工作电压
针对低功耗进行了优化
输出启用/启动和禁用/停止功能
输出波形CMOS/LVCMOS兼容
气密接缝密封的陶瓷封装
符合AEC-Q200标准
汽车1级：-40℃至+125℃
TS16949生产线认证
PPAP可根据要求提供

汽车级SMD晶振ASEKDVAIG-32.768kHz-KC-T3非常适合汽车或工业应用

Applications：
Infotainment Systems
Keyless Entry & Startup
GPS & Navigation
Comfort Control
ADAS (Advanced Driver Assistance Systems)
Vehicle-to-Vehicle Communication
LiDAR (Light Detection and Ranging)
In-vehicle Networking
Powertrain & Drive Control
石英晶体振荡器应用程序：
信息娱乐系统
无钥匙进入和启动
GPS和导航
舒适控制
高级驾驶辅助系统
车对车通信
激光雷达(光探测和测距)
车载网络
动力系统和驱动控制
